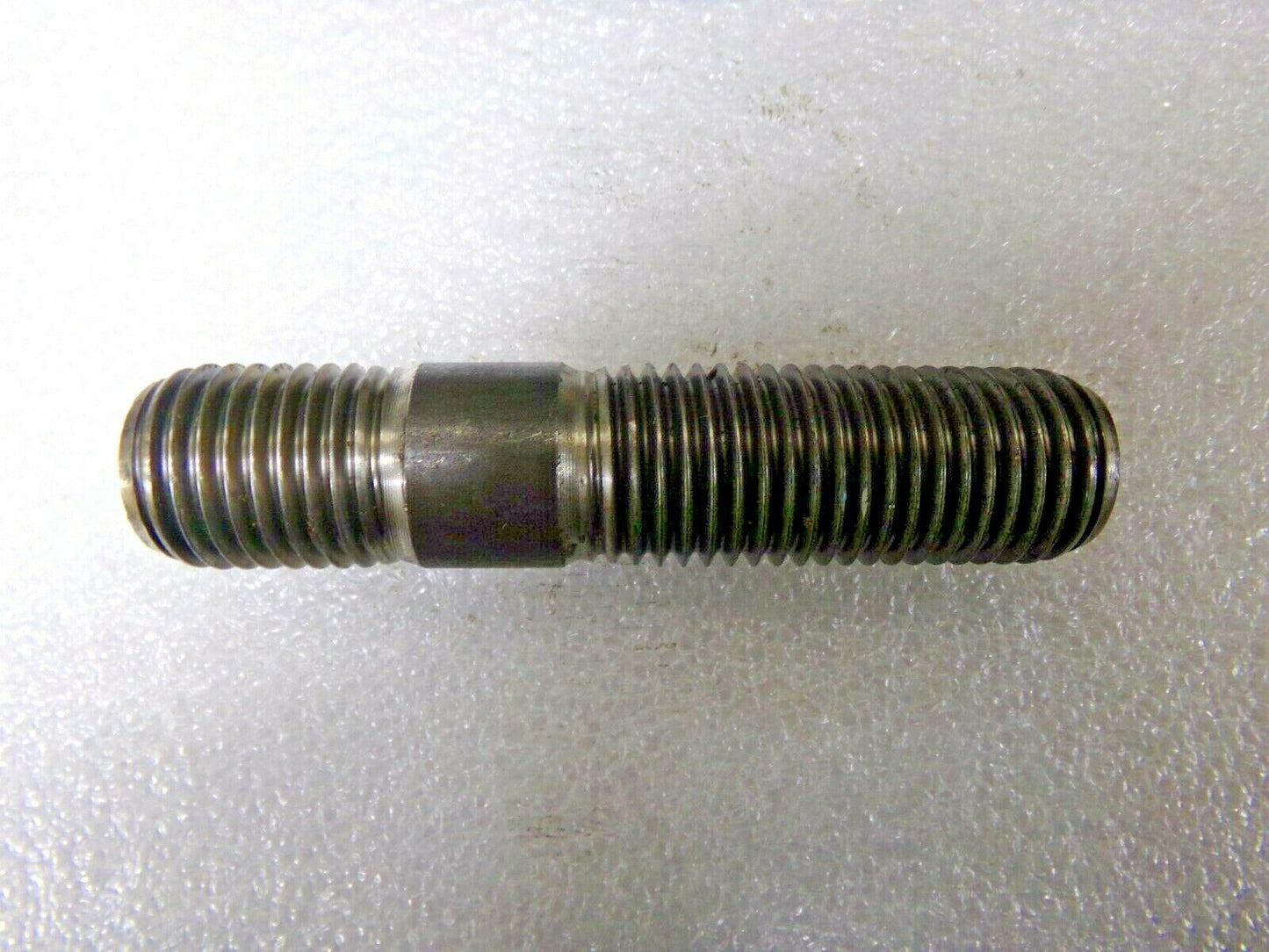

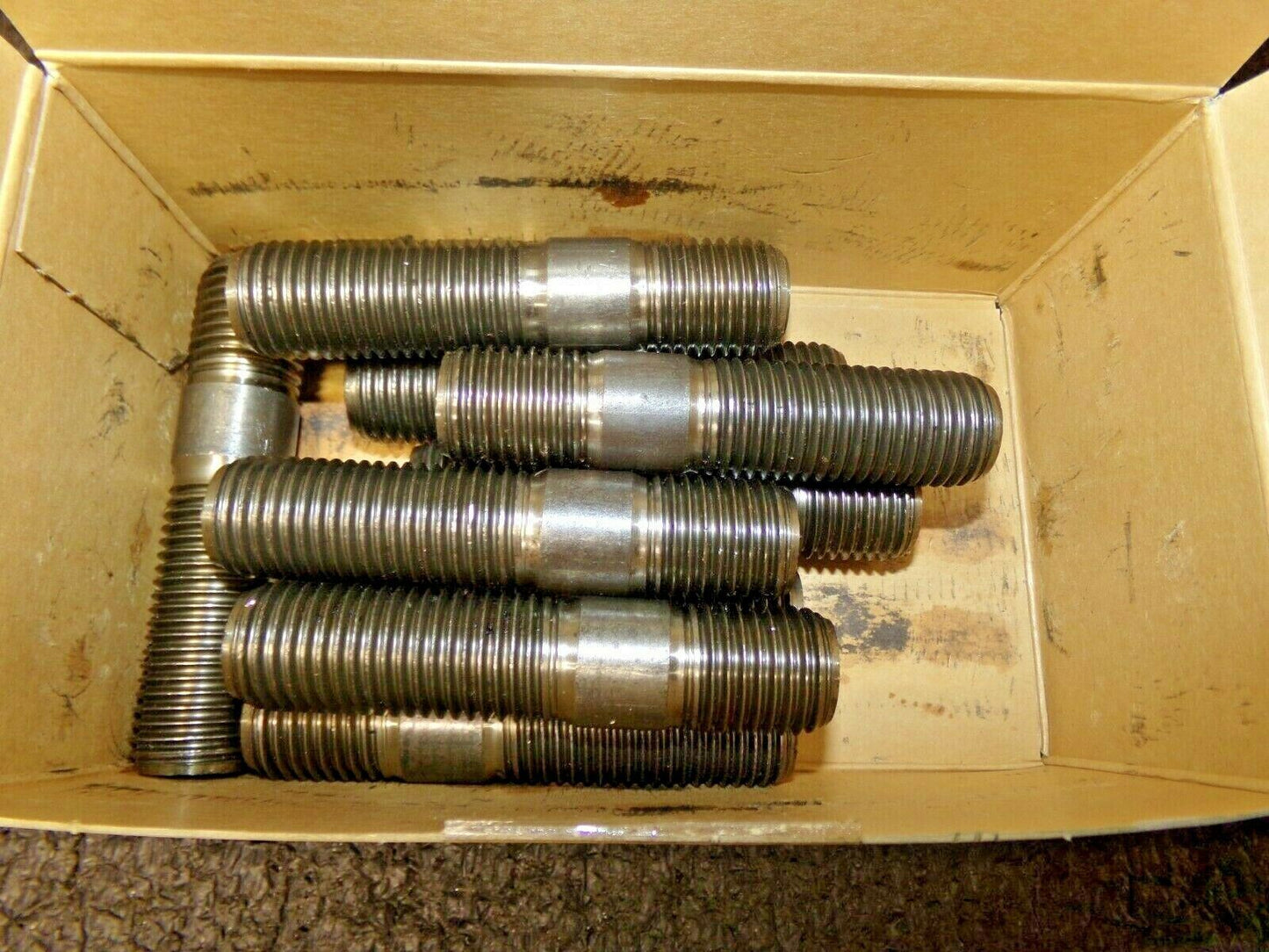

10 STUD METAL END ≈ 1,25D DIN 939 STEEL RIGHT PLAIN 8.8 M22X70 (183786809255-NBT13)

$19.99

Shipping calculated at checkout

SKU: 183786809255-NBT13

Only 2 left!
10 STUD METAL END ≈ 1,25D DIN 939 STEEL RIGHT PLAIN 8.8 M22X70 (183786809255-NBT13)
Description Let Us Know What You Think

10 STUD METAL END ≈ 1,25D DIN 939 STEEL RIGHT PLAIN 8.8 M22X70


Diameter (d-D) M22
Length (L) (mm) 70
Info
  • ATTENTION: when ordering studs according to this DIN standard the proper designation is d x L,e.g. stud M10X70 - DIN 938, where the working length L = 70 mm and the thread length on the metal end bm = 12 mm. The overall length of the stud is 70 + 12 = 82 mm. The thread length on the nut end b= 26 mm.
  • The thread tolerance class on the metal end is Sk6 according to DIN 13-51, meaning ""transition fit"", which prevents loosening of the metal end of the studs during disassembly.
  • In case this transition fit is not wanted, add ""Fo""in the designation. These studs have thread tolerance class 6g on both ends and can be supplied as specials.
    • Studs according to DIN 939 with a metal end ≈1,25d have many applications, but are mainly intended for use in cast iron counterparts.
Class 8.8
Material Steel
Thread direction Right
Surface treatment Plain
Thread Metric thread
