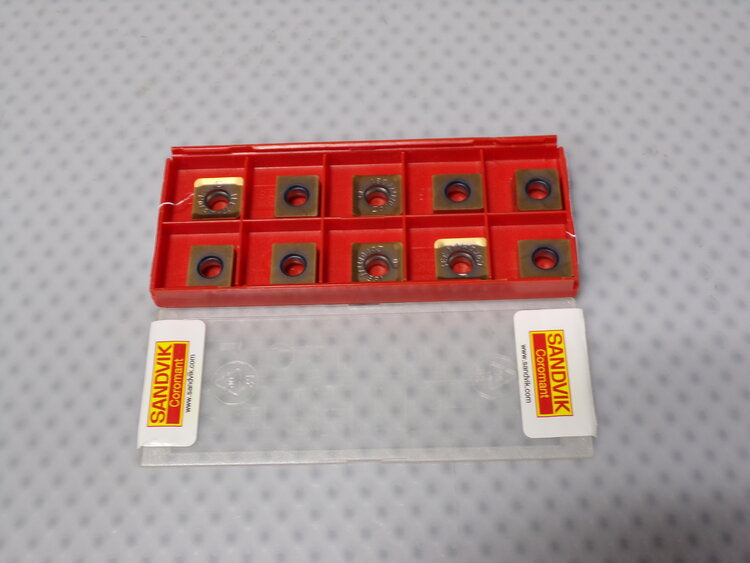

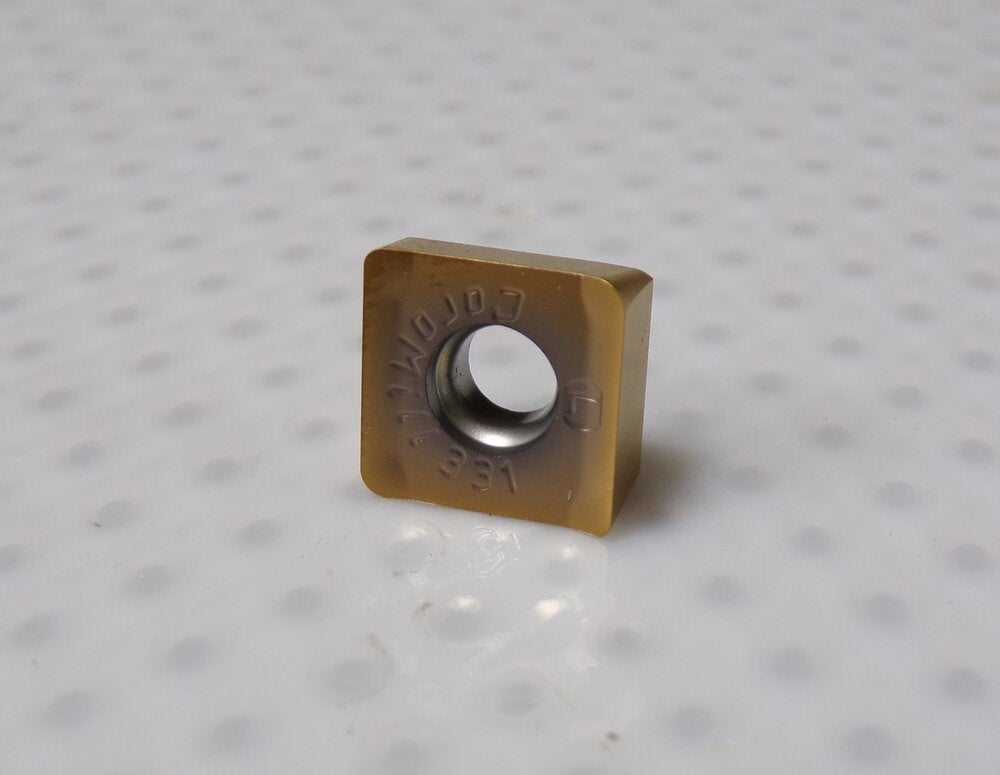

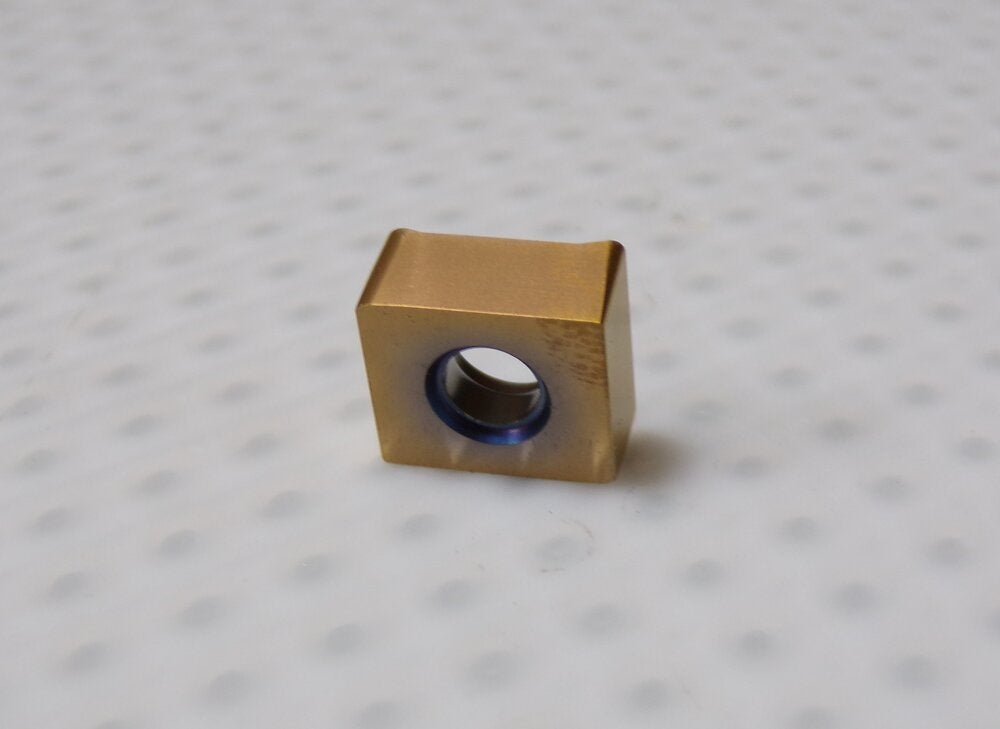

10pk, Sandvik L331.1A-11 50 15H-WL1030 Carbide Mill Insert (SQ5535216WT14)

Item: Milling Insert

• Steel (P) Compatibility: Yes

• Stainless (M) Compatibility: Yes

• Cast Iron (K) Compatibility: No

• Non Ferrous (N) Compatibility: Yes

• Super Alloy (S) Compatibility: Yes

• Hardened (H) Compatibility: Yes

• Application: Finishing

• Style: L331.1A

• Mounting Hole Dia.: 0.181"

• Nose Radius: 0.060"

• Chip-Breaker: WL

• Grade: 1030

• Insert Material: Carbide

• Lead Angle: 90 Degrees

• Insert Shape: Rectangle

• Inscribed Circle: 0.453"

• Insert Thickness: 0.195"

• No. of Edges: 2

• Coating: PVD Coated Carbide

• Rake: Positive

• Cutting Direction: Left Hand

• Mounting Style: Screw Clamp

• ANSI Number: L331.1A-11 50 15H-WL1030

• ISO Number: L331.1A-11 50 15H-WL1030
