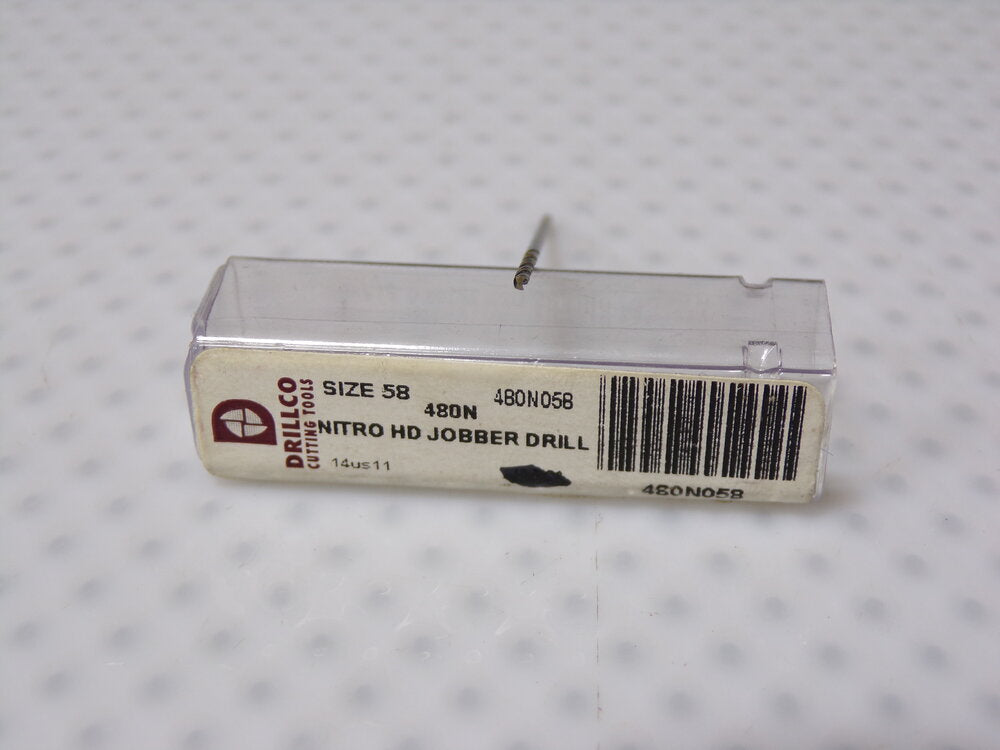

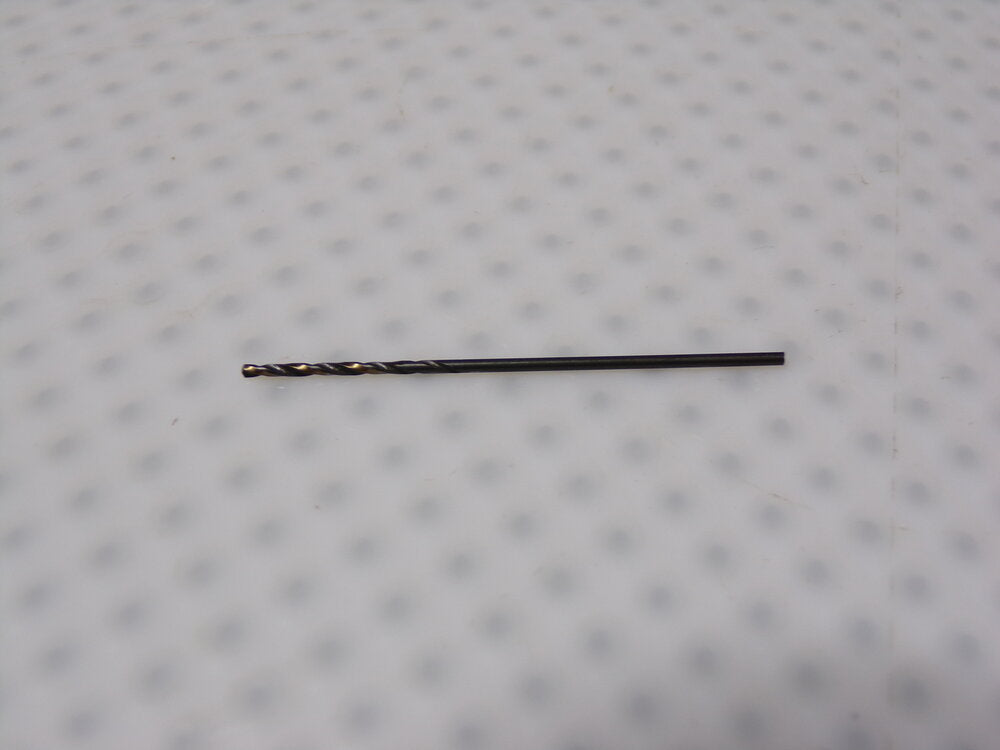

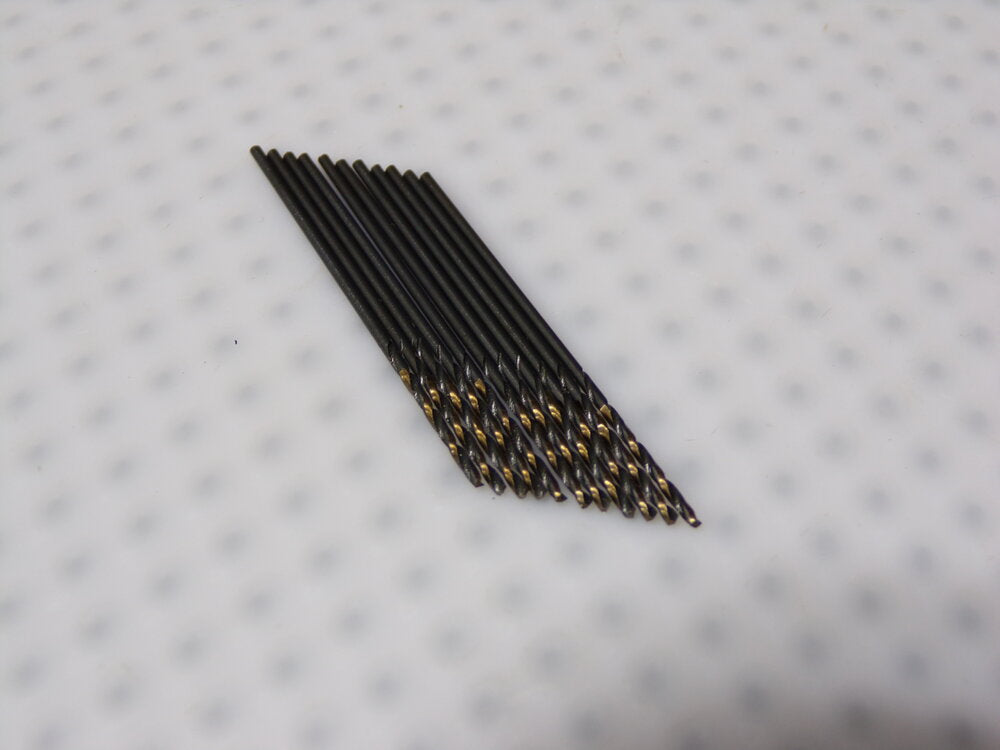

11pk, Drillco Jobber Length Drill Bit, #58, Point Angle 135°, High Speed Steel (SQ6315686WT14)

$9.99

Shipping calculated at checkout

SKU: SQ6315686WT14

Only 1 left!

The black-and-gold finish on these drill bits lubricates the bits and provides some resistance to wear and rust. These bits have spiral flutes that evacuate chips as the bits drill into a workpiece. They also have flats on their shank that help prevent the bits from slipping in a drill chuck when drilling at high speeds or under heavy loads.

Non-coolant-through high-speed steel jobber-length drill bits do not have coolant holes, so a separate hose is required to bring coolant to the bits' tip if it is needed. High-speed steel drill bits provide more flexibility and absorb more shock and vibration than cobalt, powdered-metal, and carbide drill bits, making them suitable for use in manual drilling machines and handheld power tools. They may leave a rough finish on the hole. Jobber-length drill bits are the most commonly used drill-bit length. They provide a good balance of strength and accuracy when drilling into a range of materials.

  • Item: Jobber Length Drill Bit

  • Drill Bit Size: #58

  • Decimal Equivalent: 0.042

  • Measurement System: Wire

  • Material - Machining: High Speed Steel

  • Finish - Machining: Black & Gold

  • Drill Bit Point Angle: 135 Degrees

  • Drill Bit Point Type: Split Point

  • Coolant Fed: Non-Coolant Through

  • Flute Type: Spiral

  • Number of Flutes: 2

  • Flute Length: 11/16"

  • Maximum Drilling Depth: 0.168"

  • Helix Angle: 28 Degrees

  • Cutting Direction: Right Hand

  • Spiral Direction: Right Hand

  • Shank Type - Machining: Straight

  • Shank Dia.: 0.042"

  • Shank Length: 15/16"

  • Overall Length: 1-5/8"

  • Depth:Dia. Ratio: 4xD

  • Drill Length Class: Jobber Length

  • Drill Point Length: 0.0087"

  • Drill Bit Grouping: Individual

  • Series: 1878

  • Standards: ASME B94.11M

  • Drill Diameter Tolerance: +0"/-0.0005"

  • Primary Material Application: Cast Iron, Steel

  • Primary Material Application ISO Code: K, P
