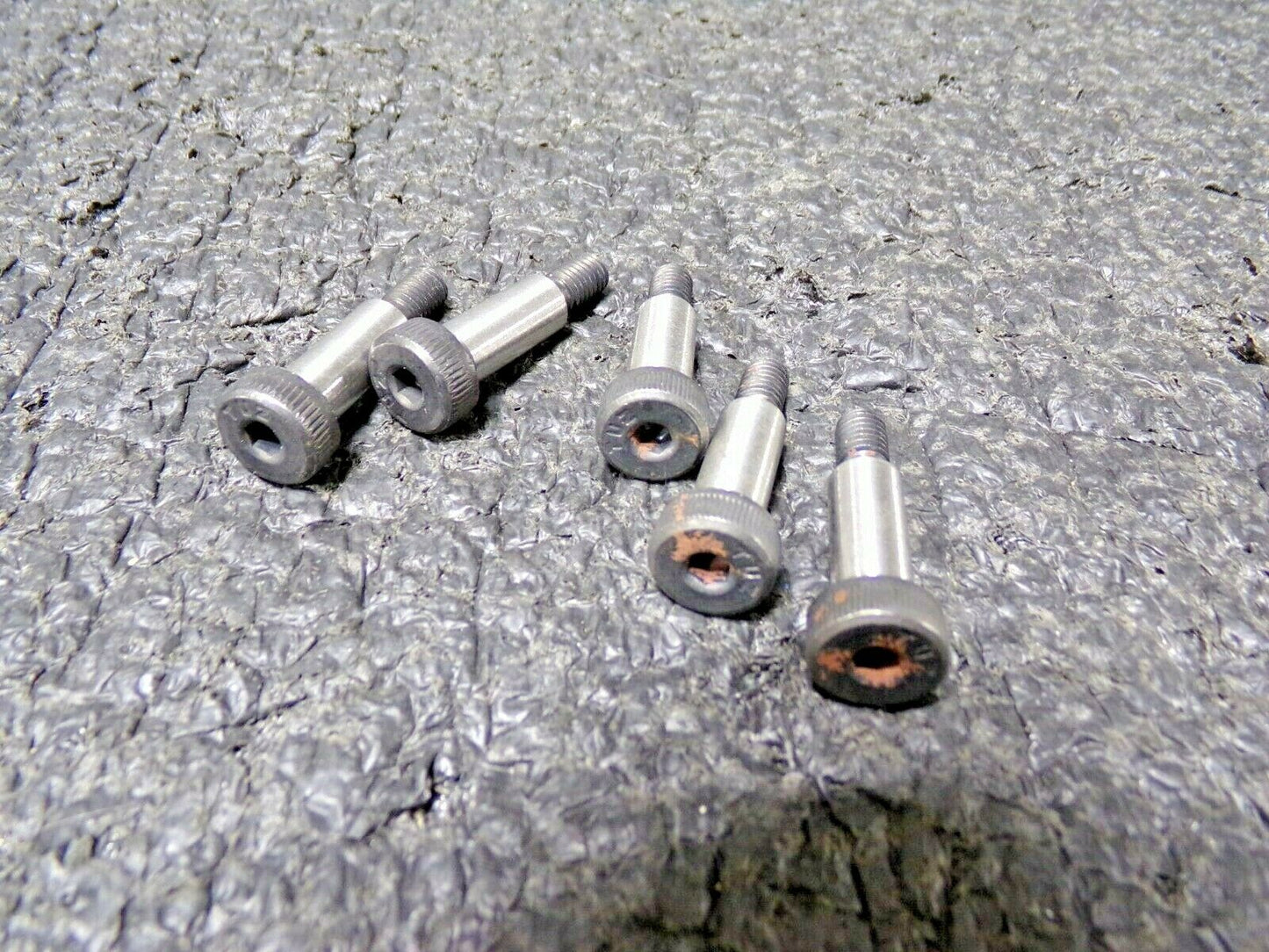

12.9 Alloy Steel, Shoulder Screw, M6 x 1mm, 20mm Shoulder L., 5 Pk, 6EU32 (183705395082-W23)

$4.99

Shipping calculated at checkout

SKU: 183705395082-W23

Only 3 left!

Product Details

Due to the undercut between shoulder and thread, be sure to lower the tightening torque normally used for Class 12.9 screws.

Technical Specs

  • ItemShoulder Screw
  • TypeStandard
  • Material12.9 Alloy Steel
  • FinishPlain
  • Head StyleKnurled
  • System of MeasurementMetric
  • Thread SizeM6x1mm
  • Drive TypeHex Socket
  • Drive Size4mm
  • Shoulder Dia.8mm
  • Shoulder Length20mm
  • Thread Length11mm
  • Head Dia.13mm
  • Head Height5.5mm
  • Shoulder Length Tolerance+0.25mm
  • Min. Tensile Strength (PSI)159,500
  • Shear Strength (PSI)95,700
  • Class5g6g
  • Rockwell HardnessC39 to C44
  • Meets/ExceedsStandards Comparable to ISO 7379
  • Package Quantity5
