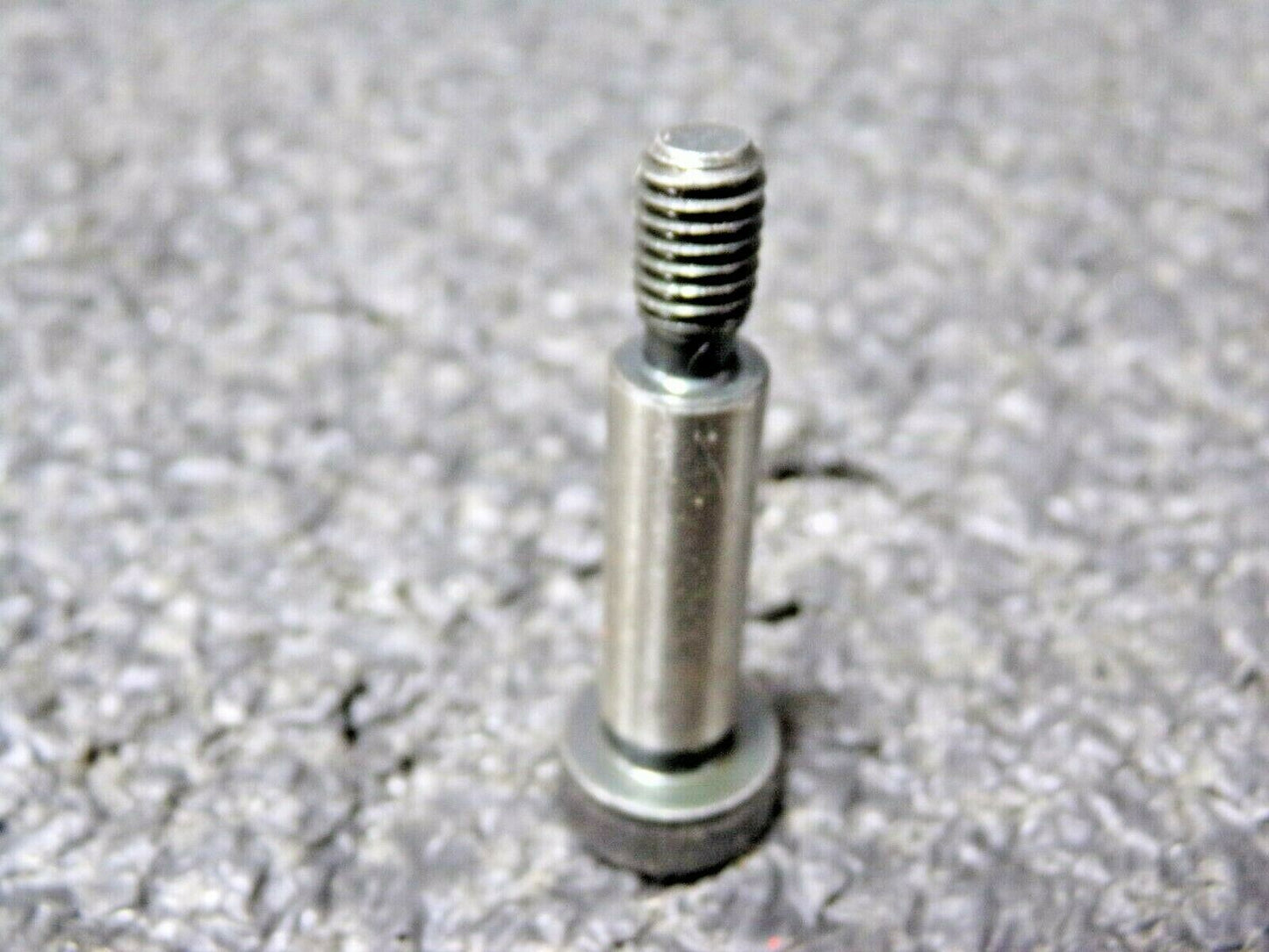

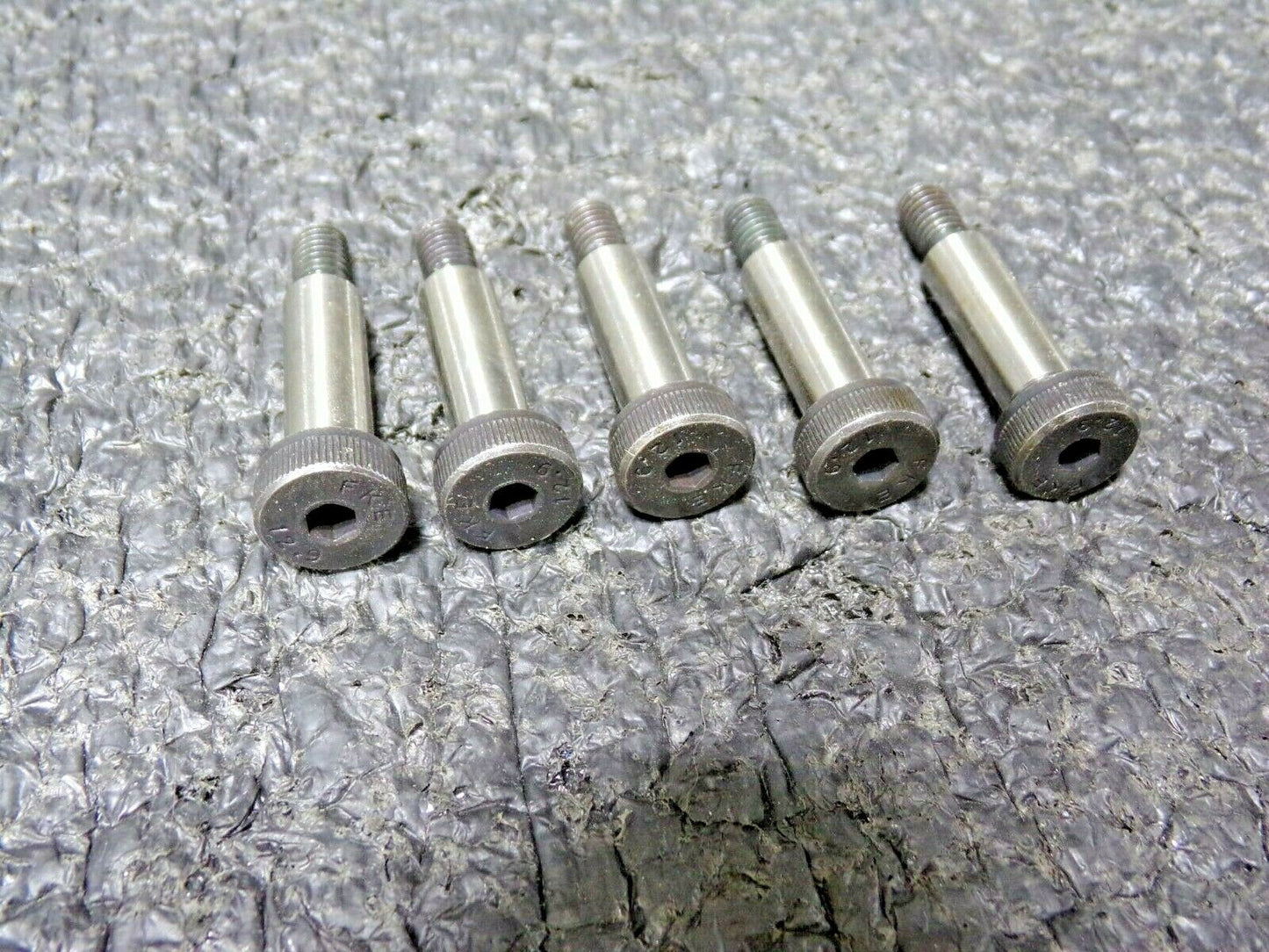

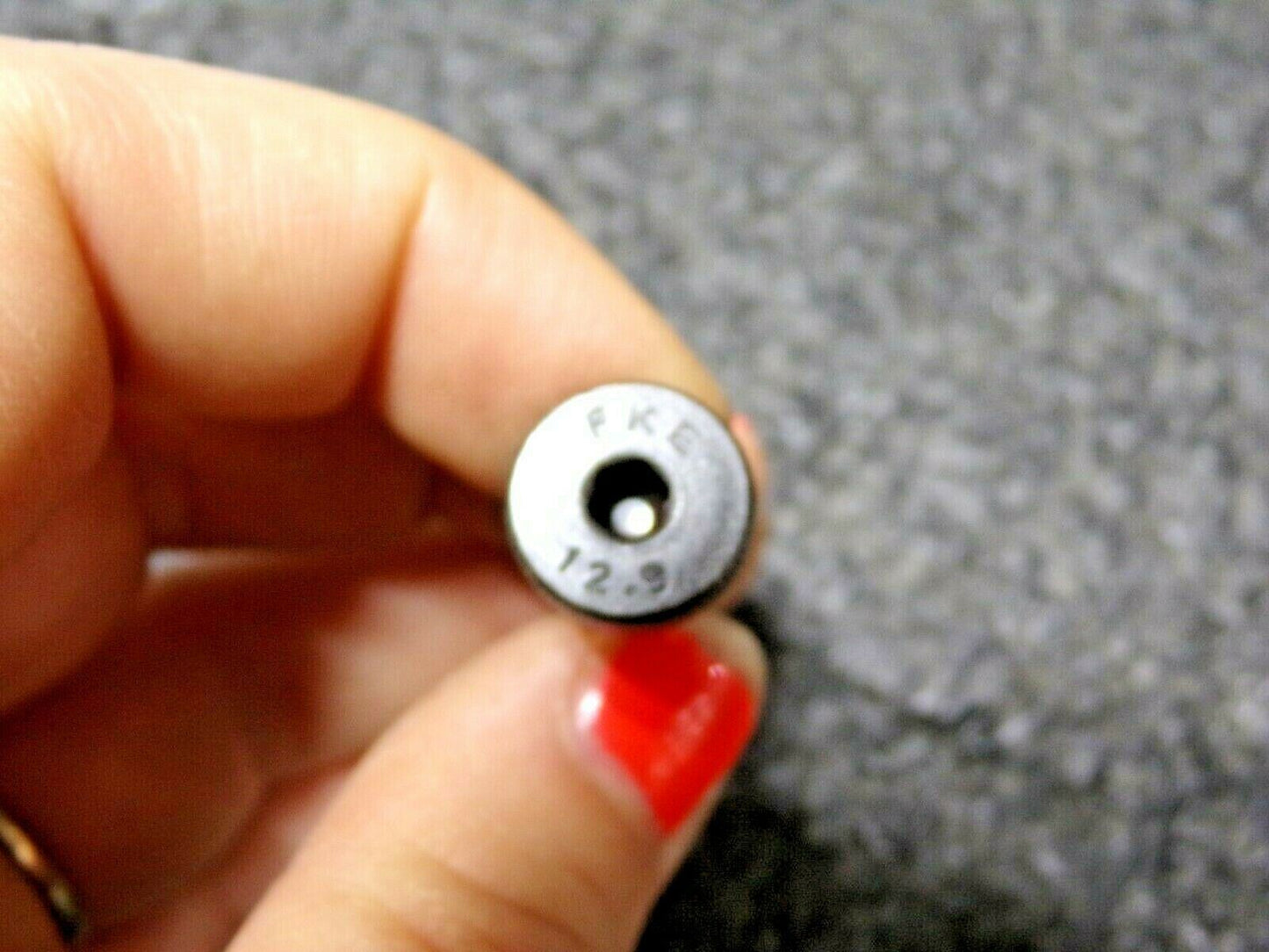

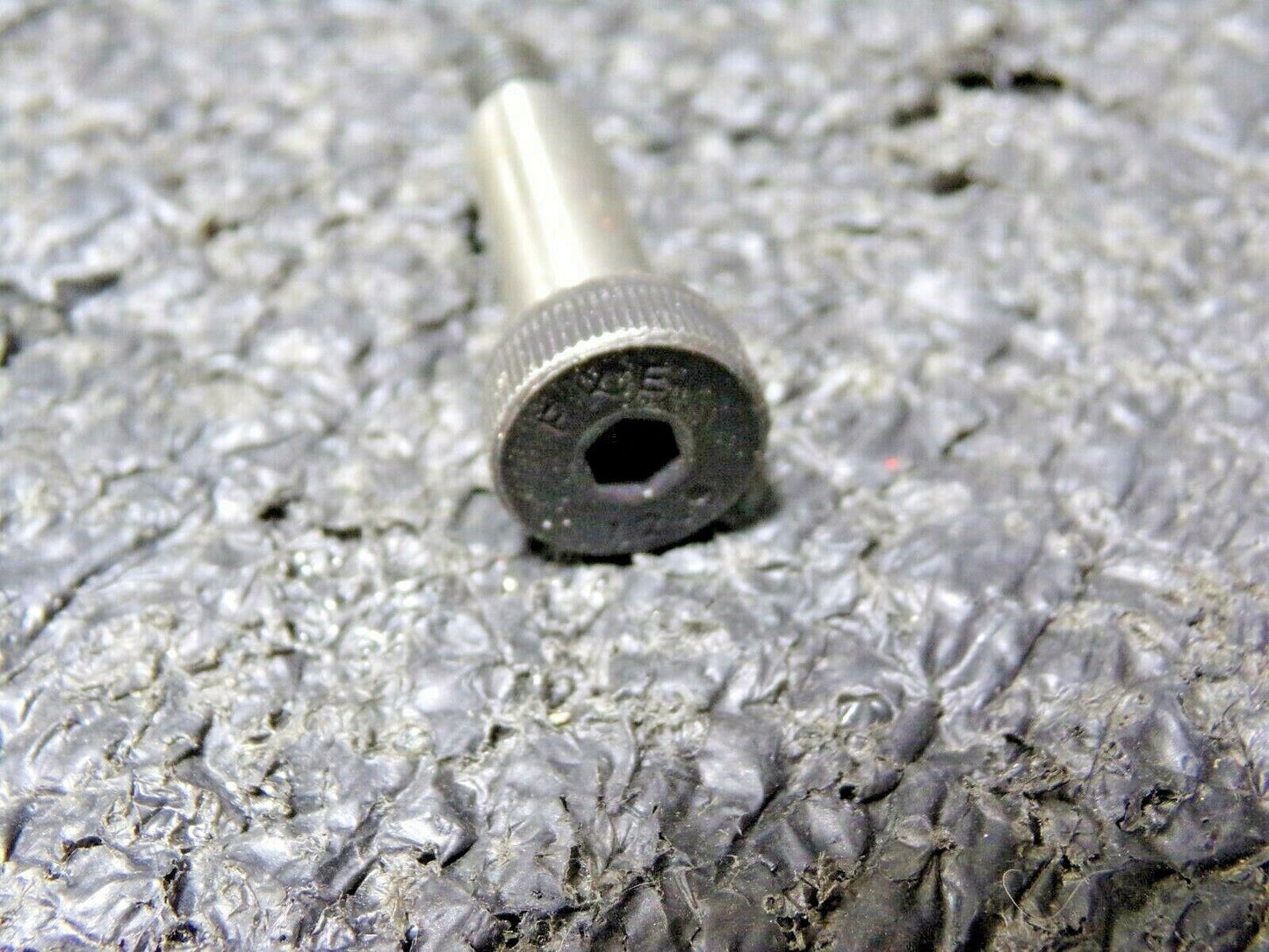

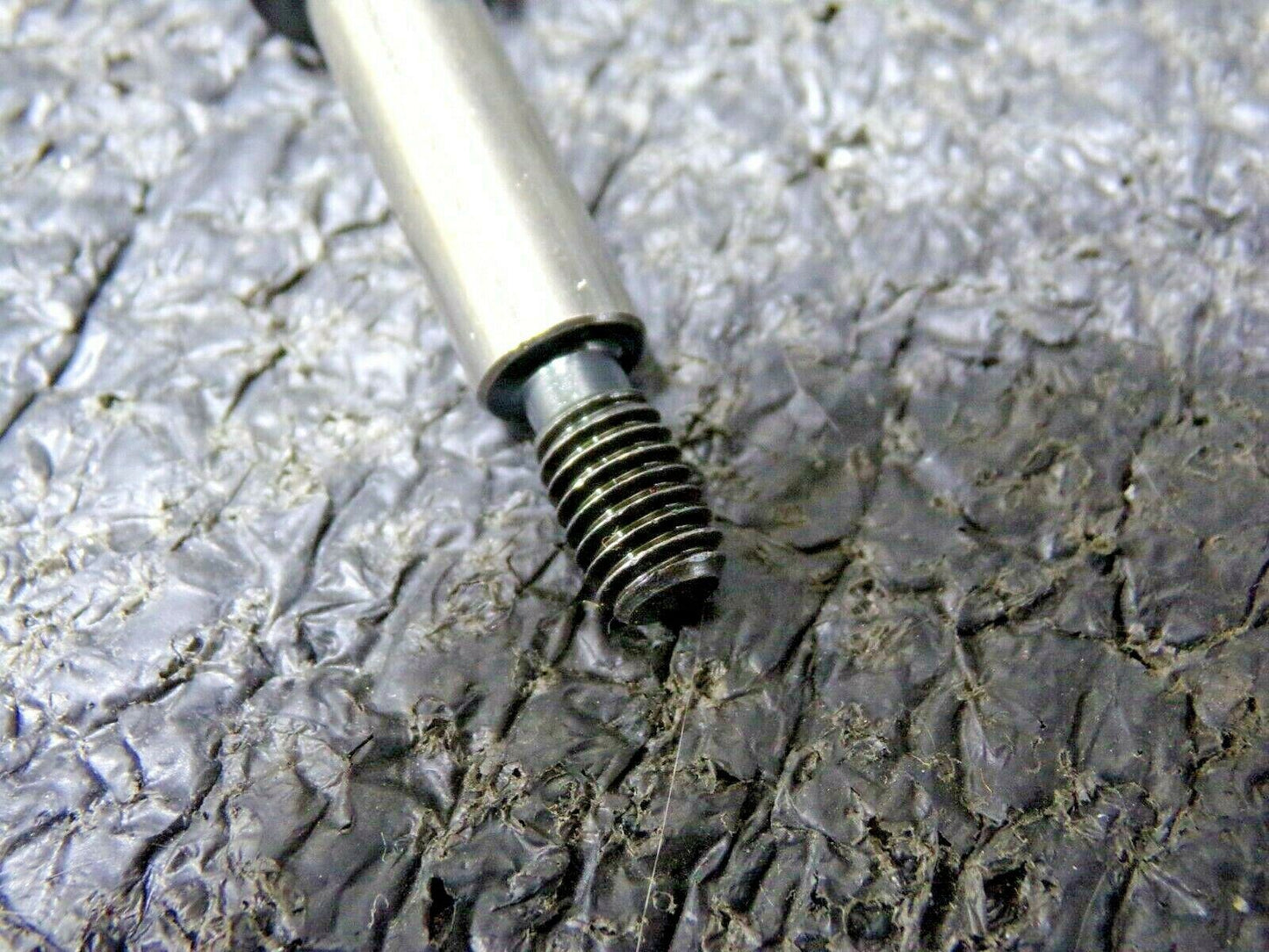

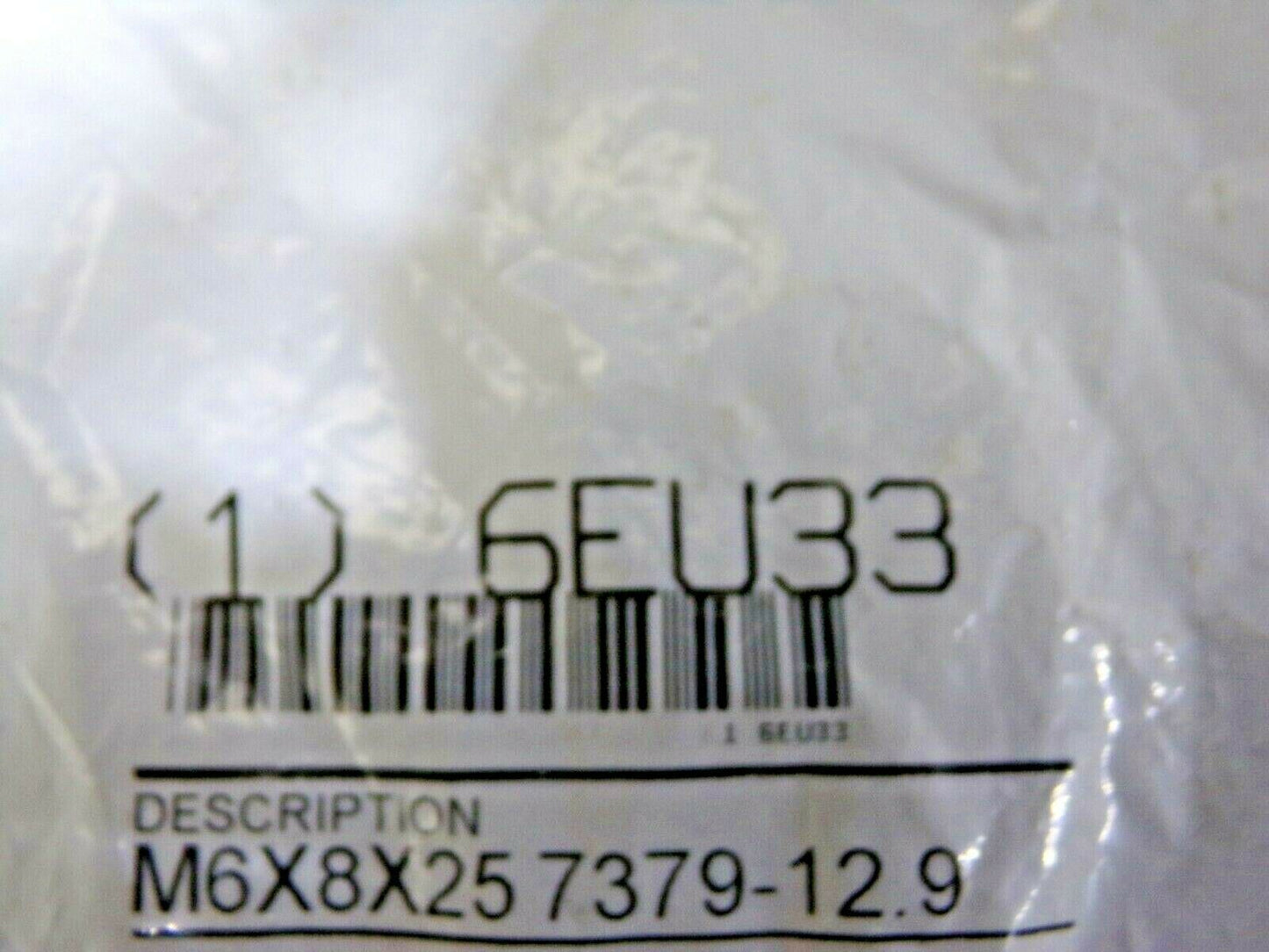

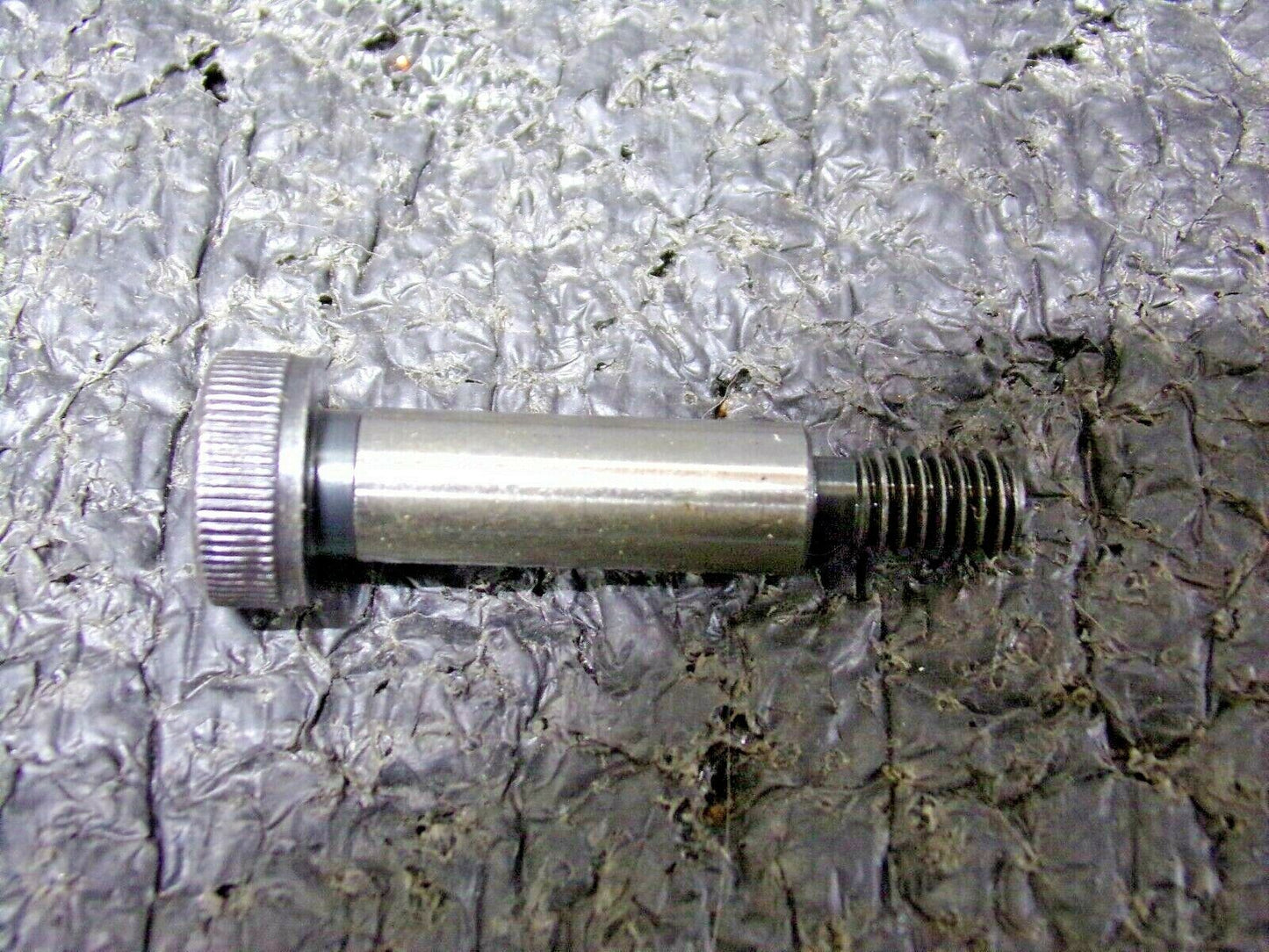

12.9 Alloy Steel, Shoulder Screw, M6x1mm, 25mm Shoulder L.,10PK 6EU33 (183705406363-W27)
$9.99
Shipping calculated at checkout
SKU: 183705406363-W27
Product Details
Due to the undercut between shoulder and thread, be sure to lower the tightening torque normally used for Class 12.9 screws.
Technical Specs
- ItemShoulder Screw
- TypeStandard
- Material12.9 Alloy Steel
- FinishPlain
- Head StyleKnurled
- System of MeasurementMetric
- Thread SizeM6x1mm
- Drive TypeHex Socket
- Drive Size4mm
- Shoulder Dia.8mm
- Shoulder Length25mm
- Thread Length11mm
- Head Dia.13mm
- Head Height5.5mm
- Shoulder Length Tolerance+0.25mm
- Min. Tensile Strength (PSI)159,500
- Shear Strength (PSI)95,700
- Class5g6g
- Rockwell HardnessC39 to C44
- Meets/ExceedsStandards Comparable to ISO 7379
- Package Quantity5
