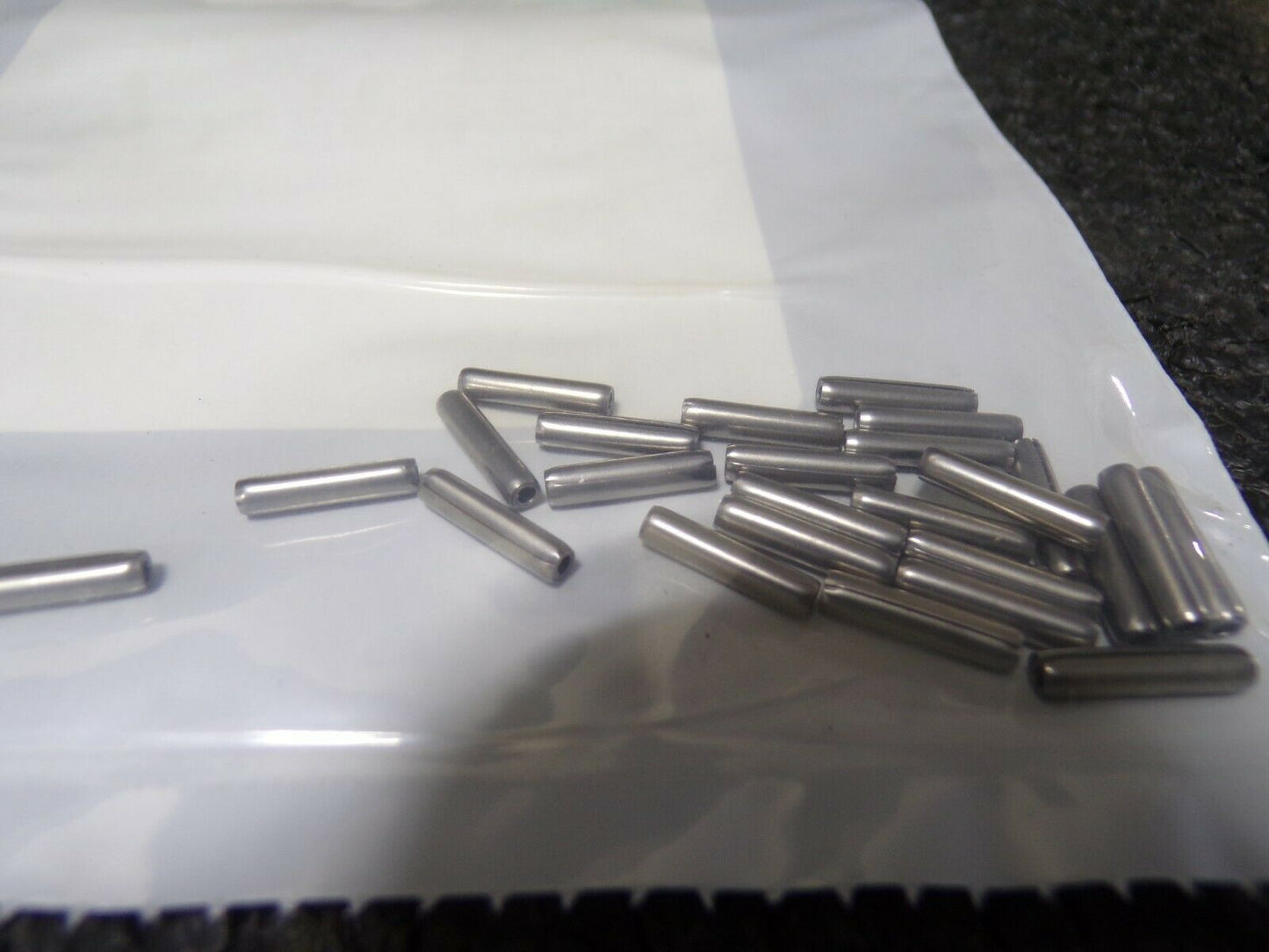

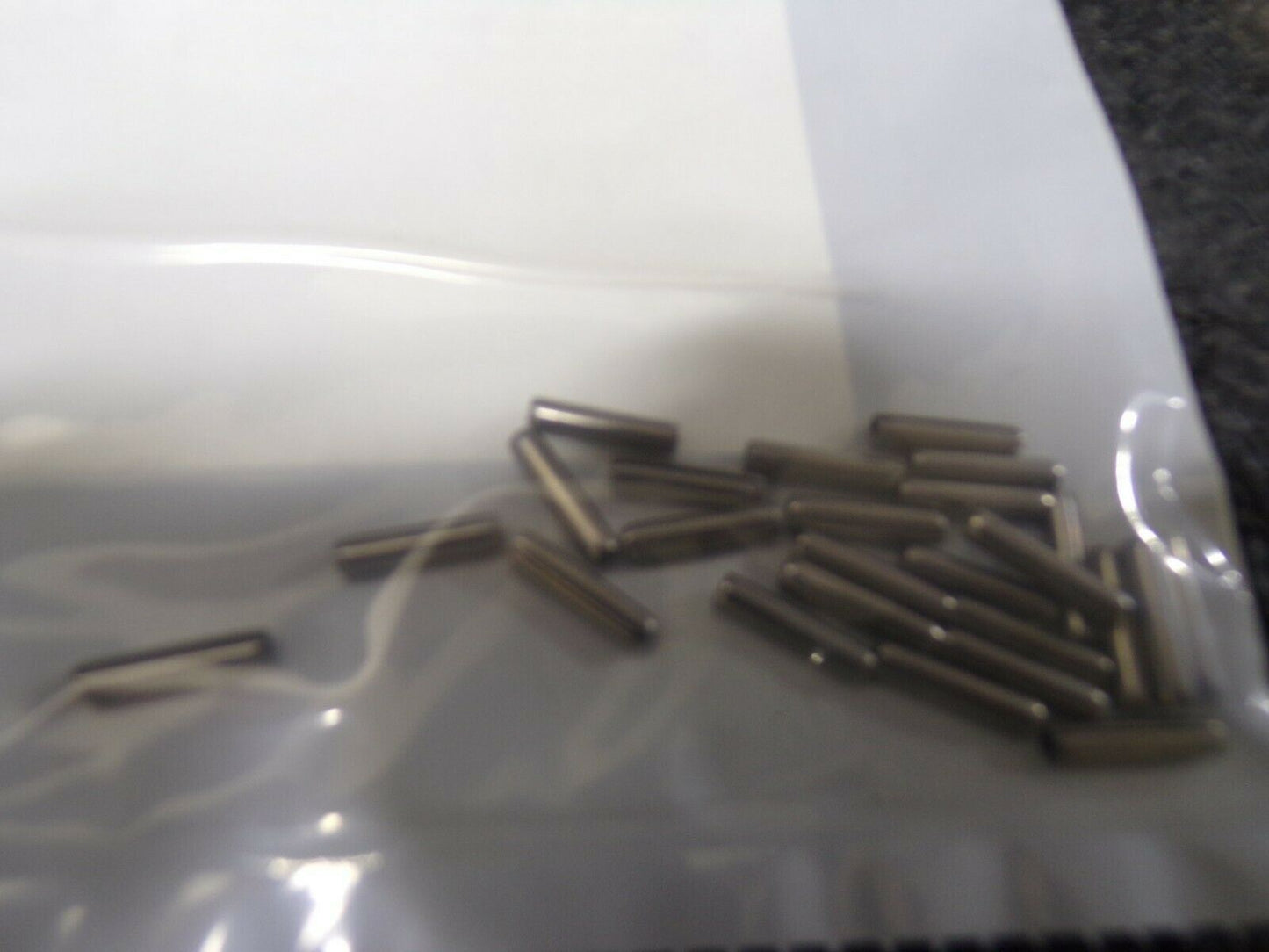

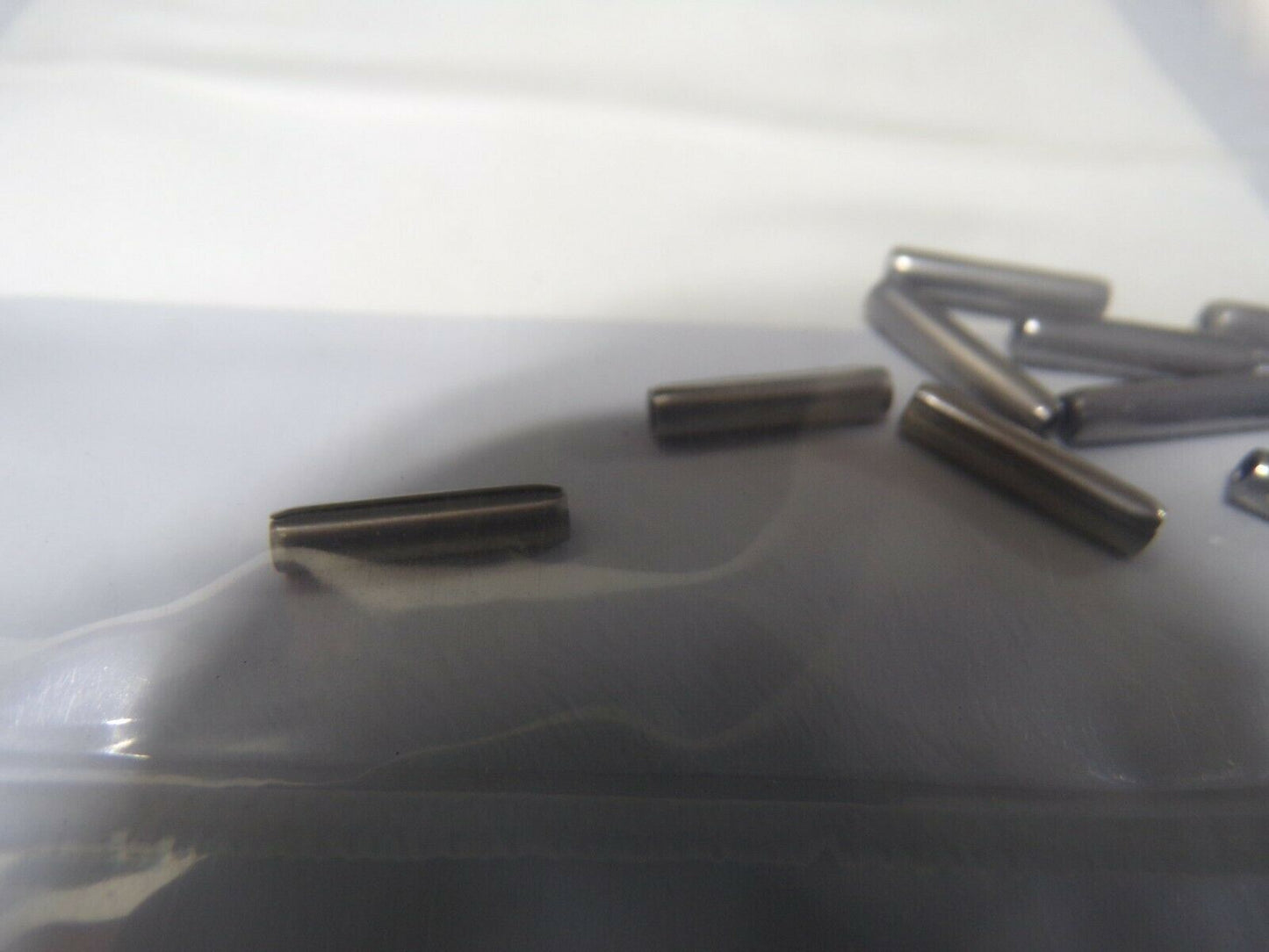

(25) FABORY Stainless Steel Coiled Spring Pin, 1/8" x 9/16" 41LX41, (183850781600-NBT33)

$4.99

Shipping calculated at checkout

SKU: 183850781600-NBT33

Available Now!
(25) FABORY Stainless Steel Coiled Spring Pin, 1/8" x 9/16" 41LX41, (183850781600-NBT33)
(25) FABORY Stainless Steel Coiled Spring Pin, 1/8" x 9/16" 41LX41, (183850781600-NBT33)
(25) FABORY Stainless Steel Coiled Spring Pin, 1/8" x 9/16" 41LX41, (183850781600-NBT33)
(25) FABORY Stainless Steel Coiled Spring Pin, 1/8" x 9/16" 41LX41, (183850781600-NBT33)
(25) FABORY Stainless Steel Coiled Spring Pin, 1/8" x 9/16" 41LX41, (183850781600-NBT33)
Description
FABORY Stainless Steel Coiled Spring Pin, 9/16" 41LX41, U51430.012.0056

Technical Specs

  • ItemSpring Pin
  • System of MeasurementInch
  • Spring Pin TypeCoiled
  • Basic MaterialStainless Steel
  • Material Grade420
  • Outside Dia.1/8"
  • Fastener Length9/16"
  • StandardsASME B18.8.2
  • Nominal Diameter1/8"
  • Chamfer Diameter0.121"
  • Chamfer Length Reference0.044"
  • Actual Dia. (Min.-Max)0.131-0.138"
  • Fits Hole Dia. (Min.-Max.)0.124-0.129"
  • Double Shear Strength (Lbs.)1400
  • Package Quantity25
