5 Disc Springs, Type A (HEAVY), 71X36X4MM.

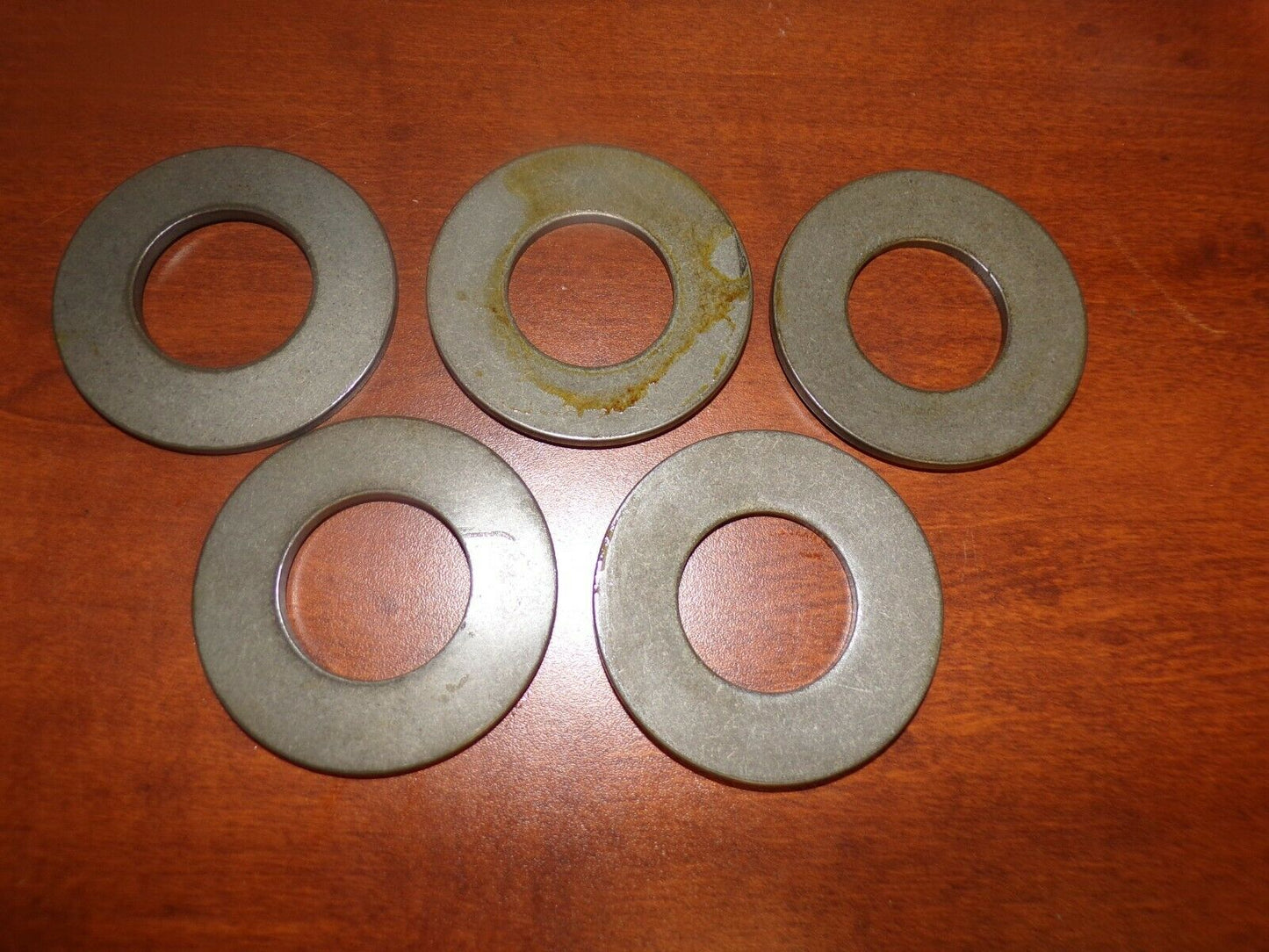

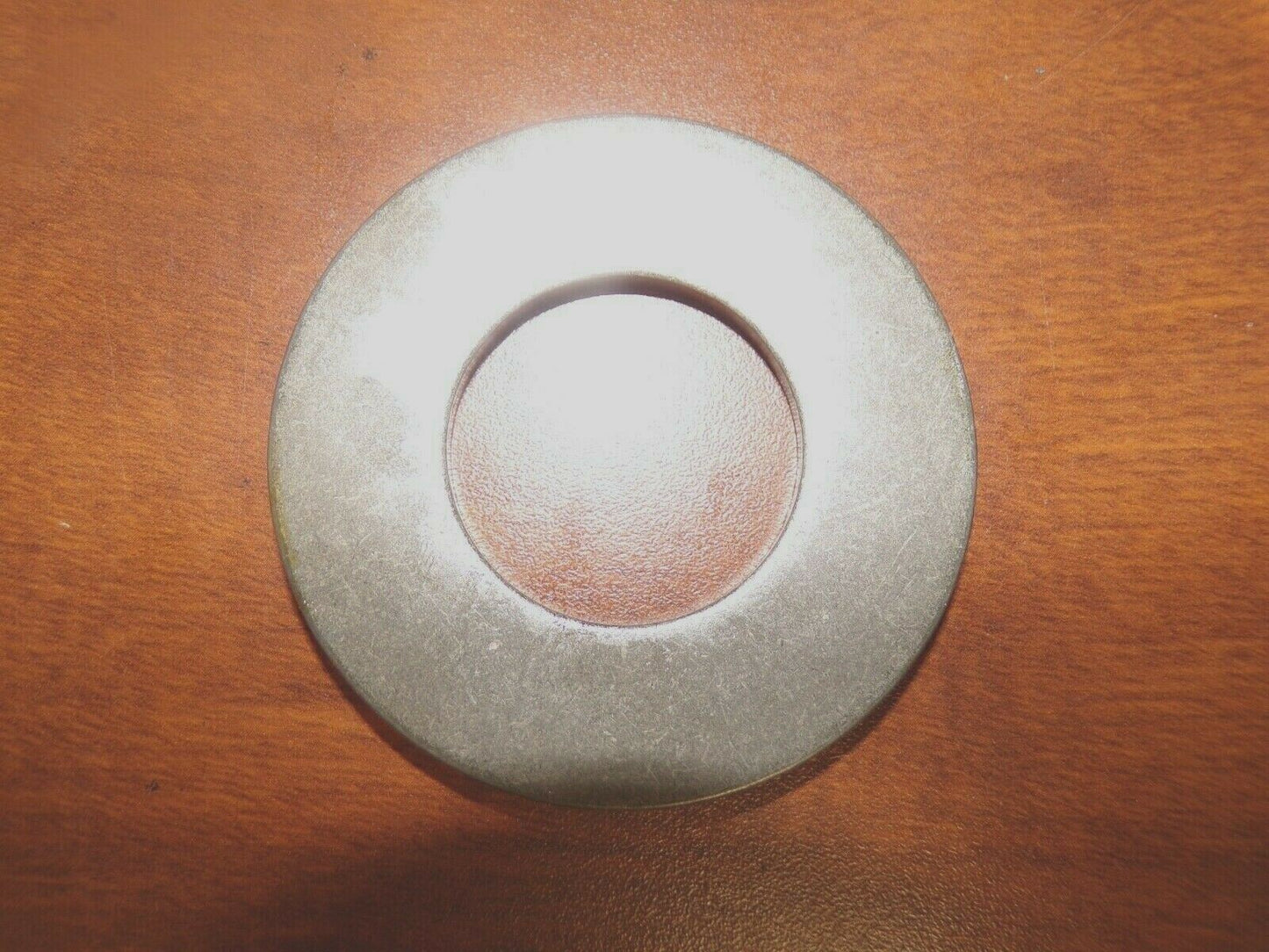

DISC SPRING FOR CRITICAL APPLICATIONS TYPE A (HEAVY) DIN 2093 A STEEL 50 CR V4 WERKSTOFFNR. 1.8159 PHOSPHATED 71X36X4MM
| De |
71 |
| Di |
36 |
| Diameter (mm) |
36 |
| t |
4 |
| Info |
- Disc springs acc. to DIN 2093 are mostly used in critical applications with safety first. Similar applications can be found in for example safety torque limiter clutches, hinge stiffeners and applications of constant roll pressure. Because of the right combination c.q. stacking of the disc springs the elasticity and/or deflection can be dosed accurately. The technical specifications of the disc springs above meet the highest expectations with reference to the static and dynamic load. They exceed the requirements of DIN 2093.
- Material group 1: t 1,25 from steel Ck 75.
- Material group 2: 1,25 ≤ t ≤ 6,0 from steel 50 Cr V4 (fatique fractures can be largely prevented because these disc springs have machined edges).
- F = spring force in Newton at a deflection s ≈ 0,75 ho(ho= Lo– t).
- For the calculation of disc springs, see DIN 2092.
- Extensive technical data available on request.
|
| Material |
Steel |
| Material technical |
50 Cr V4 Werkstoffnr. 1.8159 |
| Outer diameter |
71 |
| Surface treatment |
Phosphated |
| Thickness |
4 mm |
| Type no. |
A |
| Info |
- Warning: electro-galvanizing of these products may cause hydrogen embrittlement.
|
