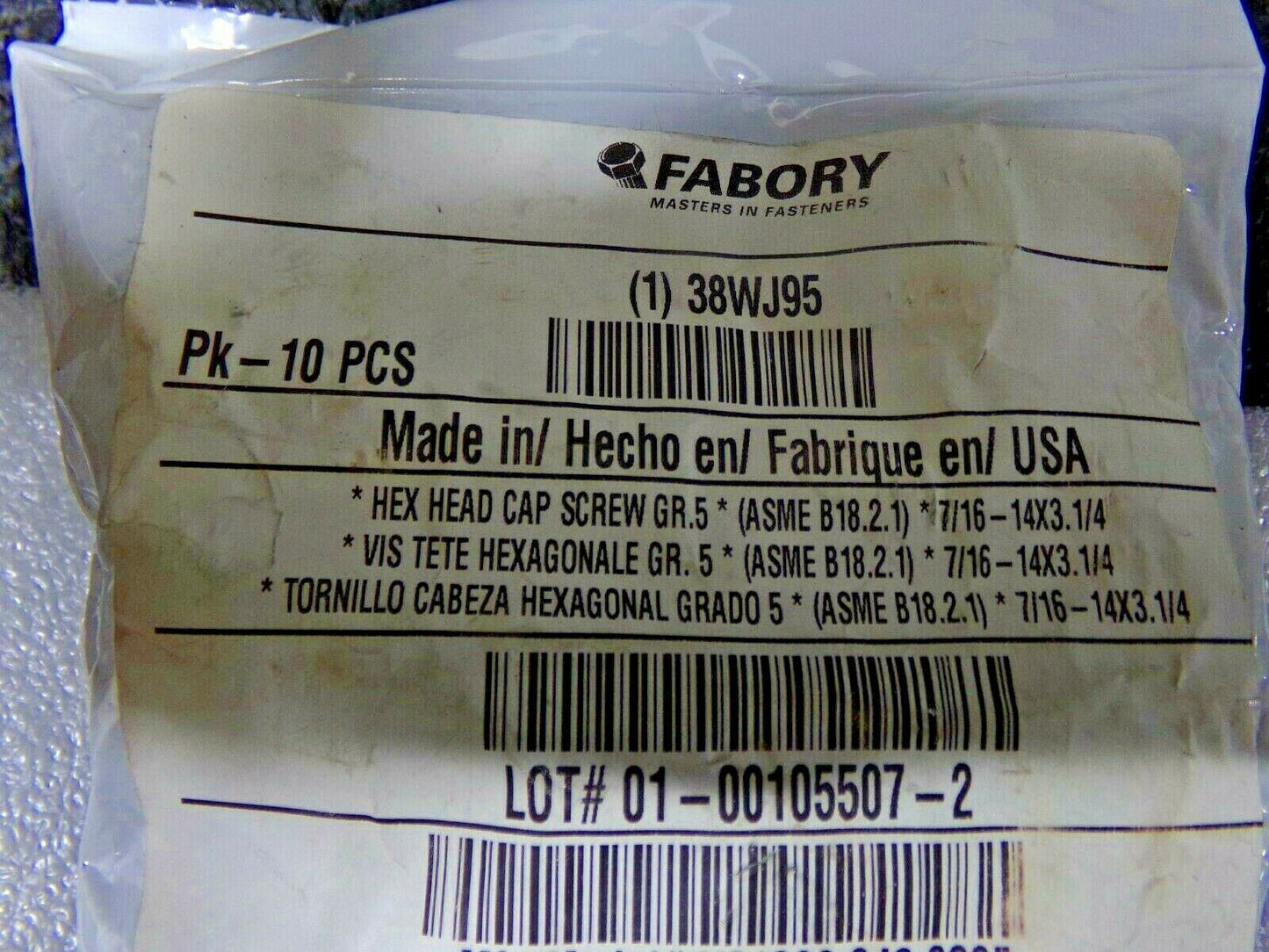

7/16"-14, Steel Hex Head Cap Screw, Grade 5, 3-1/4"L, Plain Finish, 10 PK (183785542900-NBT09)

$6.99

Shipping calculated at checkout

SKU: 183785542900-NBT09

Available Now!

7/16"-14, Steel Hex Head Cap Screw, Grade 5, 3-1/4"L, Plain Finish, 10 PK

Product Details

This secure yet removable general purpose threaded fastener is designed for insertion in pretapped holes or for use with nuts. Hex-head cap screw is a small but critical part that helps keep your production running smoothly. It features a thick, hexagonal head with a washer face under the head to provide an ample bearing surface for tightening with a wrench. Finding the right screw for your project is essential. Minimum thread length is calculated using the screw’s length. The formula is dia. X 2 + 1/4”.

Technical Specs

  • ItemHex Head Cap Screw
  • System of MeasurementInch
  • Cap Screw TypeHex Head Cap Screw
  • Basic MaterialSteel
  • Material GradeGrade 5
  • Fastener FinishPlain
  • Dia./Thread Size7/16"-14
  • Fastener Length3-1/4"
  • Fastener Thread DirectionRight Hand
  • Fastener Thread TypeUNC (Coarse)
  • Fastener Thread StylePartially Threaded
  • Fastener Industry StandardsASME B18.2.1
  • Head TypeHex
  • Min. Thread Length1-1/8"
  • Head Height9/32"
  • Head Width5/8"
  • Proof Load74,000 to 85,000 psi
  • Tensile Strength105,000 to 120,000 psi
  • Rockwell HardnessC19 to C30
