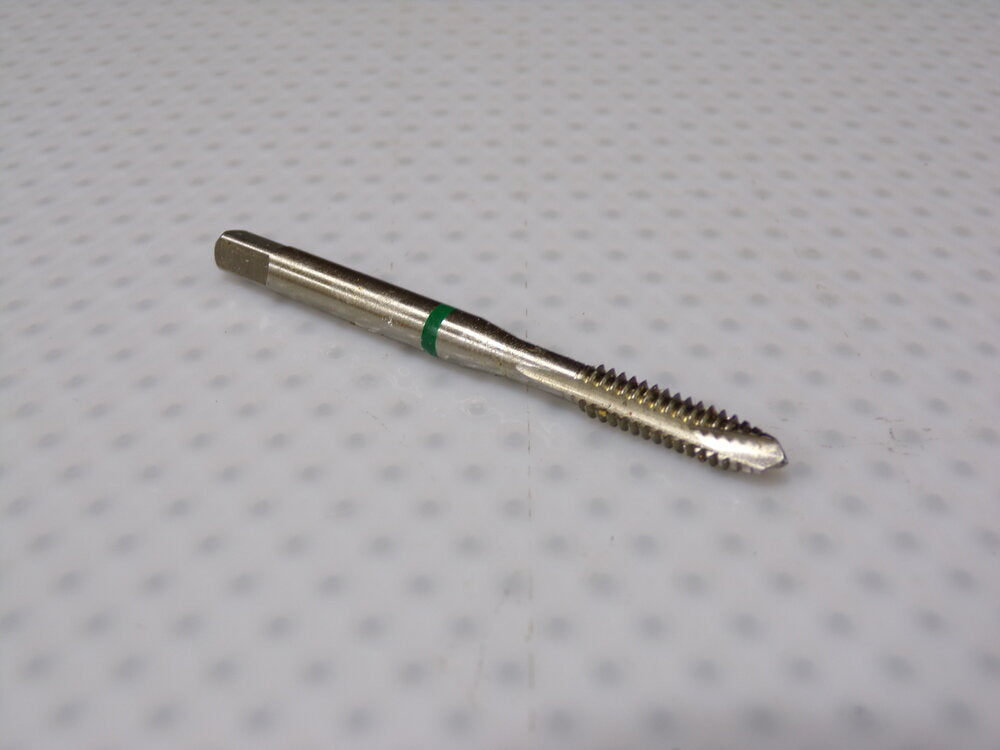

Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Vanadium High Speed Steel (HSSE) is made of high speed steel, carbon, vanadium carbide and other alloys to increase abrasive wear resistance and toughness. It is commonly used in general applications on stainless steels and high silicon aluminums.

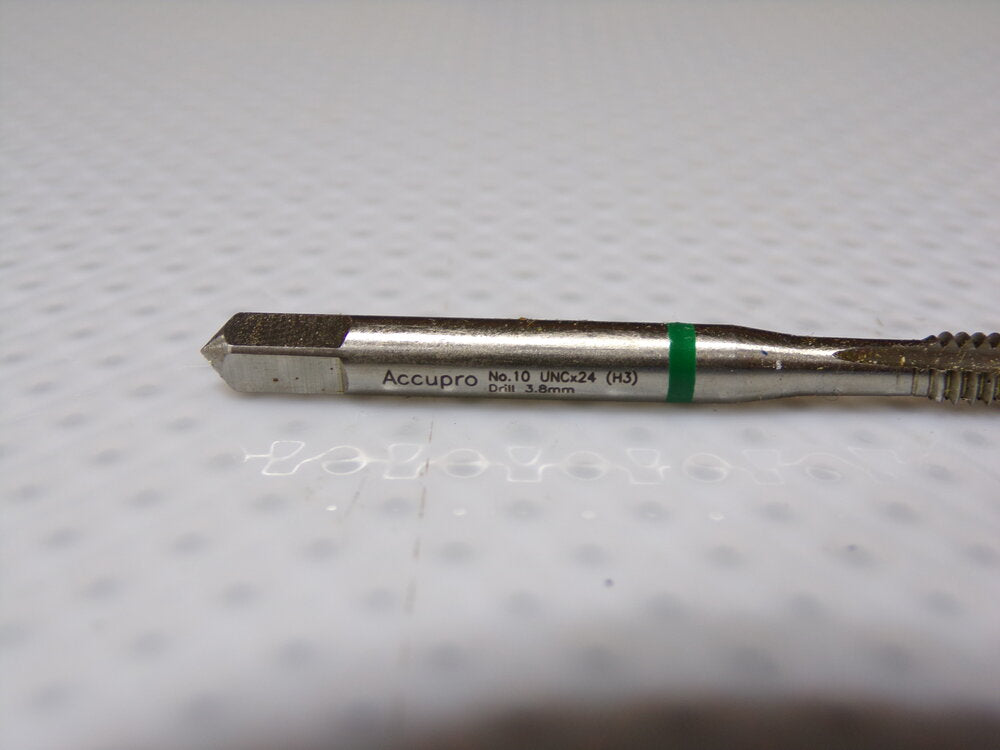

Thread Size (Inch): #10-24
Number of Flutes: 3
Class of Fit: 2B/3B
Thread Limit: H3
Material: Vanadium High Speed Steel
Through Coolant: NonThrough Coolant
Thread Direction: Right Hand
Overall Length (Decimal Inch): 2.30315
Overall Length (Inch): 2-1/2
Overall Length (mm): 58.5
Material Grade: 3% Vanadium HSS
Thread Length (mm): 16.00
Shank Diameter (mm): 4.93
Material Application: Steels
