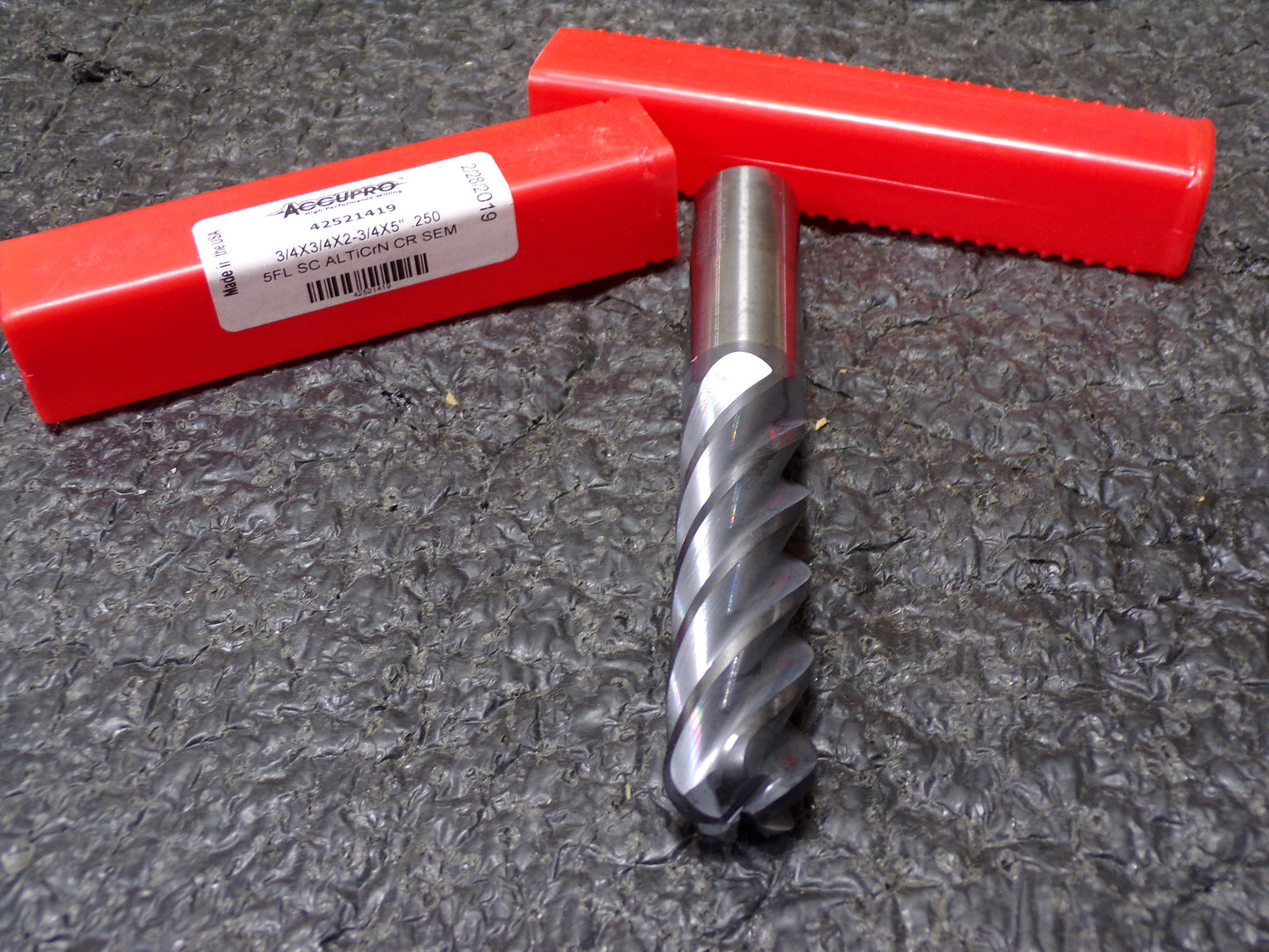

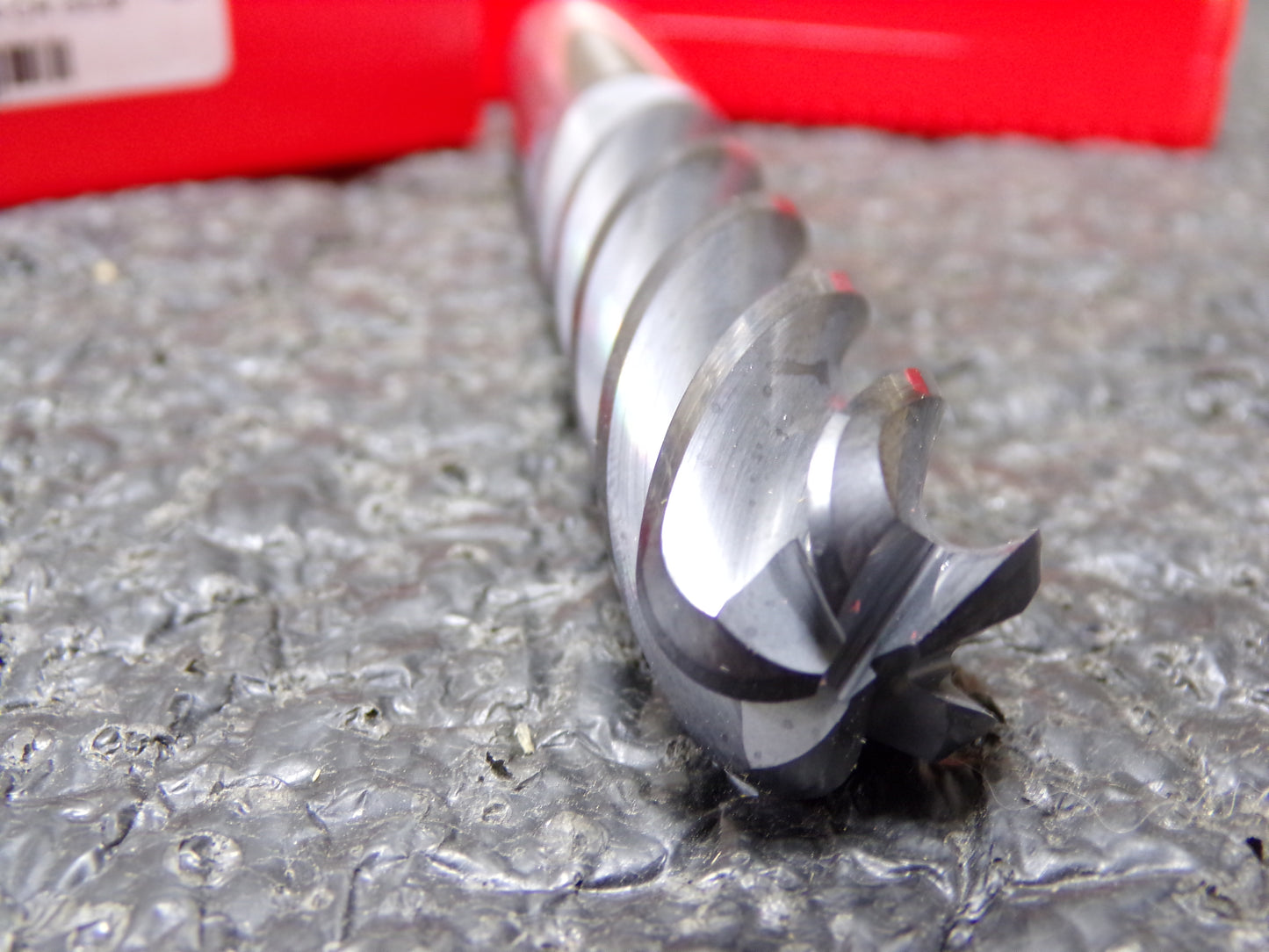

Accupro 3/4" Diam 5 Flute Solid Carbide 1/4" Corner Radius End Mill (CR00691WTA18)
$179.99
Shipping calculated at checkout
SKU: CR00691WTA18
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
AlTiCrN is a multi-layered nanocomposite made up of aluminum chromium titanium nitride. It offers increased performance at high-speeds, improved edge toughness and long tool life. The titanium reduces the adhesive wear compared to conventional AlCrN coatings. It is commonly used for stainless steel, titanium, high temperature alloys and hardened tool steels 35HRC or greater.
Specs
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| End Type | Corner Radius |
| Corner Radius (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.2500 |
| Number of Flutes | 5 |
| Material | Solid Carbide |
| Finish/Coating | AlTiCrN |
| Length of Cut (Inch) | 2-3/4 |
| Length of Cut (Decimal Inch) | 2.7500 |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Inch) | 5 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | 38.00 |
| Variable Index | Yes |
| Variable Helix | No |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Additional Information | Variable Index |
| Series/List | HS |
