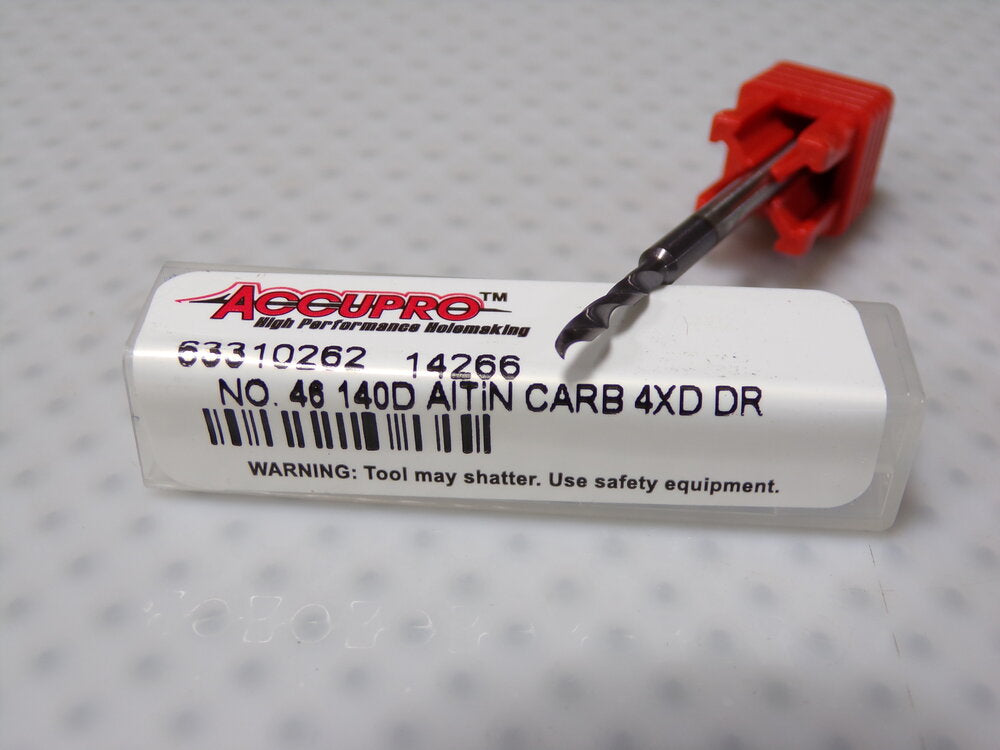

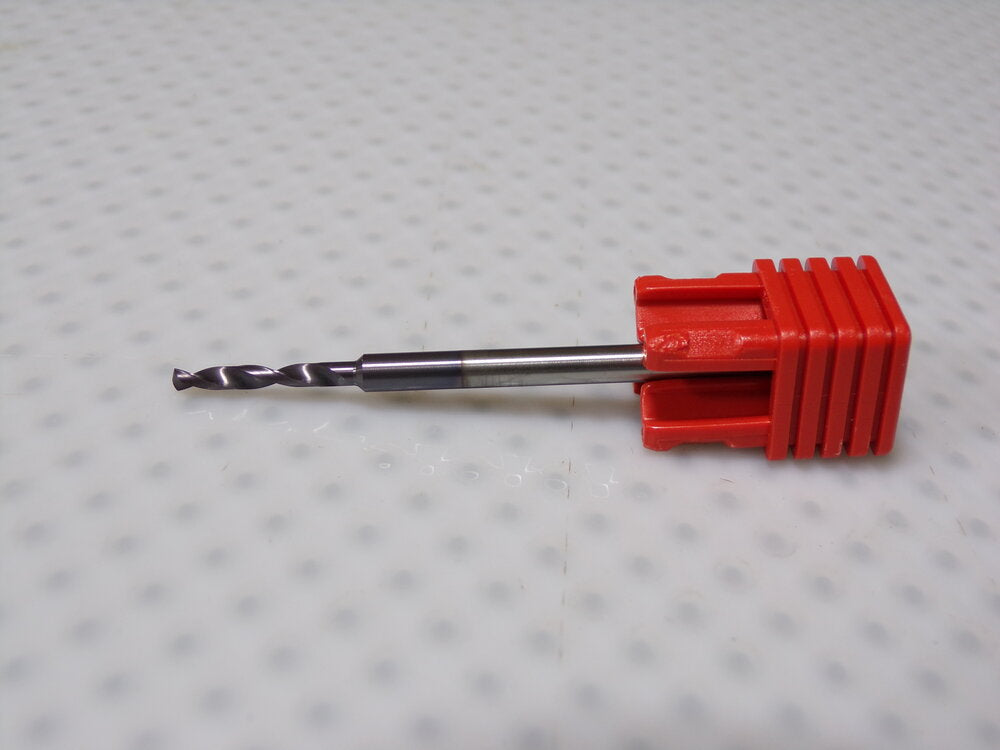

Accupro #46 140° Solid Carbide Jobber Drill (SQ6585533WT14)

$9.99

Shipping calculated at checkout

SKU: SQ6585533WT14

Available Now!

Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Aluminum titanium nitride (AlTiN) is one of the most abrasive-resistant and hardest of the coatings. It is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel.

Spiral flutes are constructed with a higher flute angle to remove chips more easily.

Drill Bit Size (Wire): #46

Drill Bit Size (Decimal Inch): 0.0810

Drill Point Angle: 140

Drill Bit Material: Solid Carbide

Drill Bit Finish/Coating: AlTiN

Flute Type: Spiral

Cutting Direction: Right Hand

Shank Type: Straight

Coolant Through: No

Flute Length (Decimal Inch): 0.5570

Overall Length (Inch): 2

Flute Length x Diameter Ratio: 4xD

Point Type: Notched

Shank Diameter (Inch): 1/8

Maximum Drilling Depth (Decimal Inch): 0.4500

Spiral Type: Regular Spiral

Web Configuration: Parallel

Web Thinning: Web-Thinned

Drill Bit Grade: High Performance
