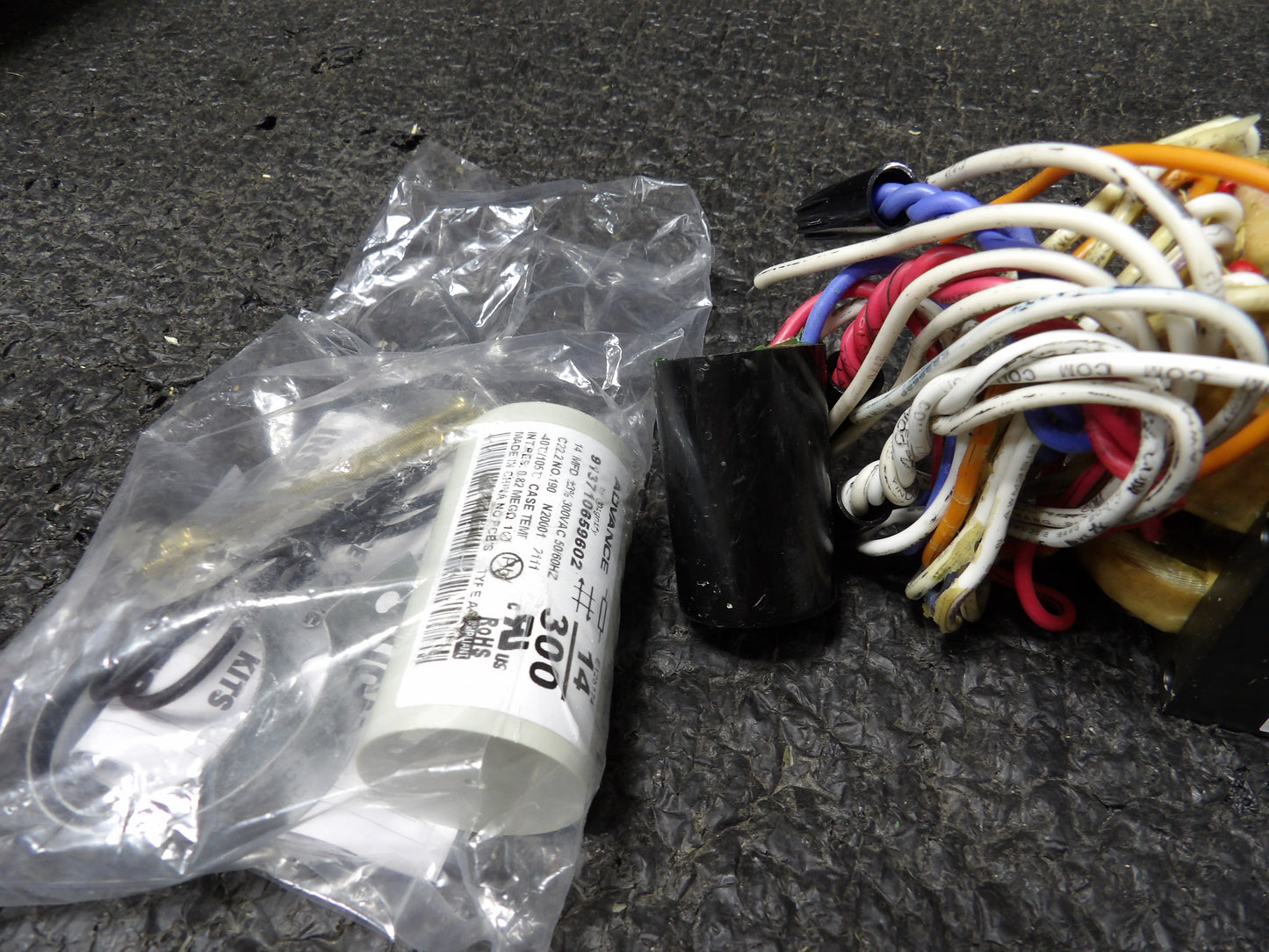

ADVANCE HID Ballast Kit: 150 W Max. Bulb Watts, Pulse, 120 to 277V AC, ANSI Code S55 (CR00866WTA27)

$99.99

Shipping calculated at checkout

SKU: CR00866WTA27

Only 1 left!

    • Item: HID Ballast Kit

    • Brand and Series: Advance

    • Ballast Type: Magnetic

    • Ballast Start Type: Pulse

    • ANSI Code: S55

    • Ballast Bulb Type: High Pressure Sodium

    • Number of Bulbs Supported: 1

    • Min. Bulb Watts: 150 W

    • Max. Bulb Watts: 150 W

    • Input Voltage: 120 to 277V AC

    • Input Watts: 190 W

    • Min. Starting Temp.: -40 Degrees F

    • Ballast Factor: 1

    • Frequency: 60 Hz

    • Operating Amps @ 120V: 1.65 A

    • Operating Amps @ 208V: 0.95 A

    • Operating Amps @ 240V: 0.83 A

    • Operating Amps @ 277V: 0.72 A

    • Operating Amps @ 480V: 0.5 A

    • Housing Material: Steel

    • Insulation Class: H

    • Thermal Protection: No

    • Length: 3 15/16 in

    • Width: 3 3/8 in

    • Height: 2 7/8 in

    • Starter Required: Yes

    • Includes: Capacitor, Coil, Core, Hardware, Ignitor, Mounting Bracket

    • For Use With: High Pressure Sodium HID Bulbs

  • Standards: CSA Certificate, RoHS Compliant, ULR
