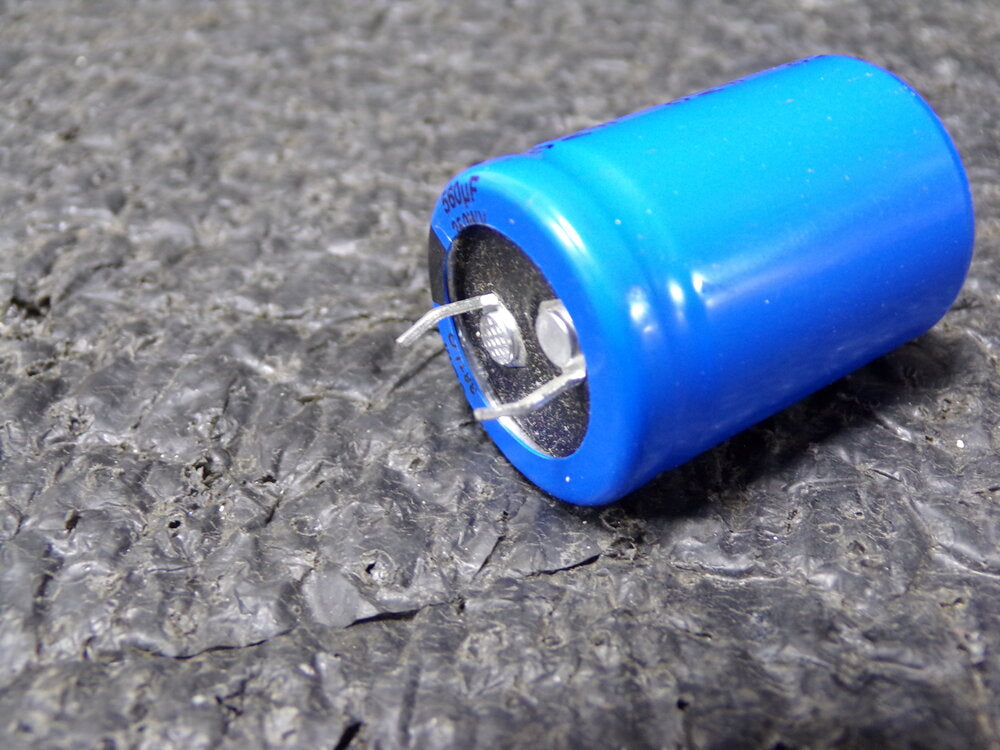

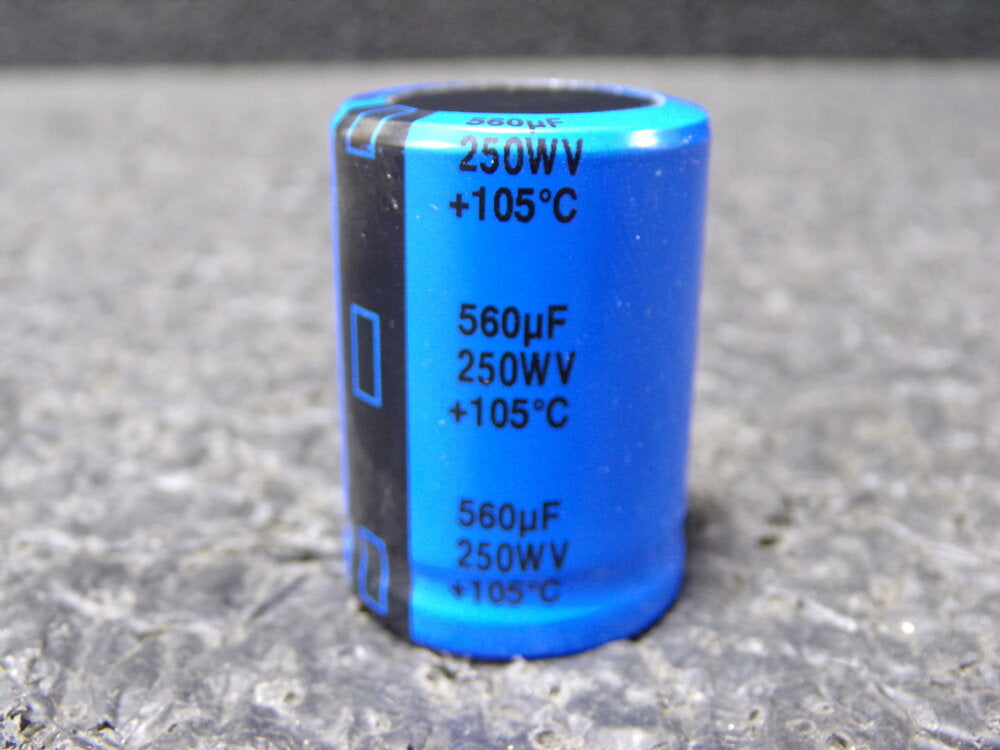

Aluminum Electrolytic Capacitor, Radial, Snap-In, 560µF, 2000 Hrs @ 105°C (SQ6422955WT12)

Series: 381LQ

Tolerance: ±20%

ESR (Equivalent Series Resistance): 296mOhm @ 120Hz

Lifetime @ Temp.: 2000 Hrs @ 105°C

Operating Temperature: -40°C ~ 105°C

Polarization: Polar

Applications: General Purpose

Lead Spacing: 0.394" (10.00mm)

Size / Dimension: 0.984" Dia (25.00mm)

Height - Seated (Max): 1.457" (37.00mm)

Mounting Type: Through Hole

Package / Case: Radial, Can - Snap-In

Capacitance: 560 µF

Voltage - Rated: 250 V

Ripple Current @ Low Frequency: 1.5 A @ 120 Hz

Ripple Current @ High Frequency: 2.1 A @ 20 kHz
