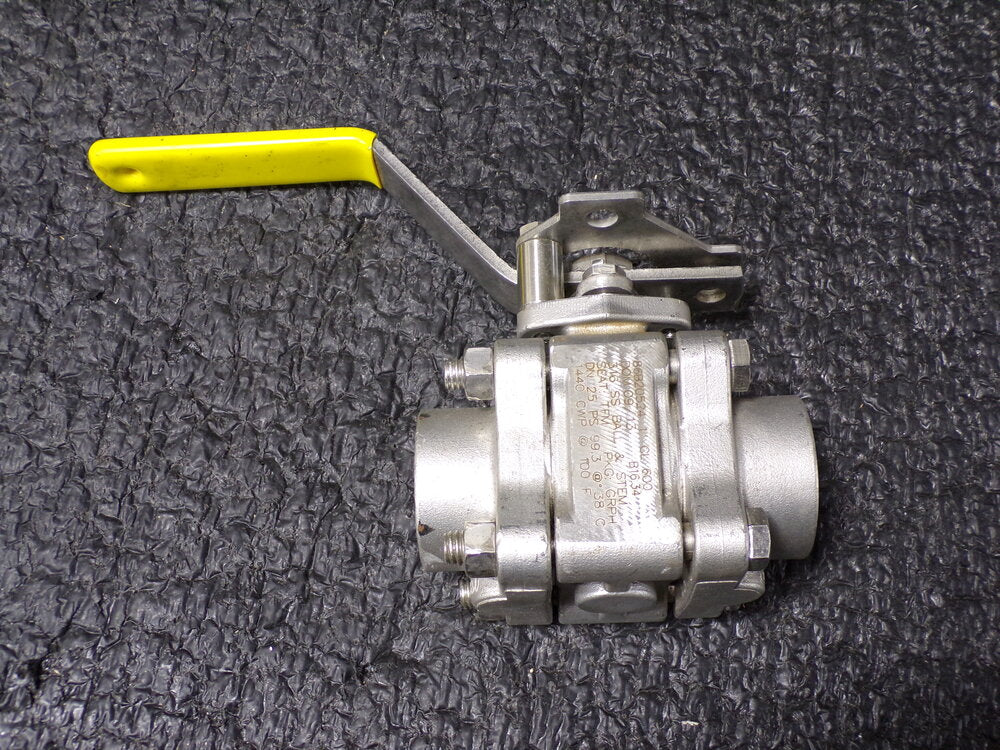

APOLLO Fire Safe Ball Valve, 316 Stainless Steel, Inline, 3-Piece, Pipe Size 1 in (SQ7955493WT39)

3-Pc. 316 Stainless Steel Ball Valves

• Max. pressure: 1440 psi at 100°F (liquid); 250 psi (saturated steam) Temp. range: -50° to 500°F
Full-port valves feature multiseal seats. With lever handle, blowoutproof stems, adjustable stem packings, and PTFE spiral-wound seals.
Meet ASME B16.34.

Item: Fire Safe Ball Valve

• Body Material: 316 Stainless Steel

• Body Style: Inline

• General Connection Type: Socket

• Valve Structure: 3-Piece

• Pipe Size: 1 in

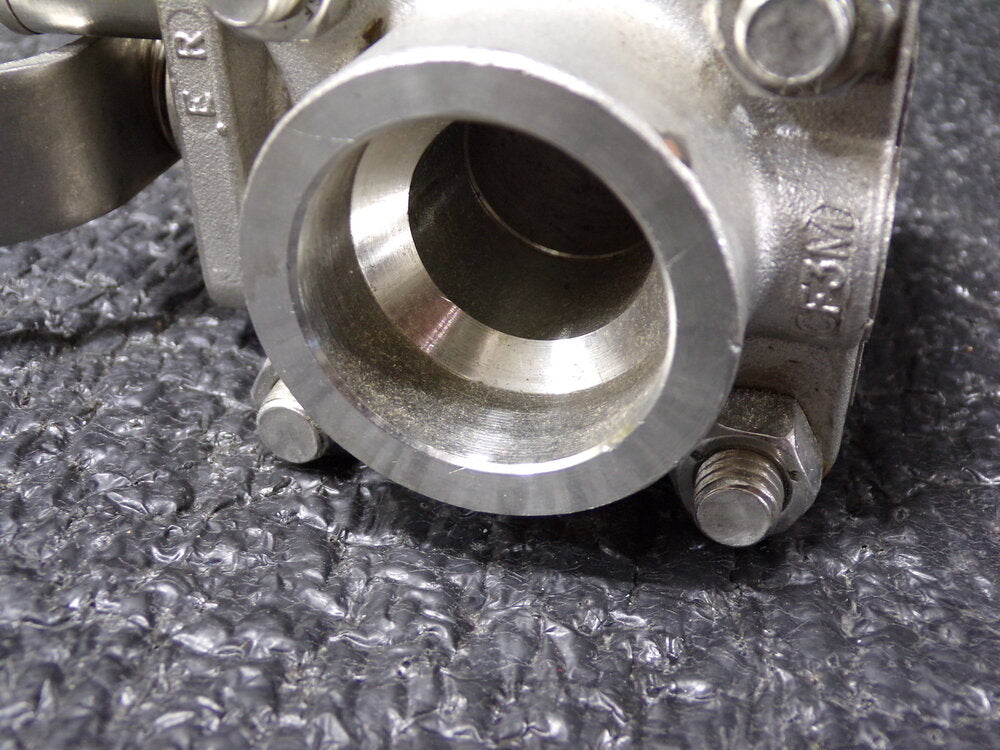

• Connection Type: Socket x Socket

• Port: Full

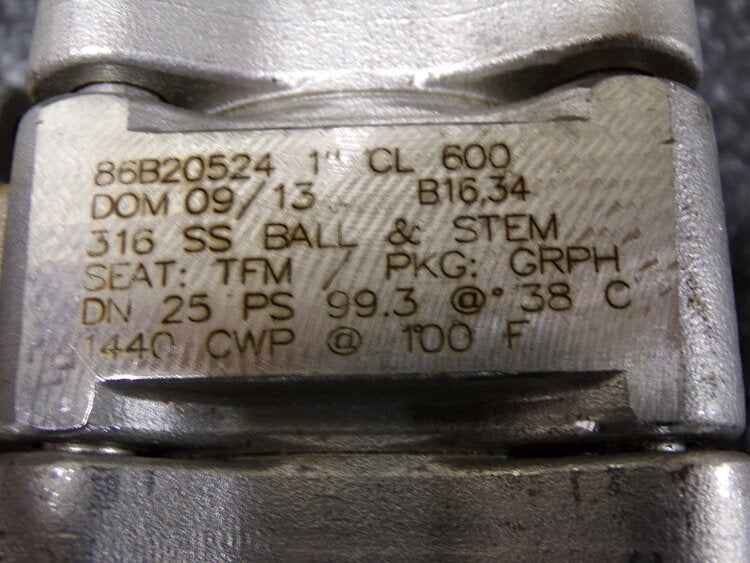

• Max. Pressure: 1440 psi CWP

• Max. Steam Pressure: 250 psi WSP

• Temp. Range: -50 Degrees to 500 Degrees F

• Ball Material: 316 Stainless Steel

• Seat Material: TFM(TM)

• Stem Type: Blowout Proof

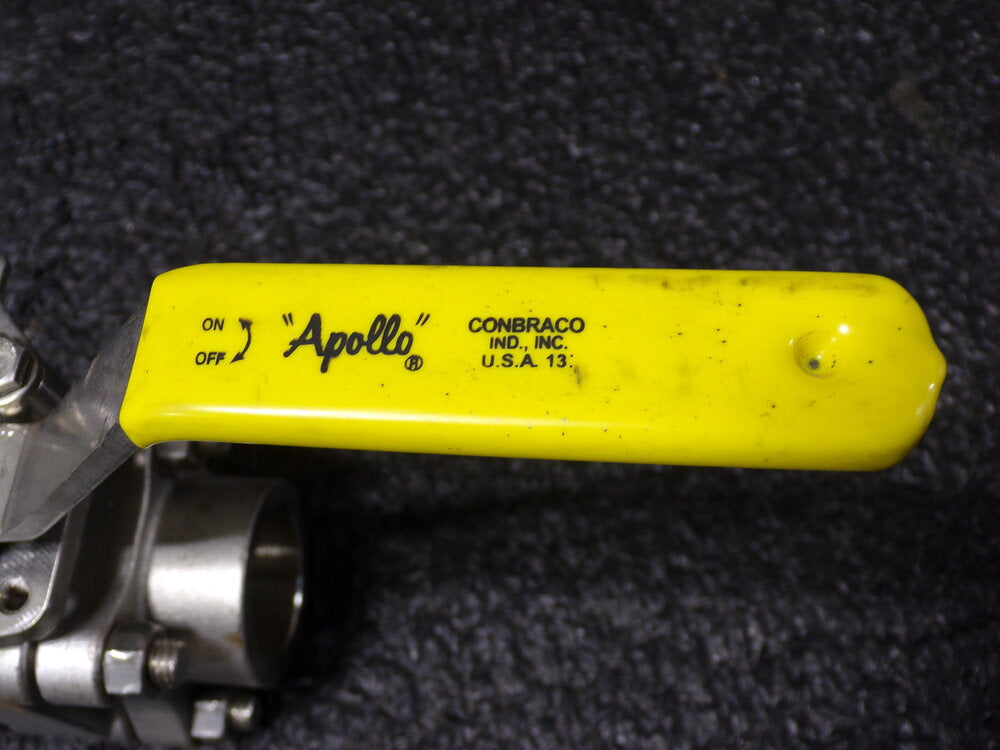

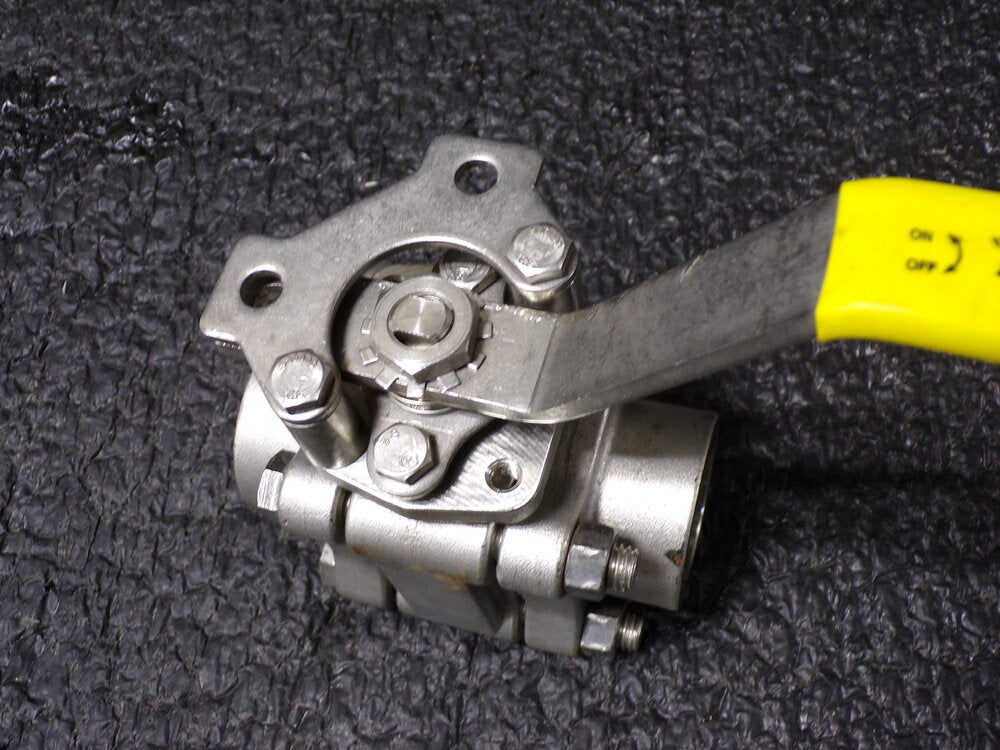

• Handle Type: Locking Lever

• Handle Material: 300 Stainless Steel

• Stem Material: 316 Stainless Steel

• Body Seal Material: PTFE Spiral Wound

• Features: Graphite Packing

• Ball Valve Product Group: Manual

• Valve Basic Body Material: Stainless Steel

• Standards: ASME B16.34

• Overall Length: 8.62 in
