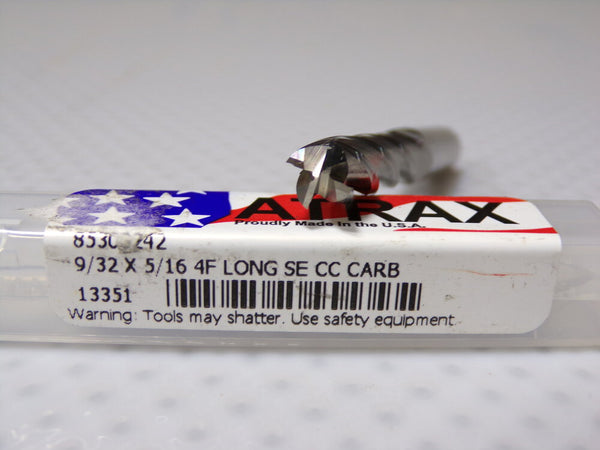

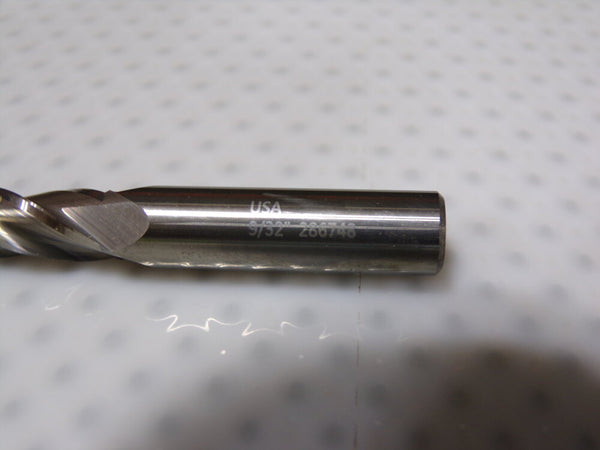

Atrax 9/32", 1-1/4" LOC, 5/16" Shank Diam, 2-1/2" OAL, 4 Flute, Solid Carbide Square End Mill (SQ4188403WT08)


Shipping calculated at checkout

SKU: SQ4188403WT08

Only 3 left!

Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.

Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.


Mill Diameter (Inch): 9/32

Number of Flutes: 4

Length of Cut (Inch): 1-1/4

Length of Cut (Decimal Inch): 1.2500

Material: Solid Carbide

Finish/Coating: Uncoated

Shank Diameter (Inch): 5/16

Single or Double End: Single

Overall Length (Inch): 2-1/2

Center Cutting: Center Cutting

Flute Direction: Right Hand

Cutting Direction: Right Hand

Helix Angle: 30.00

Variable Helix: No

Variable Index: No

Flute Type: Spiral

Length Type: Regular

Material Grade: Micrograin

Chipbreaker: No
