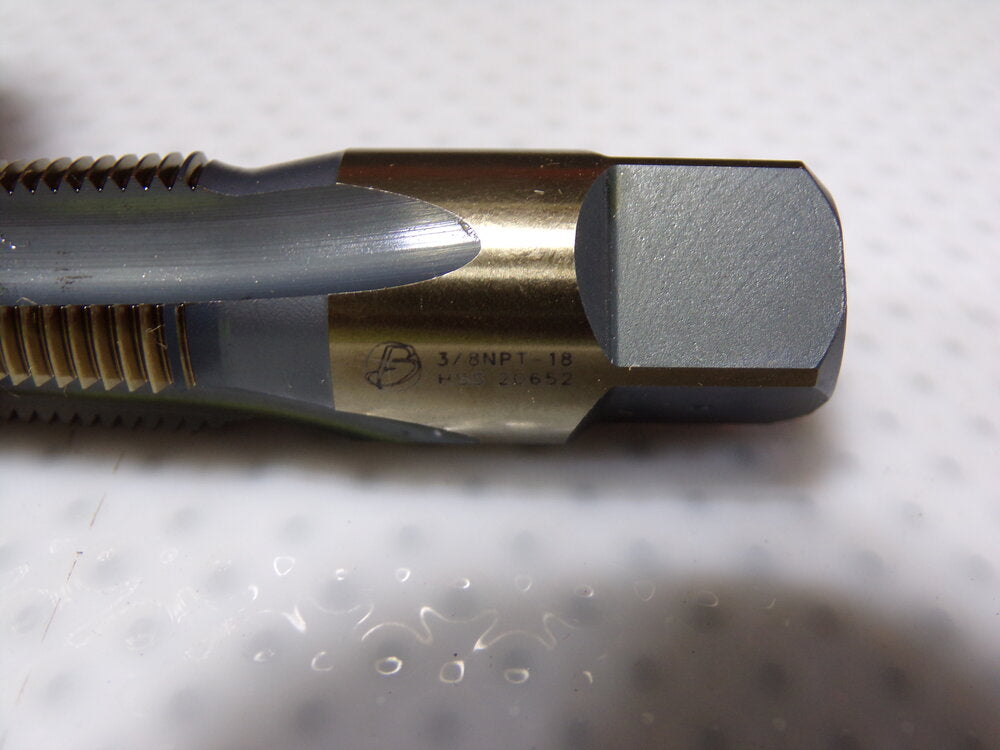

Barnes Pipe and Conduit Thread Tap, 3/8"-18, NPT, OAL 2-9/16", HSS (SQ3624827WT08)

$7.99

Shipping calculated at checkout

SKU: SQ3624827WT08

Available Now!

Item: Pipe and Conduit Thread Tap

  • Thread Size: 3/8"-18

  • Thread Standard: NPT

  • Tap Material: High Speed Steel

  • Tap Finish: Oxide/Gold

  • Thread Length: 1-1/16"

  • Overall Length: 2-9/16"

  • 75% Thread Drill Size: 9/16"

  • Thread Limit: H2

  • Number of Flutes: 4

  • Tap Length Standard: ANSI, USCTI

  • Tap Shank Standard: ANSI, USCTI

  • Primary Material Application: Aluminum, Brass, Bronze, Copper

  • Thread Limit / Class of Fit: H2

  • Thread Direction: Right Hand

  • Coolant Fed: Non-Coolant Through

  • Drill Bit Size: 9/16"

  • Extended Neck: Yes

  • Material Grade - Machining: 7320

  • Max. Projection: 0.454"

  • Measurement System: Fractional Inch

  • Primary Material Application ISO Code: N

  • Series: 7320

  • Shank Dia.: 0.7"

  • Shank Length: 1-1/2"

  • Square Size: 0.531"

  • Standards: ANSI, USCTI

  • Tap Chamfer: Modified Bottoming

  • Tap Grouping: Individual

  • Tap Style: Pipe

  • Tap Thread Size: 3/8"-18

  • Threads per Inch: 18 TPI
