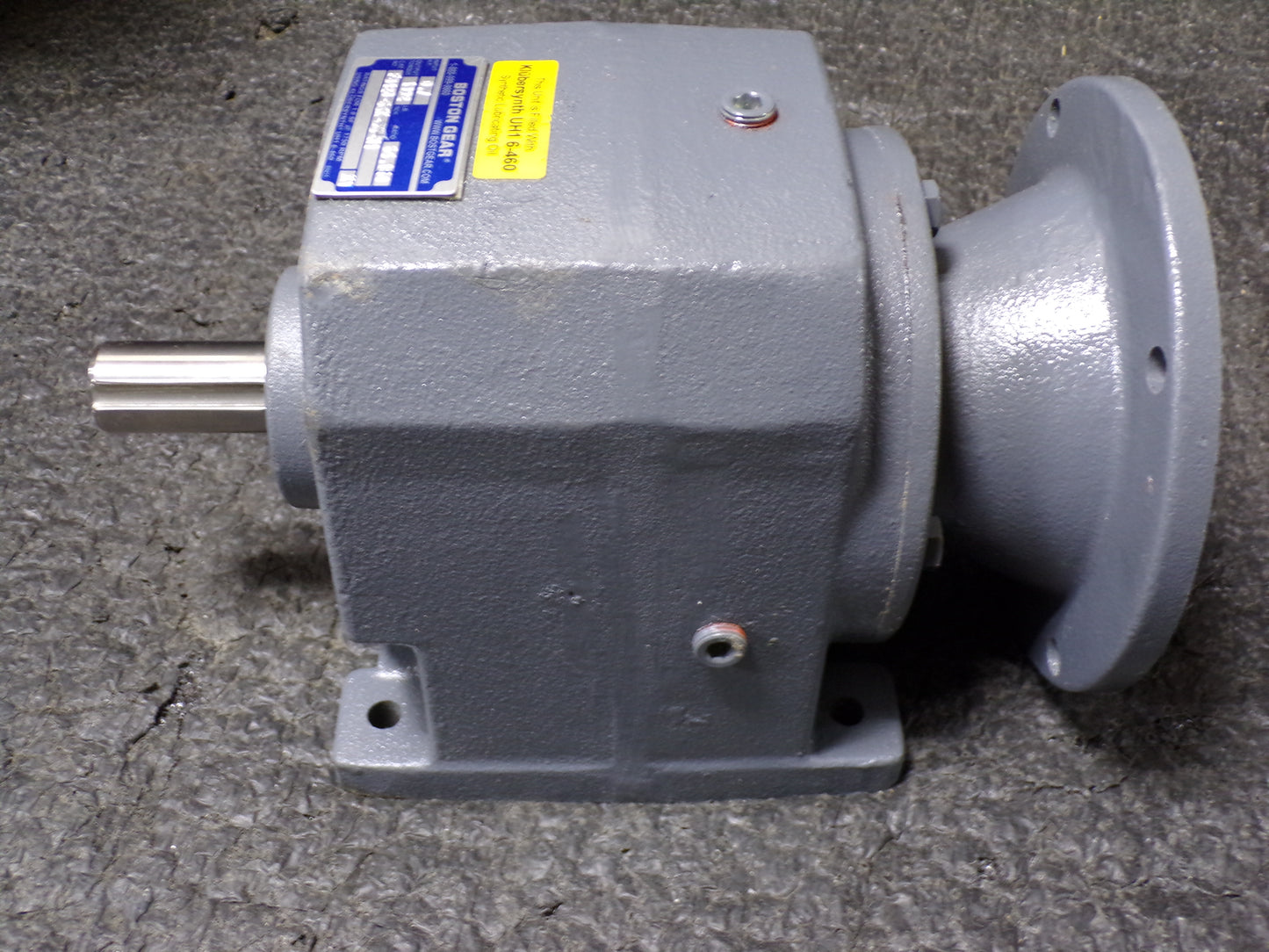

BOSTON GEAR Speed Reducer: 31 Nominal Output RPM, 56C, 56:1, 0.5 hp Max. Input HP (CR00639WTA16)

$899.99

Shipping calculated at checkout

SKU: CR00639WTA16

Only 1 left!

    • Item: Speed Reducer

    • Speed Reducer Type: C-Face

    • Shaft Orientation: Parallel/Inline

    • Duty: Standard

    • Input RPM: 1,750

    • Nominal Output RPM: 31

    • Bore Dia.: 5/8 in

    • Frame: 56C

    • Overhung Load: 770 lb

    • Nominal Ratio: 56:1

    • Max. Input HP: 0.5 hp

    • Max. Output Torque: 970 in-lb

    • Output Torque @ 1/2 HP: 647 in-lb

    • Output Torque @ 3/4 HP: 970 in-lb

    • Number of Stages: 1

    • Rotation: Forward/Reversible

    • Base: Optional

    • Mounting: Any Position

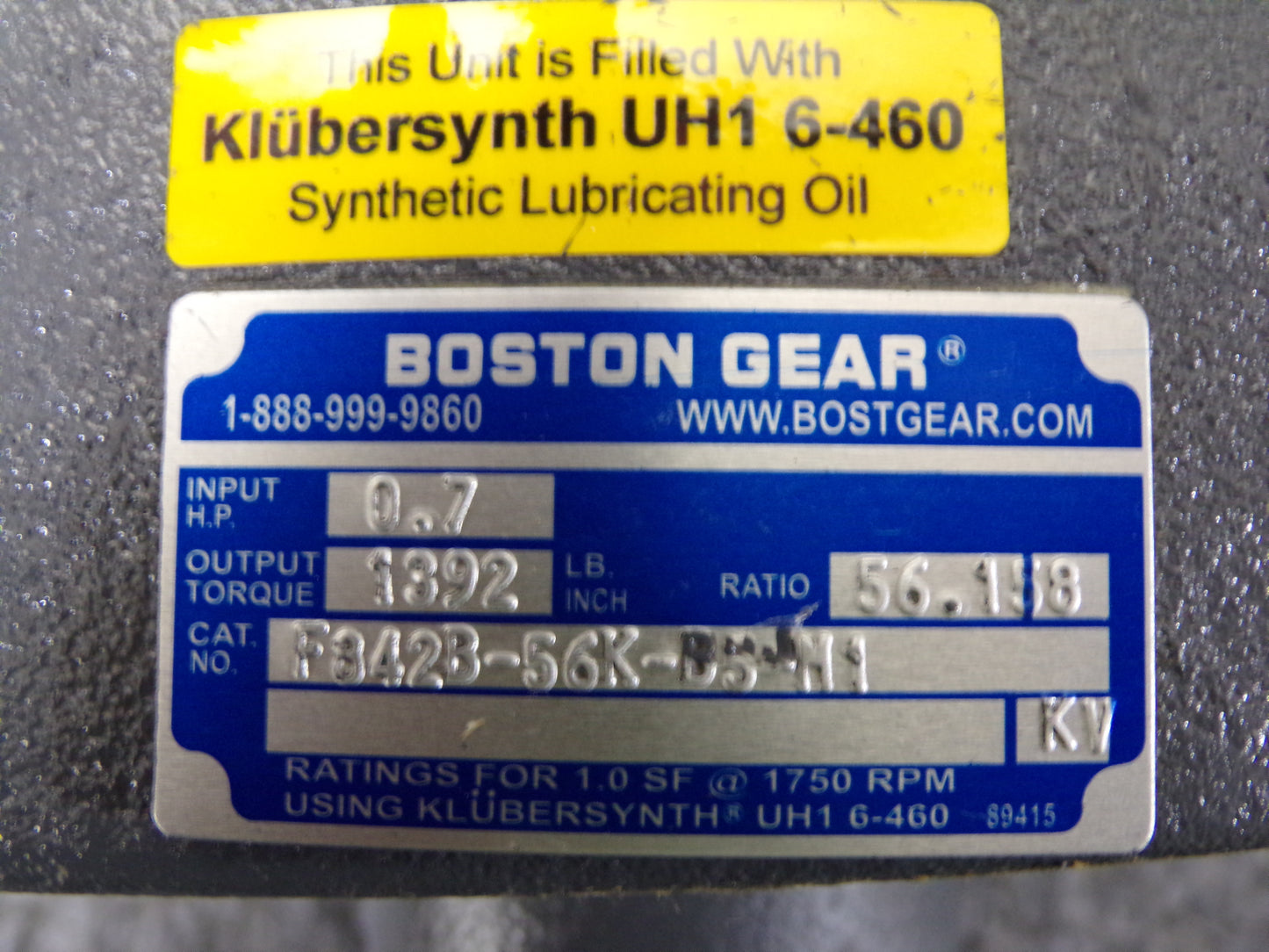

    • Lubrication: Klubersynth UH1 6-460

    • Seal Type: Double Lip

    • Bearings: Roller

    • Pinion Material: Hardened Steel

    • Gear Type: Helical

    • Gear Material: Hardened and Ground Steel

    • Housing Material: Cast Iron

    • Finish: Powdered Epoxy Paint

    • Single/Double Output/Universal: Single Output

    • Solid/Hollow Output Shaft: Solid

    • Output Shaft Dia.: 1 in

    • Output Shaft Height: 1 31/32 in

    • Overall Length: 10.75 in

  • Standards: BISSC Certified
