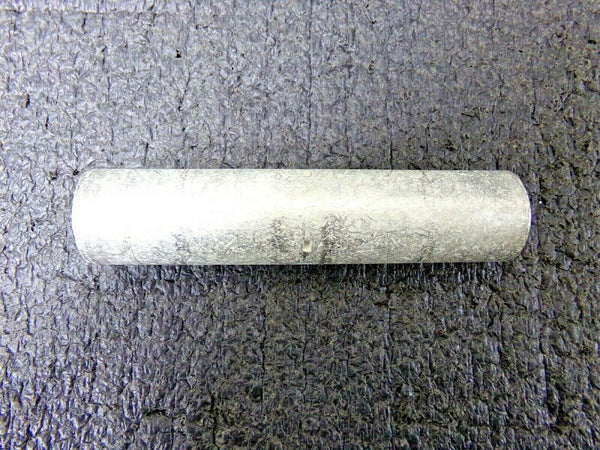

Copper Compression Splice, 1000 kcmil, 6.95" Splice Length, Long Barrel, Tin Plated.
Features: UL Listed 90 DEG C, 600 Volts to 35 kV, Long Barrel Length: Ideal For 600 Volt Heavy Duty Applications, Also May Be Used At Higher Voltages Up To 35KV, Four (4) Center Conductor Stops: Provides A Center Wire Stop For Proper Conductor Insertion, High Pull Out Force: Provides Added Security For Much Greater Mechanical And Electrical Properties, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (4), Color Code: White, Tapered End: No, Oil Stop: No, Die Index: 27 Element A, Tools, Die Set Catalog Number, And (number Of Crimps): Y46 Tool, P44RT Die, (2), Wire Strip Length: 3-1/16 IN, Conductor Type: Commercial Stranded Copper
General
| Application |
For Heavy Duty Applications And Used At Higher Voltages Up To 35 KV |
| Color Code |
White |
| Connector Type |
Splice |
| Feature - Barrel Style |
Chamfered |
| Feature - Barrel Type |
Long |
| Material |
Copper |
| Plated |
Y |
| Plating Type |
Tin - Electro Plated |
| Sub Brand |
HYLINK |
| Trade Name |
HYLINK⢠|
| Type |
YS, Long Barrel |
| UPC |
781810527603 |
| UPC 12 Digit |
7818105276033 |
Dimensions
| Dimension - B Length inch |
2.94 in |
| Dimension - L Length Overall mm |
166 mm |
| Dimension - Length Overall inch |
6.55 in |
| Dimension - Strip Length inch |
3 |
Electrical Ratings
| Rating - KVA |
35 kV |
| Rating - Minimum Voltage |
600 |
| Voltage - Maximum |
35000 |
Conductor Related
| Conductor - Copper Str Size |
1000 kcmil |
Certifications and Compliance
| Certification - CSA Approved |
No |
| Certification - ETL |
No |
| Certification - UL Recognized |
No |
| Certification - cULus |
No |
| Industry Standard(s) |
UL468A-468B |
| Standards - Industry Standards Met |
UL468A-468B |
| Standards - RoHS Compliance Status |
CM |
| UL Listed |
Yes |
