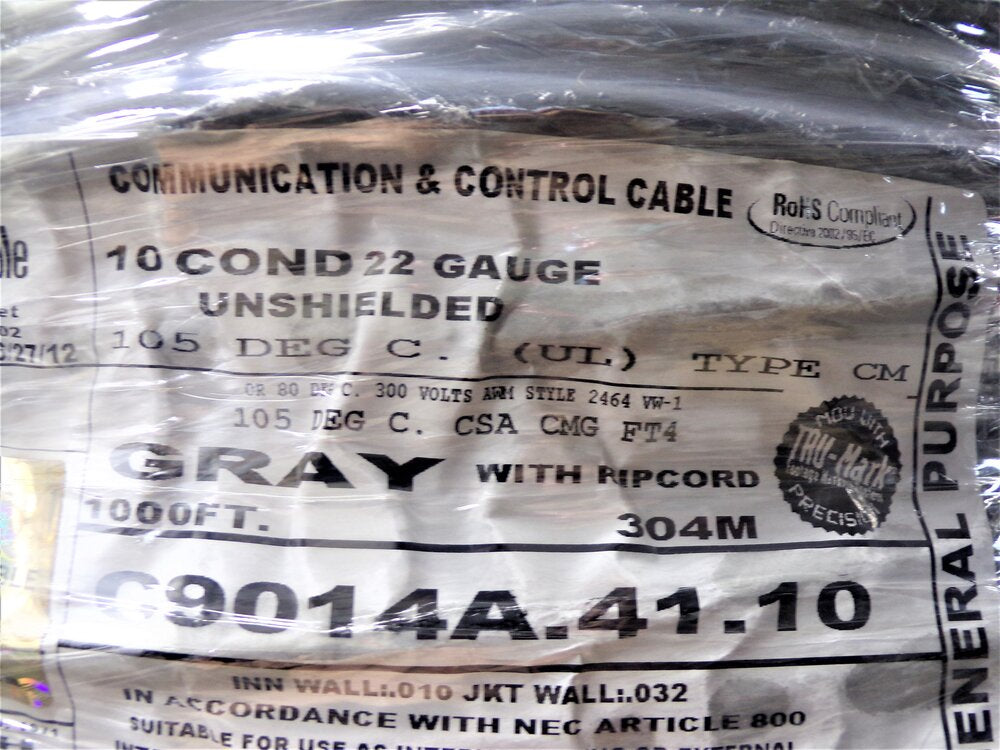

Carol Unshielded Communication Cable, 1000 ft Length, 10 Conductors: (0 Pair) (SQ6383773WT06)

Multi-Conductor, Number of Conductors 10, Unshielded, Length 1000 ft., Jacket Color Gray, Conductor Size 22 AWG, Nominal Outside Dia. 0.265 In., Stranded, Shielding Material None, Insulation Material Color-Coded PVC, Temp. Range -22 Degrees to 221 Degrees F

Features

• Application: Advanced Signal Transmission in Controlled Environments, Medical Instrumentation and Equipment, Consumer Electronic Peripherals, Industrial Process Control Systems, Suitable for EIA RS-232 Applications

• Item: Multi-Conductor

• Length: 1000 ft.

• Number of Conductors: 10

• Temp. Range: -22 Degrees to 221 Degrees F

• Jacket Color: Gray

• Jacket Material: PVC

• NEC Article: 800 Type CM

• Standards: NEC Article 800 Type CM (UL: 105 Degrees C), UL Style 2464 (UL: 80 Degrees C, 300 V, VW-1), CSA Type CMG (CSA: 105 Degrees C, FT4), CE: Low-Voltage Directive (LVD) 2006/95/EC, RoHS Compliant Directive 2011/65/EU, Vertical Tray Cable Flame Test per UL 1581 and IEEE 383 (70,000 BTU)

• Conductor Size: 22 AWG

• Nominal Outside Dia.: 0.265"

• Shielded / Unshielded: Unshielded

• Insulation Material: Color-Coded PVC

• Cable Sub-Category: Multi-Conductor

• Solid / Stranded: Stranded

• Shielding Material: None
