CENTURY Pool Motor,3/4 HP,3450 RPM,115/230V, B668 (184213634438-BT35)

$179.99

Shipping calculated at checkout

SKU: 184213634438-BT35

Only 1 left!

Technical Specs

  • ItemPool and Spa Pump Motor
  • Motor ApplicationPump
  • Motor Sub ApplicationPool and Spa Pump
  • Motor DesignPermanent Split Capacitor
  • Motor Enclosure DesignOpen Dripproof
  • HP3/4
  • Nameplate RPM3450
  • Frame56CZ
  • Motor Shaft RotationCCWSE
  • Voltage115/230
  • Full Load Amps13/6.5
  • Phase1
  • Hz60
  • Motor Mounting TypeFace
  • Motor BearingsBall
  • FinishBlack
  • Motor Flange MaterialAluminum

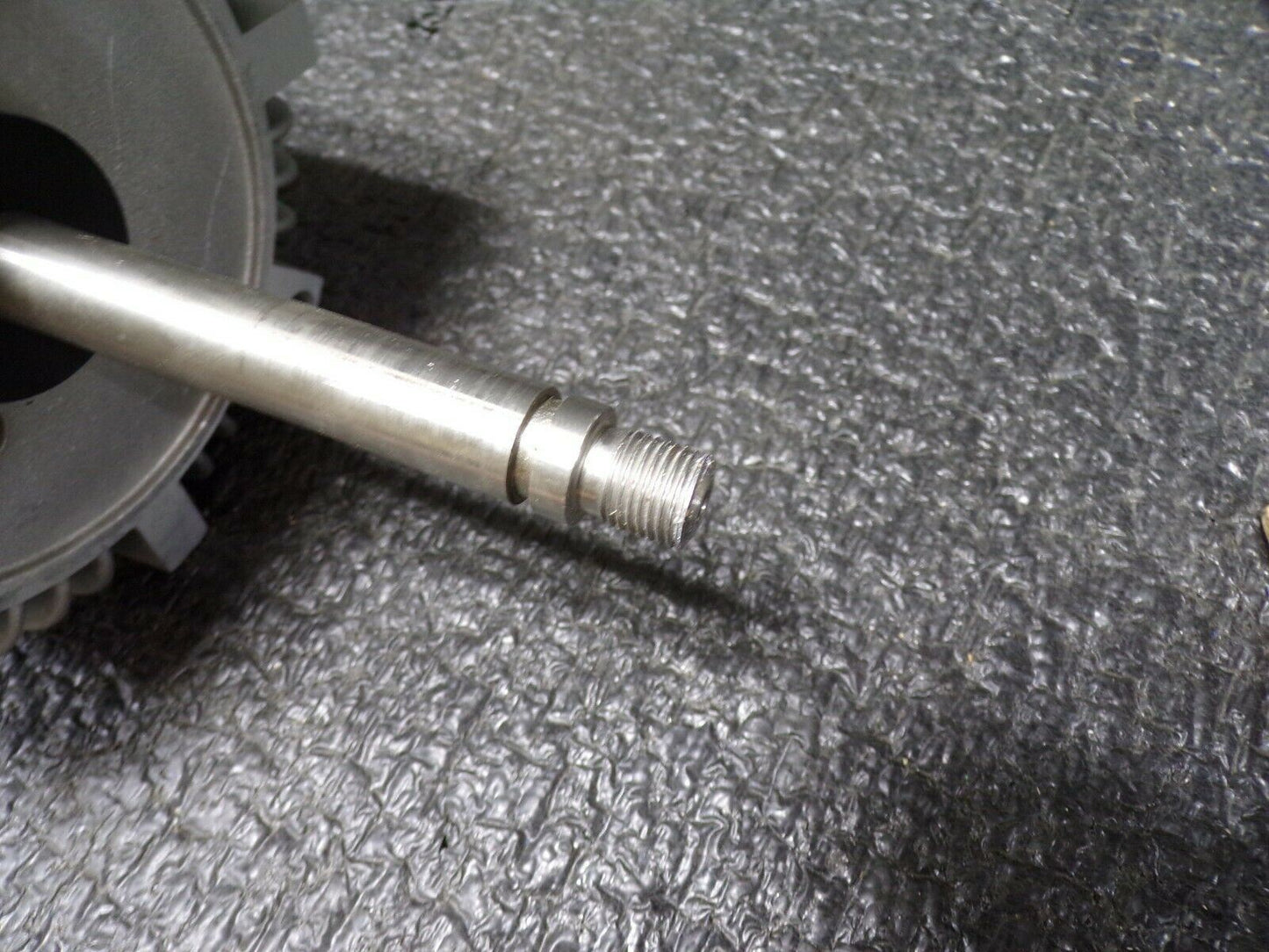

  • ShaftThreaded 1/2-20 UNF-2A RH
  • Shaft Material303 Stainless Steel
  • Motor Thermal ProtectionAuto
  • Motor Service Factor1.5
  • Ambient Temperature40 Degrees C
  • Shaft Dia.5/8"
  • Shaft Length4-7/16"
  • Ins. ClassB
  • RPM Range3001-3600
  • Motor Efficiency GroupStandard Efficient
  • StandardsUL Recognized (E14663), CSA Certified (LR642)
