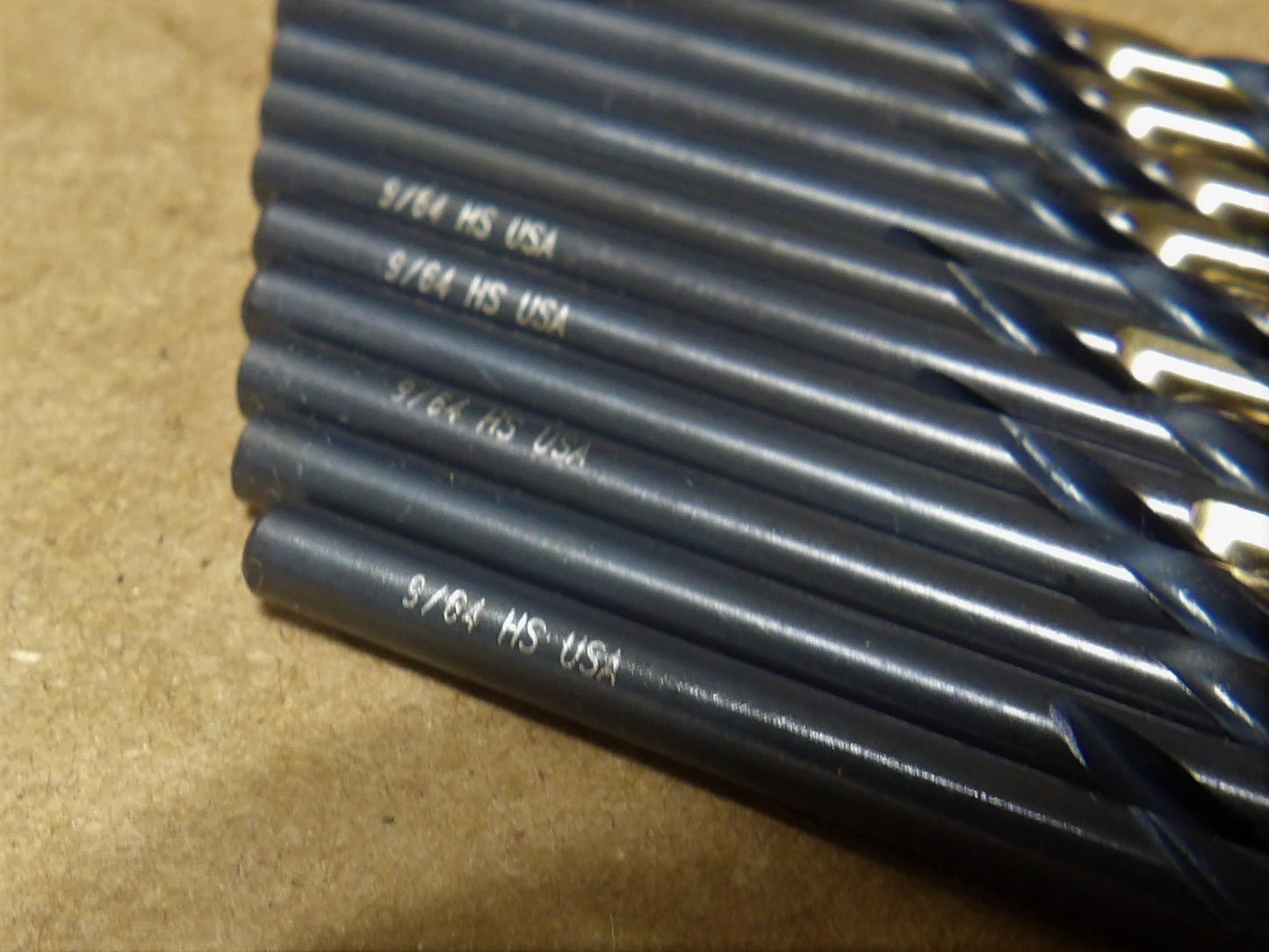

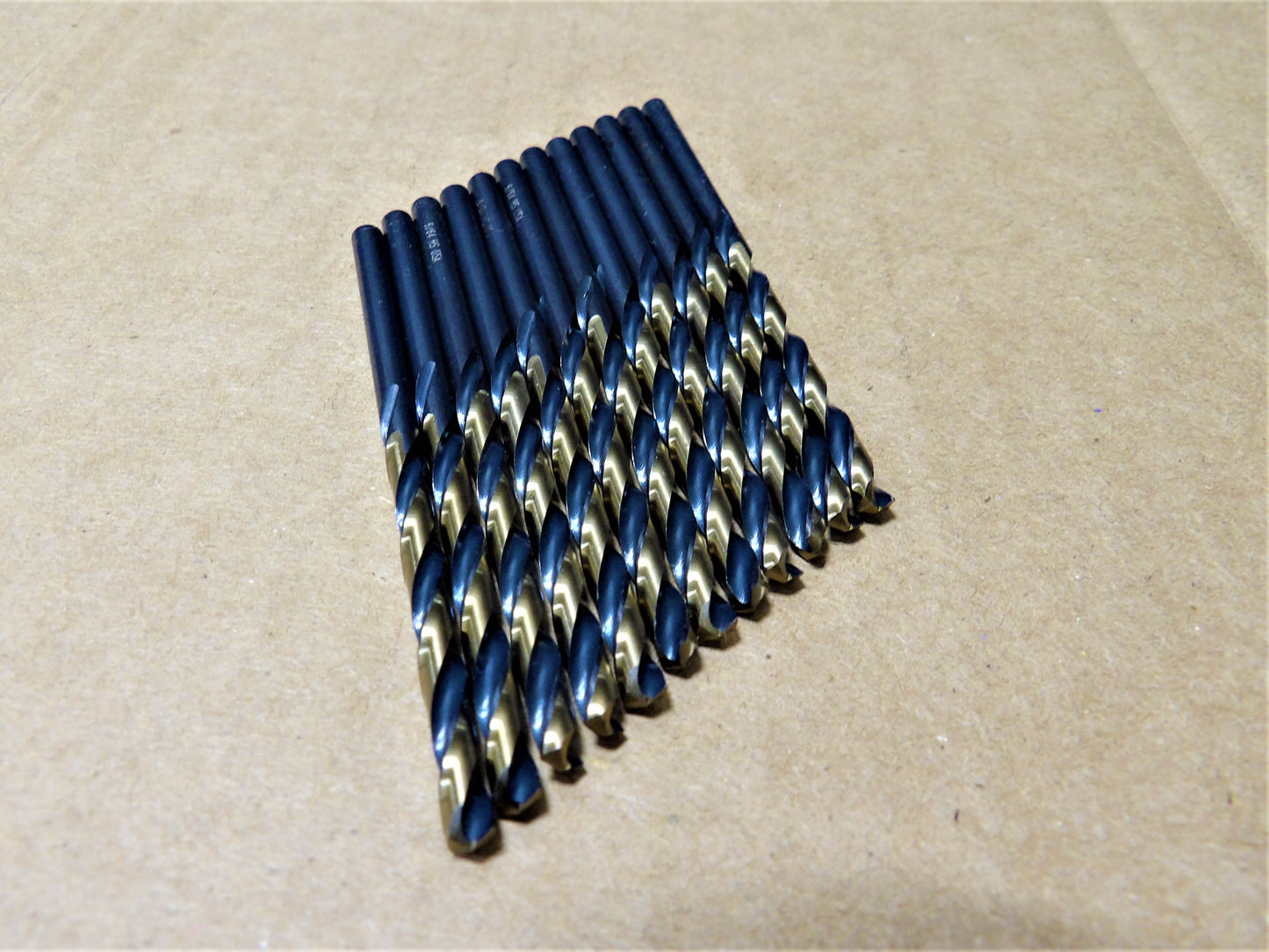

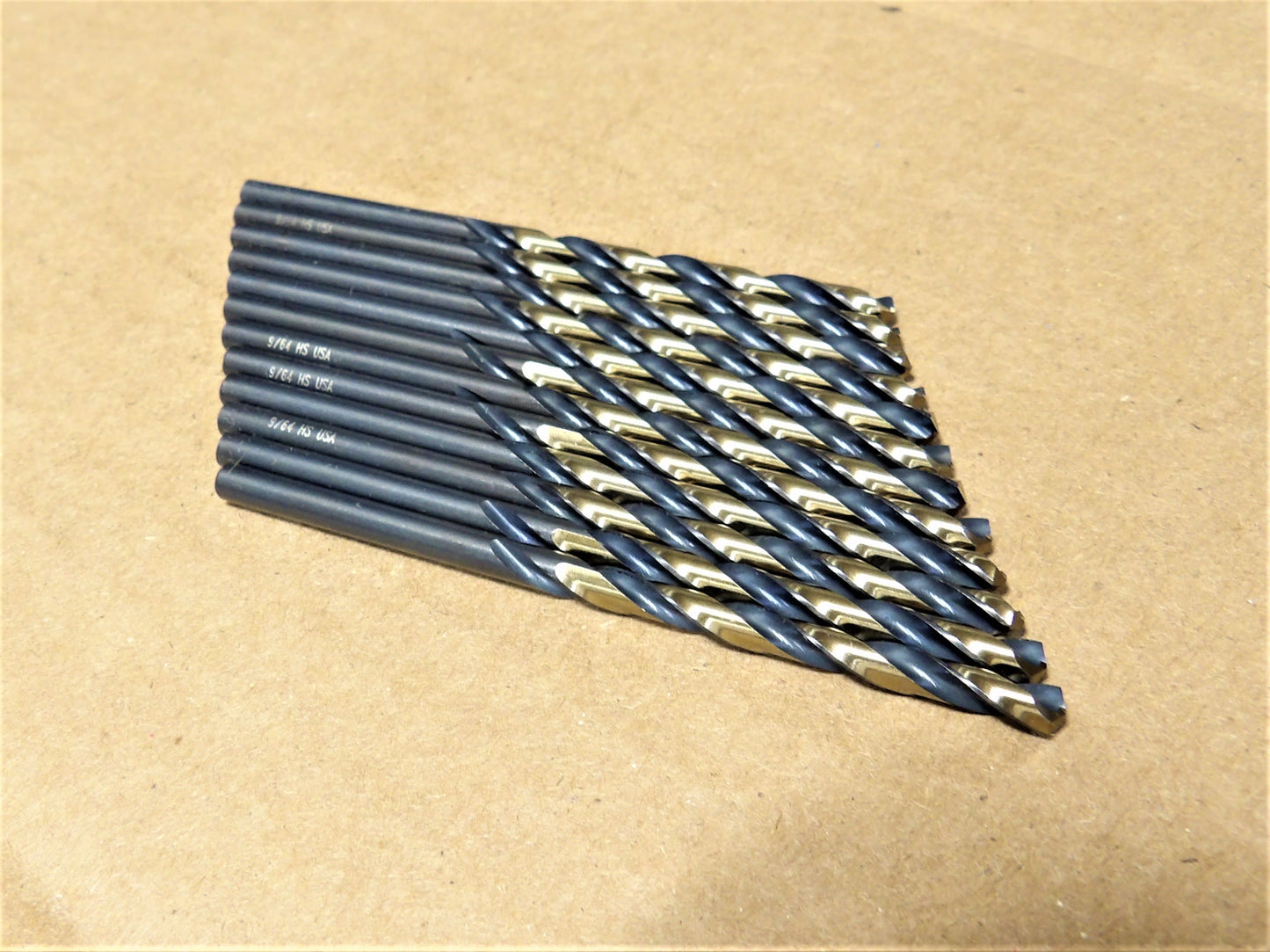

CHICAGO-LATROBE 9/64″ 118° High Speed Steel Jobber Drill, 12pk (CR00838WTA23)


Shipping calculated at checkout

SKU: CR00838WTA23

Only 6 left!

Drill Bit Size (Inch) 9/64
Drill Bit Size (Decimal Inch) 0.140625
Drill Point Angle 118°
Flute Type Spiral
Cutting Direction Right Hand
Tool Material High Speed Steel
Shank Type Straight
Coolant Through None; No

Series 150D

Shank Length 1.125in
Drill Bit Diameter Tolerance -0.0010 to 0.0000 in
Flute Length (Inch) 1-7/8
Overall Length (Inch) 3
Tool Performance General Purpose
Primary Workpiece Material Non-Ferrous Metal
Point Type Standard
Shank Diameter (Inch) 9/64

Standards DIN 338
Spiral Type Regular Spiral
Web Configuration Tapered
Drill Bit Diameter Tolerance (Decimal Inch) -0.0010 to 0.0000
Number of Flutes 2
Web Thinning Web-Thinned
Drill Bit Grade General Purpose
