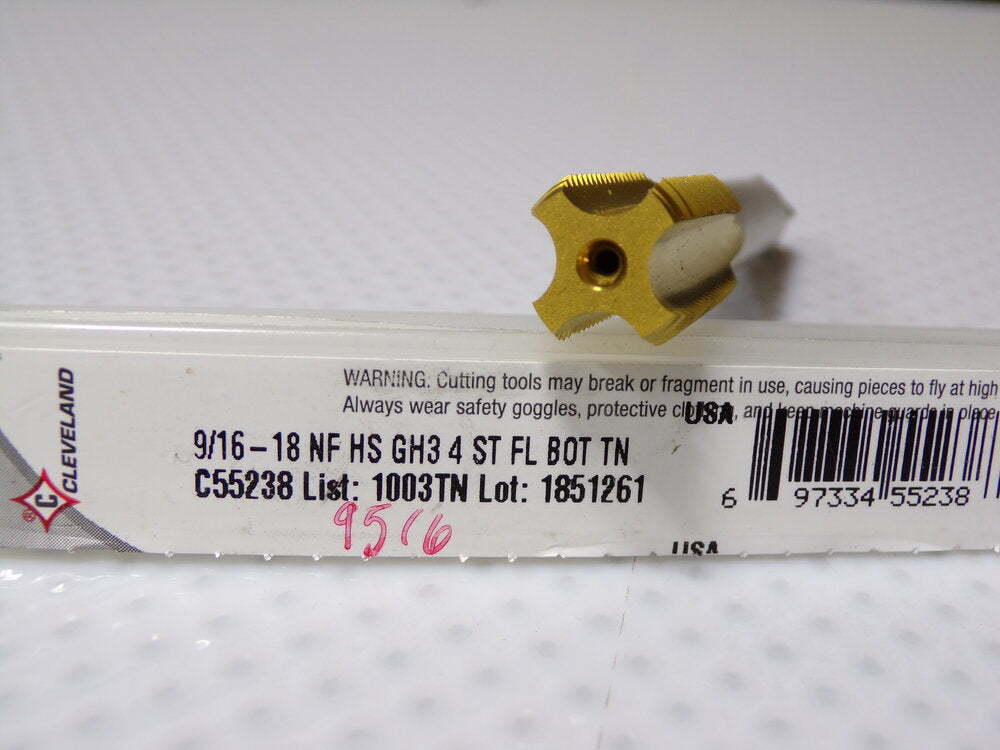

Cleveland 9/16"-18 UNF, Bottom Hand Tap, 4 Flute (SQ8173786WT08)

Cleveland Bottom Male 1003-TN is made of high speed steel. This part has a 9 / 16-18 UNF thread and a length of 3.59 in. In threading applications, the level of clearance on the thread is known as the tap limit for threading. In this case, the male thread limit is H3. Another very important detail is the TiN finish.

• Brand: Cleveland

• Material: High speed steel

• Surface finish: TiN

• Thread size: 9 / 16-18 UNF

• Flute Qty: 4

• Overall length: 3.59 in.

• Flute Type: Straight

• Style: 1003-TN

• Construction of Male Threading: Background

• Thread Tolerance: 2B

• Cut length: 2 in.

• Stem Configuration: Straight with square

• Shaft Size: 0.429 in.

• Thread Length: 1 in.

• Male Neck Length To Thread: 0.67 in.

• Thread Male Limit: H3
