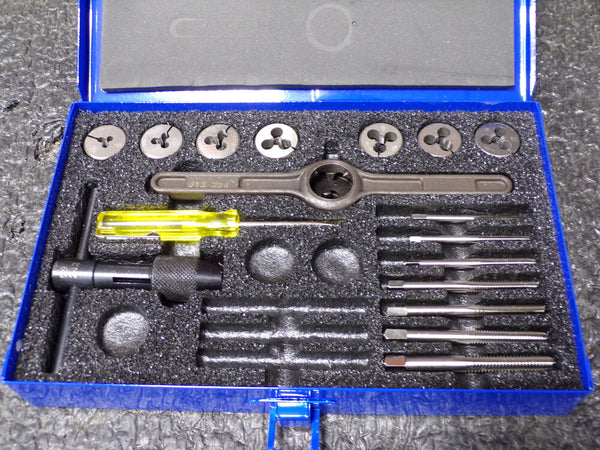

CLEVELAND Tap and Die Set, 17 Piece, Round Die, Hand Tap, C00517 (SQ9985858WT08)

$129.99 $299.99

Shipping calculated at checkout

SKU: SQ9985858WT08

Only 1 left!

Item: Tap and Die Set

  • Number of Pieces: 17

  • Number Of Taps: 7

  • Number of Dies in Set: 7

  • Tap Type: Hand Tap

  • Thread Standard: UNC, UNF

  • Thread Limit: H2, H3

  • Thread Sizes Included: #10-24 NC, #10-32 NF, #12-24 NC, #4-40 NC, #6-32 NC, #8-32 NC, 1/4-20 NC

  • Threads per Inch: 40, 32, 24, 20

  • Tap Shank Standard: Table 302

  • Tap Finish: Bright (Uncoated)

  • Tap Shank Dia.: Table 302

  • Tap Overall Length: Table 302

  • Tap Series: HTGP

  • Class of Fit: 2B

  • Coolant Fed: Non-Coolant Through

  • Extended Neck: No

  • Extended Shank: No

  • Extension Tap: No

  • Helix Angle: 0 Degrees

  • Number of Flutes: 3, 4

  • Die Material: High Speed Steel

  • Die Finish: Bright (Uncoated)

  • Die Shape: Round

  • Die Type: Adjustable

  • Die Thread Sizes Included: #10-24 NC, #10-32 NF, #12-24 NC, #4-40 NC, #6-32 NC, #8-32 NC, 1/4-20 NC

  • Die Series: 0610

  • Case Type: Metal

  • Features: General Purpose Applications

  • Primary Material Application: All Materials

  • Primary Material Application ISO Code: H, K, M, N, P, S

  • Secondary Material Application: Stainless Steel

  • Secondary Material Application ISO Code: M

  • 55% Thread Drill Size: 3/32", #32, 3.6mm, #21, 4.25mm, #13, #3

  • 65% Thread Drill Size: 2.3mm, #34, 3.5mm, #23, 4.15mm, 4.6mm, #5

  • 75% Thread Drill Size: 2.2mm, #36, 3.4mm, #25, #21, 4.45mm, #7

  • Die Material Grade: Carbon Steel

  • Dimensions Standard: Fractional Inch

  • Finish - Machining: Bright (Uncoated)

  • Material - Machining: High Speed Steel

  • Max. Die Thread Size: 1/4"-20 NC

  • Max. Tap Thread Size: 1/4"-20 NC

  • Measurement System: Fractional Inch

  • Min. Bore Dia.: #4-40 NC

  • Min. Tap Thread Size: #4-40 NC

  • Powdered Metal Base Material: No

  • Spiral Direction: Neutral

  • Tap Material Grade: M2

  • Tap Sizes Included: #10-24 NC, #10-32 NF, #12-24 NC, #4-40 NC, #6-32 NC, #8-32 NC, 1/4-20 NC

  • Standards: ANSI

  • Tap Chamfer: Plug

  • Tap Material: High Speed Steel

  • Tap Wrench Number: T9

  • Thread Direction: Right Hand

  • Thread Type: UNC, UNF
