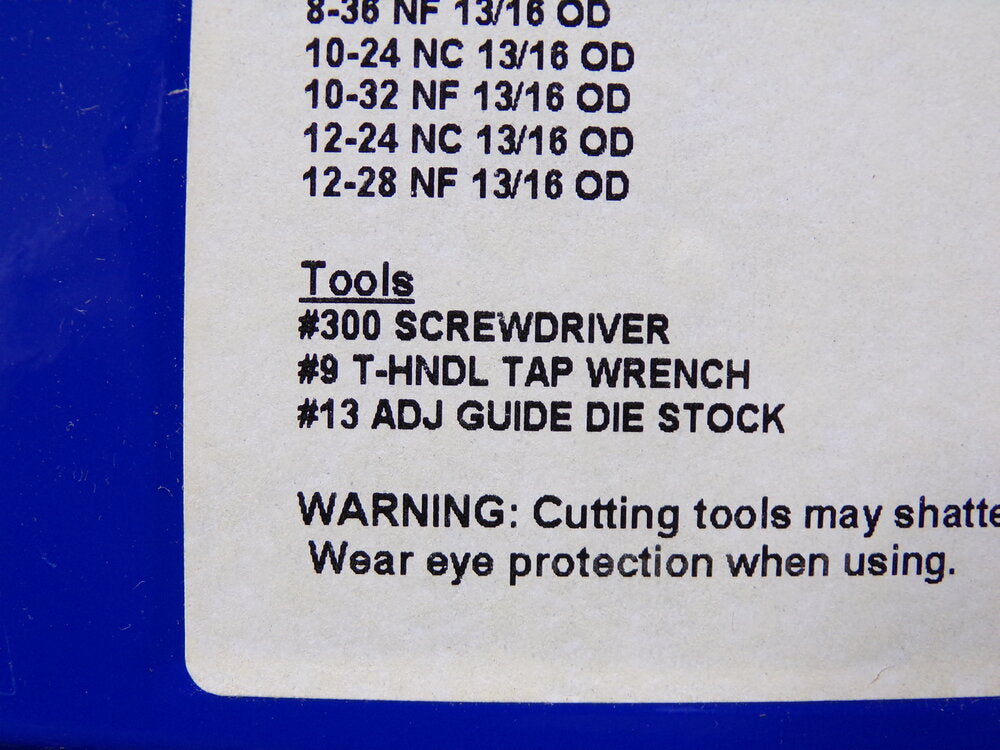

CLEVELAND Tap and Die Set, 23 Piece, Round Die, Hand Tap, C00526 (SQ2027125WT08)

Item: Tap and Die Set

• Number of Pieces: 23

• Number Of Taps: 10

• Number of Dies in Set: 10

• Tap Type: Hand Tap

• Thread Standard: UNC, UNF

• Thread Limit: H2, H3

• Thread Sizes Included: #10-24 NC, #10-32 NF, #12-24 NC, #12-28 NF, #4-40 NC, #4-48 NF, #6-32 NC, #6-40 NF, #8-32 NC, #8-36 NF

• Threads per Inch: 40, 48, 32, 36, 24, 28

• Tap Shank Standard: Table 302

• Tap Finish: Bright (Uncoated)

• Tap Shank Dia.: Table 302

• Tap Overall Length: Table 302

• Tap Series: HTGP

• Class of Fit: 2B

• Coolant Fed: Non-Coolant Through

• Extended Neck: No

• Extended Shank: No

• Extension Tap: No

• Helix Angle: 0 Degrees

• Number of Flutes: 3, 4

• Die Material: High Speed Steel

• Die Finish: Bright (Uncoated)

• Die Shape: Round

• Die Type: Adjustable

• Die Thread Sizes Included: #10-24 NC, #10-32 NF, #12-24 NC, #12-28 NF, #4-40 NC, #4-48 NF, #6-32 NC, #6-40 NF, #8-32 NC, #8-36 NF

• Die Series: 0610

• Case Type: Metal

• Features: General Purpose Applications

• Primary Material Application: All Materials

• Primary Material Application ISO Code: H, K, M, N, P, S

• Secondary Material Application: Stainless Steel

• Secondary Material Application ISO Code: M

• 55% Thread Drill Size: 3/32", 2.45mm, #32, #31, 3.6mm, #27, #21, 4.25mm, #13, #12

• 65% Thread Drill Size: 2.3mm, 3/32", #34, #32, 3.5mm, 9/64", #23, 4.15mm, 4.6mm, #13

• 75% Thread Drill Size: 2.2mm, 2.32mm, #36, #33, 3.4mm, #29, #25, #21, 4.45mm, 4.6mm

• Die Material Grade: Carbon Steel

• Dimensions Standard: Fractional Inch

• Finish - Machining: Bright (Uncoated)

• Material - Machining: High Speed Steel

• Max. Die Thread Size: #12-28 NF

• Max. Tap Thread Size: #12-28 NF

• Measurement System: Fractional Inch

• Min. Bore Dia.: #4-40 NC

• Min. Tap Thread Size: #4-40 NC

• Powdered Metal Base Material: No

• Spiral Direction: Neutral

• Tap Material Grade: M2

• Tap Sizes Included: #10-24 NC, #10-32 NF, #12-24 NC, #12-28 NF, #4-40 NC, #4-48 NF, #6-32 NC, #6-40 NF, #8-32 NC, #8-36 NF

• Standards: ANSI

• Tap Chamfer: Plug

• Tap Material: High Speed Steel

• Tap Wrench Number: T9

• Thread Direction: Right Hand

• Thread Type: UNC, UNF
