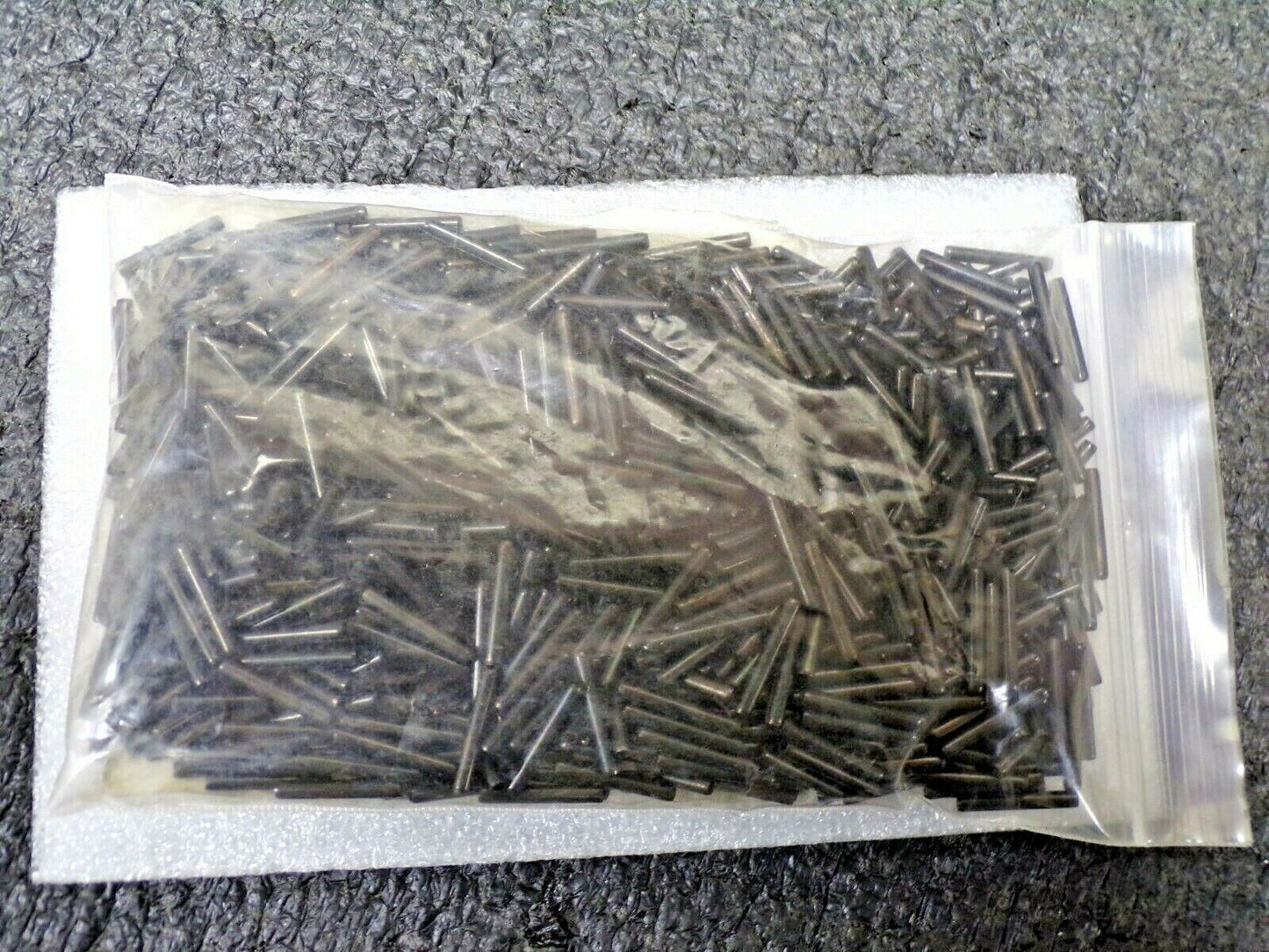

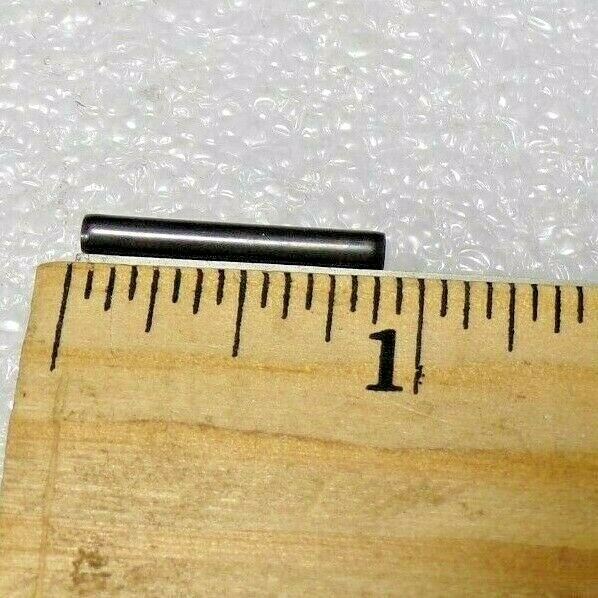

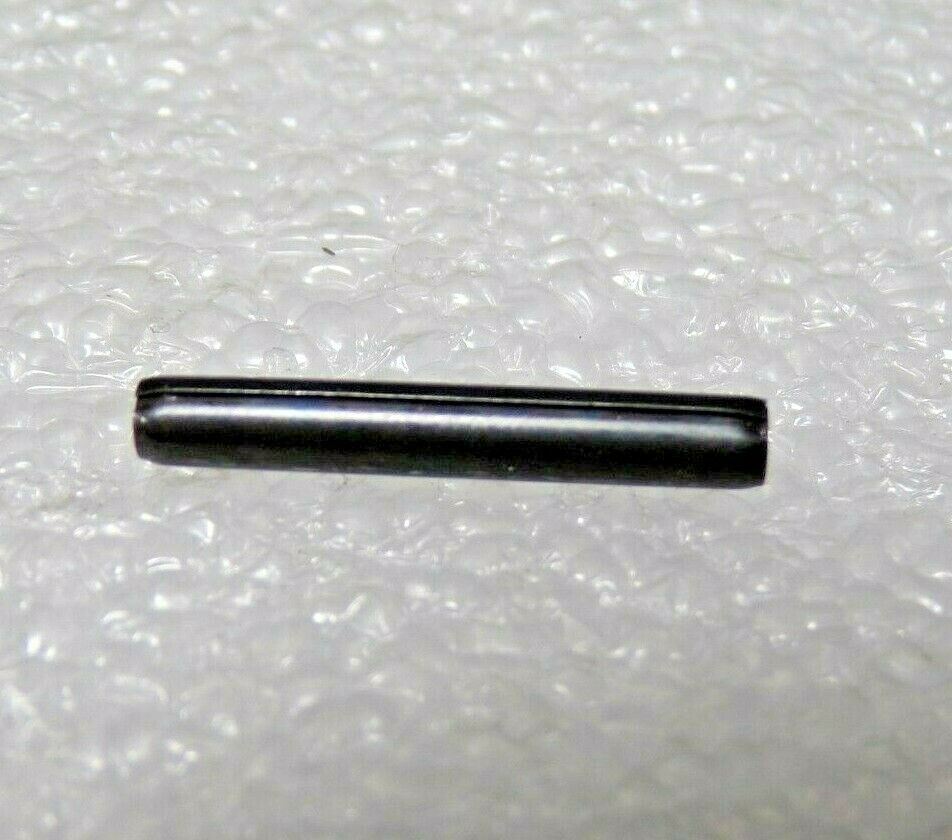

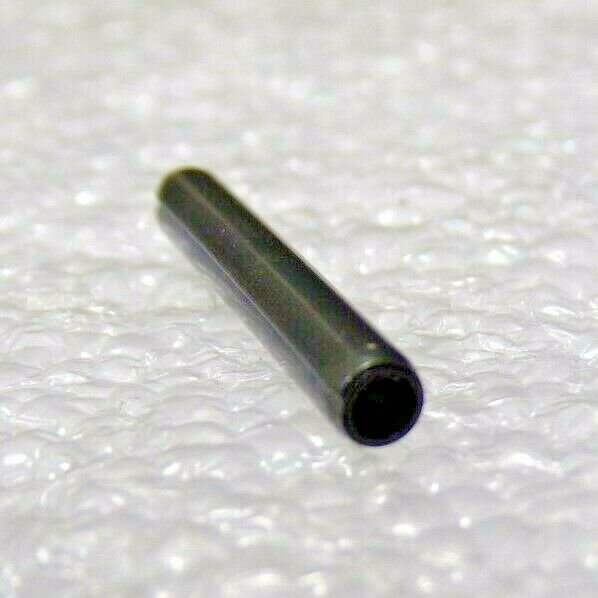

Coiled Spring Pin 1/8" x 7/8" Light Duty 1070-1095 Carbon Steel, PK 1,000 (183786833716-NBT17)
$49.99
Shipping calculated at checkout
SKU: 183786833716-NBT17
RoHS Compliant
Yes
Brand:
Spirol
Manufacturer Part Number:
10170
Material:
High Carbon Steel
Finish:
Plain
Type:
Coiled Spring Pin
Inch or Metric:
Inch
Double Shear Strength Minimum:
825 lbs
Duty:
Light Duty
Hardness:
HV 420-545
Material Grade:
1070-1095
Outside Diameter Maximum:
.139"
Outside Diameter Minimum:
.131"
Outside Diameter Nominal:
.125" (1/8)
Overall Length Maximum:
.885"
Overall Length Minimum:
.865"
Overall Length Nominal:
.875" (7/8)
Performance Grade:
Light Duty
Recommended Hole Diameter:
.125" - .129"
Specification:
ASME B18.8.2
