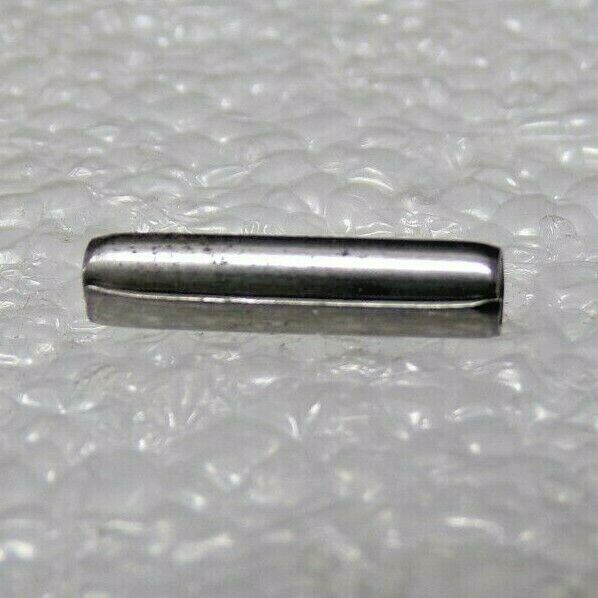

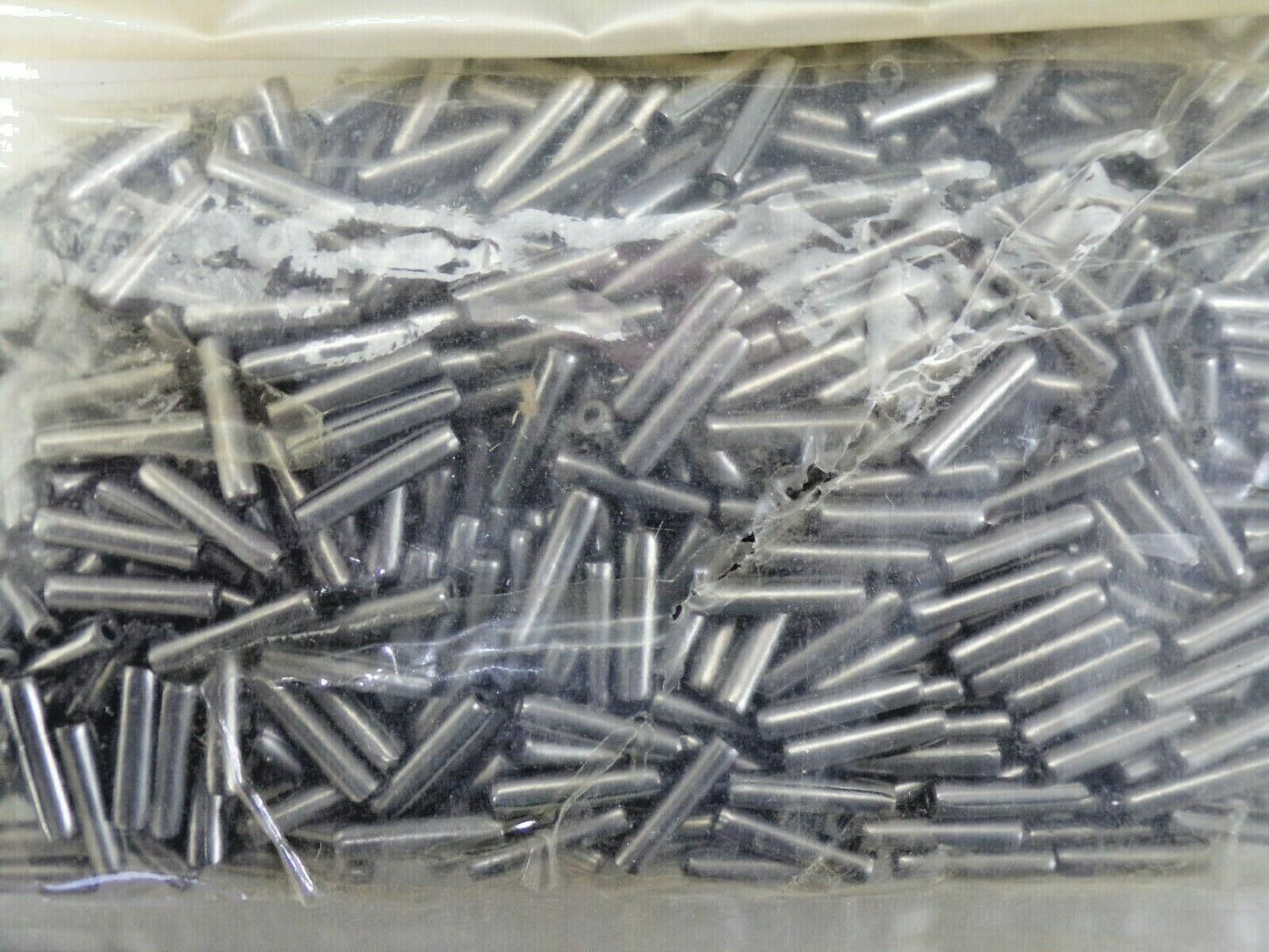

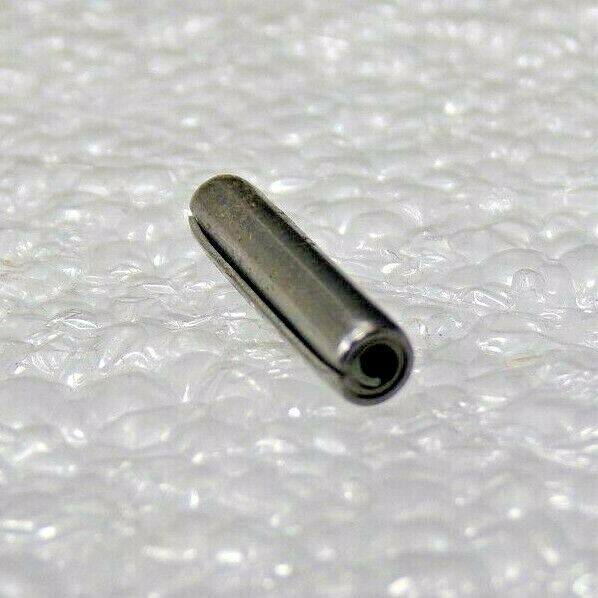

Coiled Spring Pin 1/8"X9/16" Heavy Duty 420 Stainless Passivated, PK500 (183786823672-NBT17)

$9.99

Shipping calculated at checkout

SKU: 183786823672-NBT17

Only 1 left!

RoHS Compliant
Yes
Brand:
Spirol
Manufacturer Part Number:
12288
Material:
Stainless Steel
Finish:
Passivated
Type:
Coiled Spring Pin
Inch or Metric:
Inch
Double Shear Strength Minimum:
2000 lbs
Duty:
Heavy Duty
Hardness:
HV 460-560
Material Grade:
420
Outside Diameter Maximum:
.136"
Outside Diameter Minimum:
.130"
Outside Diameter Nominal:
.125" (1/8)
Overall Length Maximum:
.572"
Overall Length Minimum:
.552"
Overall Length Nominal:
.563" (9/16)
Performance Grade:
Heavy Duty
Recommended Hole Diameter:
.124" - .129"
Specification:
ASME B18.8.2
