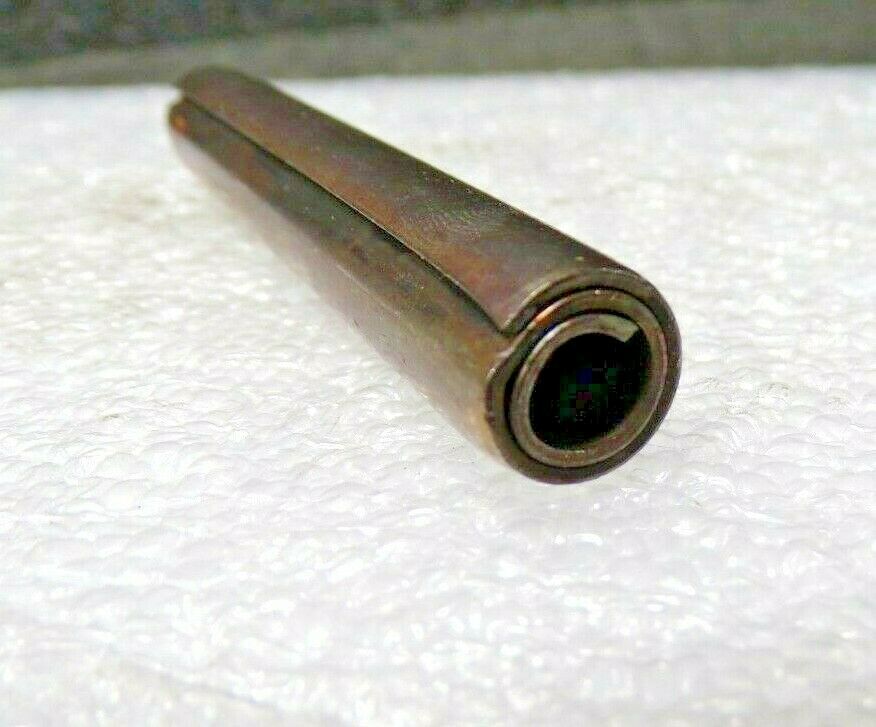

COILED SPRING PIN (SPIRAL PIN), STANDARD DUTY, PK10, 12X85MM (183785658906-NBT17)

$19.99

Shipping calculated at checkout

SKU: 183785658906-NBT17

Only 1 left!
COILED SPRING PIN (SPIRAL PIN), STANDARD DUTY, PK10, 12X85MM (183785658906-NBT17)
COILED SPRING PIN (SPIRAL PIN), STANDARD DUTY, PK10, 12X85MM (183785658906-NBT17)
COILED SPRING PIN (SPIRAL PIN), STANDARD DUTY, PK10, 12X85MM (183785658906-NBT17)
COILED SPRING PIN (SPIRAL PIN), STANDARD DUTY, PK10, 12X85MM (183785658906-NBT17)
COILED SPRING PIN (SPIRAL PIN), STANDARD DUTY, PK10, 12X85MM (183785658906-NBT17)
Description Let Us Know What You Think
d (nom.) 12
Diameter (mm) 12
Length (L) (mm) 85
Info
  • V = Shear strength double min. in kN.
  • Special features of spring-type straight pins (spiral pins):
  • Are used for the dismountable connection (positioning) of two or more parts and can also be applied as shafts and hinge-, stop- or carrier pins.
  • Due to the spiral shaped cross section (approx. 2.1/4 coils) the spring-type straight pins (spiral pins) are very flexible and suitable to be used more times for dynamic loads. Equal stress distribution throughout its cross section against the hole wall produces a good press fit, which can absorb shear forces unaffected by the direction.
  • Swaged chamfer at both ends, so they can easily be inserted and installed automatically.
  • For the hole diameter d (nom.) the tolerance H12 is recommended except for d (nom.)1mm, the tolerance H10 is recommended.
Material Spring steel
Material technical 420-560 HV30
Info
  • Warning: electro-galvanizing of these products may cause hydrogen embrittlement.


d1 (min.) 12.4
d2 11.7
d1 (max.) 12.85
V 89
a ≈ 3
