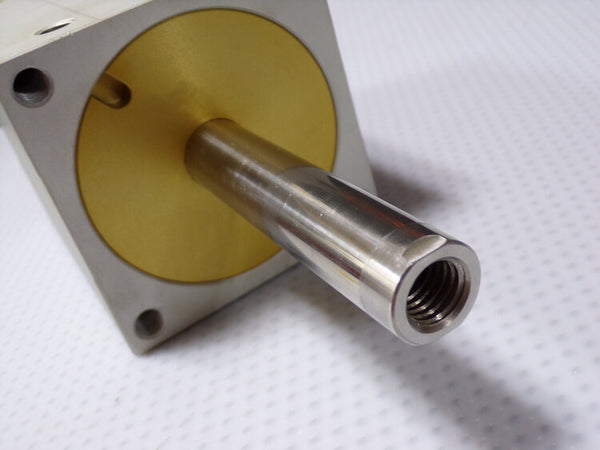

Compact Air Products INC. Air Cylinder Block S3X312, 3/4" x 3-1/2" Stroke (SQ7965551WT29)

Item: Air Cylinder

• Air Cylinder Product Group: Air Cylinder

• Cylinder Action: Double Acting

• Air Cylinder Bore Dia.: 3/4"

• Stroke: 3-1/2"

• Air Cylinder Type: NFPA

• Air Cylinder Mount: Flush

• Body Material: Aluminum

• Port Size: 1/8" NPT

• Single Acting/Double Acting: Double Acting

• Temp. Range: -20 Degrees to 200 Degrees F

• Cylinder Type: NFPA

• Overall Length: 5"

• Bore Dia.: 3/4"

• Mount: Flush

• Piston Material: Aluminum

• Finish: Silver

• End Cap Material: Aluminum

• Piston Rod Material: Chrome Plated

• Magnetic Piston: No

• Tie Rod Material: Steel

• Tube Material: Aluminum

• Rod Dia.: 3/4"

• Rod Thread Size: 1/2"-13

• Rod Thread Length: 1-3/8"

• Max. Pressure: 150 psi
