COOL-LINE Forced Air Oil Cooler: AC, 55 hp Heat Removed, 80 gpm Max. Flow, 377 psi Max. Pressure, A55-3, FREIGHT SHIPPING REQUIRED (CR00623WTA)

THIS ITEM REQUIRES FREIGHT SHIPPING, CONTACT FOR PRICE QUOTE BEFORE PURCHASE.

CLICK HERE FOR FREIGHT QUOTE

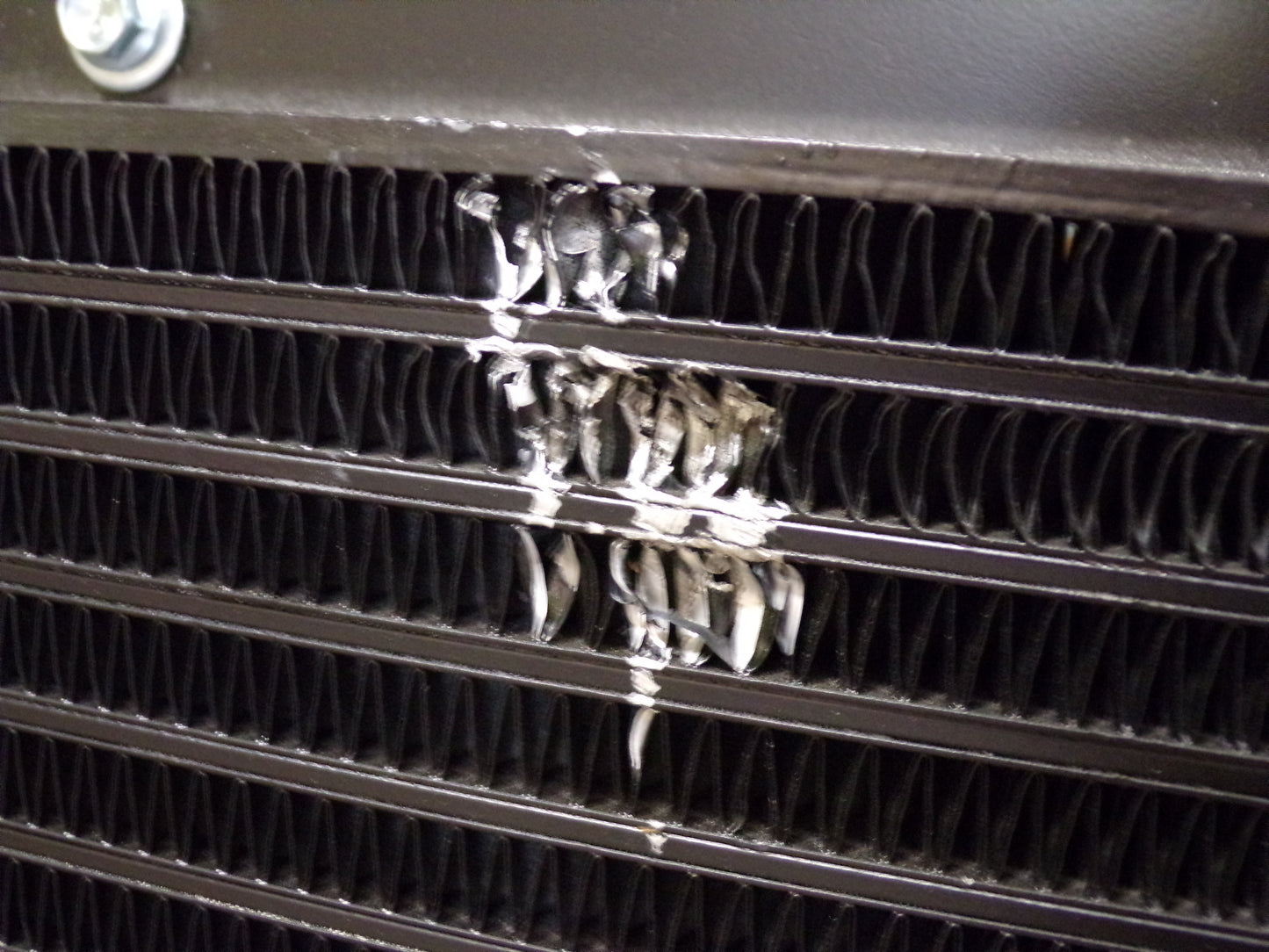

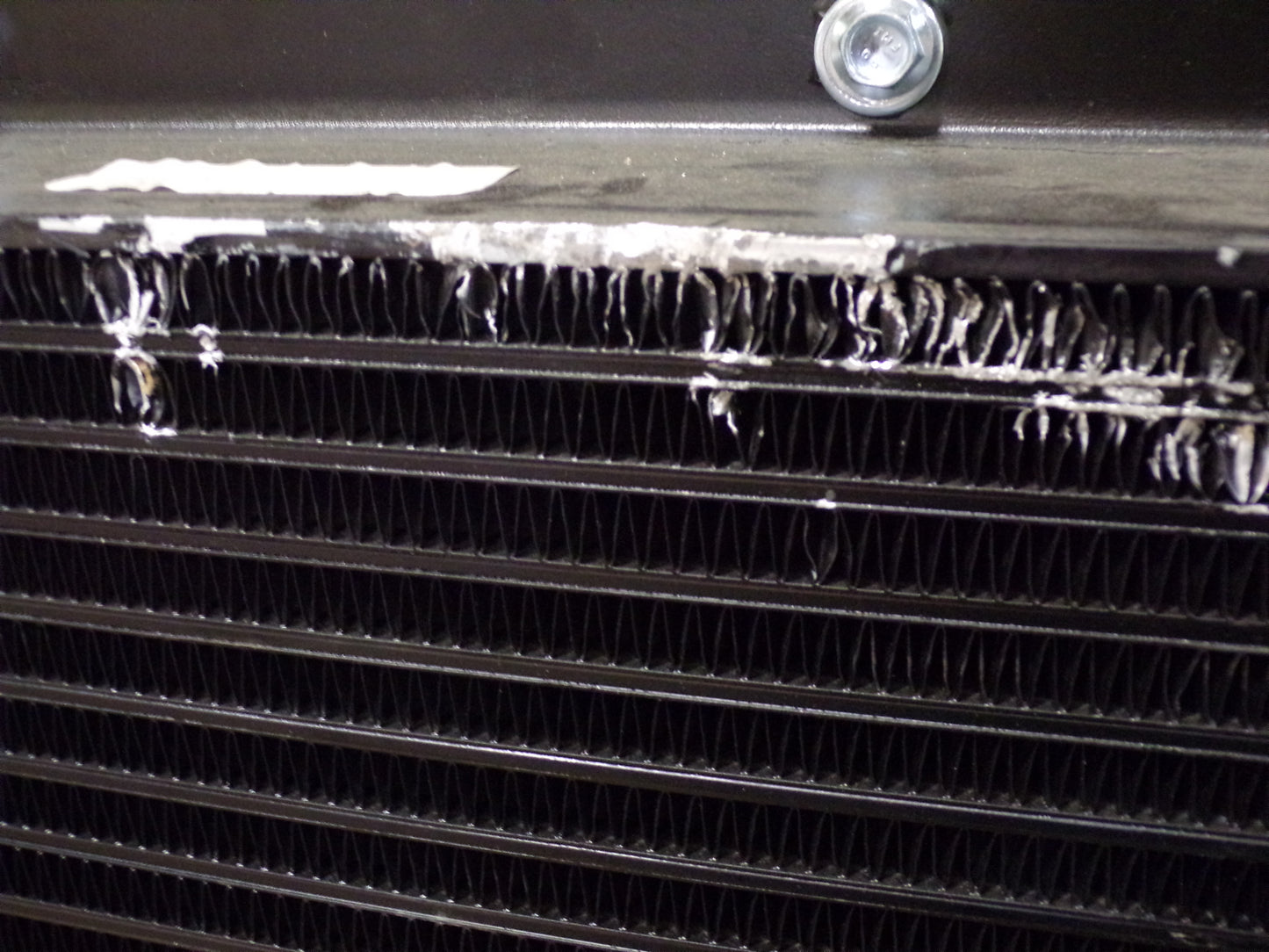

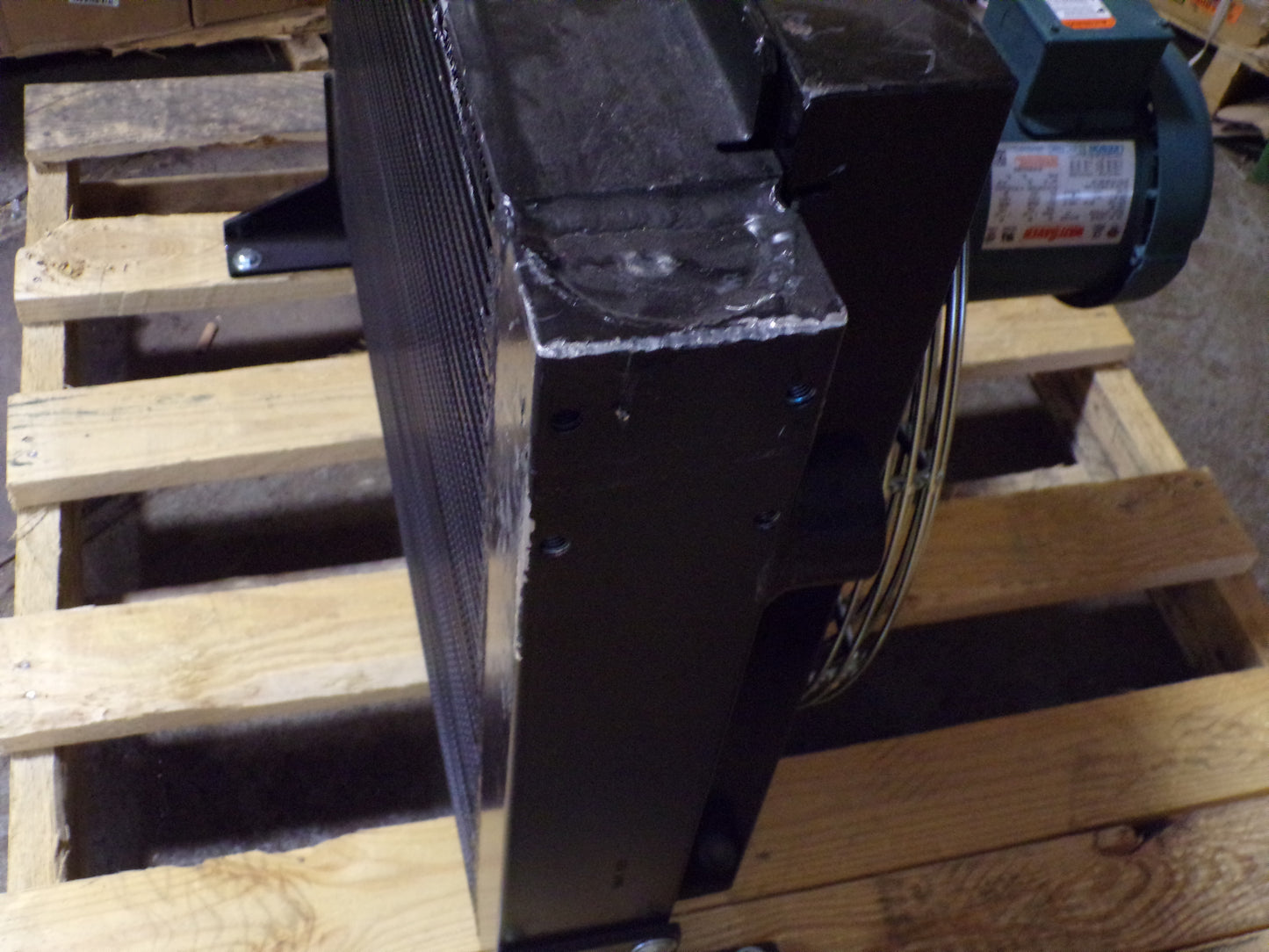

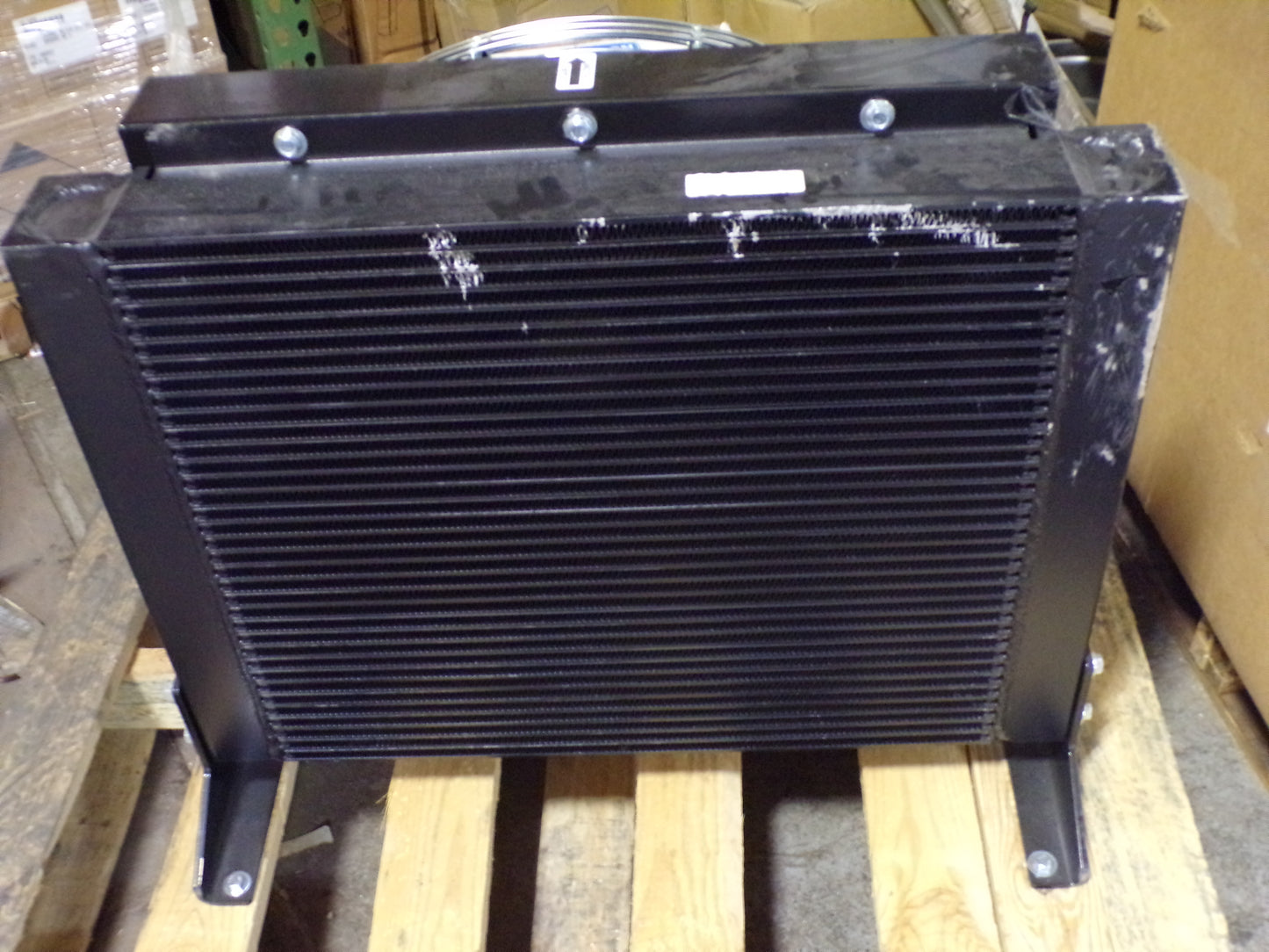

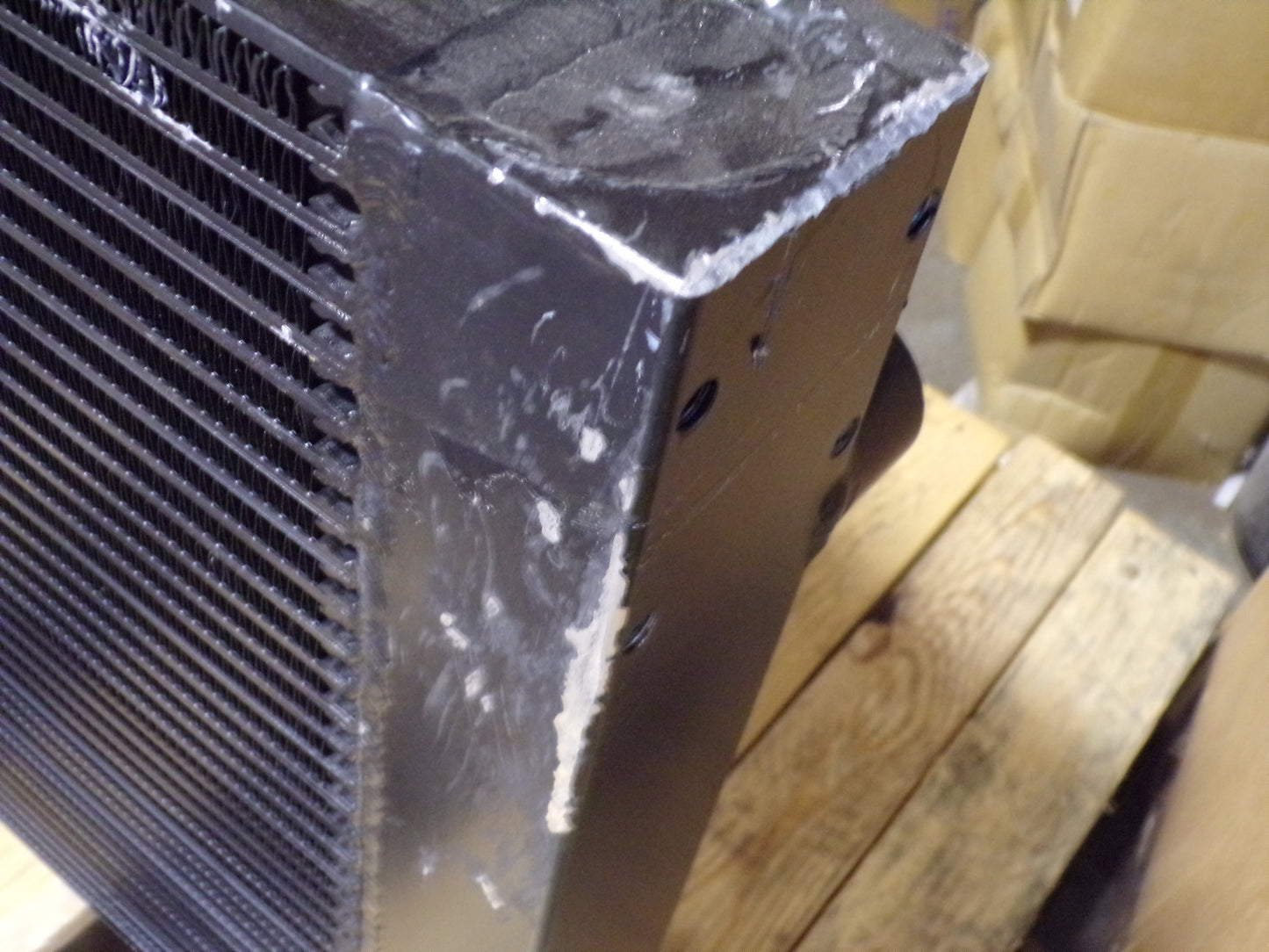

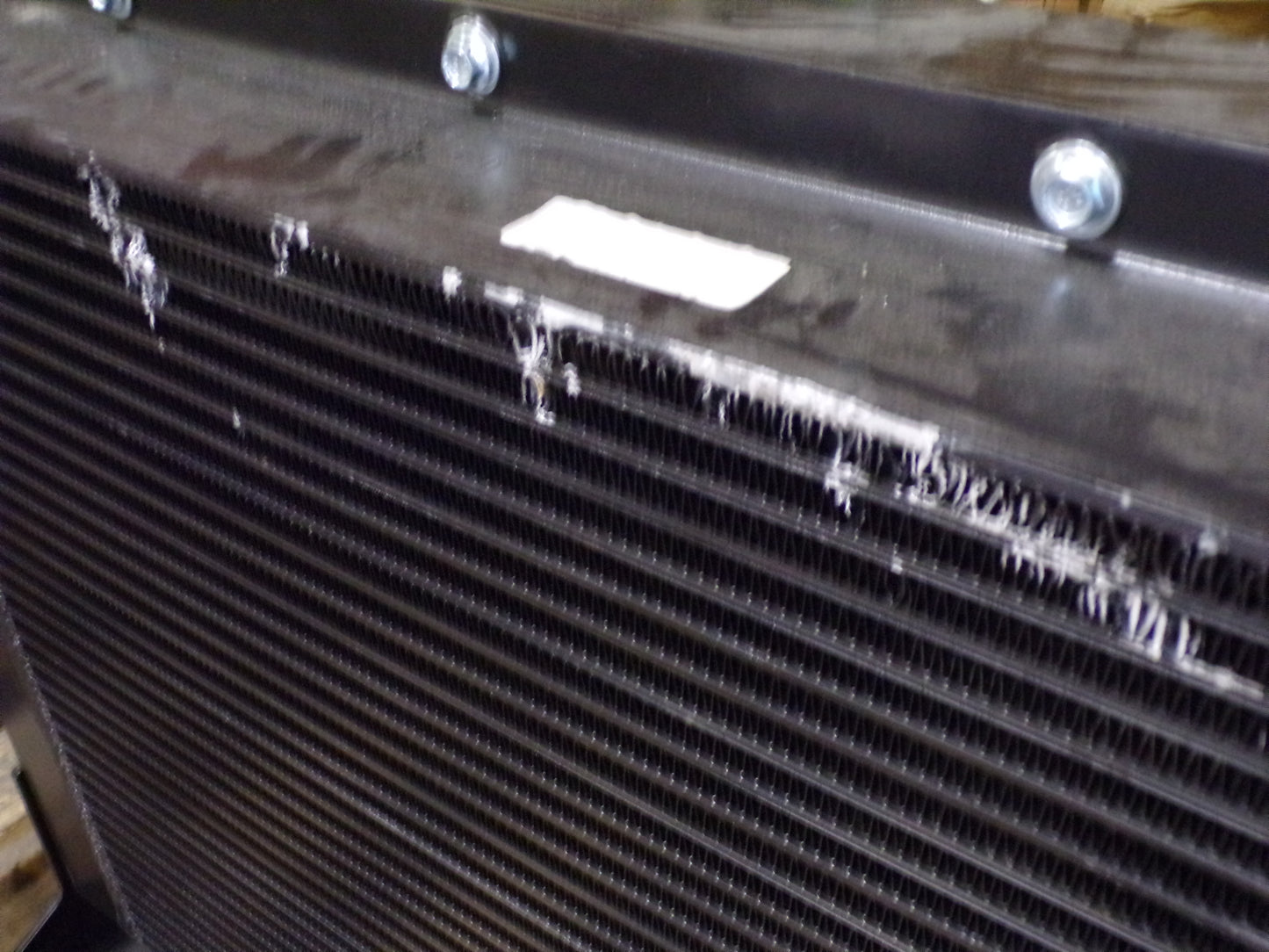

Damaged in shipping, see pictures for details.

AC motor-driven forced-air oil coolers use a fan to cool hydraulic fluid as it passes though the heat exchanger coil or core. They require access to an electrical power source and have a larger capacity than DC and hydraulic motor-driven oil coolers, making them suitable for cooling stationary equipment such as industrial power units, gear boxes, lathes, and other machinery.

In-line forced-air oil coolers use a motor-driven fan to cool hydraulic oil as it passes through the heat exchanger's core or coil. They are installed in a variety of systems, including truck lifts, log splitters, and auto hoists. Sometimes called heat exchangers, they are installed in-line with the hydraulic power unit and pass oil through a coil or core to cool the oil before it can enter the system. Keeping hydraulic oil cool helps extend system life by reducing wear and damage caused by excess heat. Heated oil causes excess wear on seals, surfaces, and other components, which can cause particulate buildup and damage components.

• Item: Forced Air Oil Cooler

• Motor Type - Oil Coolers: AC

• HP Heat Removed: 55 hp

• Voltage: 230/460V AC

• Number of Phases: 3

• Max. Flow: 80 gpm

• Max. Pressure: 377 psi

• Inlet Port Thread Size: SAE #20

• Inlet Port Thread Gender: Female

• Outlet Port Thread Size: SAE #20

• Outlet Port Thread Gender: Female

• Overall Height: 25.89 in

• Overall Width: 30.31 in

• Overall Depth: 19.5 in

• Flow Range: 8 to 80 gpm

• Full Load Amps: 6.2/3.1

• HP: 2 hp

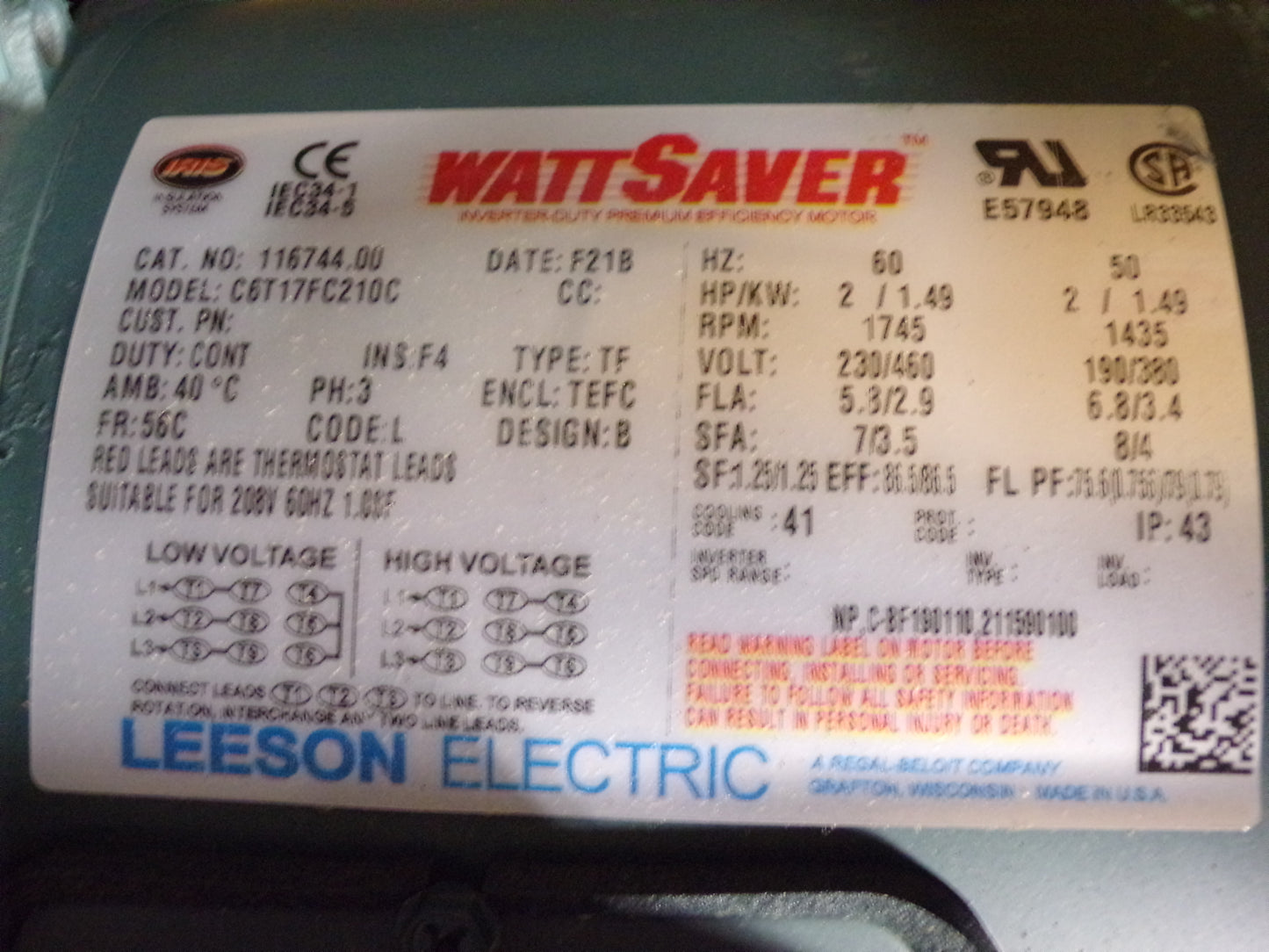

• Motor Frame Size: 56C

• With Motor/Without Motor: With Motor

• Max. Operating Temp.: 250 Degrees F

• Oil Cooler Material: Aluminum

• Fan Blade Material: PPG

• Oil Cooler Finish: Powder Coated

• Fan Guard Material: Steel

• Bypass Valve Included: No

• Includes Mounting Bracket: Yes

• Includes Mounting Hardware: Yes

• Shroud Material: Steel

• Mounting Bracket Material: Steel

• No. of Fans: 1

• Max. Oil Temp.: 250 Degrees F

• Compatible Hydraulic Fluids: Up to ISO 320

• Motor Enclosure Design: Totally Enclosed Fan-Cooled

• Includes: Mounting Feet

48"x48"x36"
