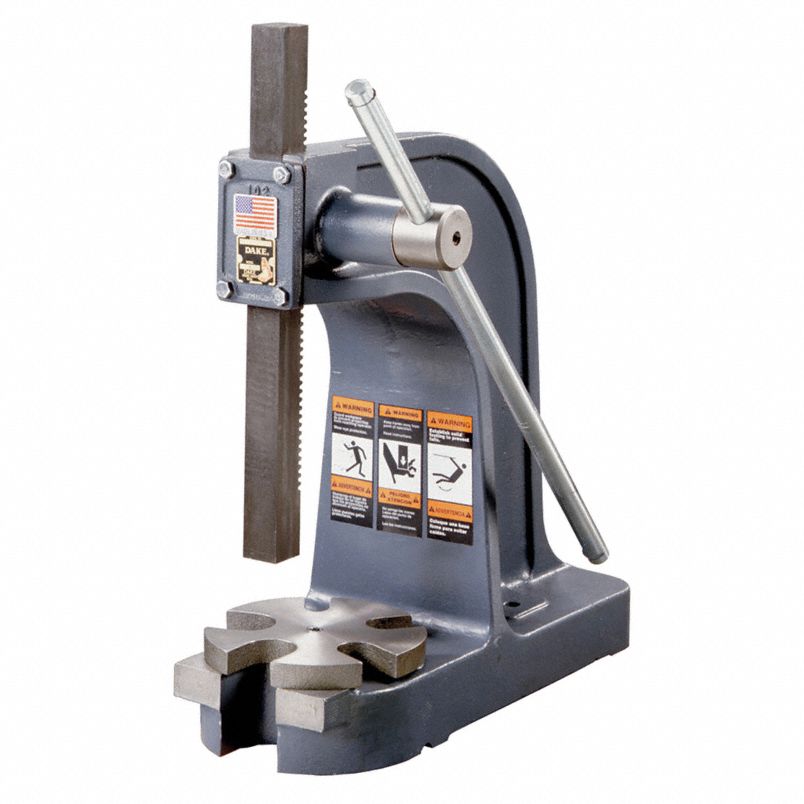

DAKE CORPORATION Arbor Press, 1.5 Tons (CR00716WTA04)

The Dake® single-leverage press is designed with a shimmed ram cap which permits take-up for potential wear. An adjustable handle allows convenient handle positioning while smooth action gears permit finite ram control. It also offers a slotted table and friction brake.

• Item: Arbor Press

• Force in Tons: 1 1/2 ton

• Force Range (Lbs.): 0 to 3000

• Swing (In.): 4 1/2 in

• Table Work Surface (In.): 4-1/4 x 4-3/4

• Anvil Dia. Work Area (In.): 5 in

• Range of Slot Widths (In.): 1/2 to 1-1/16

• Max. Work Height (In.): 7 3/4 in

• Ram Dimensions (In.): 1 x 1 x 12

• Height (In.): 14 1/2 in

• Width (In.): 6 in

• Depth (In.): 14 in

• Base Size (In.): 6 x 14

• Construction: Machined Table Plate, Heat Treated Ram, Machined Gray Iron Cast Frame With Heat Treated And Ground Spindle

• Features: Adjustable Handle Allows Convenient Handle Positioning, And Smooth Action Gears Permit Finite Ram Control, Base Opening And Slotted Table Plate For Arbor Work, Shimmed Ram Cap Permits Take Up For Potential Wear

• Includes: Slotted Table And Friction Brake
