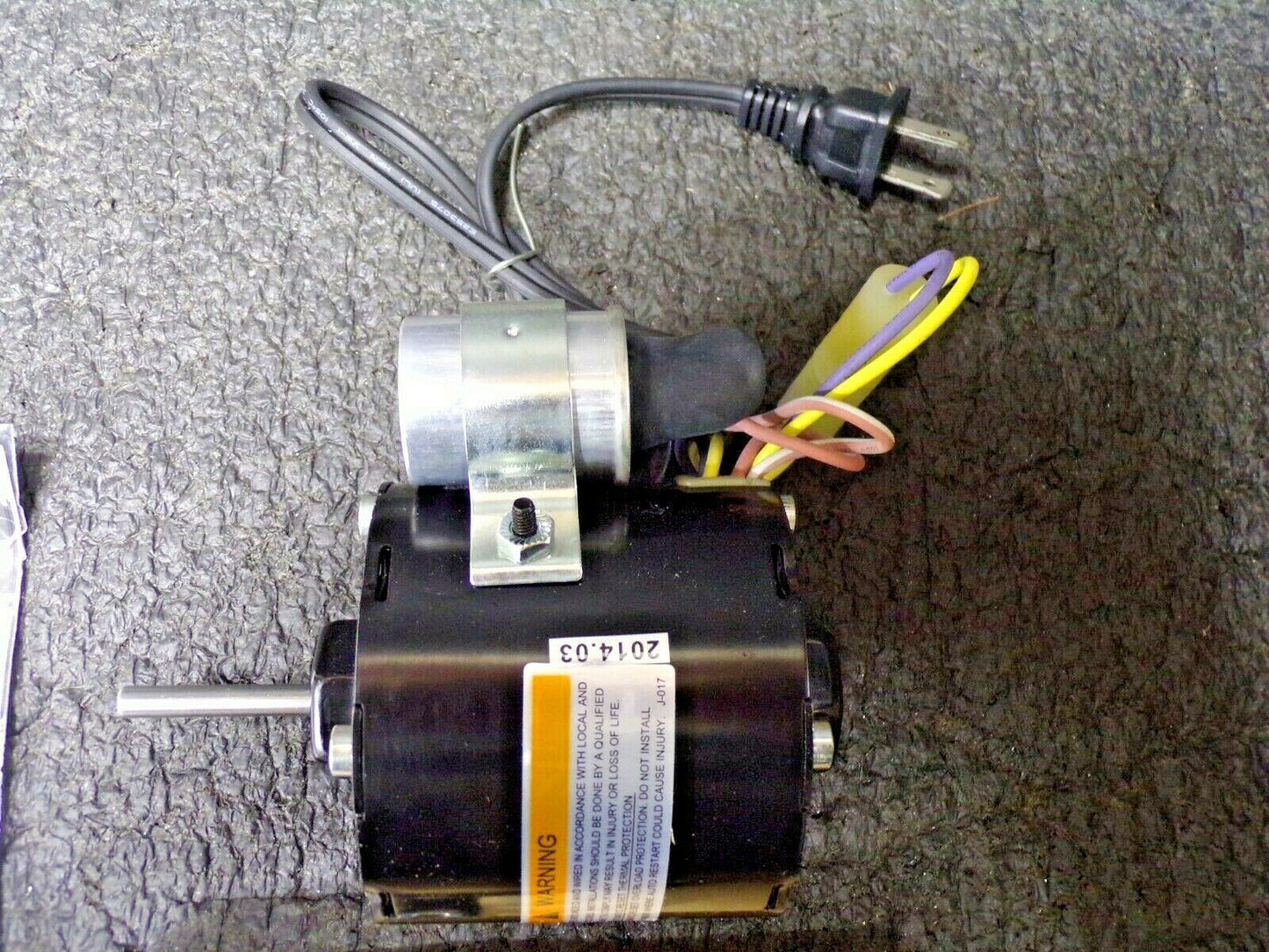

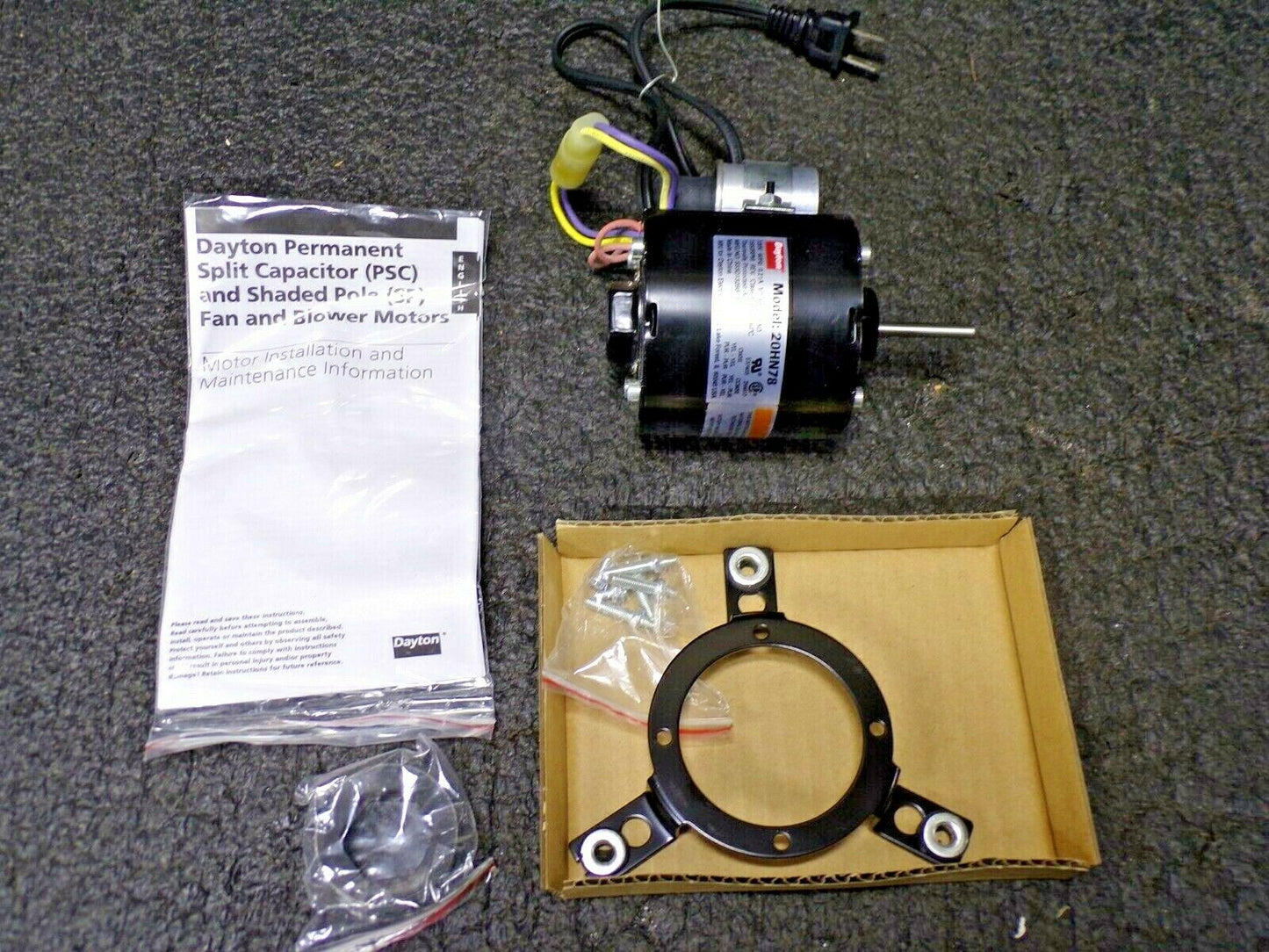

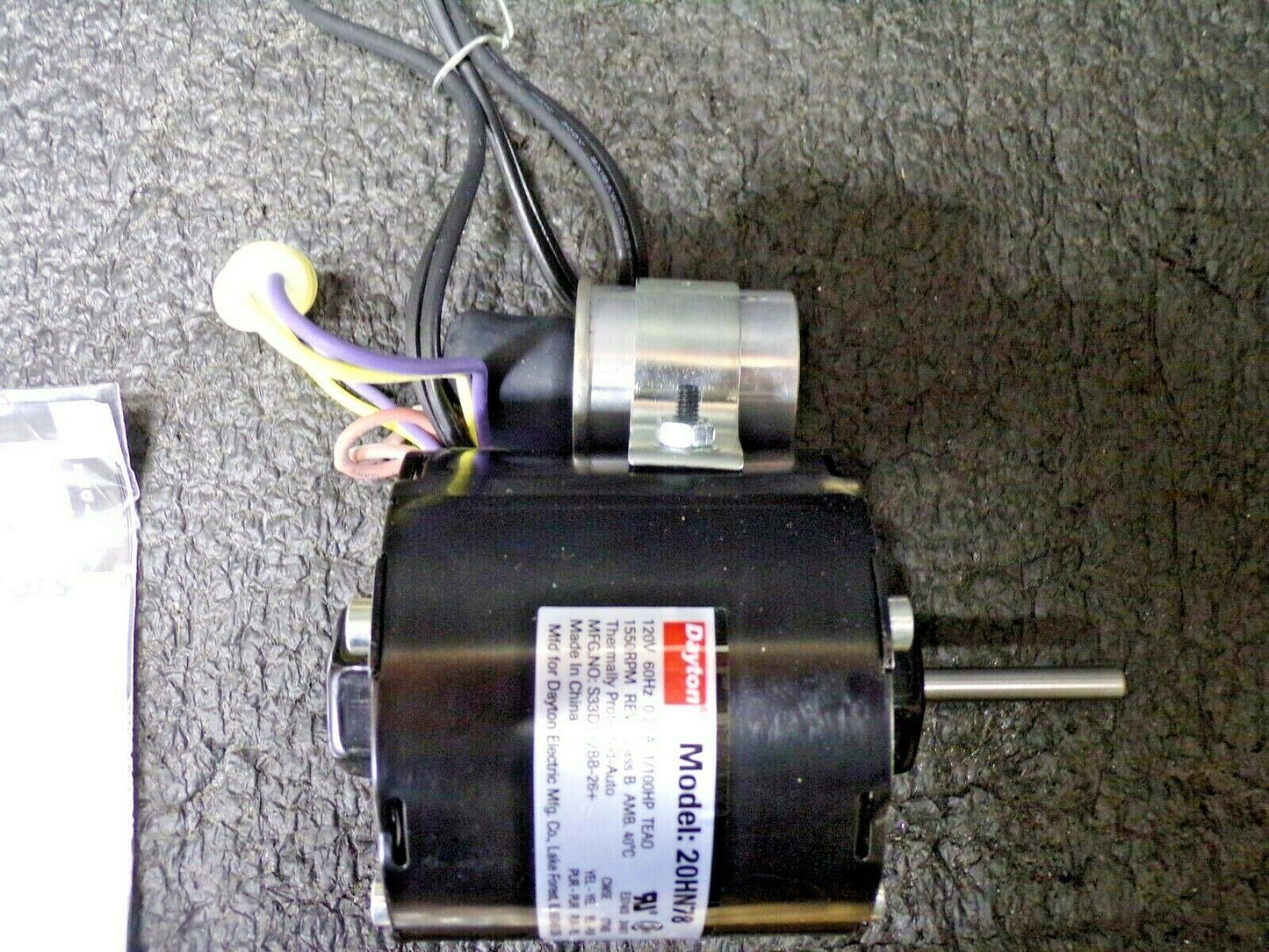

DAYTON 1/100 HP, HVAC Motor, Permanent Split Capacitor, 1550 Nameplate RPM (183953517574-WTA02)

$14.99

Shipping calculated at checkout

SKU: 183953517574-WTA02

Available Now!

DAYTON
1/100 HP, HVAC Motor, Permanent Split Capacitor, 1550 Nameplate RPM, 120 Voltage, Frame 3.3
Mfr. Model # 20HN78


Product Details
Delivers higher performance, efficiency, and starting torque than standard 3.3" shaded pole motors. Quick-reversing plug. Studs on both endshields and longer shaft for replacing many OEM motors from Chandler, Climate Control, Heatcraft, Larkin, and others.


Technical Specs

  • ItemHVAC Motor
  • Motor DesignPermanent Split Capacitor
  • HP1/100
  • No. of Speeds1
  • Voltage120
  • Motor Shaft RotationCW/CCW
  • Motor Enclosure DesignTotally Enclosed Air-Over
  • Motor Mounting TypeStud
  • Shaft Dia.1/4"
  • Shaft Length1-1/2"
  • Number of Shafts1
  • Motor Thermal ProtectionAuto
  • Nameplate RPM1550
  • Phase1
  • Motor ApplicationHVAC/R
  • Motor Sub ApplicationDirect Drive Fan/Blower
  • Frame3.3
  • Motor BearingsBall
  • Full Load Amps0.21
  • DutyContinuous
  • Motor Service Factor1.00
  • Hz60
  • Body Dia.3.3"
  • Ins. ClassB
  • Max. Ambient Temp.40 Degrees C
  • Length Less Shaft4"
  • Mounting Stud Location4/Both Ends
  • Stud/Base Mtg. Pattern2" x 2"
  • Motor Shaft DesignFlat
  • Cord Length20"
  • Plug Type2 Prong Polarized
  • IncludesCapacitor
  • StandardsUL E37403, CSA 244617
  • Mounting Pattern2
