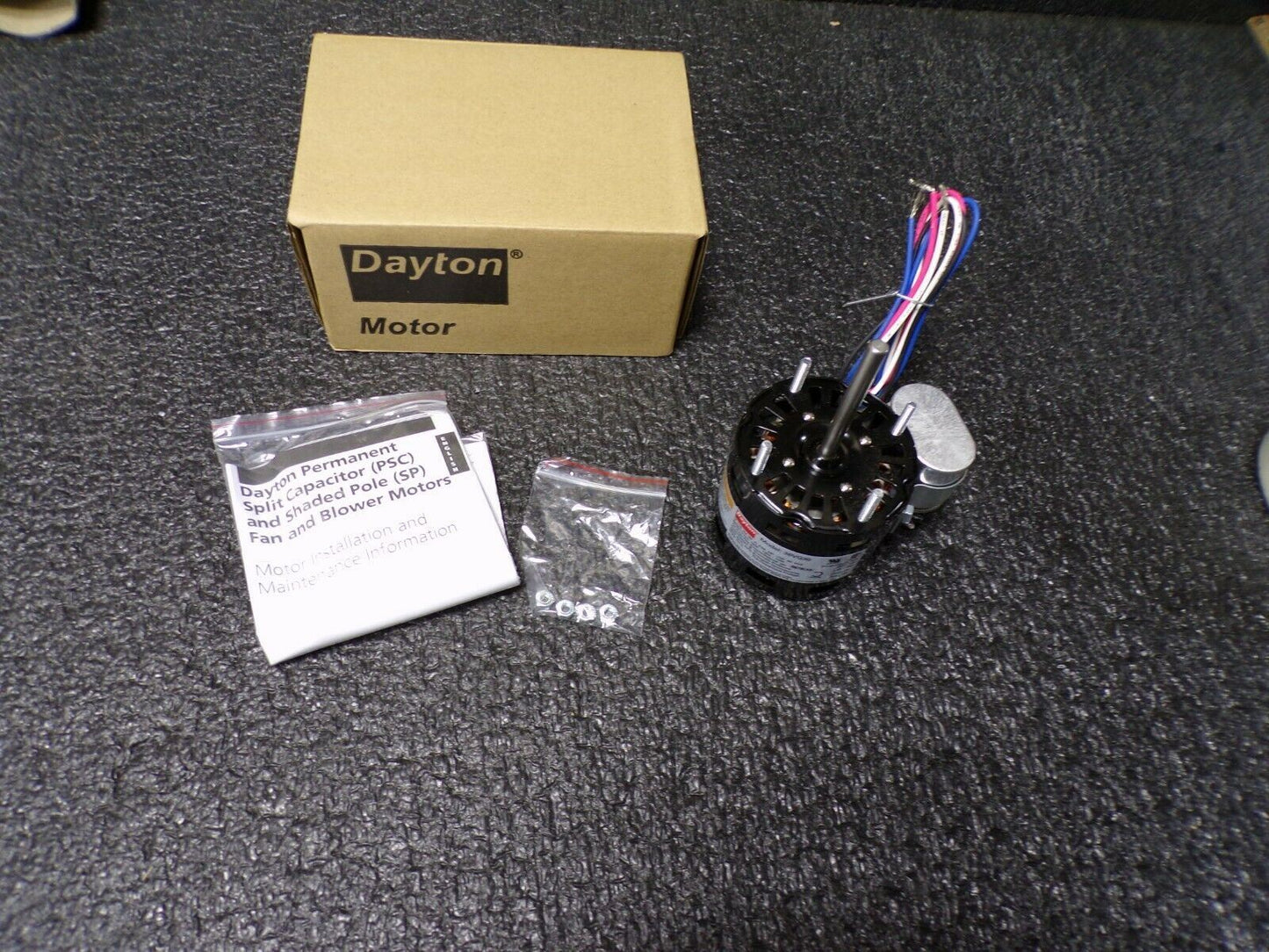

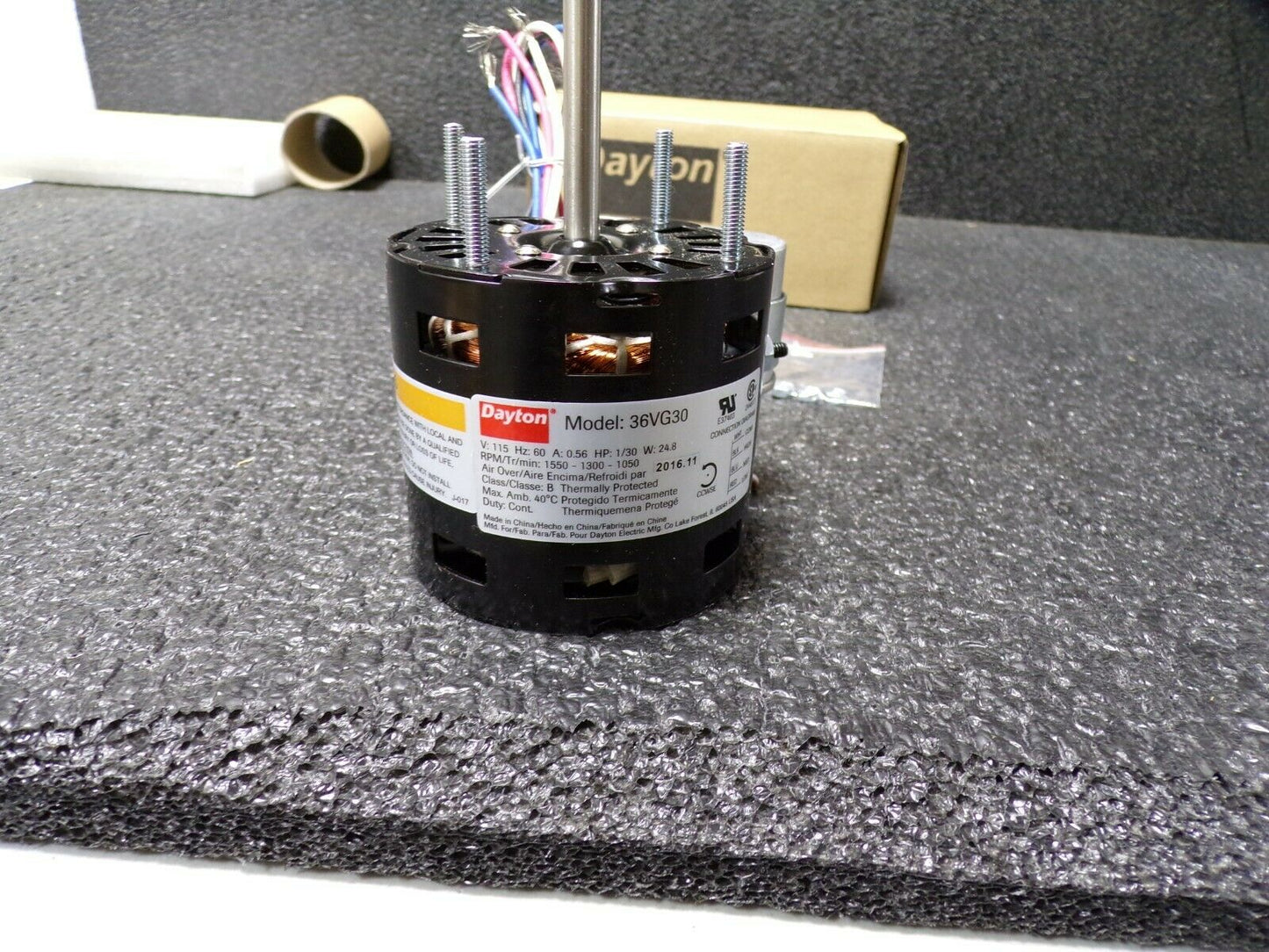

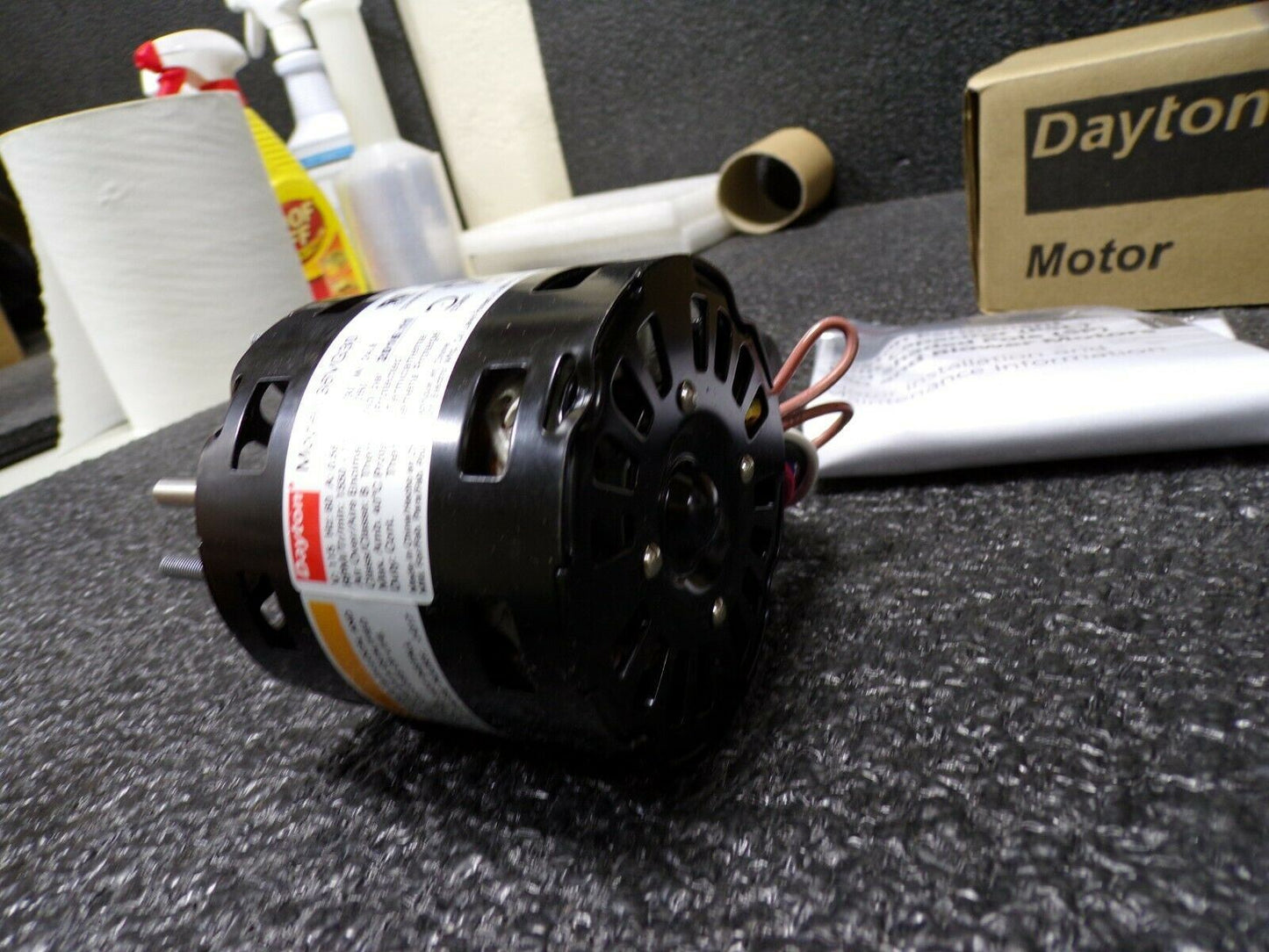

Dayton 1/30 HP, HVAC Motor, Permanent Split Capacitor, 1550 Nameplate RPM, 36VG30 (184122486999-WTA05)

$14.99

Shipping calculated at checkout

SKU: 184122486999-WTA05

Available Now!

Technical Specs

  • ItemHVAC Motor
  • Motor DesignPermanent Split Capacitor
  • HP1/30
  • No. of Speeds3
  • Voltage115
  • Motor Shaft RotationCCWSE
  • Motor Enclosure DesignOpen Air-Over
  • Motor Mounting TypeStud

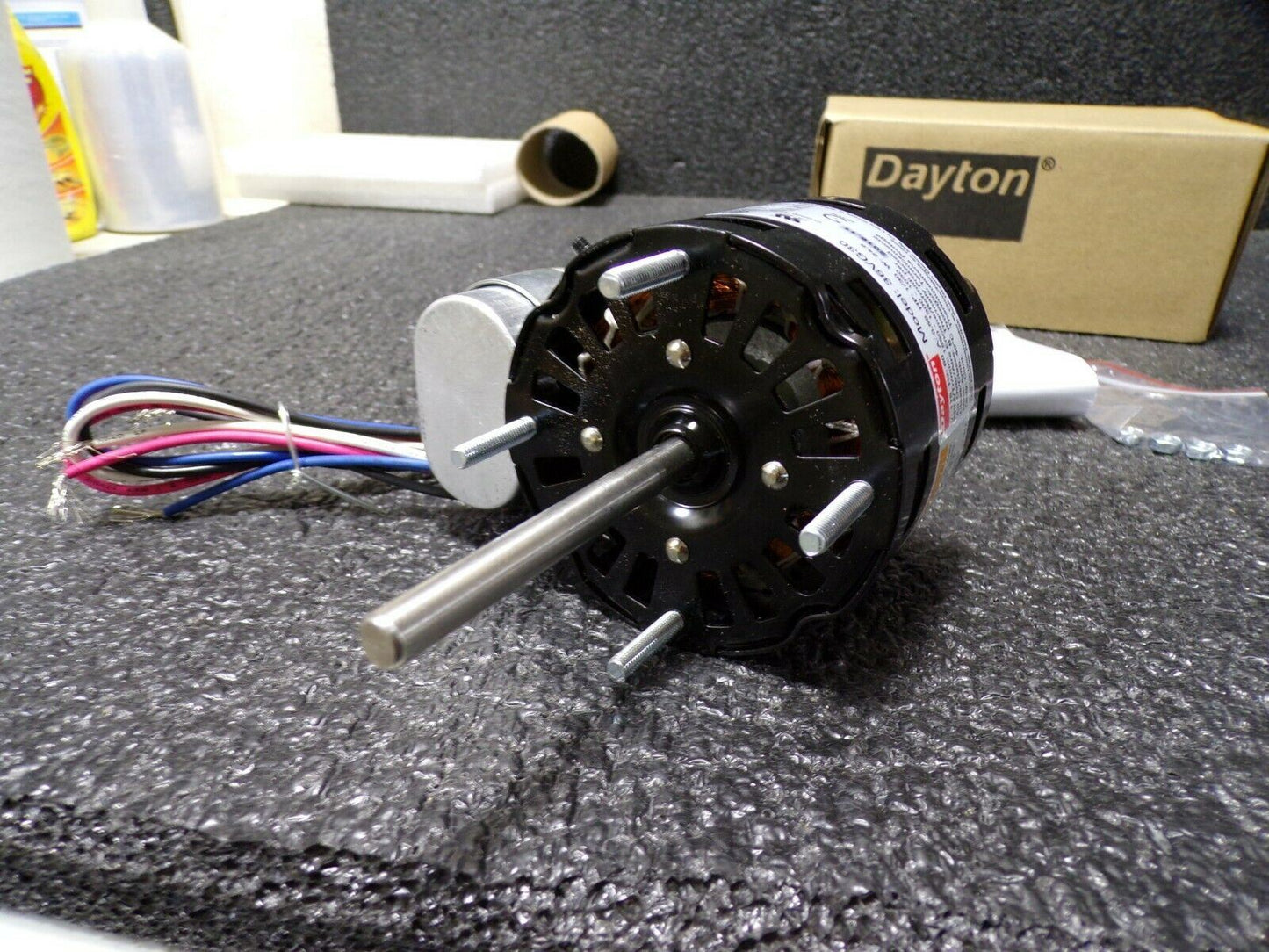

  • Shaft Dia.5/16"
  • Shaft Length3"
  • Motor Thermal ProtectionAuto
  • Nameplate RPM1550
  • Phase1
  • Motor ApplicationHVAC/R
  • Motor Sub ApplicationDirect Drive Fan/Blower
  • Frame3.3
  • Motor BearingsSleeve
  • Full Load Amps0.56
  • DutyContinuous
  • Motor Service Factor1.00
  • Hz60
  • Body Dia.3.3"
  • Ins. ClassB
  • Max. Ambient Temp.40 Degrees C
  • Length Less Shaft3-1/16"
  • Mounting Stud Location4/Opposite Lead End
  • Stud/Base Mtg. Pattern2-7/8" x 2-7/8"
  • Motor Shaft DesignFlat
  • ApplicationHVAC/R

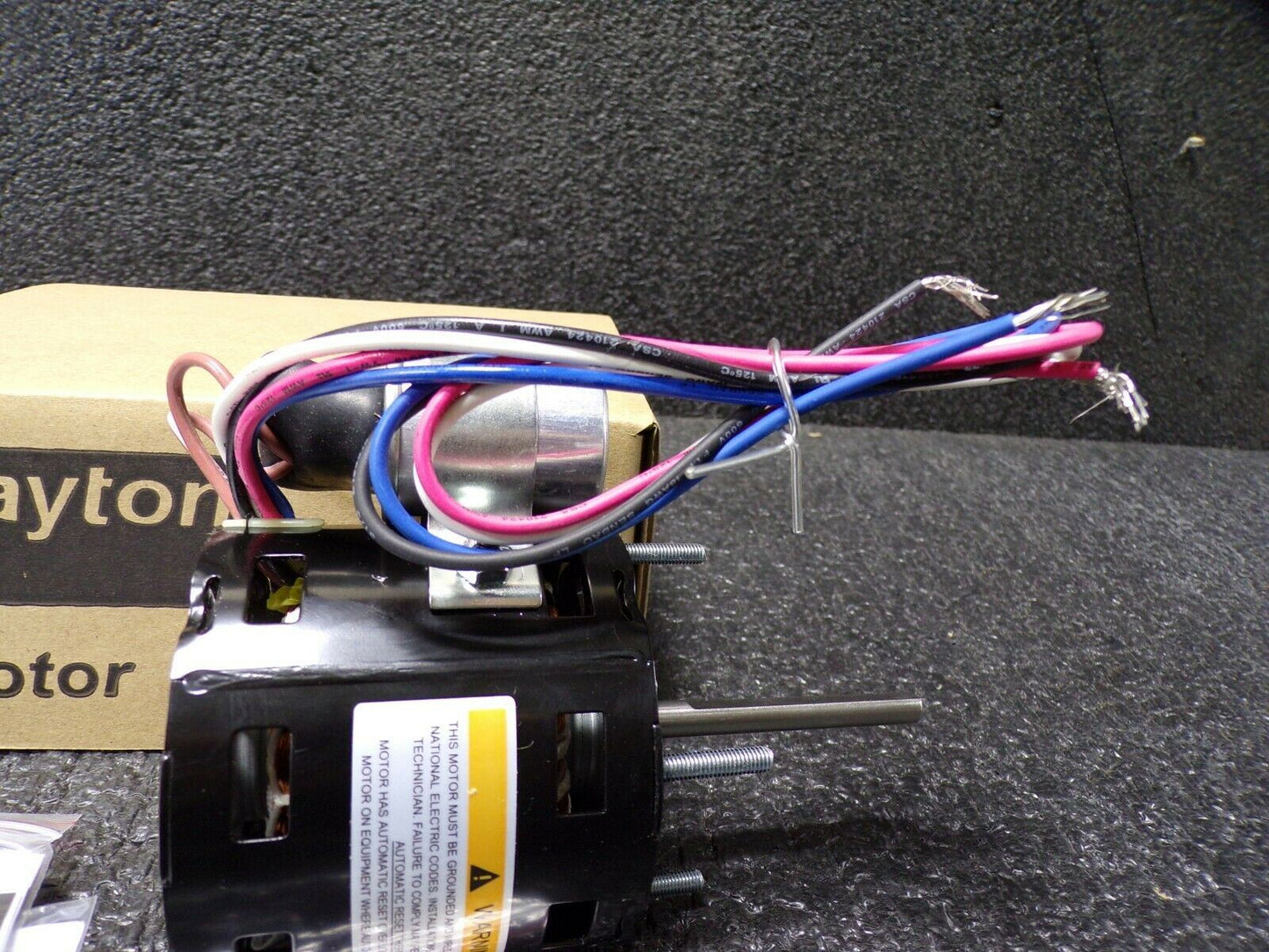

  • Cord Length16"
  • IncludesCapacitor
  • StandardsUL Recognized (E37403), CSA Certified (244617)
  • Mounting Pattern2-7/8 x 2-7/8
