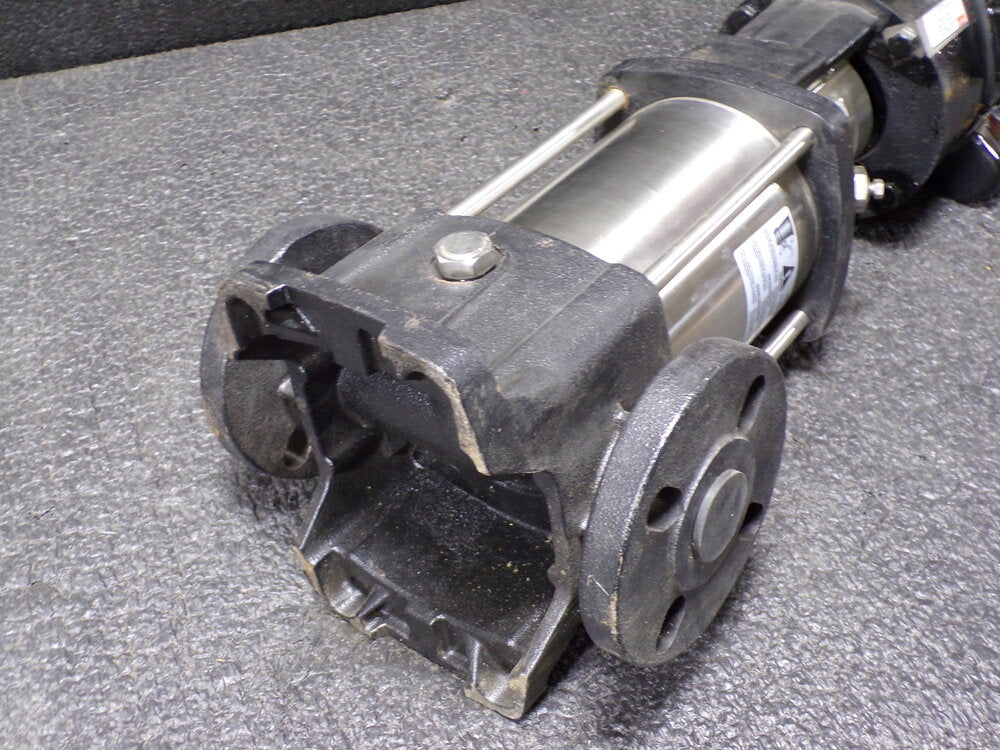

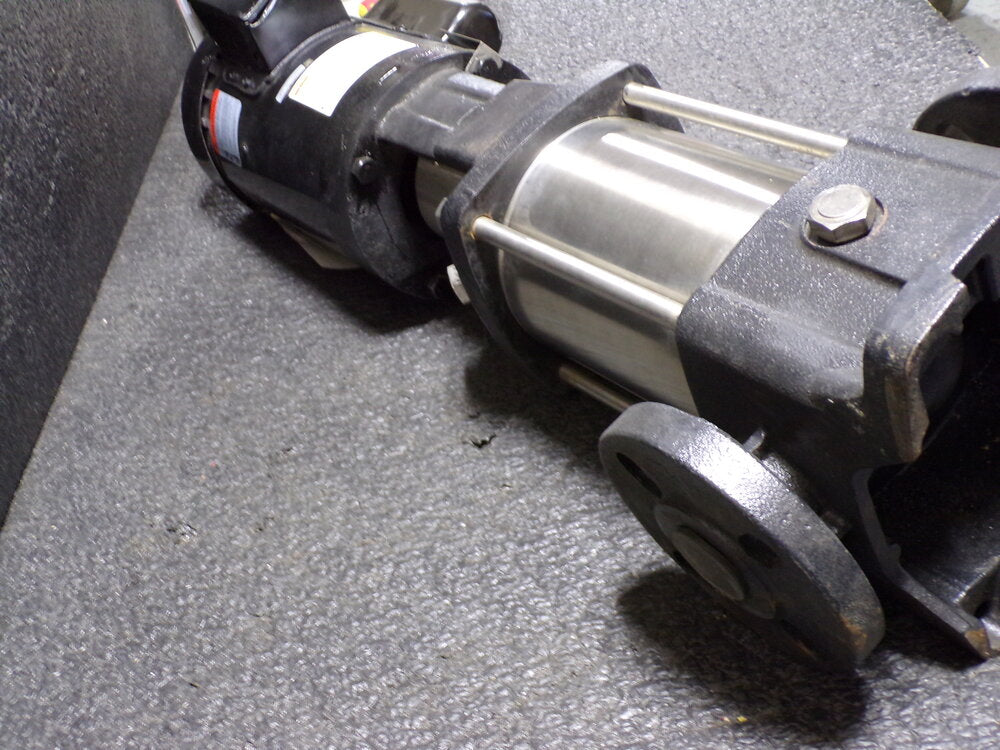

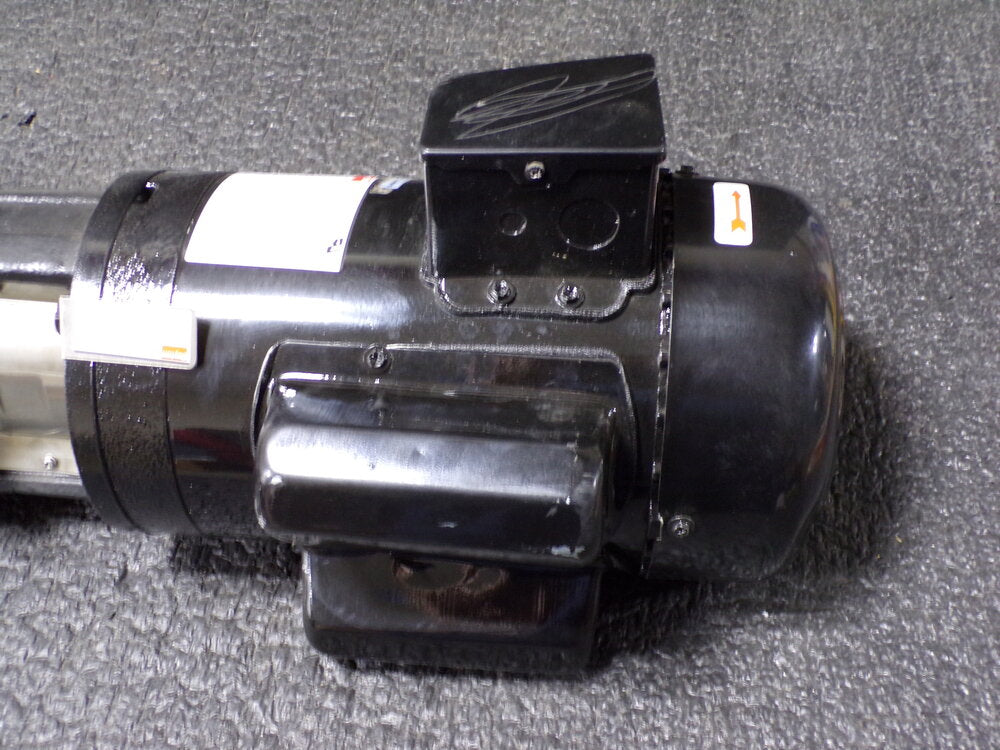

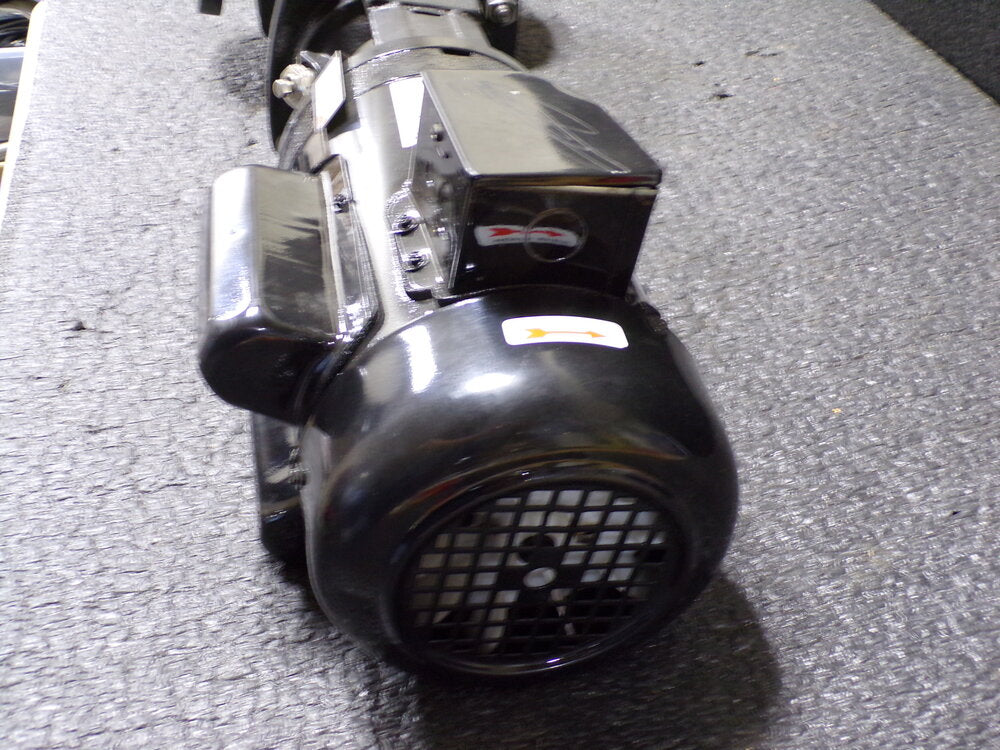

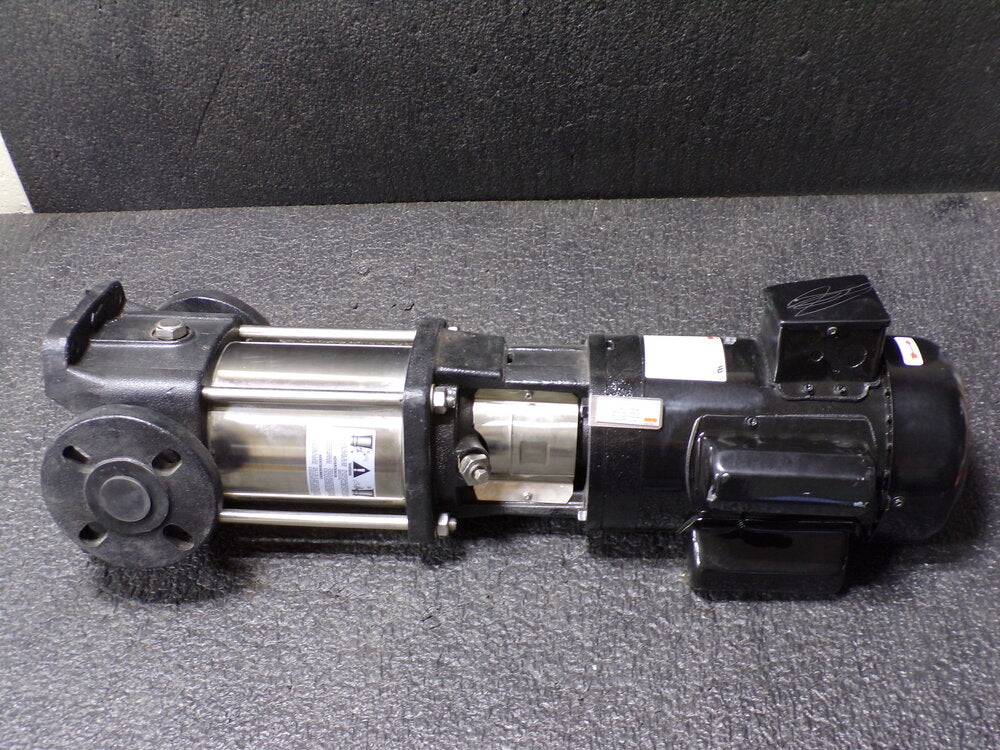

DAYTON 120/208 to 240V AC Totally Enclosed Fan-Cooled Multi-Stage Booster Pump, 11-Stage, 1-1/4 in Flanged (SQ30854782D46)

This pump has a bent corner on the conduit box and some scratches.

The Dayton in-line centrifugal pumps are designed for a wide range of applications involving the transfer of liquids, circulation and pressure boosting of hot or cold clean water and any thin, non-explosive liquids which do not contain any solid particles or fibers and those liquids that do not attack chemically , and the pump material of construction. The typical areas where the vertical inline pumps are widely used is as under, municipal water supply, cooling water systems, and irrigation.

Item: Multi-Stage Booster Pump

• Booster Pump Type: Multi-Stage Booster Pump

• HP - Pumps: 2 hp

• Voltage - Pumps: 120/208 to 240V AC

• Phase - Pumps: 1

• Outlet Size - Pumps: 1-1/4 in Flanged

• Inlet Size - Pumps: 1-1/4 in Flanged

• Max. Pressure - Pumps: 148 psi

• Number of Stages - Pumps: 11

• Housing Material - Pumps: Cast Iron

• Motor Enclosure - Pumps: Totally Enclosed Fan-Cooled

• Amps: 16.6/9.4-8.3

• Impeller Material: Stainless Steel

• Impeller Type: Closed

• Max. Case Pressure: 362 psi

• Max. Liquid Temp.: 248 Degrees F

• Seal Material: Silicon Carbide, Stainless Steel, EPDM

• Wetted Materials: Cast Iron, Stainless Steel, Silicon Carbide, EPDM

• Motor Type: Capacitor-Start

• Agency Compliance: c UL us

• Length: 9 7/8 in

• Width: 8 3/4 in

• Height: 28 15/16 in

• Bearing Type: Ball

• Duty: Continuous

• Hz: 60

• Motor Ambient Temp. Rating: 40 Degrees C

• GPM @ 60 PSI: 22

• GPM @ 80 PSI: 19

• GPM @ 100 PSI: 16

• GPM @ 120 PSI: 12

• GPM @ 140 PSI: 4

• Best Efficiency GPM @ PSI: 16 @ 104

• Frame: 56C

• Max. Dia. Solids: 5/64 in

• Motor RPM: 3,450 RPM
