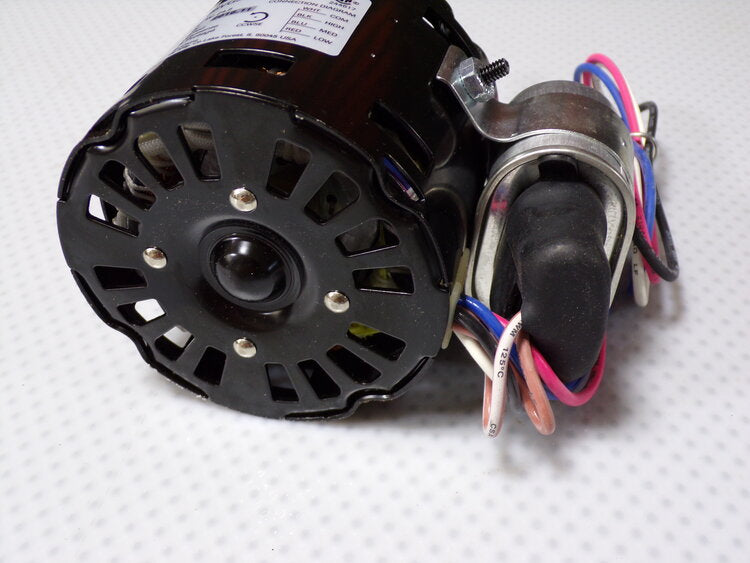

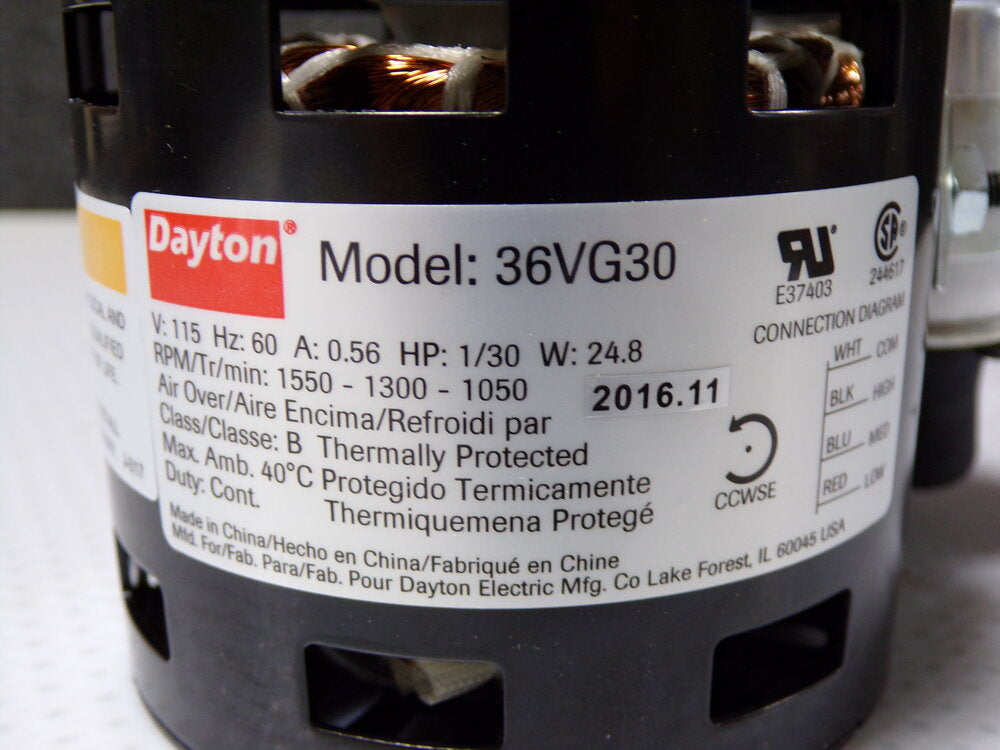

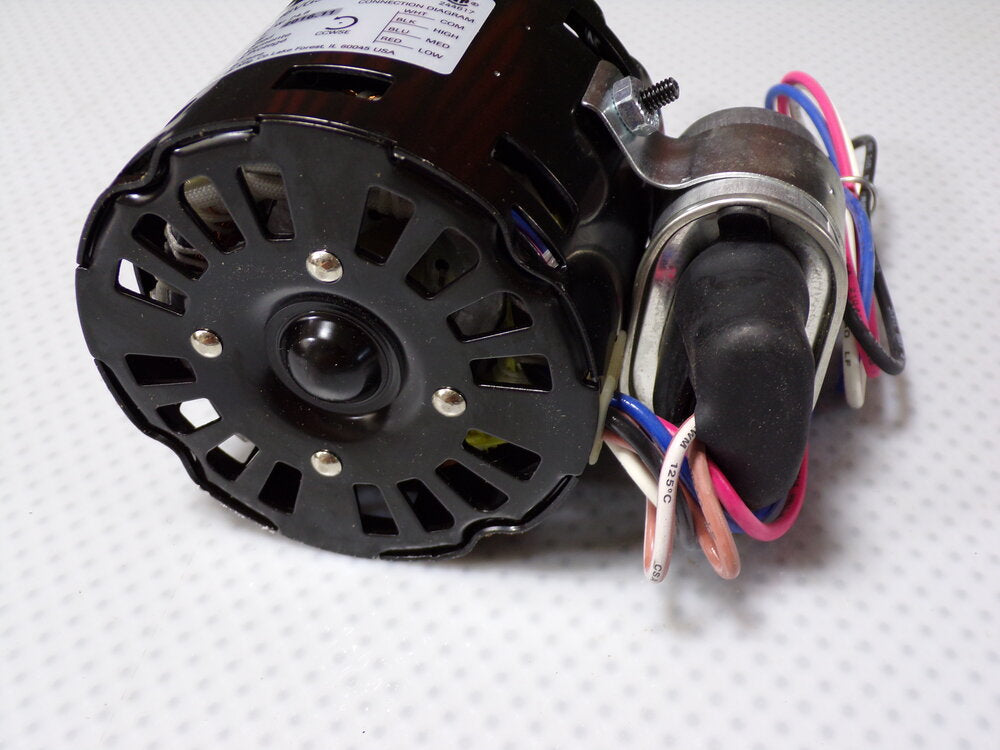

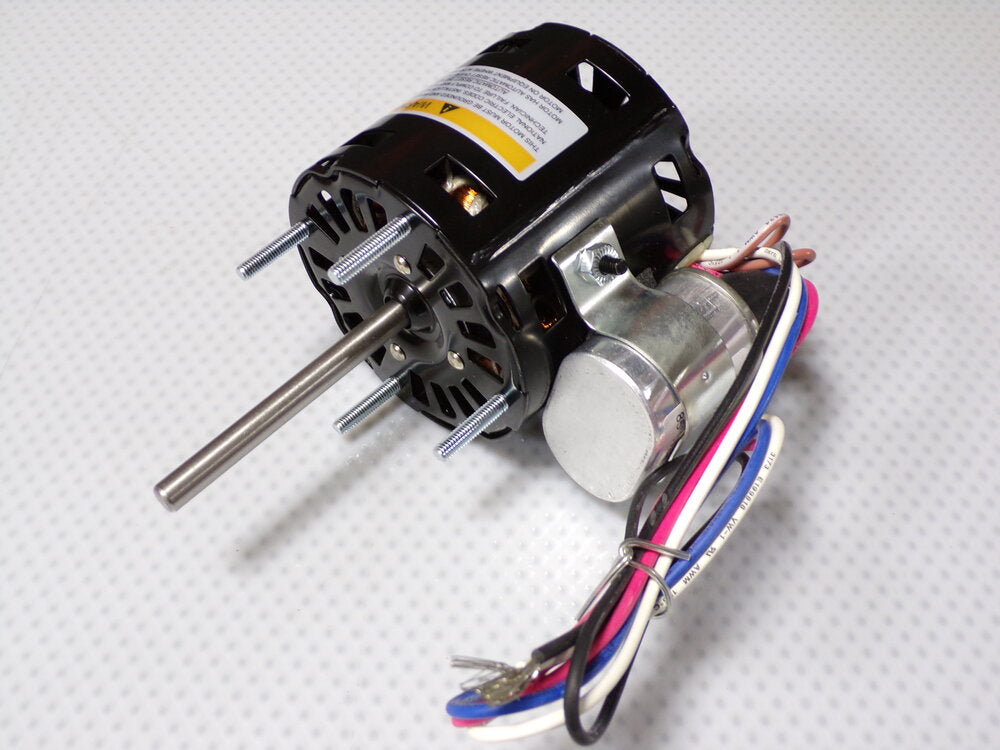

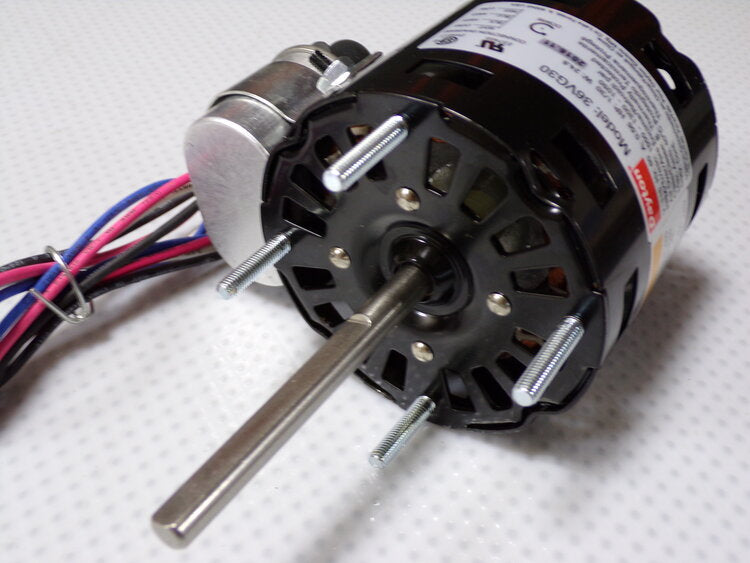

DAYTON 1/30 HP, HVAC Motor, Permanent Split Capacitor, 1550 Nameplate RPM, 115 V., Frame 3.3, 36VG30 (SQ6571017WT10)

Item: HVAC Motor

• Motor Design: Permanent Split Capacitor

• HP: 1/30

• No. of Speeds: 3

• Voltage: 115

• Motor Shaft Rotation: CCWSE

• Motor Enclosure Design: Open Air-Over

• Motor Mounting Type: Stud

• Shaft Dia.: 5/16"

• Shaft Length: 3"

• Motor Thermal Protection: Auto

• Nameplate RPM: 1550

• Phase: 1

• Motor Application: HVAC/R

• Motor Sub Application: Direct Drive Fan/Blower

• Frame: 3.3

• Motor Bearings: Sleeve

• Full Load Amps: 0.56

• Duty: Continuous

• Motor Service Factor: 1

• Hz: 60

• Body Dia.: 3.3"

• Ins. Class: B

• Max. Ambient Temp.: 40 Degrees C

• Length Less Shaft: 3-1/16"

• Mounting Stud Location: 4/Opposite Lead End

• Stud/Base Mtg. Pattern: 2-7/8" x 2-7/8"

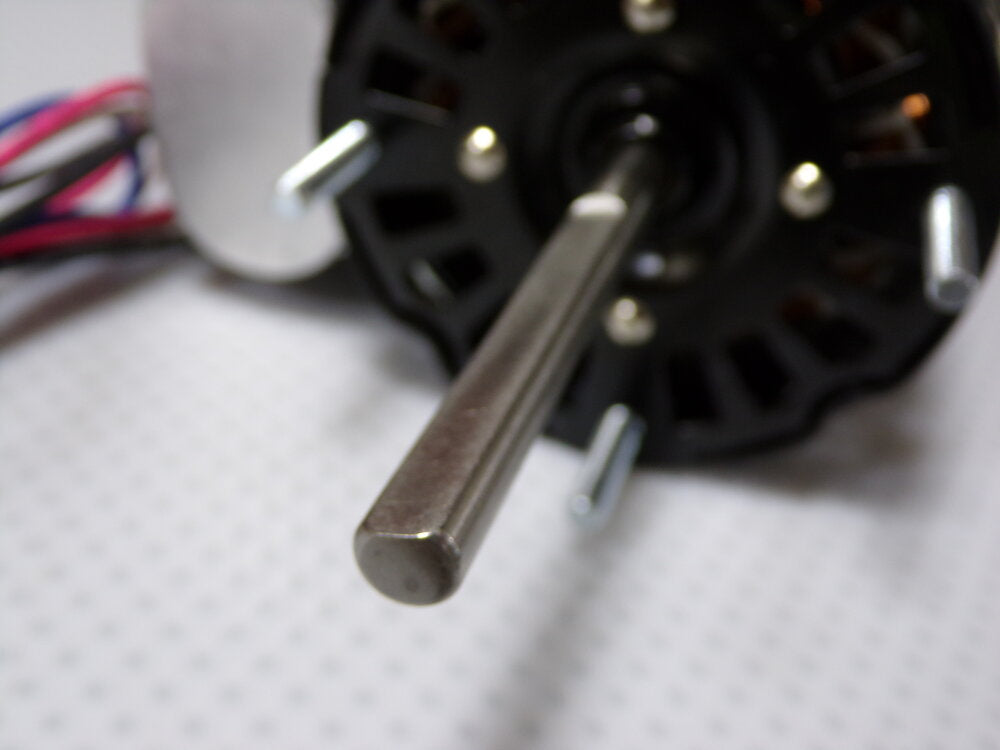

• Motor Shaft Design: Flat

• Application: HVAC/R

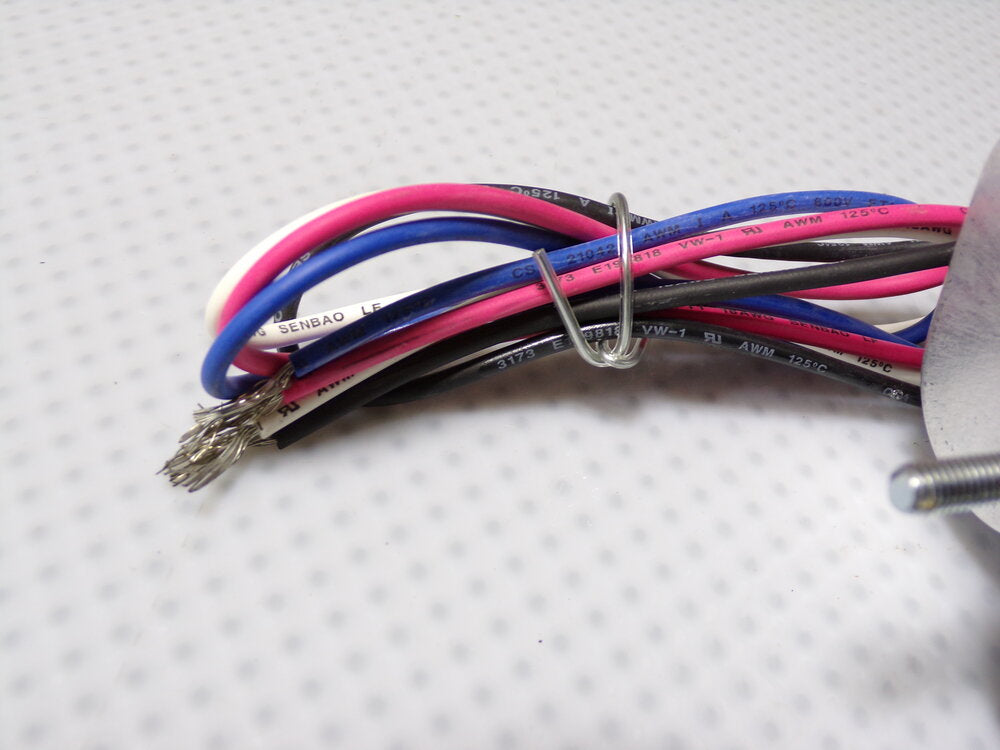

• Cord Length: 16"

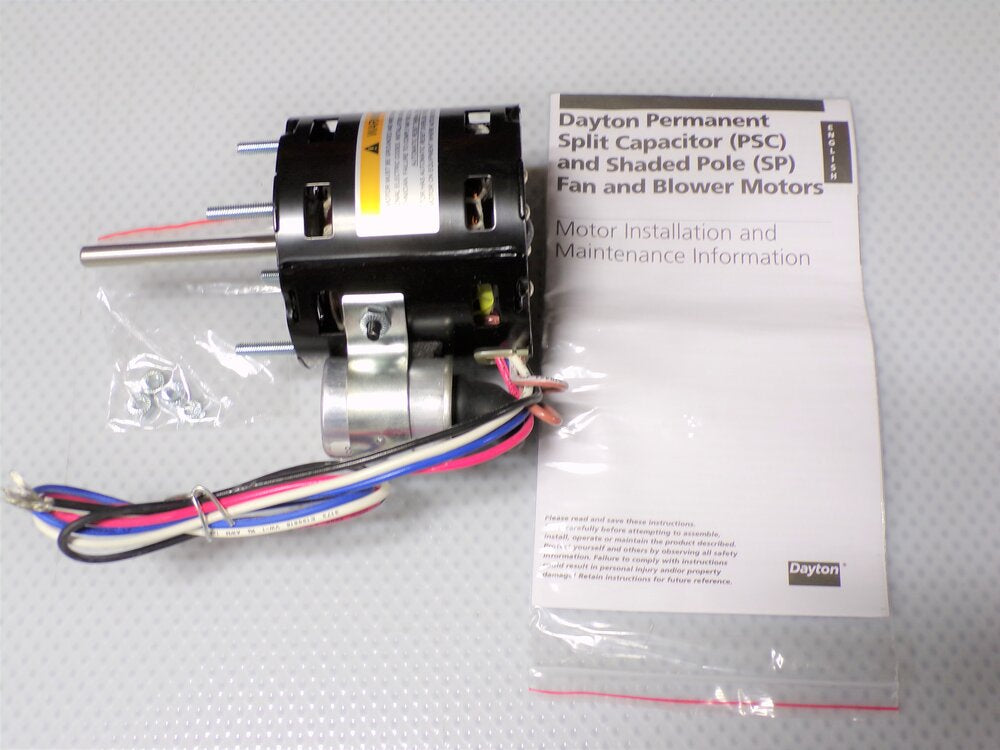

• Includes: Capacitor

• Standards: CSA Certified (244617), UL Recognized (E37403)

• Mounting Pattern: 2-7/8 x 2-7/8
