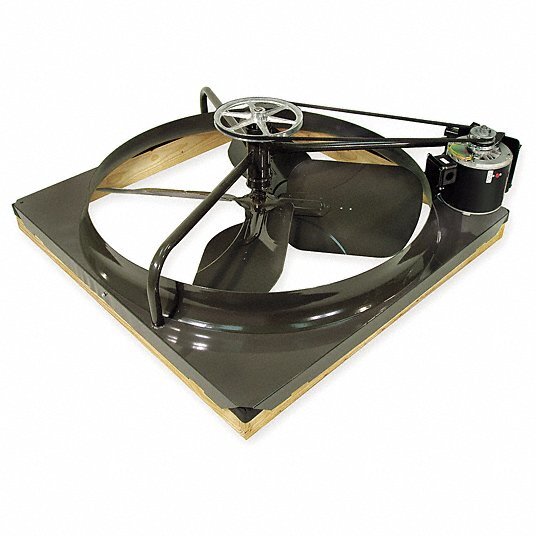

DAYTON 2-Speed Belt Drive Whole House Fan, 36 in Blade Dia., 1LXN8, FREIGHT SHIPPING REQUIRED (SQ5907162NBT)

Notice: This Item Requires Freight Shipping. Contact For Rates Before Purchase. Click Here To Send Message FREIGHT SHIPPING

• Mount: horizontal Thermally protected, 2-speed motors 115V/60 Hz Preassembled wood frame
Effectively cool and ventilate an entire home by removing hot, humid air through the attic and drawing in cooler air from outside. Gasket between the venturi and plenum box reduces noise. All models include 2-speed wall switch with 12-hr. timer.
Fans are UL and C-UL Listed.
Heavy Duty Belt Drive and Direct Drive
Painted steel housing. Belt drive models have automatic belt tensioning system which eliminates manual belt adjustment.

Item: Whole House Fan

• Type: Belt Drive

• Speed: 2

• Blade Dia.: 36 in

• CFM High: 10,600

• CFM Low: 7,100

• Fan RPM: 415/275

• Fan Voltage: 115V AC

• HP: 1/2 hp

• Exhaust/Supply Fan Item: Exhaust Fan

• Hz: 60

• Phase: 1

• Amps: 8.2/6.4

• Watts: 850/567

• Height (In.): 15 in

• Width (In.): 40 in

• Depth (In.): 40 in

• Coverage (Square-Ft.): 2,500

• Power Cord Length (Ft.): Hardwired

• Motor Type: Split Phase

• Bearing Type: Ball

• Mounting Location: Ceiling

• Housing Material: Powder Coated Steel

• Housing Finish: Gray

• Propeller Material: Steel

• Number of Blades :4

• Ceiling Shutter: 4HA12

• Agency Compliance: UL and C-UL

• Requires: Ceiling Shutter

• Includes: 1 x 4 in Wooden Plenum Box, 2 Speed Switch and 12-Hour Timer, Rubber Mounting Gasket
