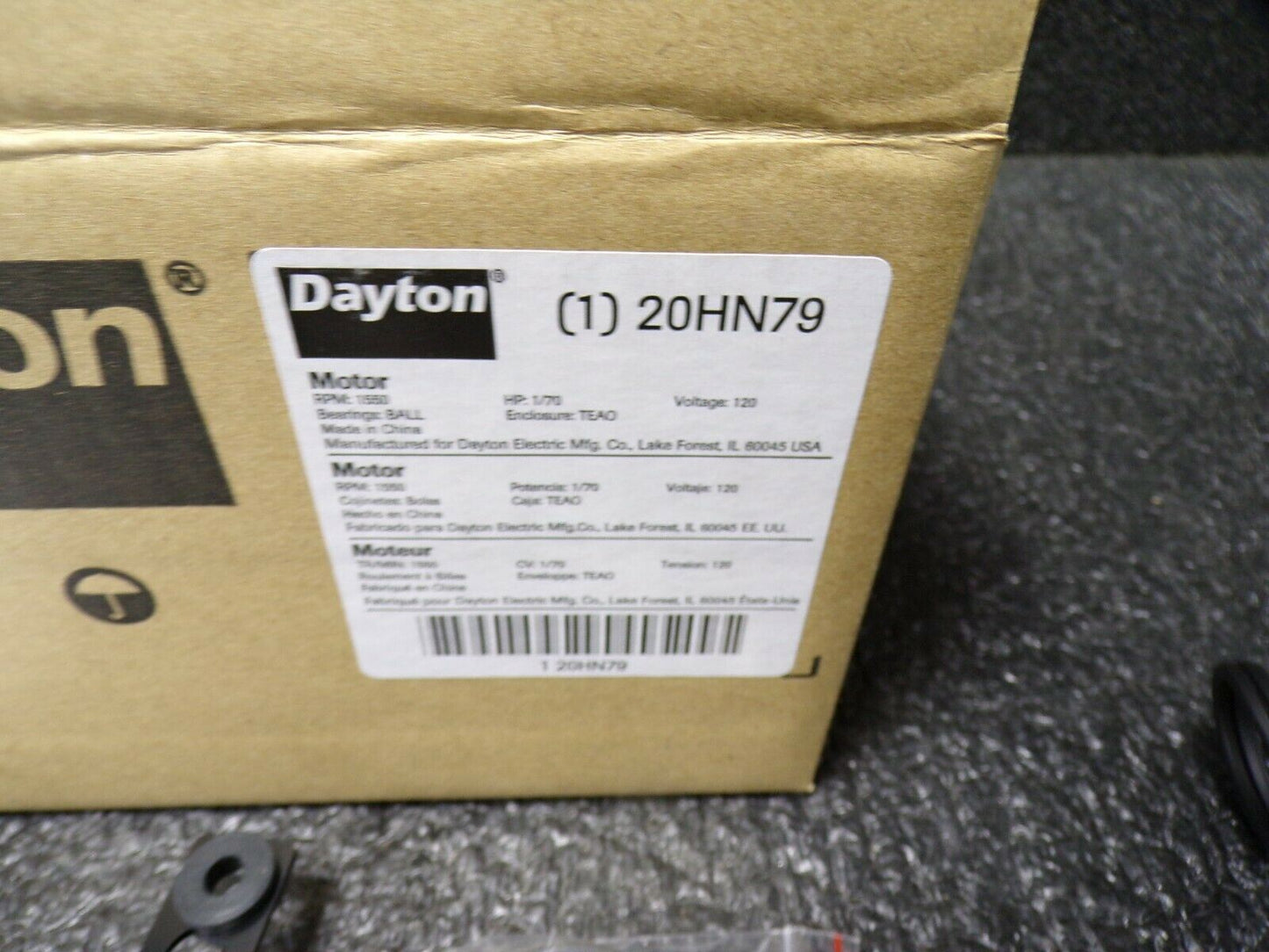

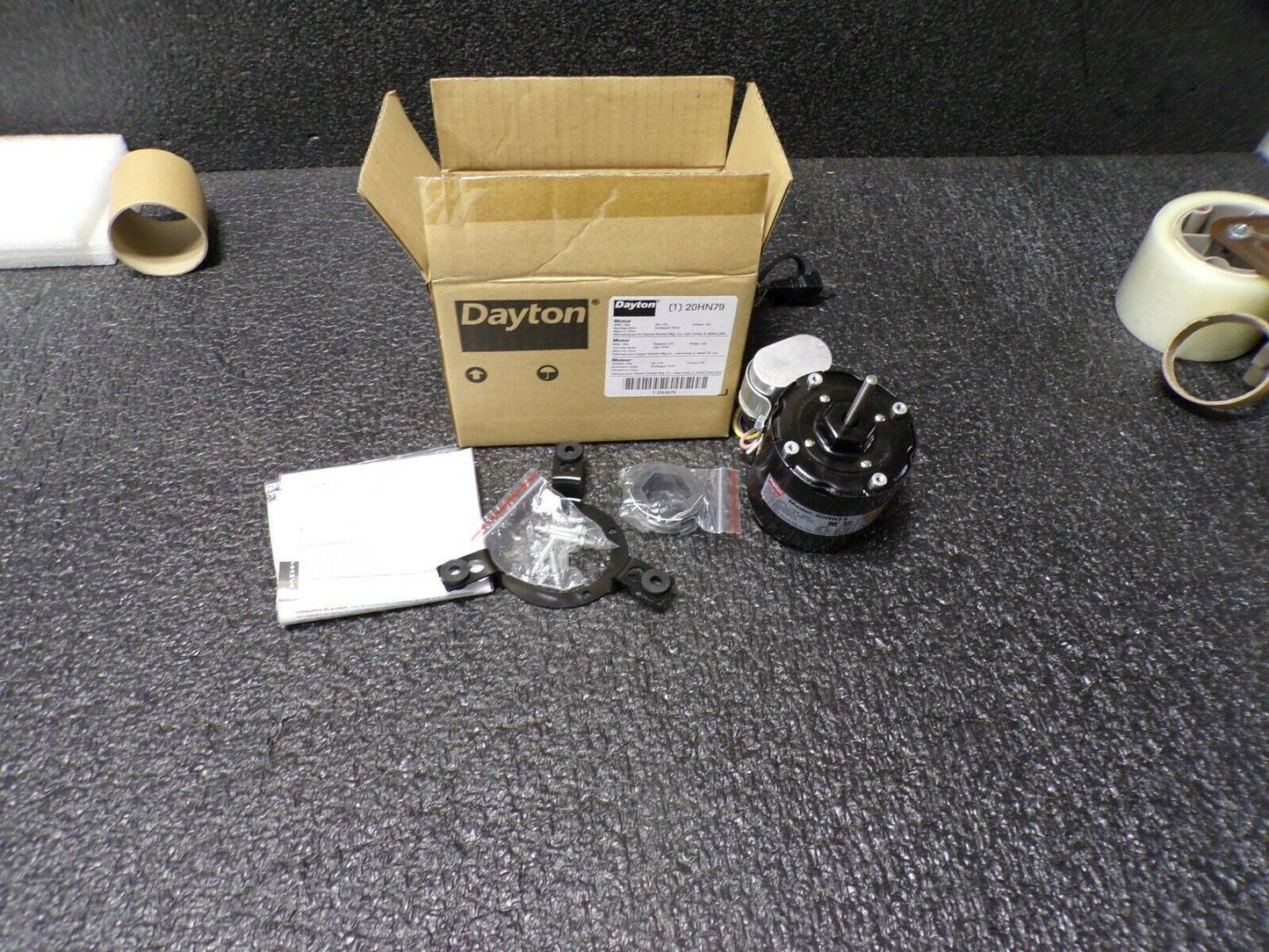

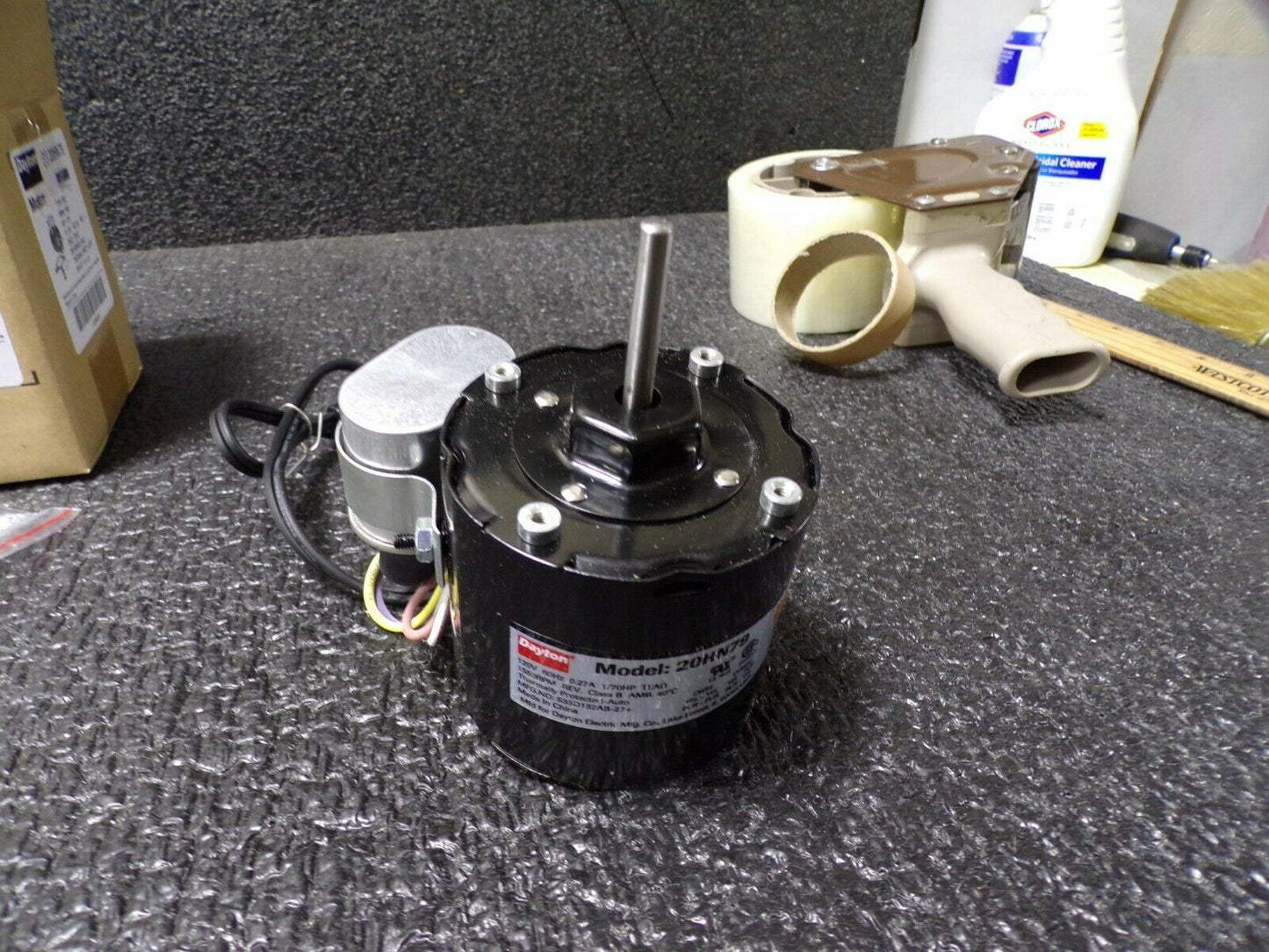

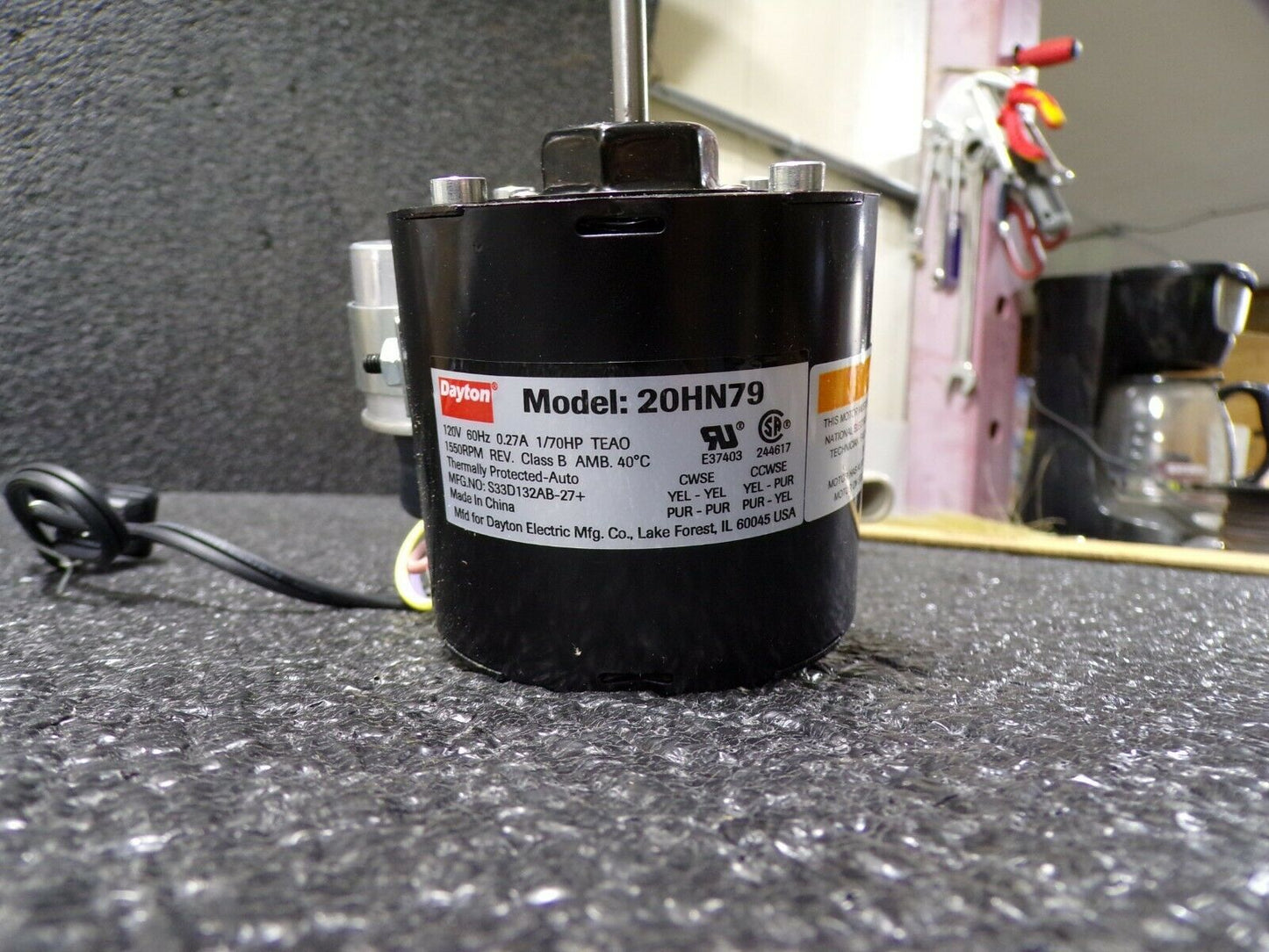

DAYTON 20HN79 HVAC Motor, 1/70 HP, 1550 rpm, 120V, 3.3 Permanent Split Capacitor (184122619573-WTA05)


Shipping calculated at checkout

SKU: 184122619573-WTA05

Available Now!

Technical Specs
Item: HVAC Motor
Motor Design: Permanent Split Capacitor
HP: 1/70
No. of Speeds: 1
Voltage: 120
Motor Shaft Rotation: CW/CCW
Motor Enclosure Design: Totally Enclosed Air-Over
Motor Mounting Type: Stud
Shaft Dia.: 1/4"
Shaft Length: 1-1/2"
Number of Shafts: 1
Motor Thermal Protection: Auto
Nameplate RPM: 1550
Phase: 1
Motor Application: HVAC/R
Motor Sub Application: Direct Drive Fan/Blower
Frame: 3.3
Motor Bearings: Ball
Full Load Amps: 0.27
Duty: Continuous
Motor Service Factor: 1.00
Hz: 60
Body Dia.: 3.3"
Ins. Class: B
Max. Ambient Temp.: 40 Degrees C
Length Less Shaft: 4"
Mounting Stud Location: 4/Both Ends
Stud/Base Mtg. Pattern: 2" x 2"
Motor Shaft Design: Flat
Cord Length: 20"
Plug Type: 2 Prong Polarized

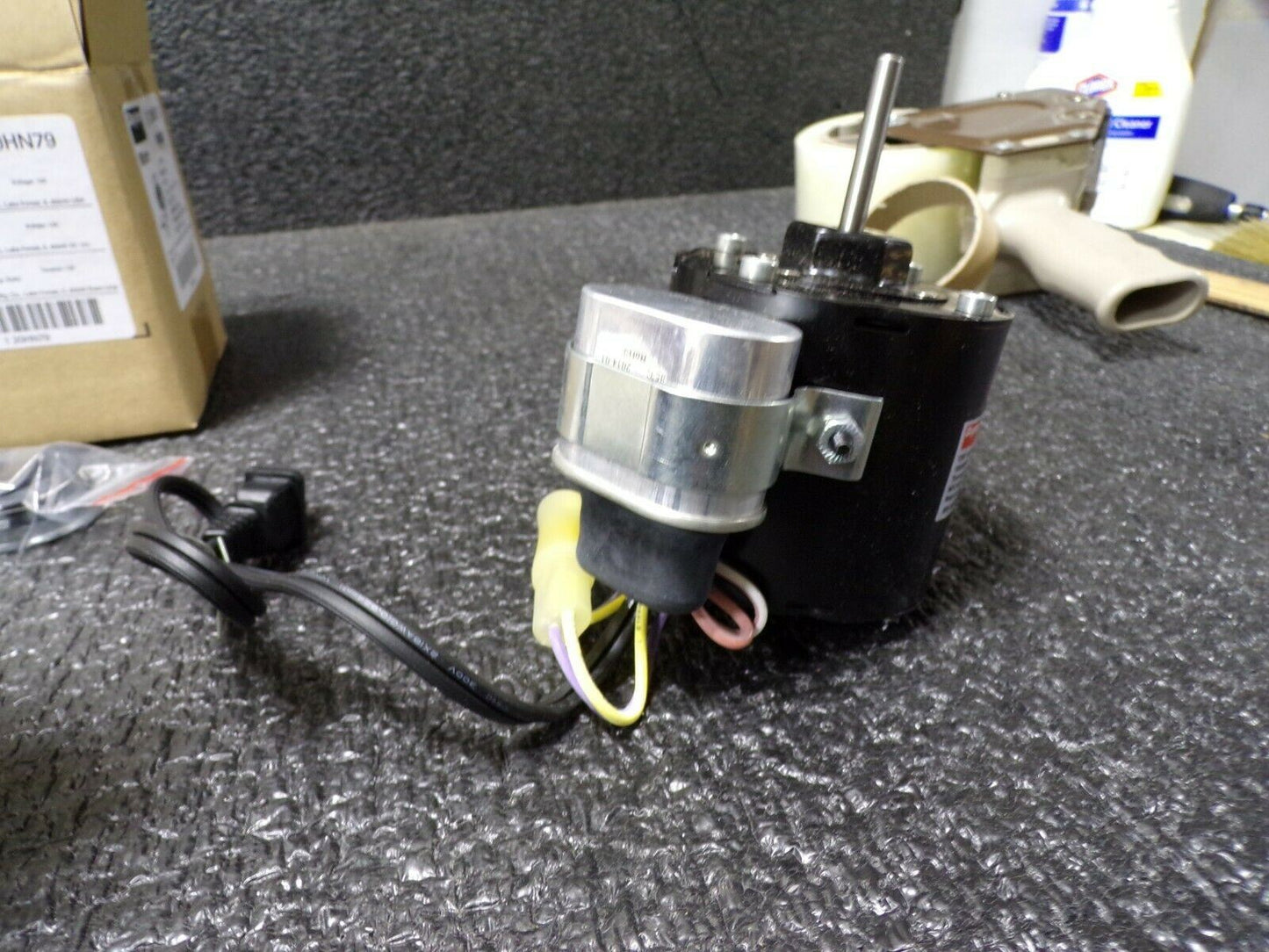

Includes: Capacitor
Standards: UL E37403, CSA 244617
Mounting Pattern: 2
