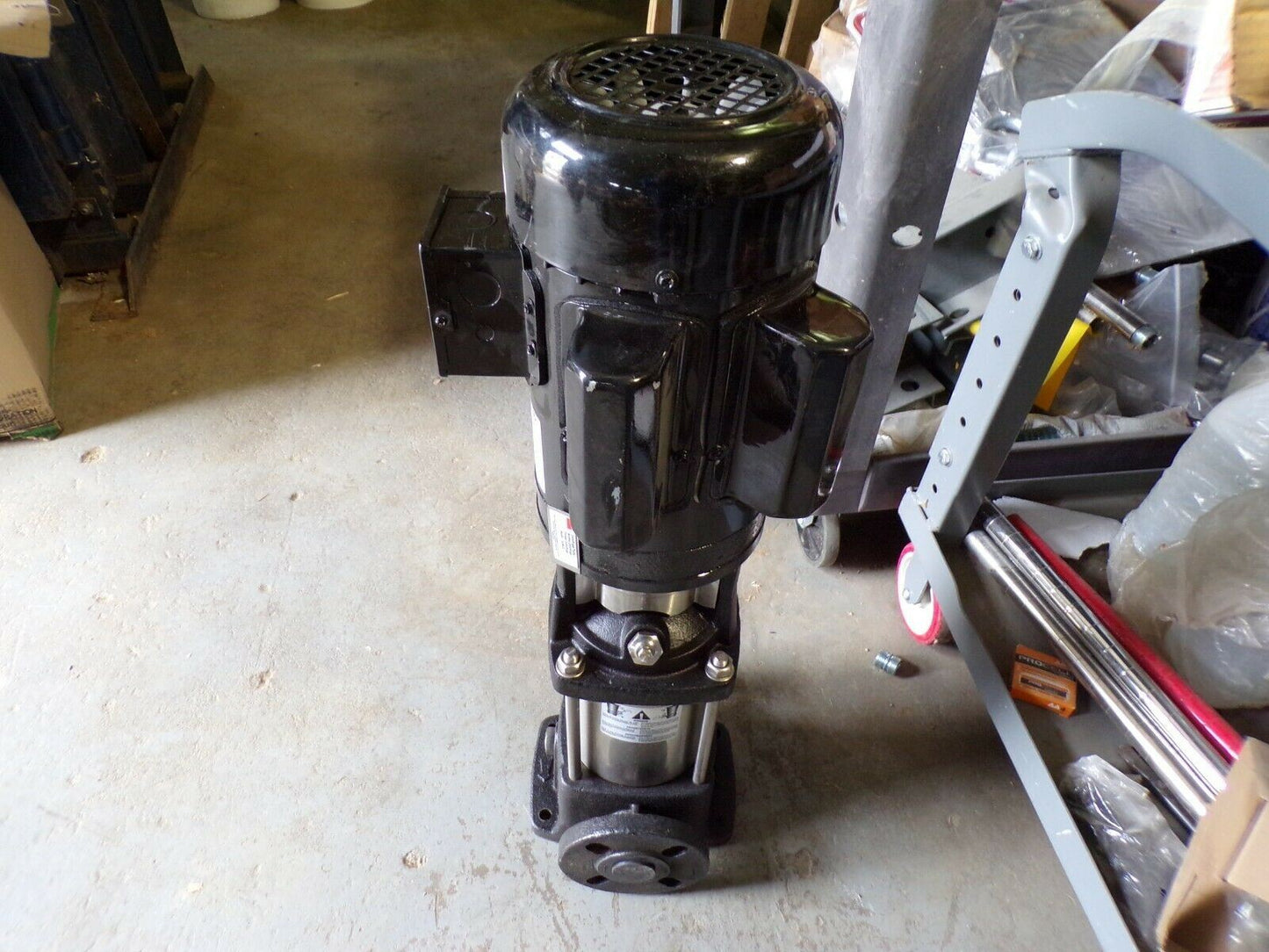

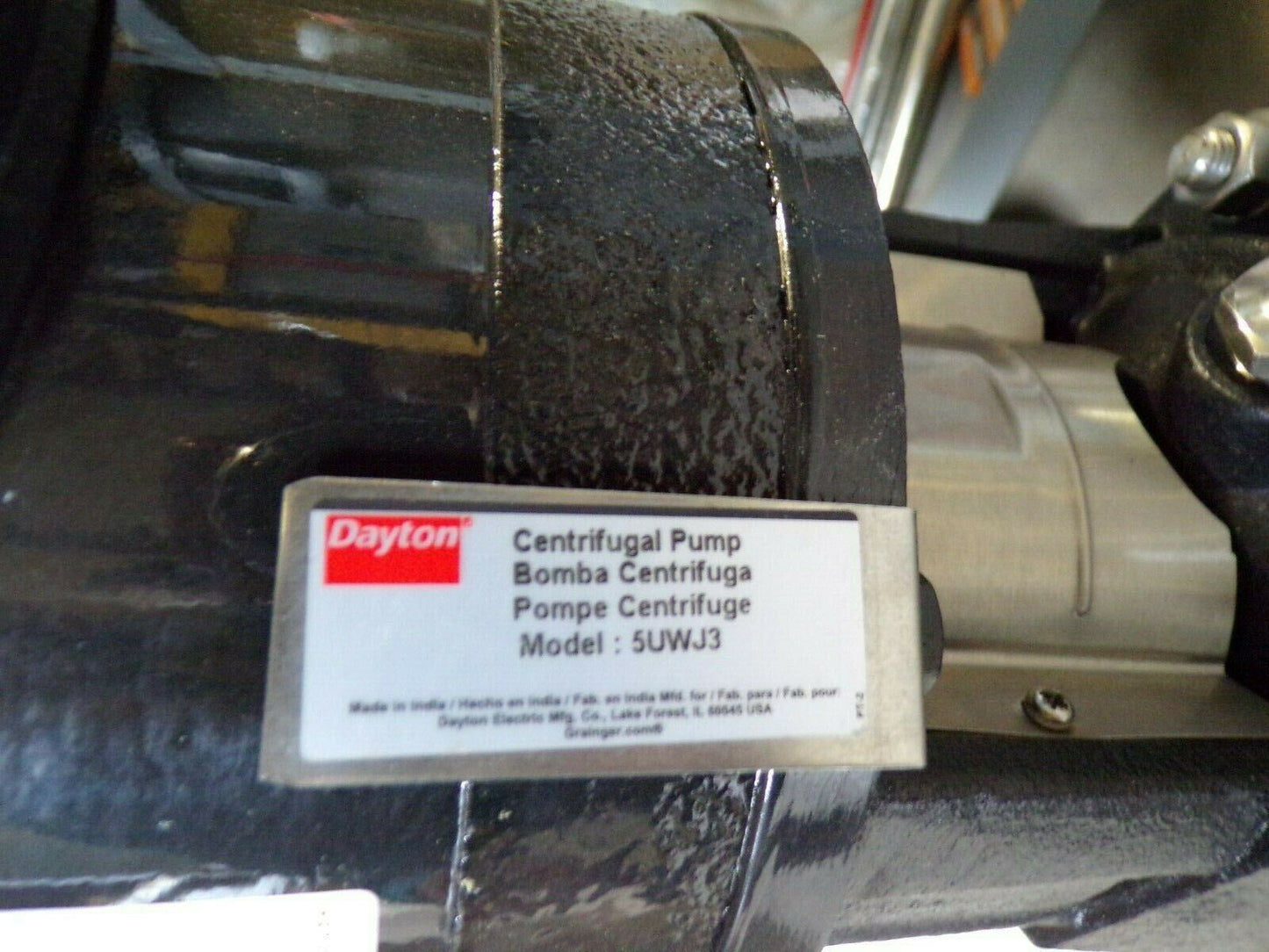

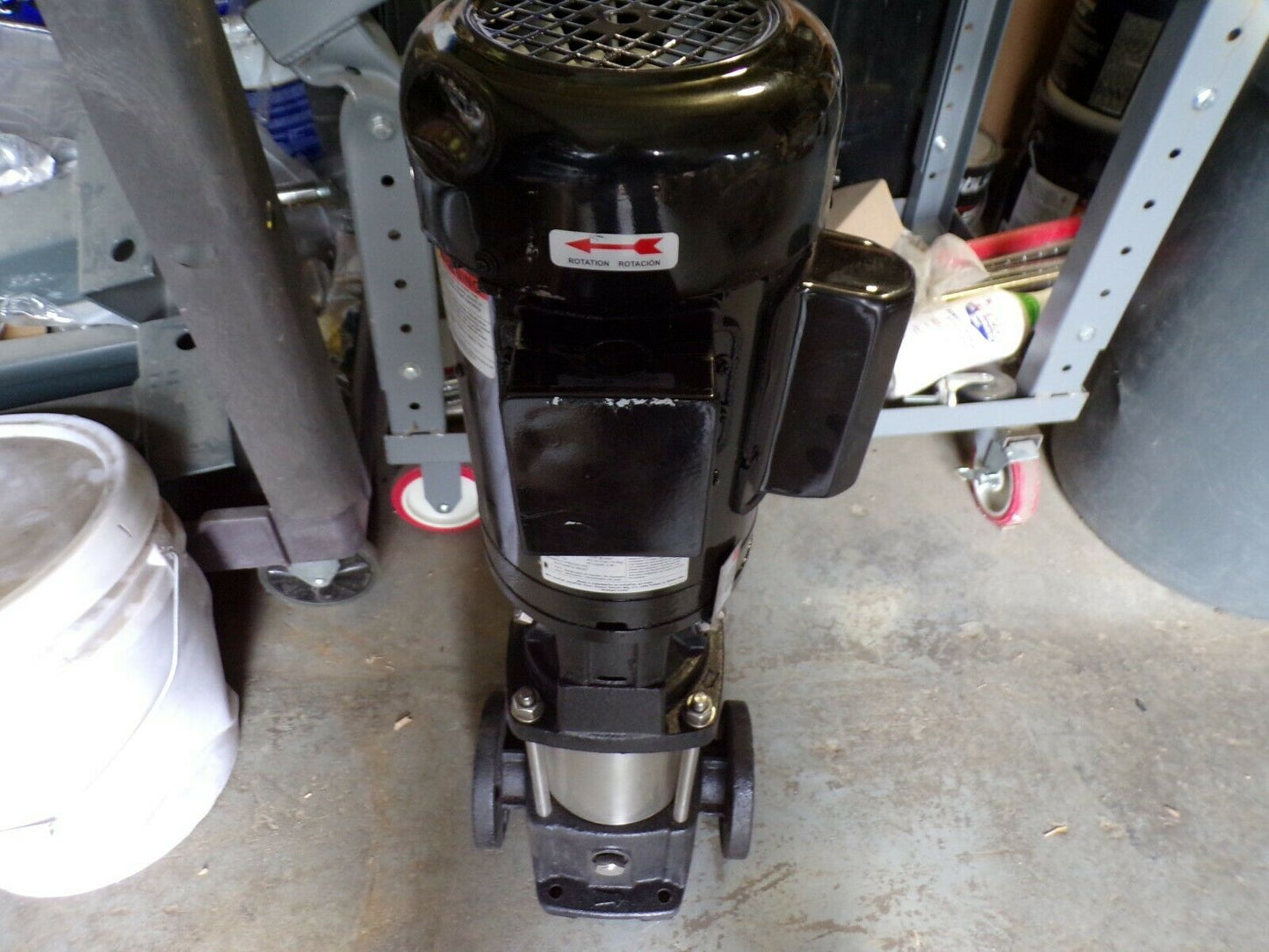

DAYTON 5UWJ3 Pump, 2 HP, 120/208-240VAC, 1 Ph, 11 Stage (184489631001-2D46)

The Dayton in-line centrifugal pumps are designed for a wide range of applications involving the transfer of liquids, circulation and pressure boosting of hot or cold clean water and any thin, non-explosive liquids which do not contain any solid particles or fibers and those liquids that do not attack chemically , and the pump material of construction. The typical areas where the vertical inline pumps are widely used is as under, municipal water supply, cooling water systems, and irrigation.

• Item: Multi-Stage Booster Pump
• Booster Pump Type: Multi-Stage Booster Pump
• HP - Pumps: 2 hp
• Voltage - Pumps: 120/208 to 240V AC
• Phase - Pumps: 1
• Outlet Size - Pumps: 1-1/4 in Flanged
• Inlet Size - Pumps: 1-1/4 in Flanged
• Max. Pressure - Pumps: 148 psi
• Number of Stages - Pumps: 11
• Housing Material - Pumps: Cast Iron
• Motor Enclosure - Pumps: Totally Enclosed Fan-Cooled
• Pump Mounting Position: Horizontal
• Amps: 16.6/9.4-8.3
• Impeller Material: Stainless Steel
• Impeller Type: Closed
• Max. Case Pressure: 362 psi
• Max. Liquid Temp.: 248 Degrees F
• Seal Material: EPDM, Silicon Carbide, Stainless Steel
• Wetted Materials: Cast Iron, EPDM, Silicon Carbide, Stainless Steel
• Motor Type: Capacitor-Start
• Agency Compliance: c UL us
• Includes: Manual
• Length: 9 7/8 in
• Width: 8 3/4 in
• Height: 28 15/16 in
• Bearing Type: Ball
• Duty: Continuous
• Hz: 60
• Motor Ambient Temp. Rating: 40 Degrees C
• GPM @ 60 PSI: 22
• GPM @ 80 PSI: 19
• GPM @ 100 PSI: 16
• GPM @ 120 PSI: 12
• GPM @ 140 PSI": 4
• Best Efficiency GPM @ PSI: 16 @ 104
• Frame: 56C
• Max. Dia. Solids: 5/64 in
• Motor RPM: 3,450 RPM
