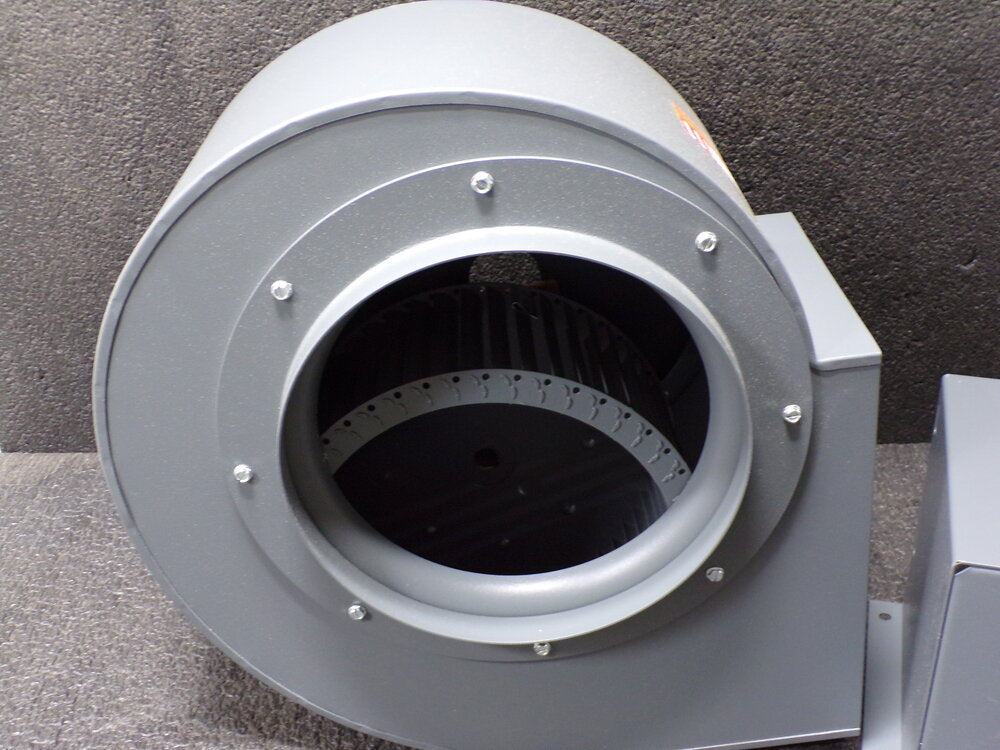

DAYTON Blower, Less Motor, 10 5/8 in Wheel Dia. (SQ2410332WT37)

Single-Inlet Forward Curve Direct-Drive Blowers

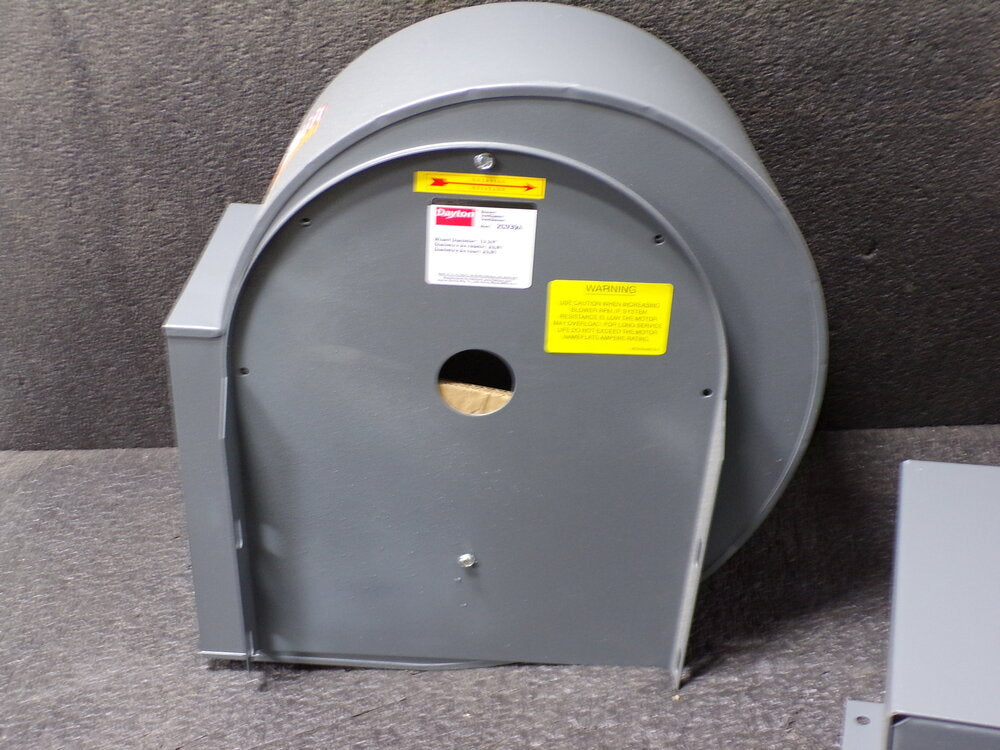

• Housing can be rotated to 8 discharge positions in each rotation. Welded steel construction Gray baked-on epoxy finish Max. inlet air temp.: 180°F Max. ambient temp.: 104°F
Provide high-volume ventilation when duct systems are required. Motor packed separately when ordered with blower.

Note: Review OSHA codes. OSHA complying guards are required where fan blades are exposed and within reach of personnel.

Item: Blower

• Type: Less Motor

• Wheel Dia. (In.): 10 5/8 in

• Max. Inlet Temp. (Deg. F): 180 Degrees F

• Max. Ambient Temp. (F): 104 Degrees F

• Height (In.): 21 in

• Width (In.): 19 in

• Depth (In.): 18 in

• Inlet Dia. (In.): 10 in

• Outlet Height (In.): 11 3/4 in

• Outlet Width (In.): 8 in

• Wheel Width (In.): 5 1/4 in

• Wheel Bore (In.): 5/8 in

• Wheel Material: Steel

• Rotation: CW Viewing Drive Side

• Housing Material: Steel

• Housing Finish: Gray Polyester Epoxy
