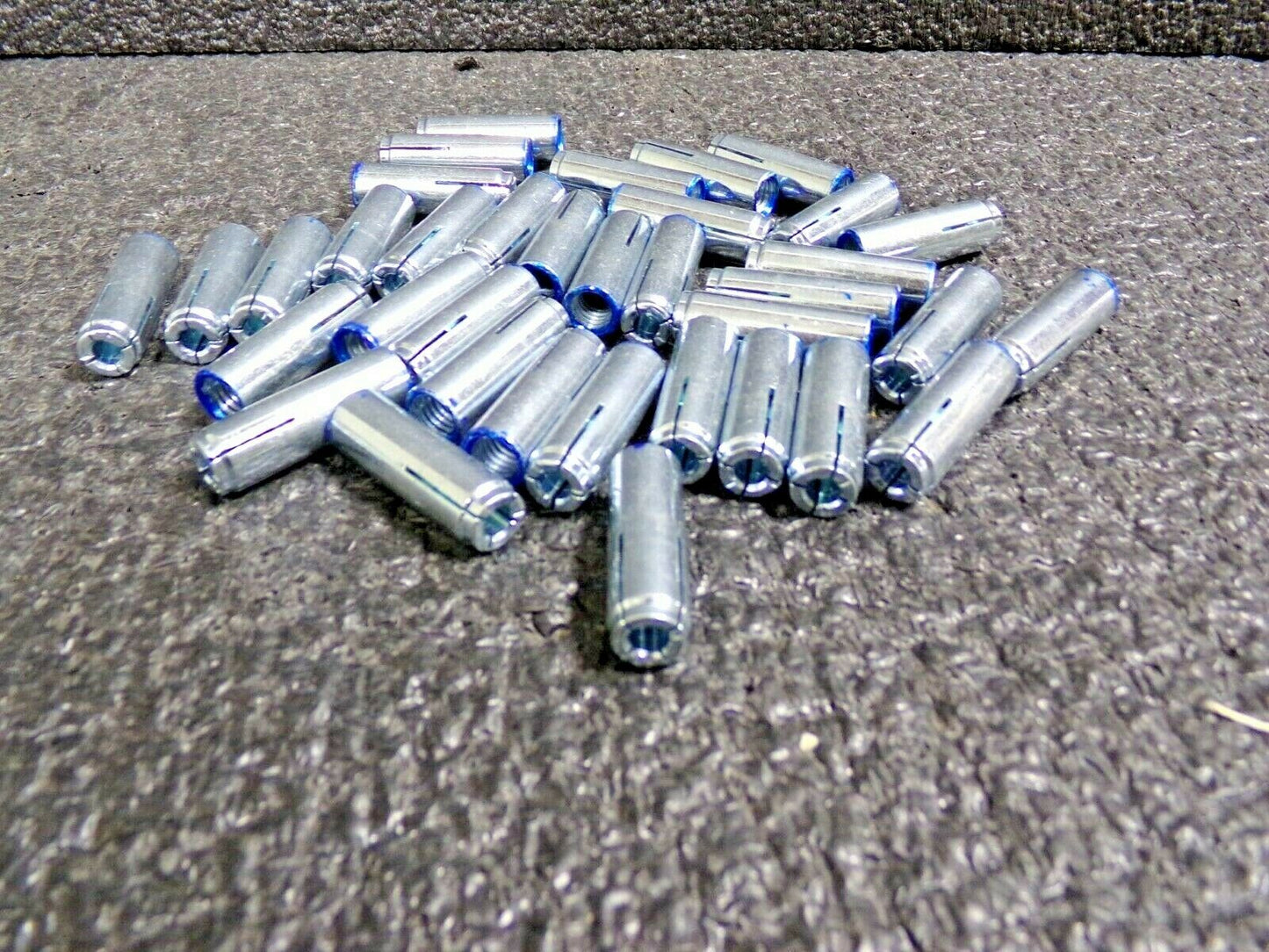

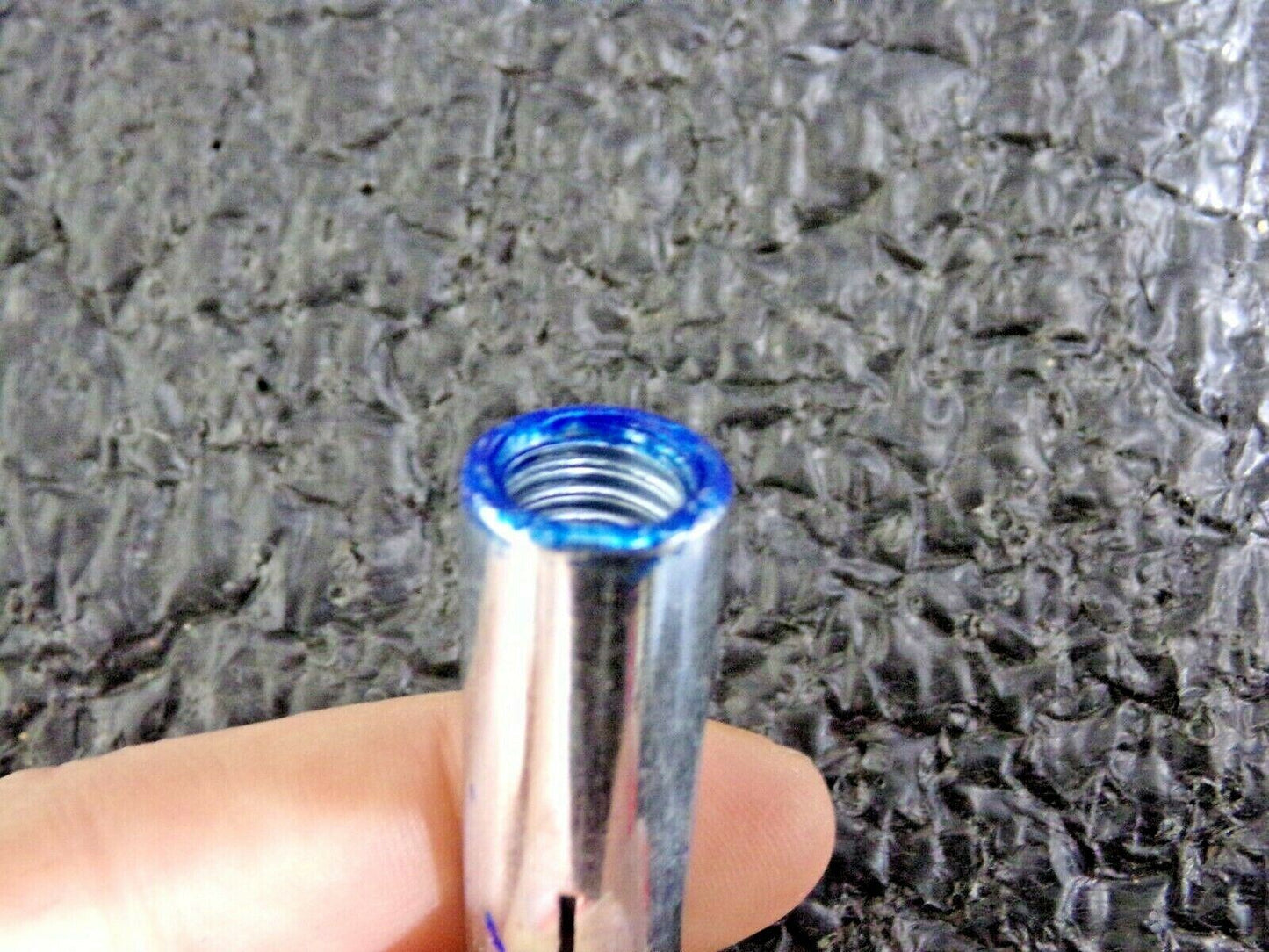

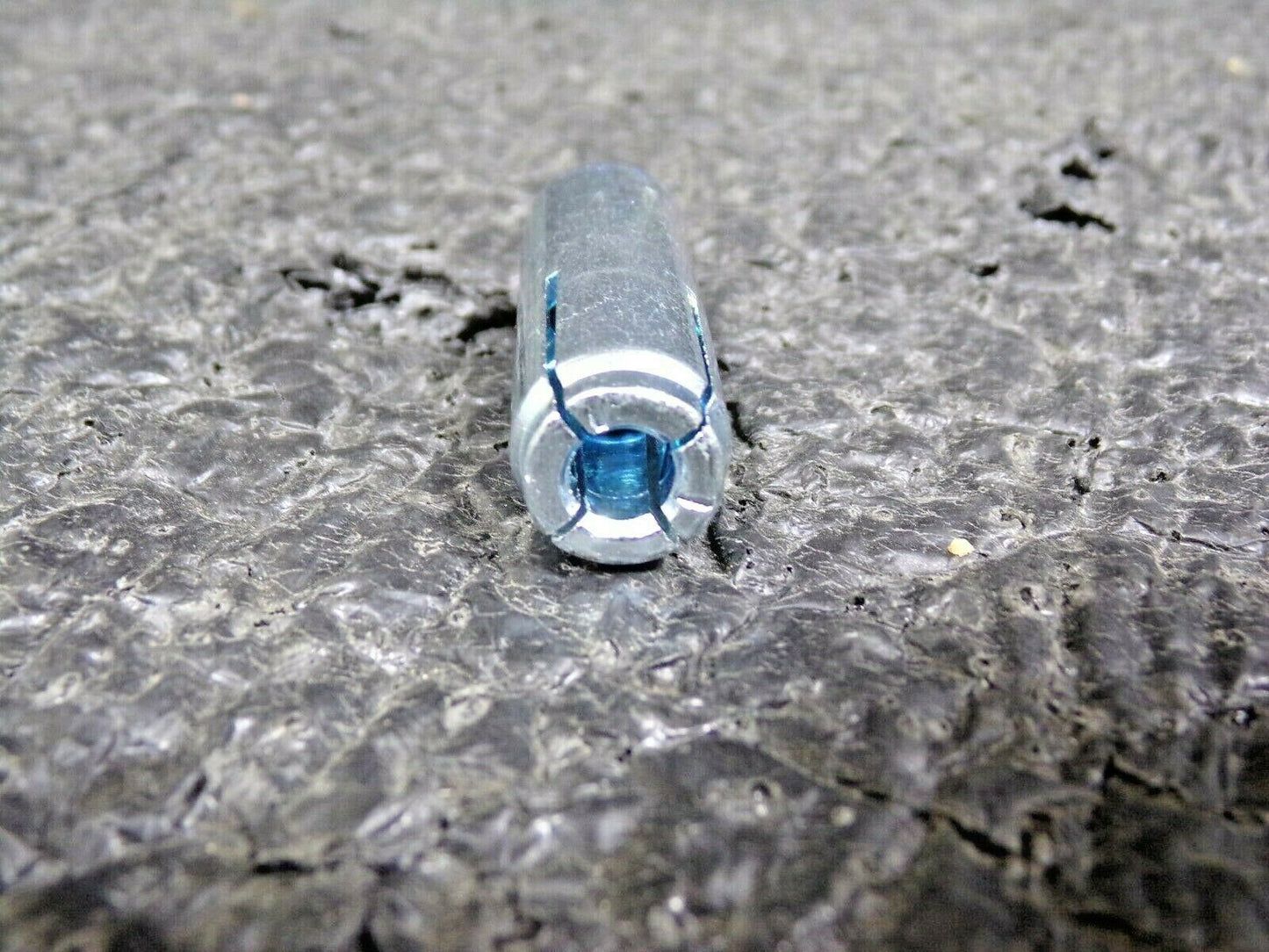

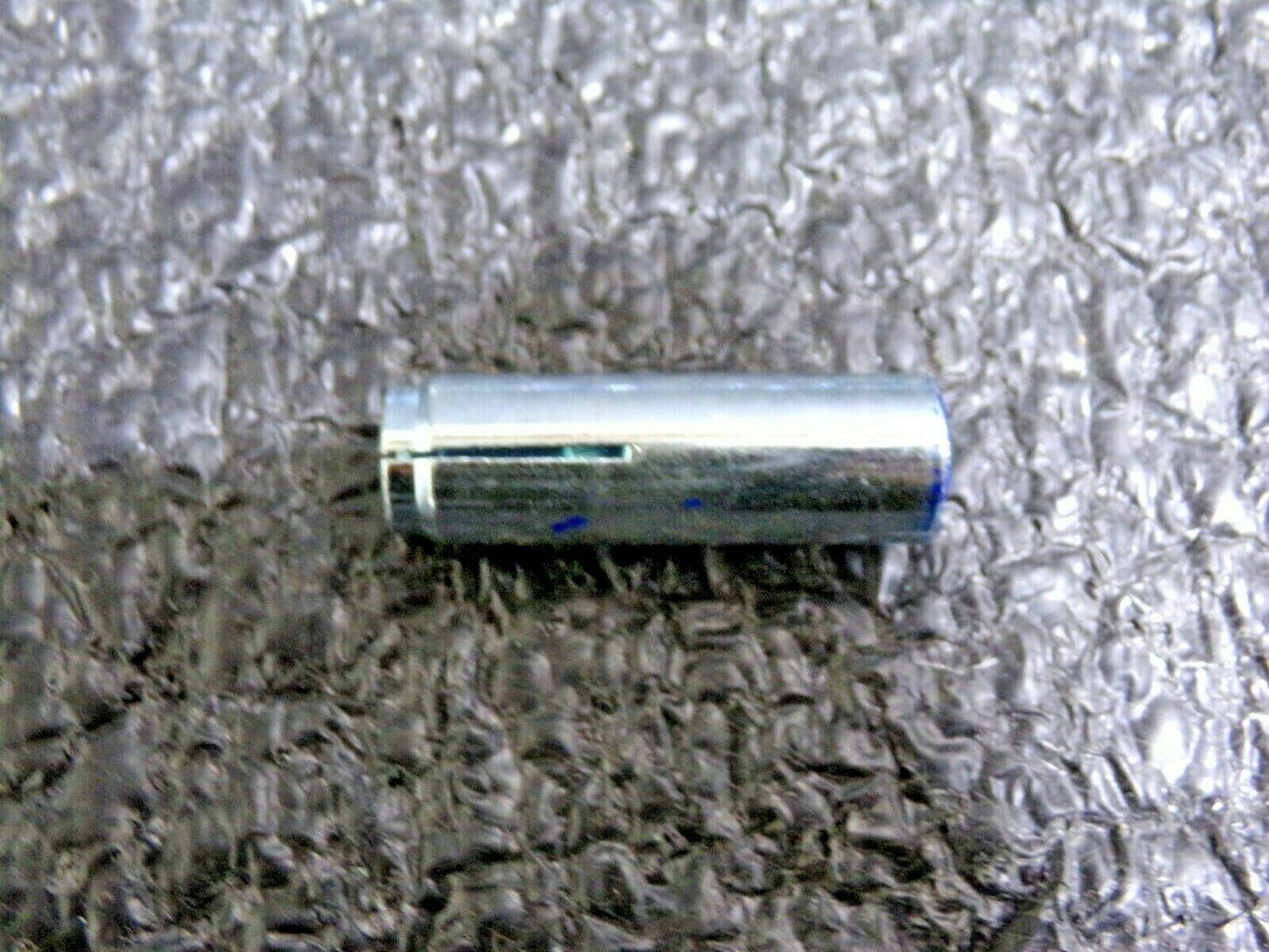

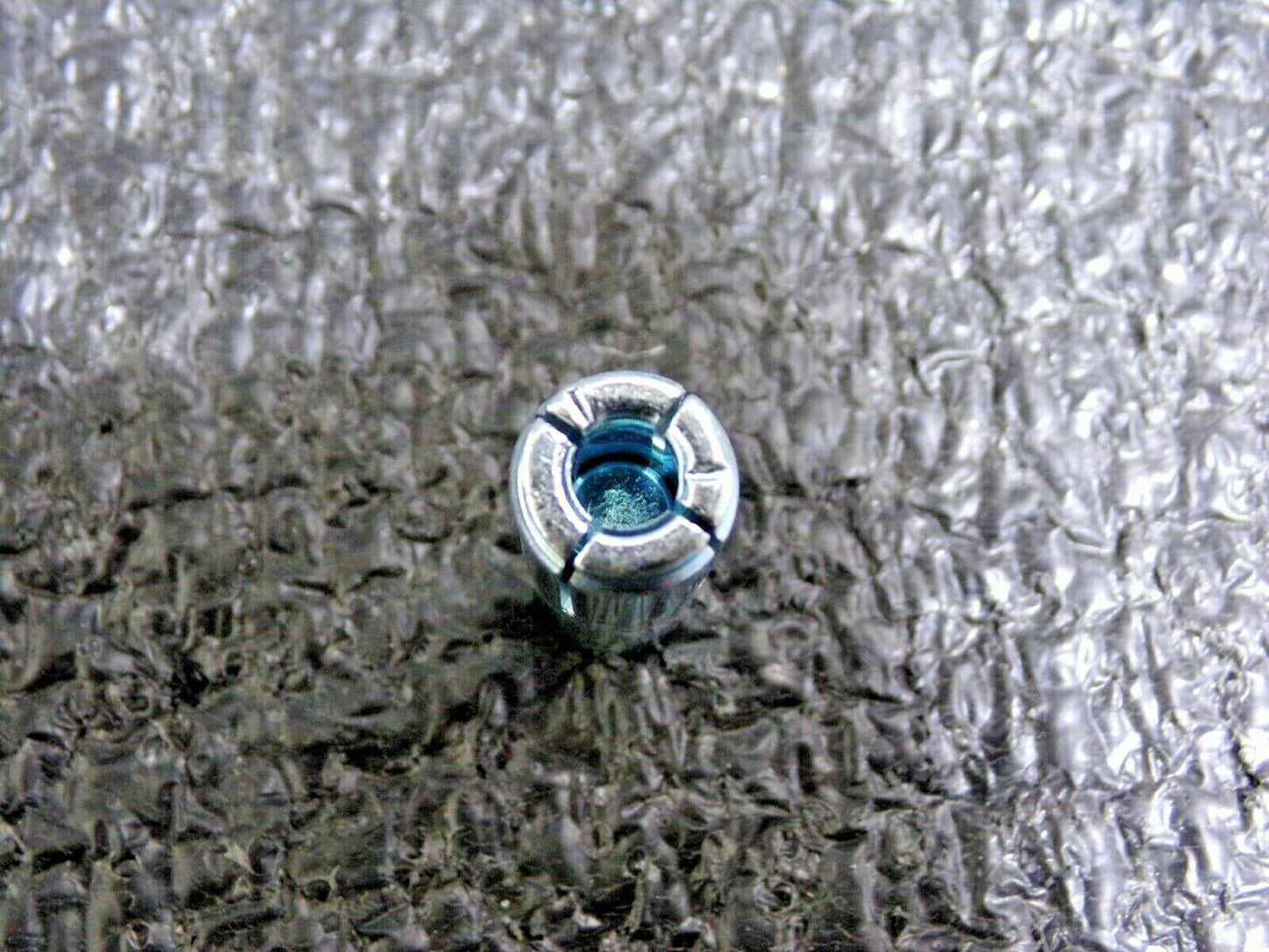

Dewalt 3/8"-16 Non-Flange Drop-In Anchor, 1-9/16"L x 1/2" 36PK 6306SD-PWR (183708768125-W27)

$10.99

Shipping calculated at checkout

SKU: 183708768125-W27

Only 1 left!

Technical Specs

  • ItemDrop-In Anchor
  • Drop-In Anchor TypeNon-Flange
  • Anchor MaterialSteel
  • Fastener FinishZinc Plated
  • Anchor Thread Size3/8"-16
  • Anchor Dia.1/2"
  • Anchor Length1-9/16"
  • Thread Depth5/8"
  • Bolt Dia.3/8"
  • Drill Bit Size1/2"
  • Min. Hole Depth1-9/16"
  • Installation TurnsUntil Set Tool Shoulders On Anchor Lip
  • Allowable Shear (Lbs.)1040 @ 2500 psi Concrete
  • Ultimate Shear in 3000 PSI Concrete (Lb.)4360
  • Ultimate Shear in 4000 PSI Concrete (Lb.)4755
  • Allowable Tension (Lbs.)496 @ 2500 psi
  • Ultimate Tension (Lbs.)1985 @ 2500 psi
  • Ultimate Tension in 3000 PSI Concrete (Lb.)2275
  • Ultimate Tension in 4000 PSI Concrete (Lb.)2850
  • Drive ToolsPowers System Maual Set Tool, SMART DI+ System With a Hammer Drill
  • Agency ComplianceFM Global (Factory Mutual) Report # 3040746, Underwriters Laboratories (UL Listed) File # EX1289(N)
  • Meets/ExceedsFM Global, UL Listed
