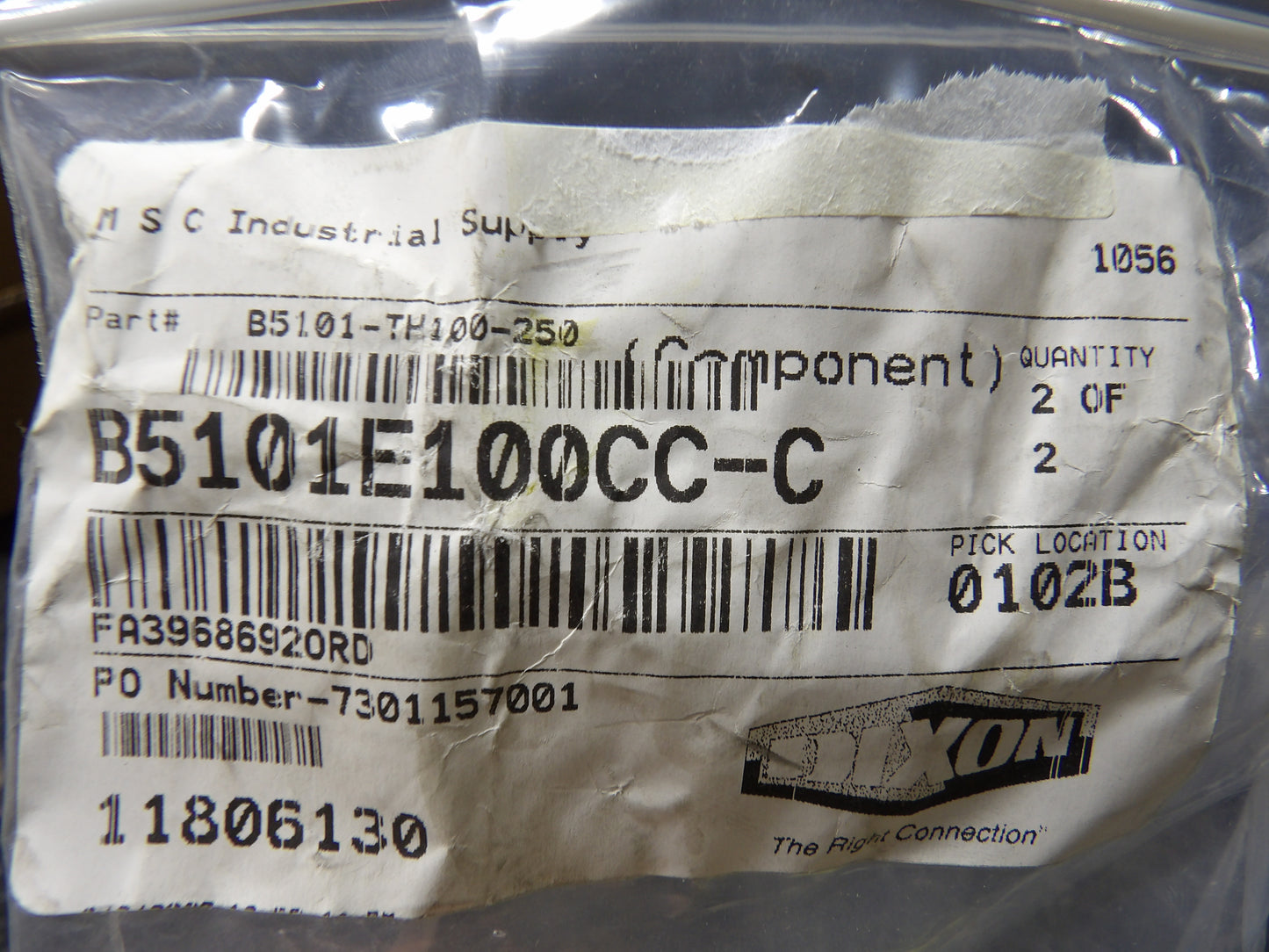

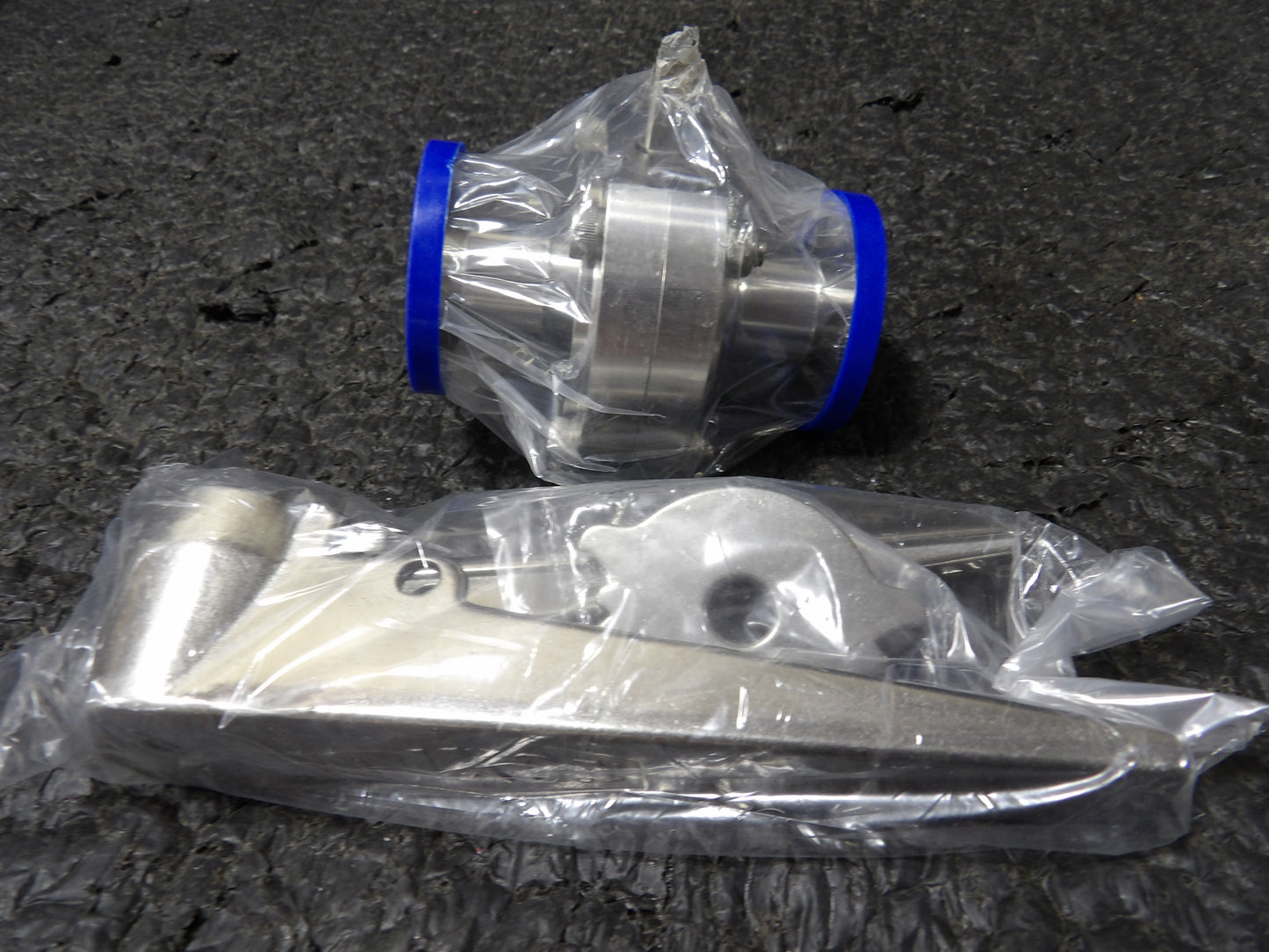

Dixon® B5101E100CC-C Butterfly Valve, 1 in Nominal, Clamp End End Style, 316L Stainless Steel Body (CR00881WTA30)


Shipping calculated at checkout

SKU: CR00881WTA30

Only 2 left!

Brand: Dixon®
Series: B5101
Body Material: 316L Stainless Steel
End Style: Clamp End
Nominal Size: 1 in
Temperature Rating: 15 to 200 deg F
Actuator Type: Trigger Handle
Dimensions: 3.1 in D
Disc Material: 316L Stainless Steel
Inlet to Outlet Length: 3-1/2 in
Stem & Pin Material: 304 Stainless Steel (Pin)
Top to Inlet Center: 3 in
  • 100% hydraulic tested/100% inspected
  • Field serviceable (no special tools required)
  • All wetted surfaces are sanitary finished to < 32Ra
  • 75 in-lb break torque
  • Lockout tagout handle
  • Pressure rating (psi), flow co-efficient (Cv) and break torque (in-lbs) information supplied is based on water media at 68 deg F/ 20 deg C
  • Handle is not assembled when shipped
