Dixon® B5101E150CC-C Butterfly Valve, 1-1/2 in Nominal, Clamp End End Style, 316L Stainless Steel Body (CR00880WTA30)
$184.99
Shipping calculated at checkout
SKU: CR00880WTA30
Brand: Dixon®
Series: B5101
Body Material: 316L Stainless Steel
End Style: Clamp End
Nominal Size: 1-1/2 in
Temperature Rating: 15 to 200 deg F
Actuator Type: Trigger Handle
Dimensions: 3.1 in D
Disc Material: 316L Stainless Steel
Inlet to Outlet Length: 3-1/2 in
Stem & Pin Material: 304 Stainless Steel (Pin)
Top to Inlet Center: 3 in
- 100% hydraulic tested/100% inspected
- Field serviceable (no special tools required)
- All wetted surfaces are sanitary finished to < 32Ra
- 130 in-lb break torque
- 80 Cv flow co-efficient
- 0.4 in Hg vacuum at 68 deg F minimal line pressure
- Lockout tagout handle
- Pressure rating (psi), flow co-efficient (Cv) and break torque (in-lbs) information supplied is based on water media at 68 deg F/ 20 deg C

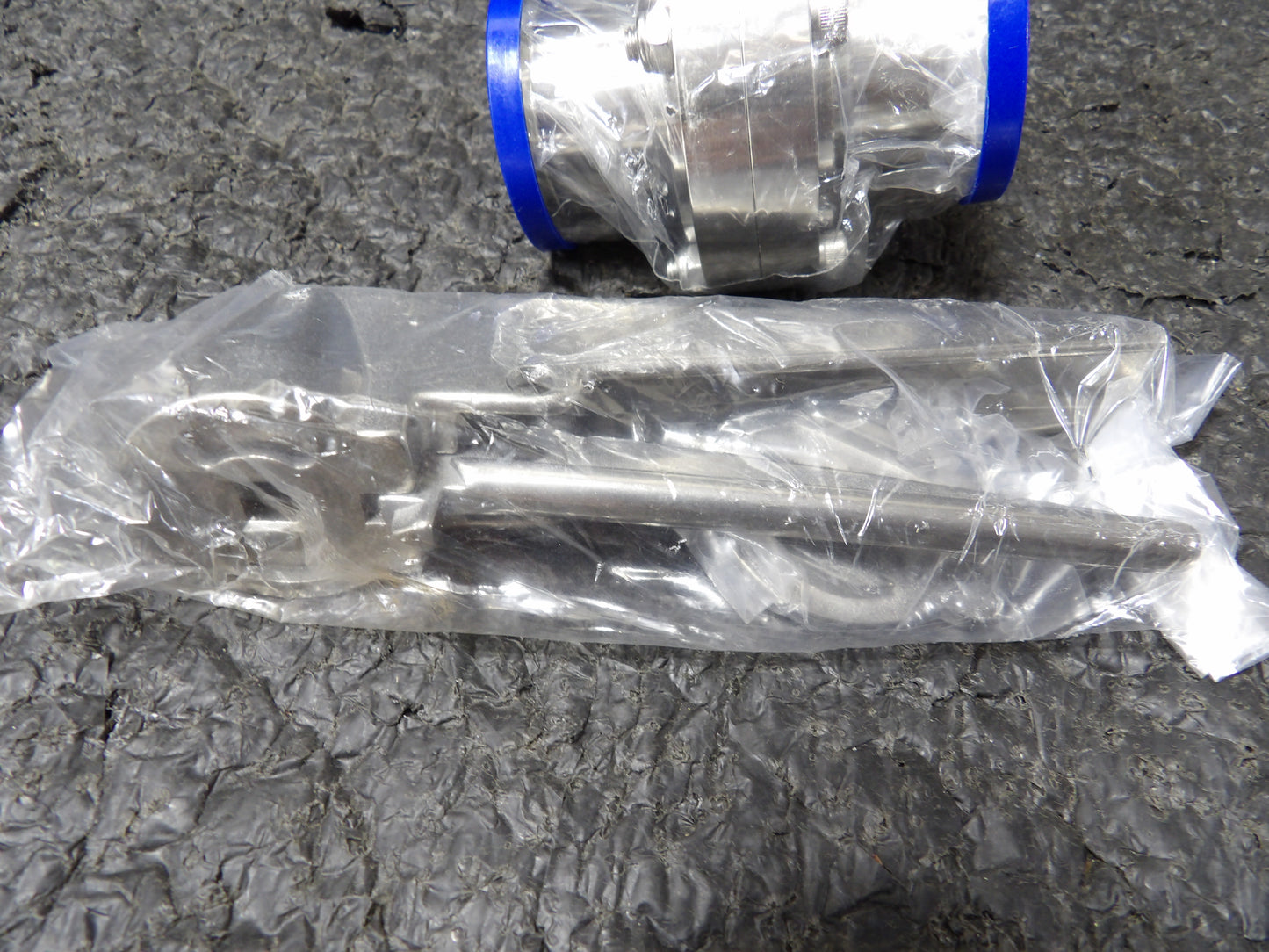

- Handle is not assembled when shipped
