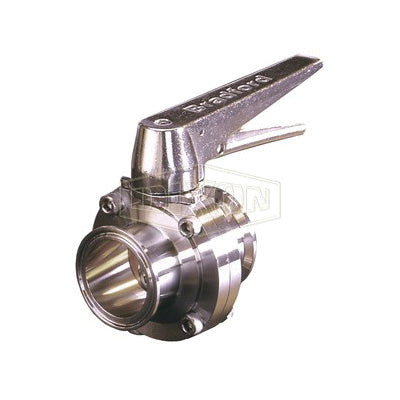

Dixon® B5101E300CC-C Butterfly Valve, 3 in Nominal, Clamp End End Style, 316L Stainless Steel Body (CR00882WTA30)

$299.99

Shipping calculated at checkout

SKU: CR00882WTA30

Only 2 left!

Brand: Dixon®
Series: B5101
Body Material: 316L Stainless Steel
End Style: Clamp End
Nominal Size: 3 in
Temperature Rating: 15 to 200 deg F
Actuator Type: Trigger Handle
Dimensions: 5.2 in W
Disc Material: 316L Stainless Steel
Inlet to Outlet Length: 4.1 in
Stem & Pin Material: 304 Stainless Steel (Pin)
Top to Inlet Center: 3.9 in
  • Lockout tagout handle
  • Handle is not assembled when shipped
  • 100% hydraulic tested/100% inspected
  • All wetted surfaces are sanitary finished to < 32Ra
  • Field serviceable (no special tools required)
  • Various end configurations available - Weld, I-line, Q-line, bevel seat and John Perry
  • Clamp style is standard
  • 0.4 in Hg vacuum at 68 deg F minimal line pressure
  • 372 Cv flow co-efficient
  • Pressure rating (psi), flow co-efficient (Cv) and break torque (in-lbs) information supplied is based on water media at 68 deg F
