Applications

• Designed for use with liquids, consult Dixon for specific recommendations

Available Options

• Other gasket types are available, contact Dixon.

Construction

• Buna-N gasket

• Durable stainless steel cam arm pins

Features

• Precision machined to rigid tolerances

• Stainless pins will not rust or bind, providing great strength and safety

• Recess holds gasket firmly in place - ensures proper placement

How it works

• To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.

• Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

Safety notes

• Under no circumstances should cam and groove couplings be used for compressed air or steam service!

• Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70° with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult the factory.

Specifications

• Produced to interchange with all product produced to Commercial Item Description A-A-59326D

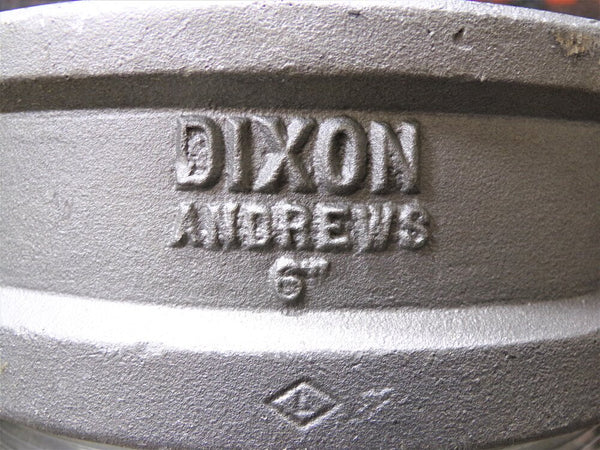

Part Number: 600-B-AL

Material: 356T6 Aluminum

Seal: Buna-N

Size: 6"

Maximum Operating Pressure: 75 PSI
