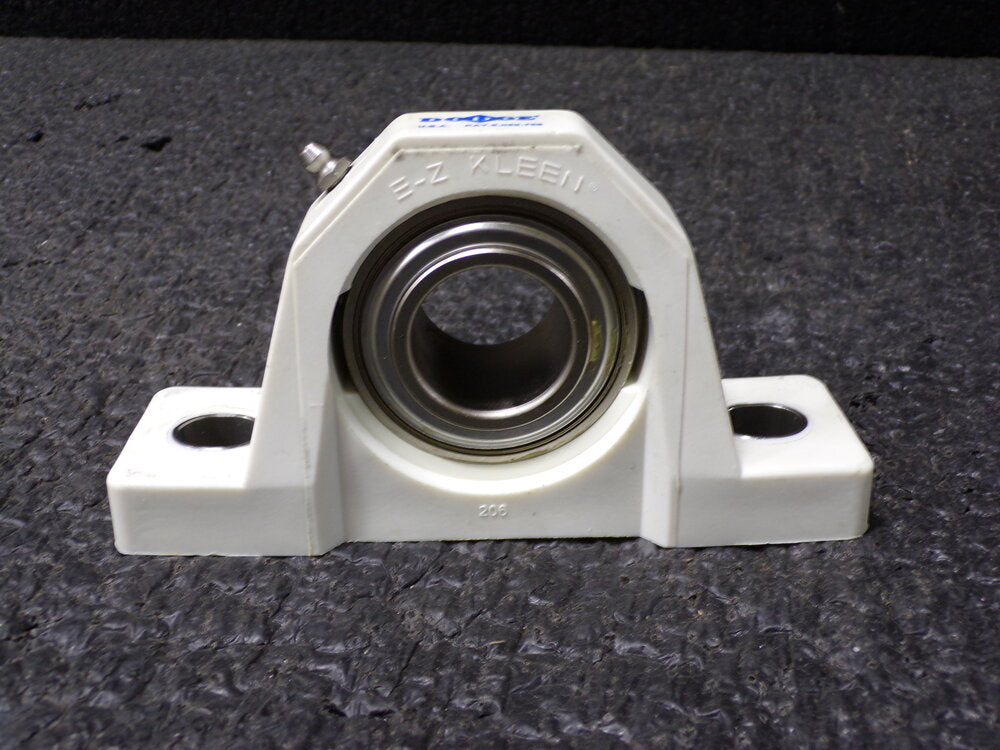

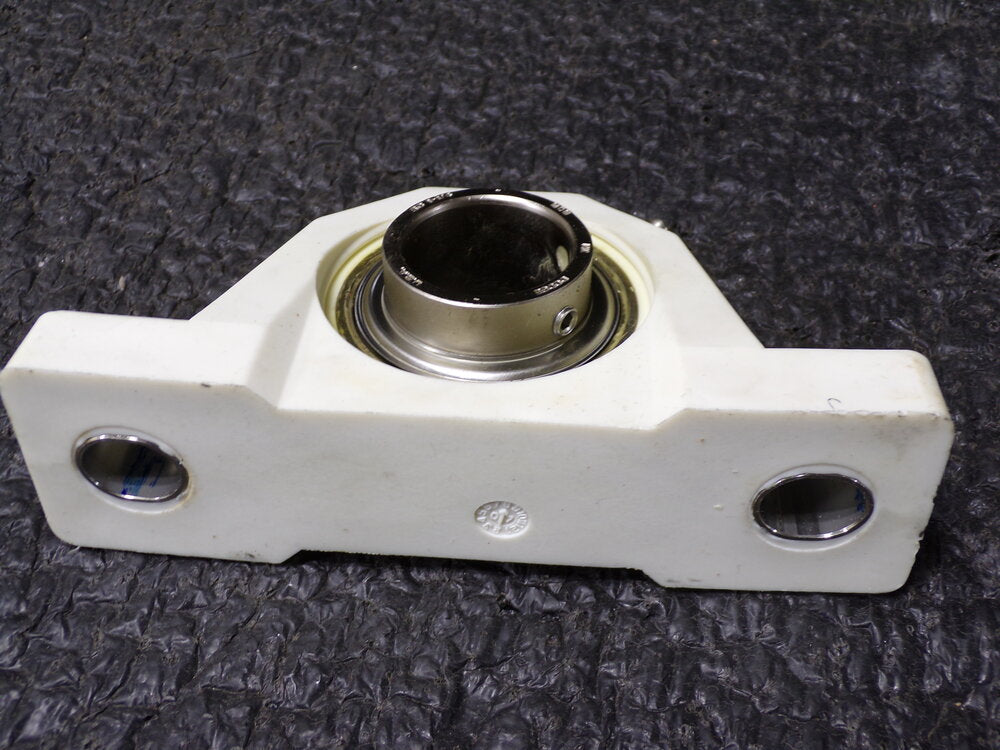

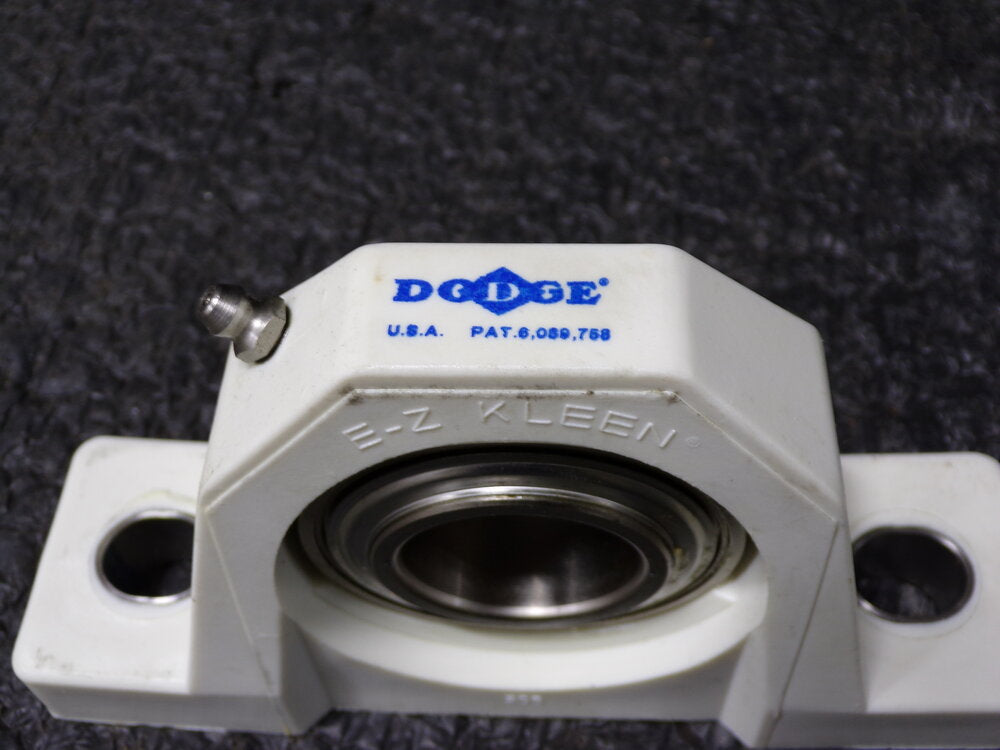

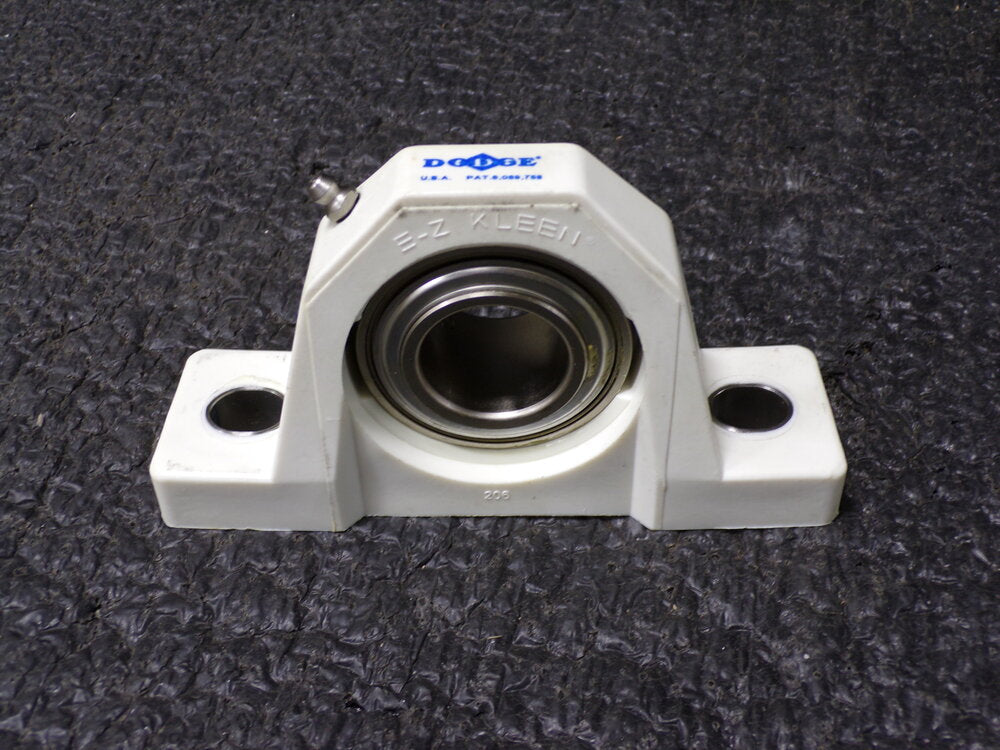

Dodge 1-1/4" 2-Bolt Pillow Block Bearing, Polymer, 206 Series (SQ4038274WT40)

Bearing Duty: Normal Duty

Bearing Family: Setscrew Ball Bearing

Bearing Series: 206 Series

Housing Material: Polymer

Housing Type: 2 Bolt Pillow Block

Seal Type: Triple Lip

Shaft Size: 1-1/4"

Anti-Rotation Pin: Yes

Ball Bearing Housing Series: 206 Series

Ball Grade: Class 24

Ball Material: Stainless Steel

Base to Center Height: Very High

Bearing Bore Shape: Round

Bearing Inner Ring Material: Steel

Bearing Insert Material: Nickel-Coated Steel

Bearing Locking Device: Setscrew

Bearing Outer Ring Material: Steel

End Cap Groove: Yes

Expansion Type: Non-Expansion

Flinger Material: Stainless Steel

Flinger Type: INTERNAL RUBBER LIP FLINGER

Grease Type: Mobil grease FM222

Housing Coating: No Coating

Manufacturing Plant Location: Rogersville, TN

Max Bearing Speed: 5250 rpm

Retainer Material: Polymer

Retainer Type: Max Life Cage

Ring Size: Standard

Self Aligning: Self Centering

Shaft Attachment (2): Set Screw
