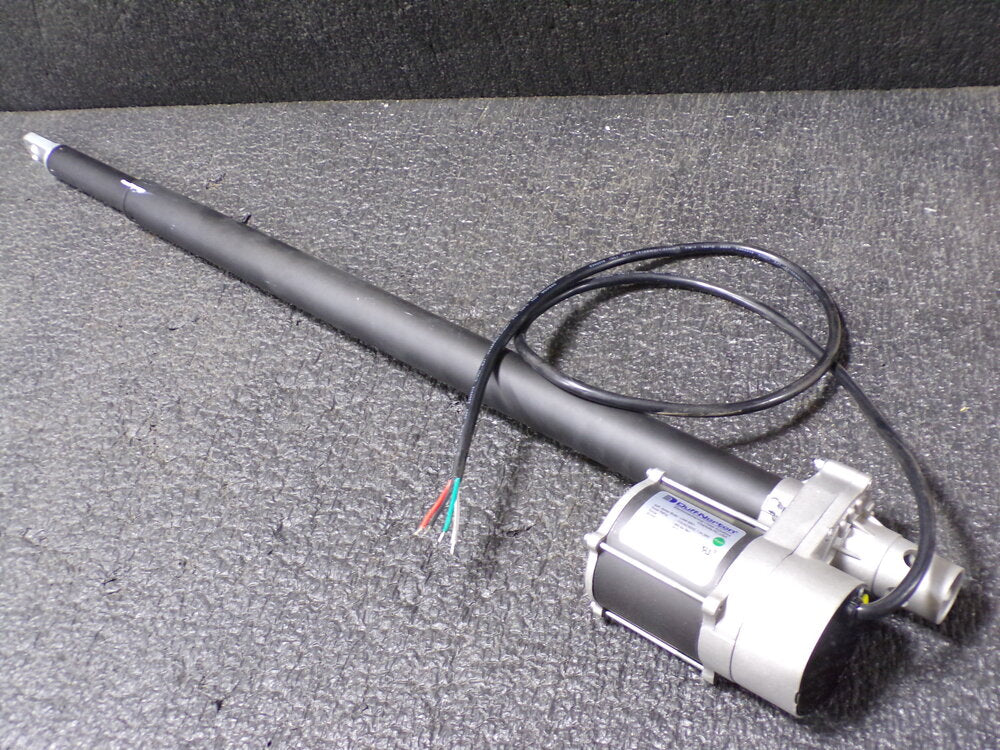

DUFF-NORTON LS48-S001 Linear Actuator, 660 lb Rated Load, 24 in Stroke Length, 9 in/min (SQ4983439WT15)

Item: Linear Actuator

• Rated Load: 660 lb

• Stroke Length: 24 in

• Speed @ Rated Load: 9 in/min

• Duty Cycle: 17 %

• Voltage: 115V AC

• Full Load Amps: 1.4 A

• Retracted Length: 38 3/4 in

• Hz: 60

• Max. Ambient Temp.: 50 Degrees C/120 Degrees F

• Enclosure Type: Totally Enclosed Fan-Cooled

• Motor Type: Permanent Split Capacitor

• Thermal Protection: Automatic

• Capacitor Included: Yes

• Capacitor Required: Yes

• Feedback Signal: No

• Limit Switch Type: Internal Adjustable, Factory Set

• Clutch Included: No

• Drive System Type: Gear

• Gear Material: Aluminum

• Screw Type: Acme

• Nut Material: Delrin

• Housing Material: Die Cast Aluminum

• Gear Case Type: Aluminum

• Mounting Type: Pipe and Rod End

• Standards: CSA Certified, UL Recognized
