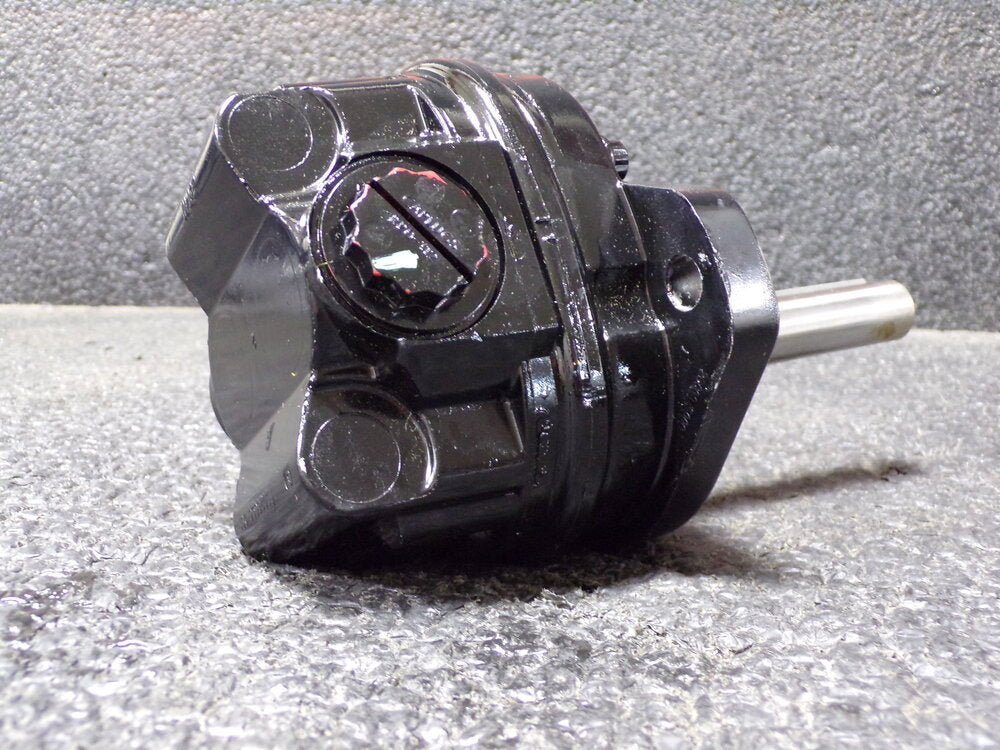

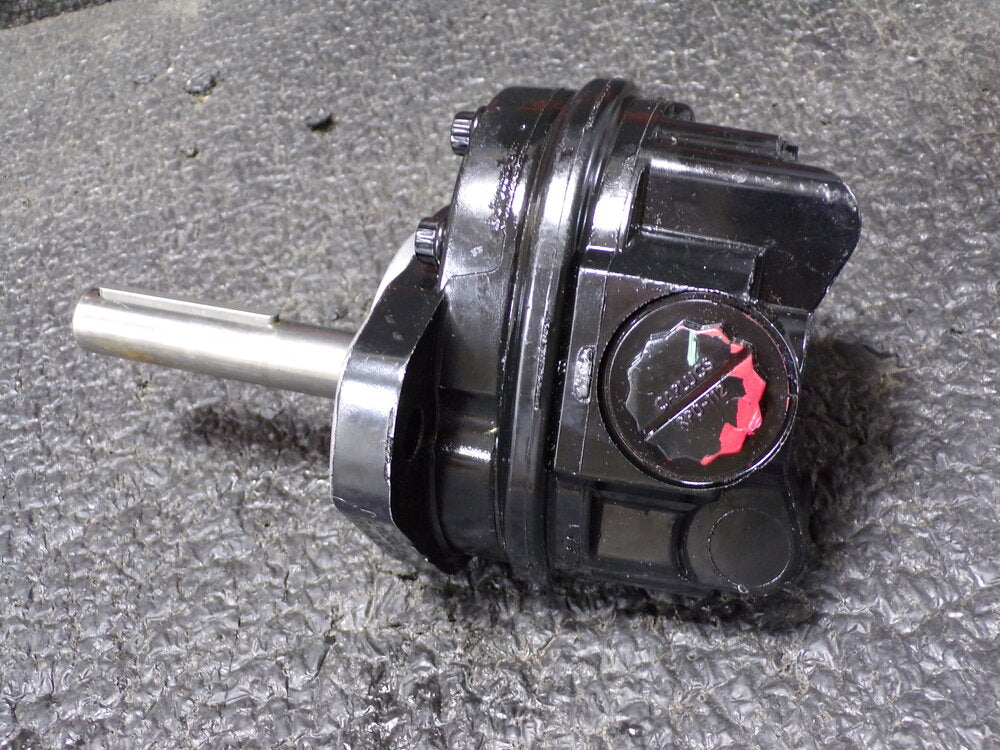

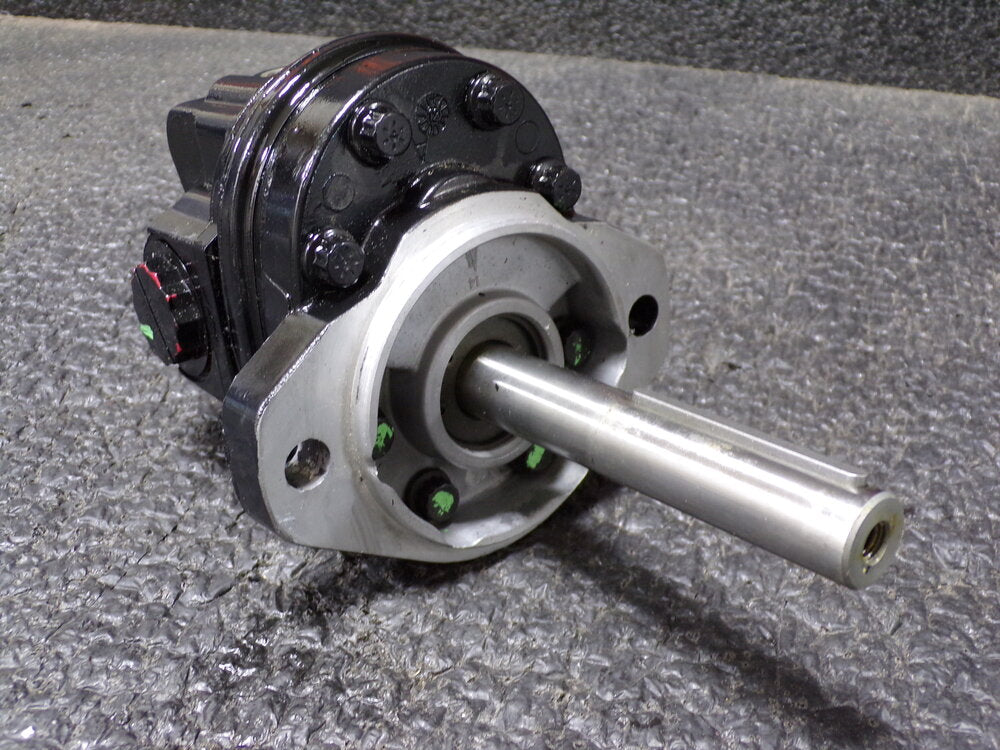

Eaton Series 26 Hydraulic Gear Motor 26701-LAA (SQ7195662WT35)

MOUNTING FEATURES (FRONT): 2 Bolt A SAE Flange series 82-2

CONFIGURATION: Single

UNIT TYPE: Plain

MINIMUM CONTINUOUS OIL VISCOSITY: 45 SUS

INTERMITTENT PRESSURE - MAX: 3500 Psi

IDENTIFICATION: Standard

DESIGN CODE: A

WORKING TEMPERATURE - MIN: -20 F

AUXILIARY MOUNTING FEATURES (REAR): None

PAINT: Primer Per Spec 209-13A

DISPLACEMENT: 7 CCR

PORTS SIZES, LOCATIONS AND BACKPLATE - (SINGLE UNIT): Inlet Port 1.0625-12 UN-2B SAE O-Ring Port; Outlet Port 1.0625-12 UN-2B SAE O-Ring Port - Side Ports

CONTINUOUS WORKING TEMPERATURE - MAX: 220 F

SHAFT ROTATION: Bi-Directional

TEST DATA: Generic

OUTPUT SHAFT: Straight Shaft Dia 19.05 [.750], Keyway 4.7625 X 57.15 [.1875 X .2.250], Shaft Ext 101.6 [4.00] (Key Included)

CONTINUOUS PRESSURE - MAX: 3000 Psi

RELIEF VALVE TYPE: None
