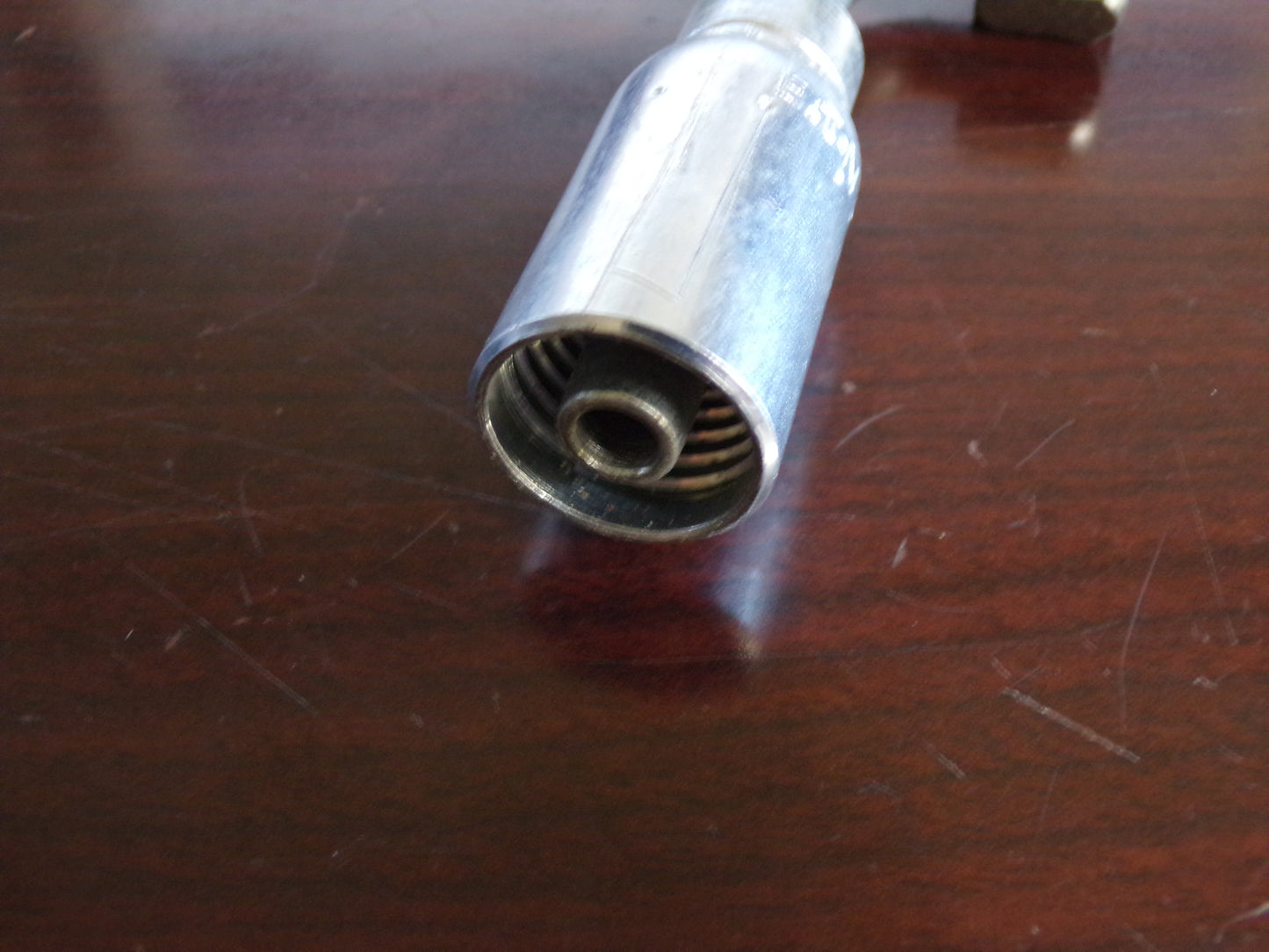

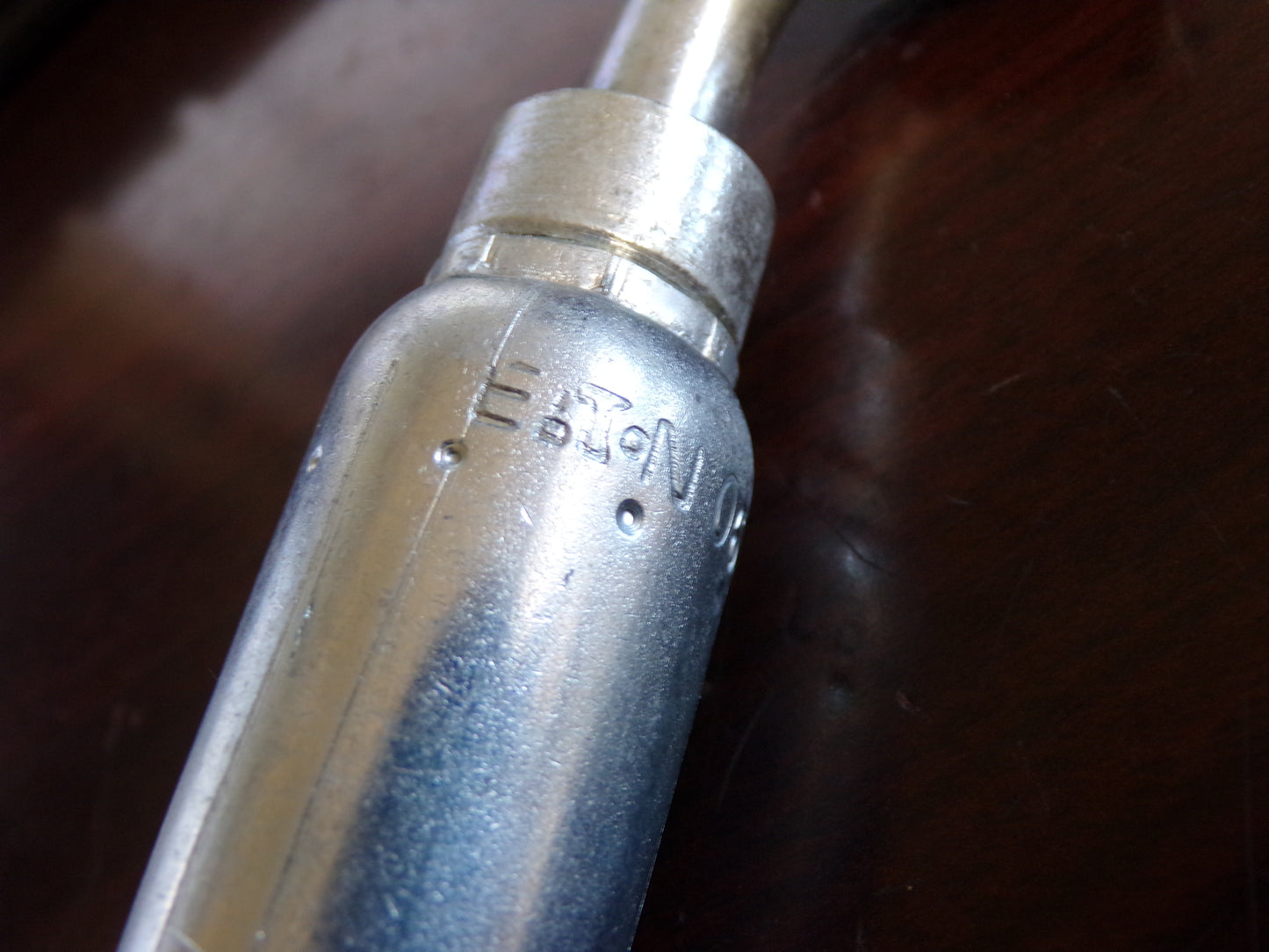

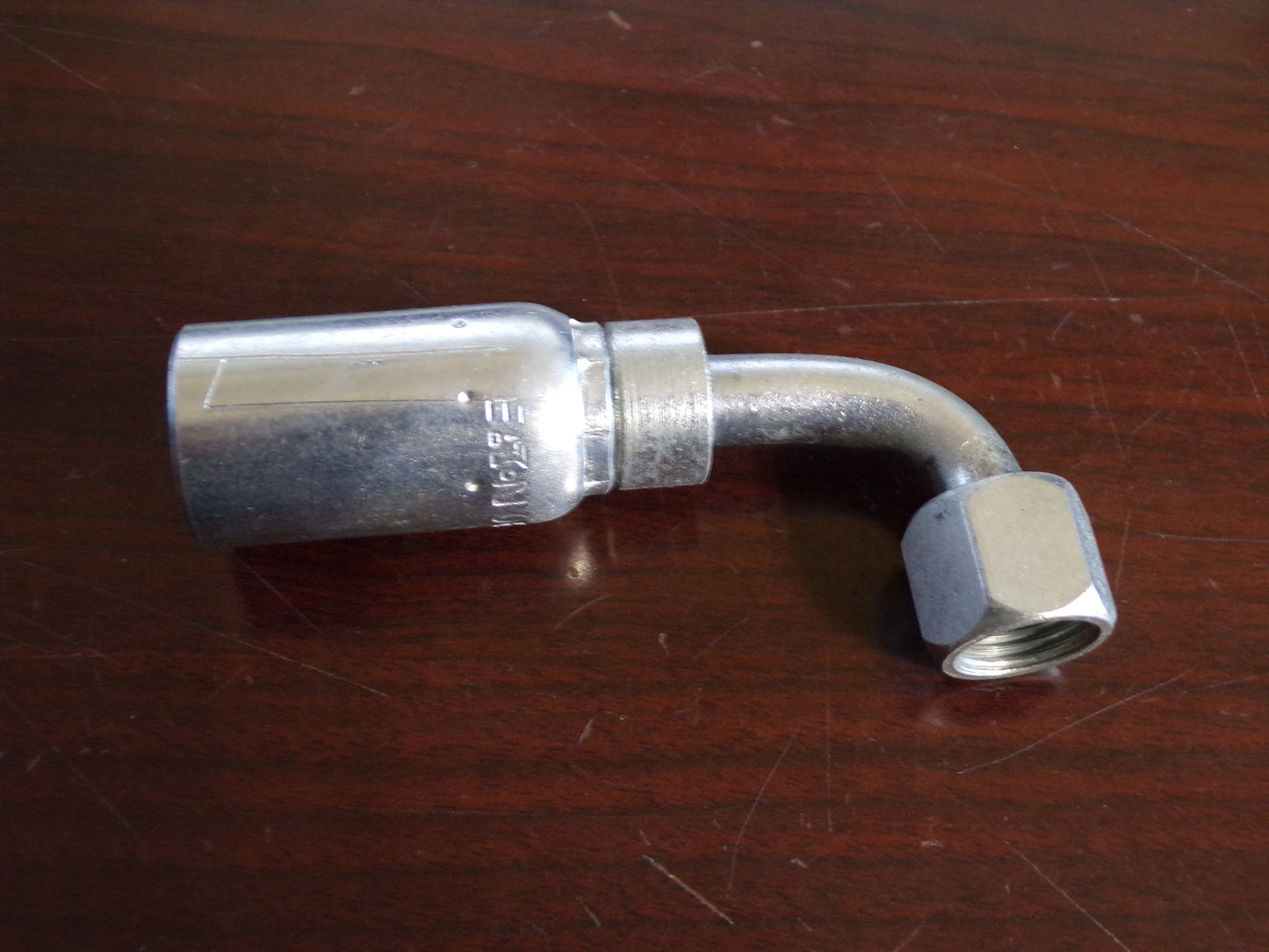

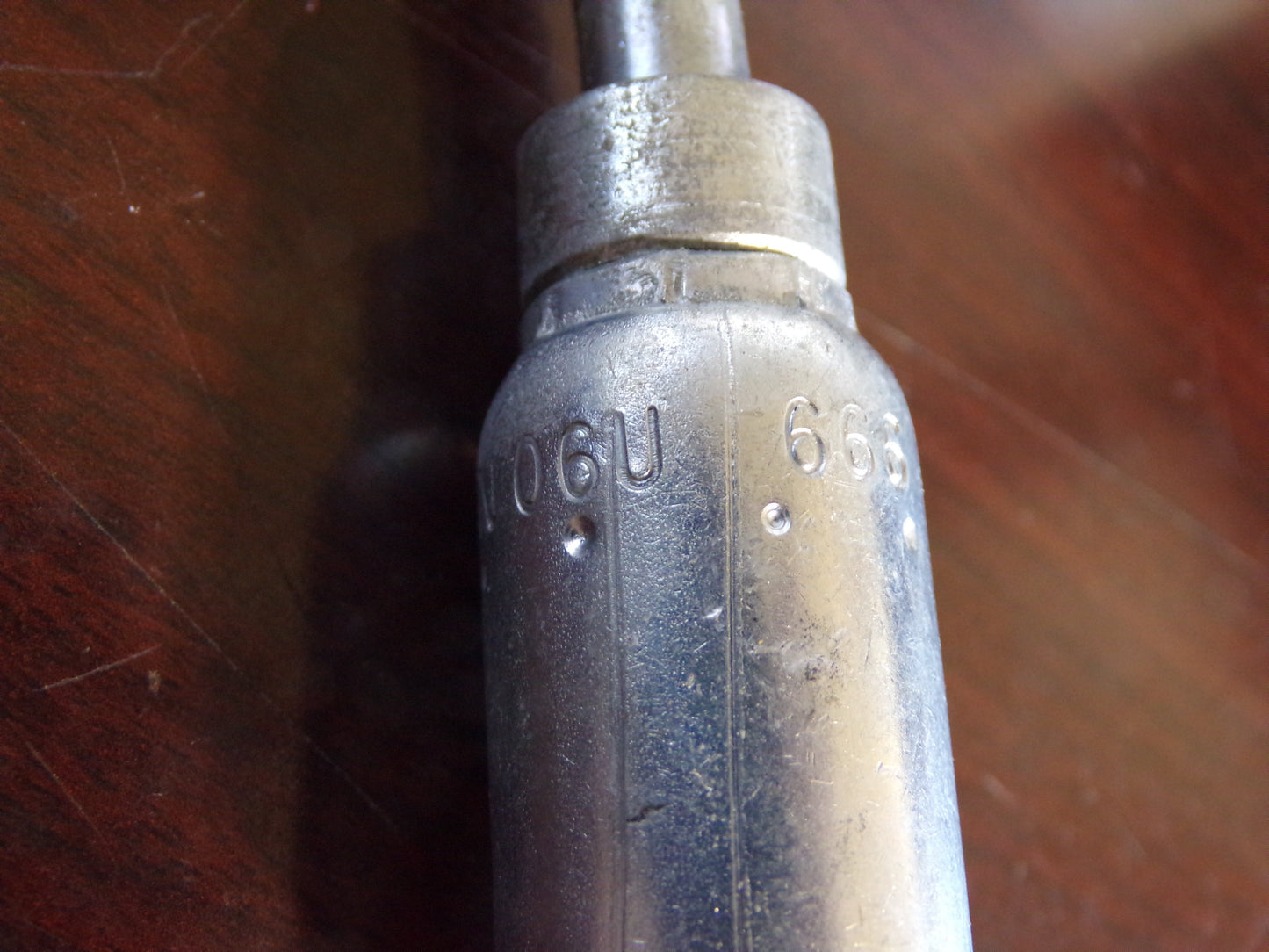

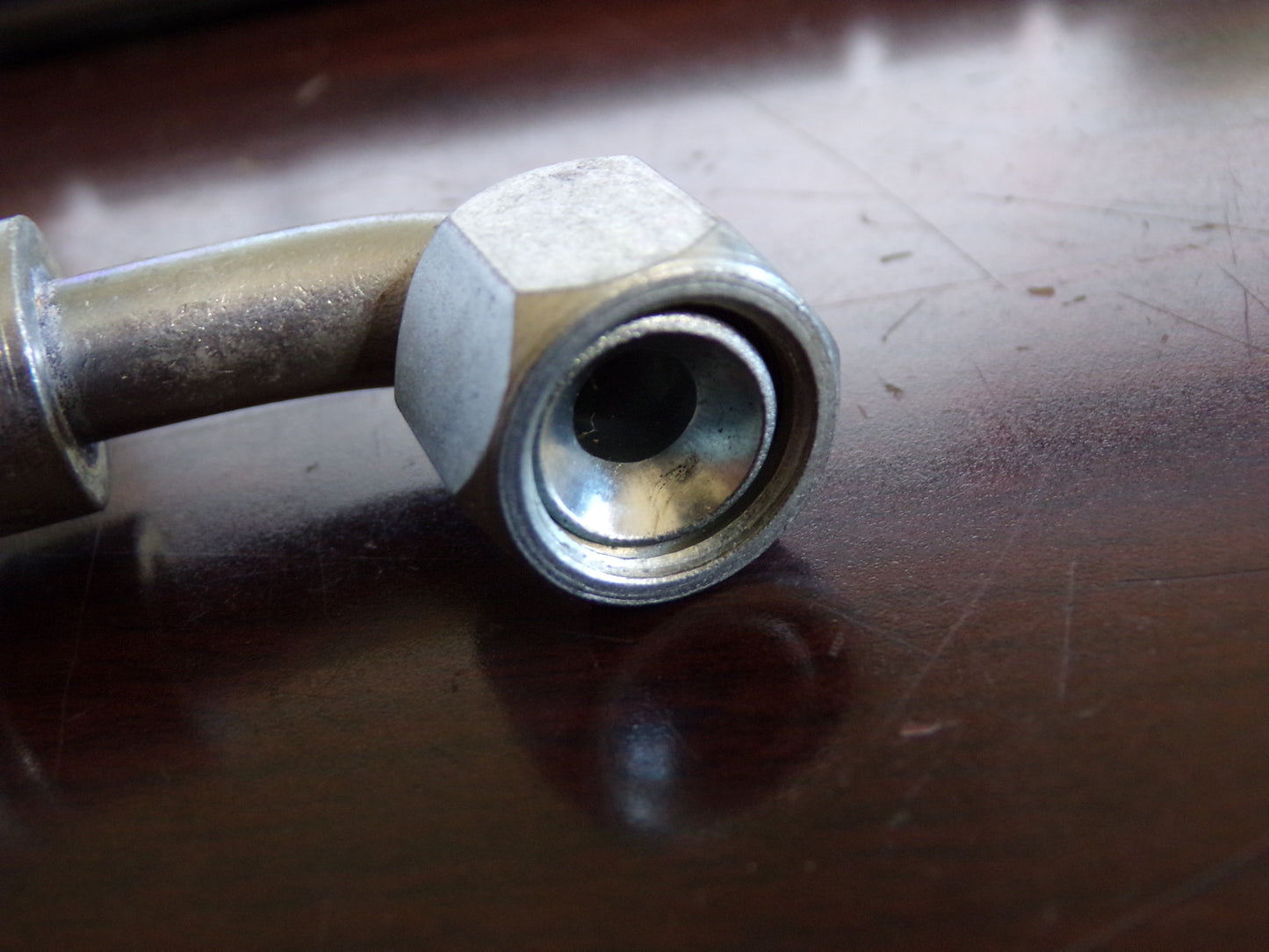

EATON WEATHERHEAD Crimp Fitting, 90 deg., 9/16", M, JIC, -6 (CR00491WTA12)

DISCONTINUED ITEM: NOS

Crimp hose fittings are used for general purpose industrial and hydraulic applications with low-, medium-, and high-pressure transfer of petroleum- and water-based hydraulic fluids. They connect Eaton Weatherhead series hydraulic hoses to compatible JIC (Joint Industry Council) threaded equipment or hoses. Made of carbon steel, they are stronger than steel hydraulic hose fittings and provide good wear resistance in applications where corrosion is not a concern. These fittings are secured using an Eaton crimping device for a permanent connection.

• Item: Hydraulic Crimp Fitting
• For Hose Dash Size: -6
• For Use With Hose Series: H017; H039; H104; H0105; H0106; H114; H115; H116; H145; H146; H245; H324; H325; H350; H425; H545; H900; H1571; H1776; H1777; H1812; H1981; H1982; H6002 (-8, -20); H9949
• For Hose I.D.: 3/8 in
• Thread Size: 9/16"-18
• Fitting Shape: 90 Degrees Elbow
• Fitting Movement: Swivel
• Vacuum Rating: Not Rated
• Thread Type: JIC
• Hose Fitting A Gender: Male
• Hose Fitting B Gender: Genderless
• Hose Fitting A Size: 9/16 in
• Hose Fitting B Size: 3/8 in
• Hose Fitting A Connection Type: JIC
• Hose Fitting B Connection Type: Crimp
• Fitting Material: Carbon Steel x Carbon Steel
• Material Grade: 12L14, 12L15
• Reusable: No
• Standards: SAE J516
