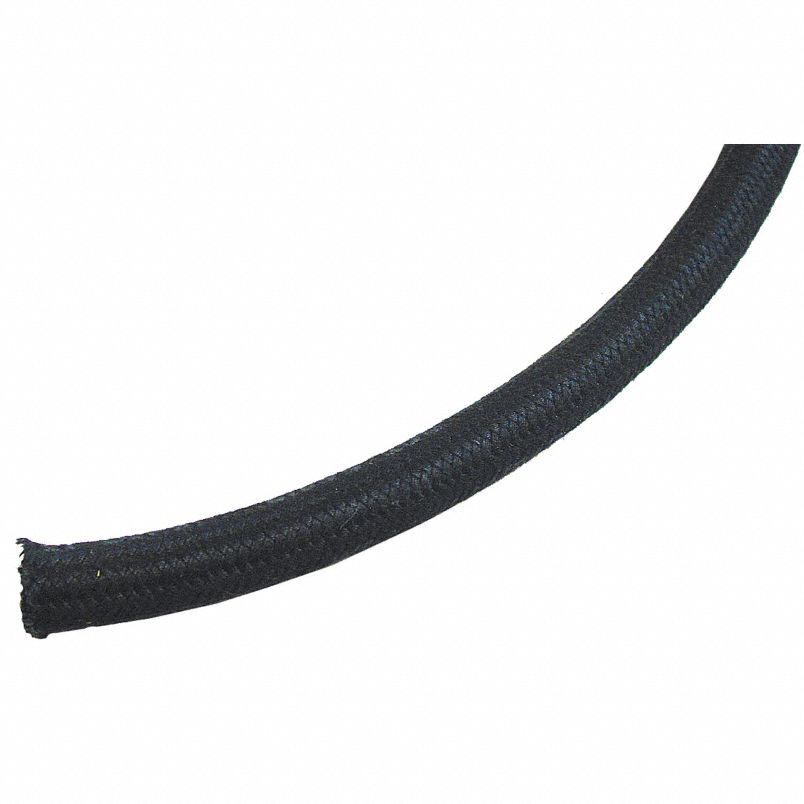

EATON WEATHERHEAD Hydraulic Hose, Max. Working Pressure @ 70 F 3,000 psi, Hose Inside Dia. 3/16 in (CR00468WTA)


Shipping calculated at checkout


Only 52 left!

Eaton Weatherhead H069 general purpose bulk truck and hydraulic hoses are used in fuel and grease lines and medium-pressure hydraulic applications. They are suitable for use with high-temperature petroleum oils. Hoses with an ID of 0.62" or less can be used for air-brake applications. The hoses have a nitrile tube and a fiber braid cover. They are reinforced with one fiber braid and one steel braid. Eaton Weatherhead H069 hydraulic hoses are compatible with Weatherhead E series crimpable fittings or Weatherhead D series or N series field-attachable fittings.

Bulk hydraulic hoses can be cut to a desired length, and compatible hose fittings can be attached to the ends of the hoses to create custom hydraulic hose assemblies that can be connected to equipment. Hydraulic hoses are used for transferring fluids in high-pressure petroleum- and water-based hydraulic systems commonly found on industrial, mining, and manufacturing equipment. These hoses are reinforced to maximize their strength.

  • Item: Hydraulic Hose
  • Hose Inside Dia.: 3/16 in
  • Hose Outside Dia.: 23/32 in
  • Hose Length: 50 ft
  • Hose Tube Material: Nitrile
  • Hose Cover Material: Fiber
  • Hose Reinforcement Type: Braid
  • Hose Reinforcement Material: Fiber
  • Hose Color: Black
  • Series: H069
  • Max. Working Pressure @ 70 F: 3,000 psi
  • Safety Factor: 4:1
  • Temp. Range: -40 Degrees to 212 Degrees F
  • Standards: ABS, DOT AII, SAE 100R5, SAE J1402 Type II
  • Hose Configuration: Bulk Hose
  • Compatible Chemicals: Air, Automatic Transmission Fluid, Diesel Fuel, Ethylene Glycol, Fresh Water, Fuel Oil, Gasoline, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Kerosene, Lubricated Air, Mineral Oil, Motor Oil, Salt Water
