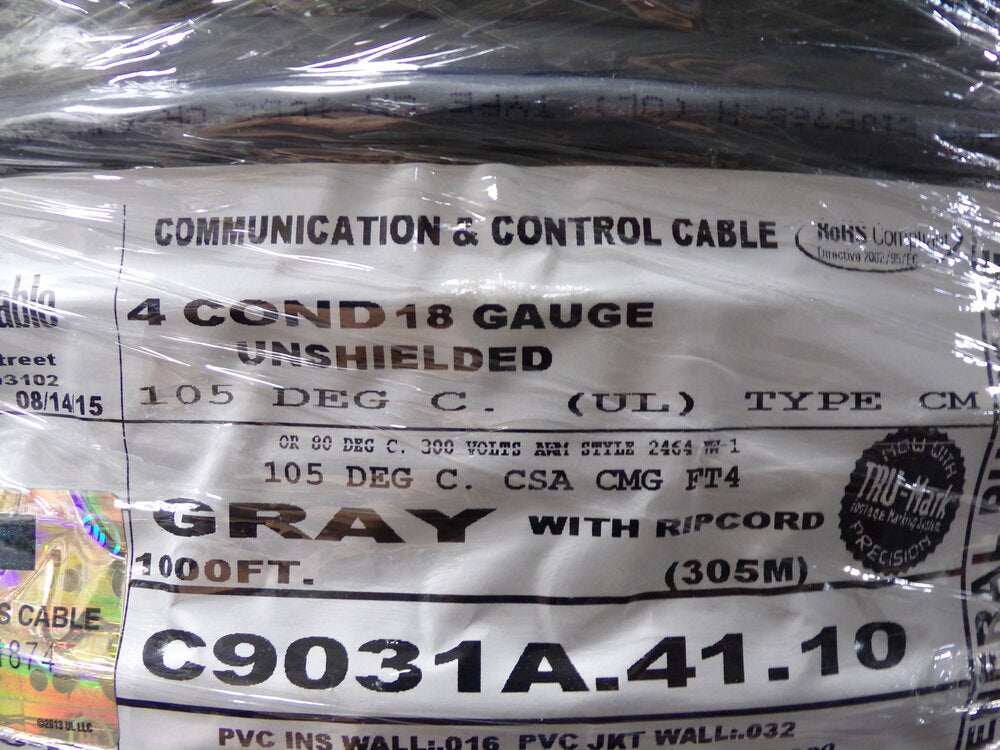

EXZEL Unshielded Communication Cable, 1000 ft Length, 4 Conductors: (0 Pair) (SQ9168375WT06)
$459.99 $899.99
Shipping calculated at checkout
SKU: SQ9168375WT06
This multi-conductor 18 AWG communication cable is suitable for wiring fire and security alarms in homes, offices, or other buildings.
Item - Data Cable: Communication Cable
Fire Rating - Data Cable: Commercial
Shielded: No
Total Number of Conductors - Data Cable: 4 (0 Pair)
Conductor Size - Data Cable: 18 AWG
Solid / Stranded: Stranded
Jacket Color: Gray
Spool Length: 1000 ft.
Application - Communication Cable: Computer Systems, Control Systems, Instrumentation Systems
Suggested Voltage Rating - Data Cable: 300V
NEC Article and Type: 800 CM
Package Type - Data Cable: Spool
Nominal Outside Dia.: 0.258"
Jacket Material - Wire and Cable: PVC
Shielding Material: None
Insulation Material: Color-Coded PVC
Temp. Range: -22 Degrees to 221 Degrees F
Standards: NEC Article 800 Type CM (UL: 105 Degrees C), UL Style 2464 (UL: 80 Degrees C, 300 V, VW-1), CSA Type CMG (CSA: 105 Degrees C, FT4), CE: Low-Voltage Directive (LVD) 2006/95/EC, RoHS Compliant Directive 2011/65/EU, Vertical Tray Cable Flame Test per UL 1581 and IEEE 383 (70,000 BTU)
