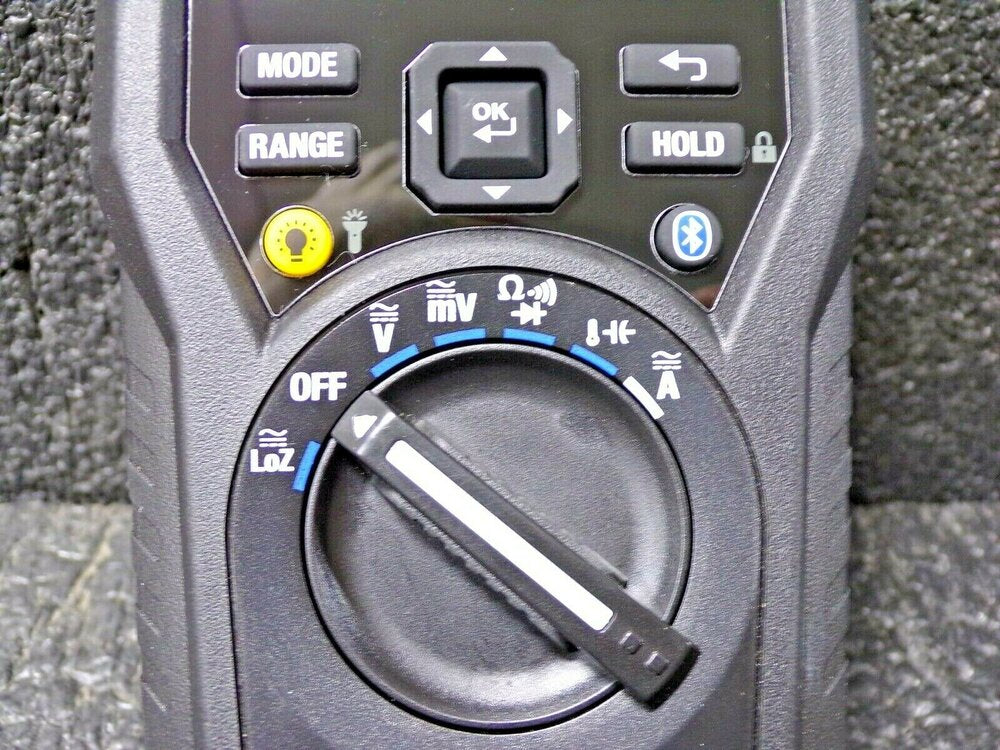

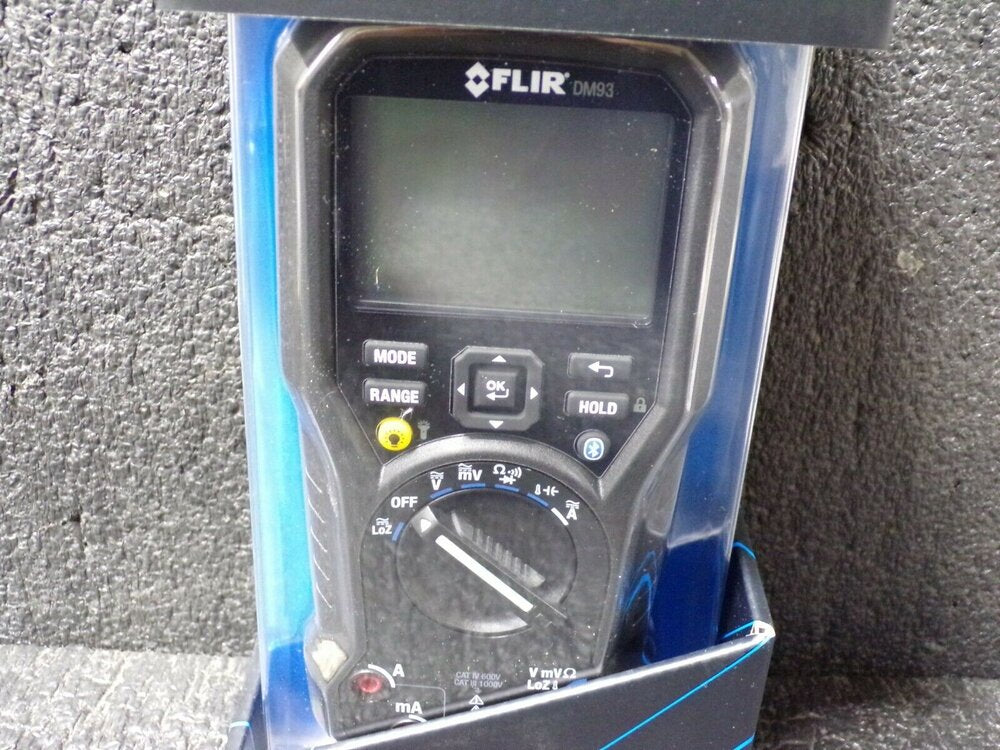

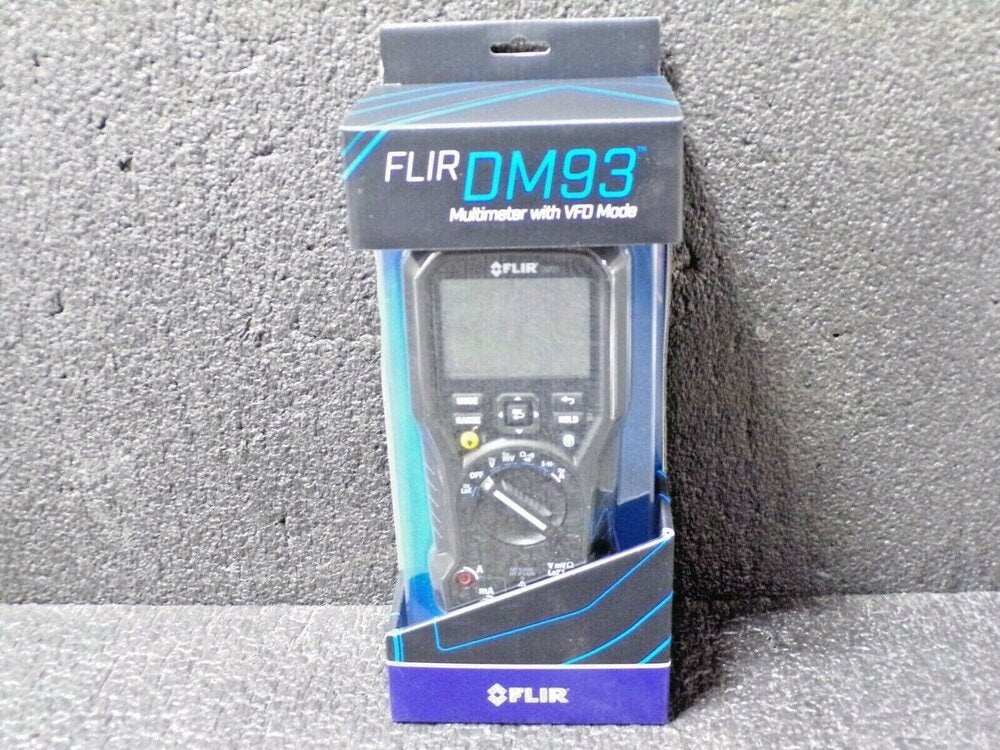

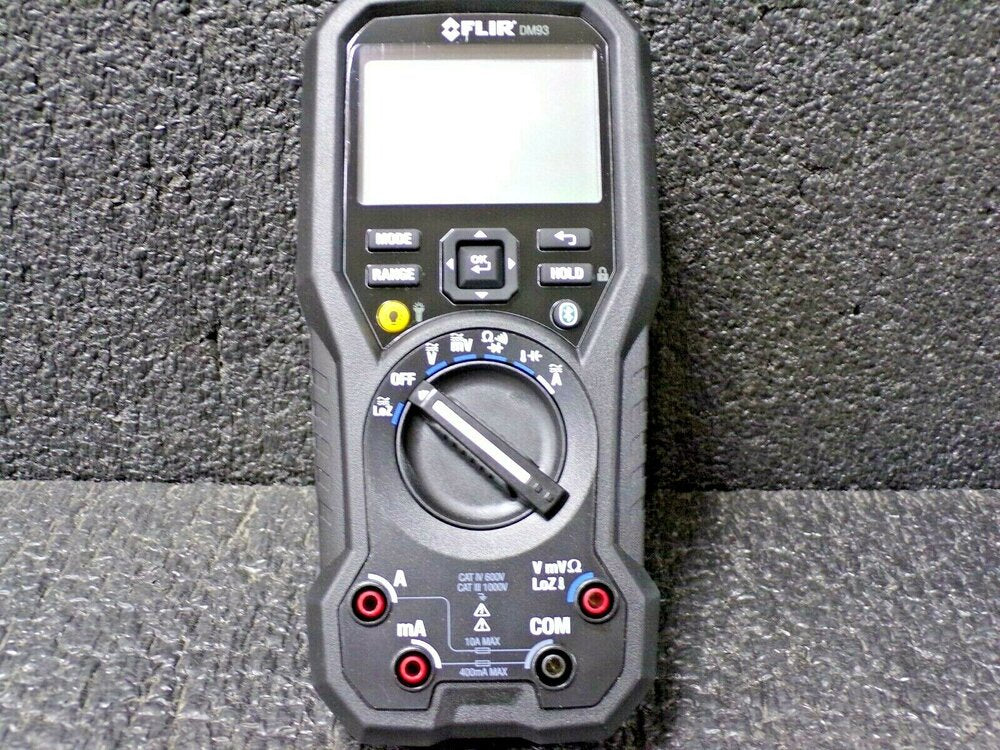

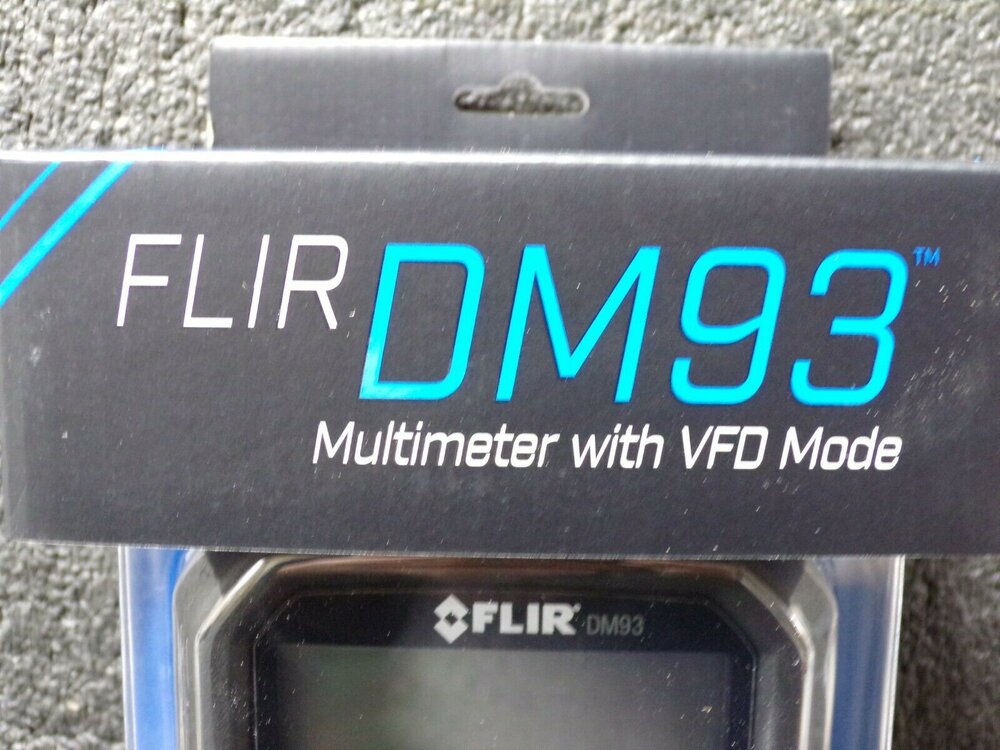

FLIR DM93 Series, Full Size - Advanced Features, Digital Multimeter (SQ9450471-K08)

The ruggedly built Digital Multimeter makes fast and accurate measurements with unparalleled precision. Designed for industrial environments, the VFD mode filters noisy variable frequency drives and enables accurate voltage and frequency measurements for maintenance and troubleshooting tasks. LoZ mode eliminates Ghost Voltage error readings caused by long wires that share a conduit. The FLIR DM93 connects to the FLIR Tools app on compatible mobile devices for remote viewing and sharing of data. METERLiNK technology wirelessly sends the meter’s electrical readings to compatible FLIR infrared cameras, embedding the data into live and saved thermal images. You can manually store/recall up to 99 readings or automatically record up to 20,000 readings which can be transferred wirelessly via Bluetooth to a PC or compatible mobile device using the FLIR Tools Mobile app. Engineered to meet the requirements of your workplace, this multimeter has a CAT IV-600V, CAT III-1000V overvoltage safety rating, CAT IV-1000 Volt UL listed double-coated Silicone Test Leads.

• Item: Digital Multimeter

• Multimeter Style: Full Size - Advanced Features

• Instrument Counts: 4000/40,000

• Basic DC Accuracy: +/-0.05% of Reading + 1 Digit

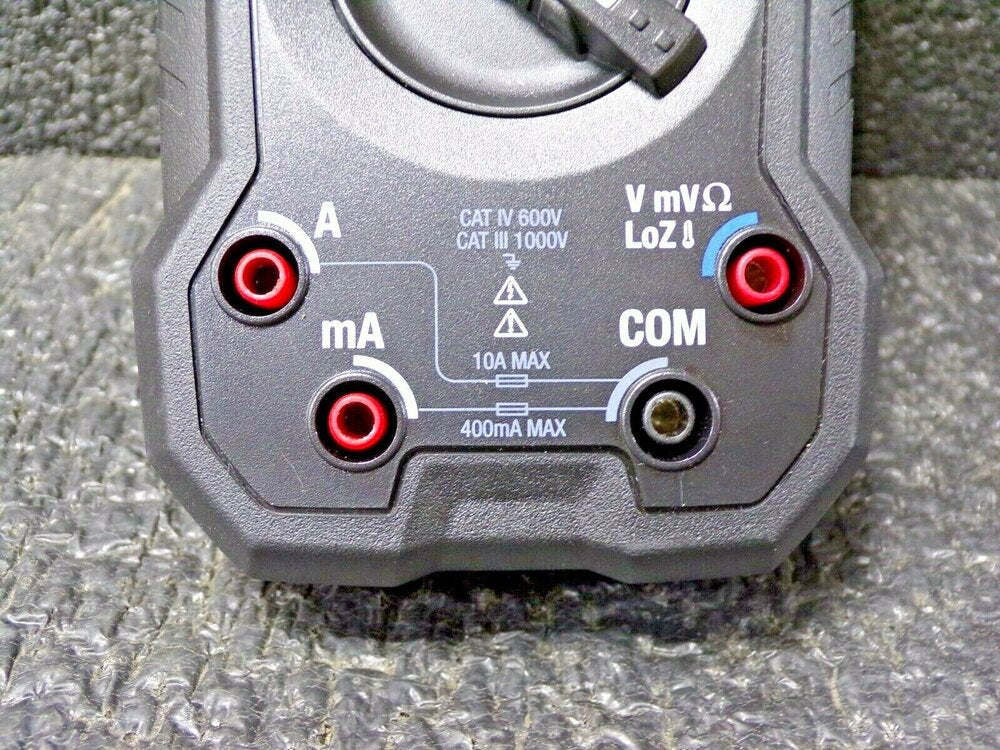

• Instrument Safety Rating: CAT IV 600V

• Max. AC Volts: 1,000

• Max. DC Volts: 1,000

• Max. AC Amps: 10

• Max. DC Amps: 10

• Audible Continuity: Yes

• Max. Ohms: 40 megohm

• Instrument Frequency Counter Range: 5 Hz to 100 kHz

• Capacitance Range: 40 nF to 40 mF

• Temp. Range: -328 Degrees to 2192 Degrees F

• Duty Cycle: Yes

• Display: LCD

• Bar Graph: Yes

• Min./Max. Memory: Max/Min/Avg

• Data Logging: Yes

• Peak Hold: Yes

• Battery Type: AAA Alkaline

• AC Response: TRMS

• Interface: Bluetooth

• Data Hold: Yes

• Auto Ranging: Yes

• Special Features: VFD Mode

• Diode Test: Yes

• Auto Power Off: Yes

• Calibration Certificate Included: No

• Standards: CE, UL

• Series: FLIR (R) DM93

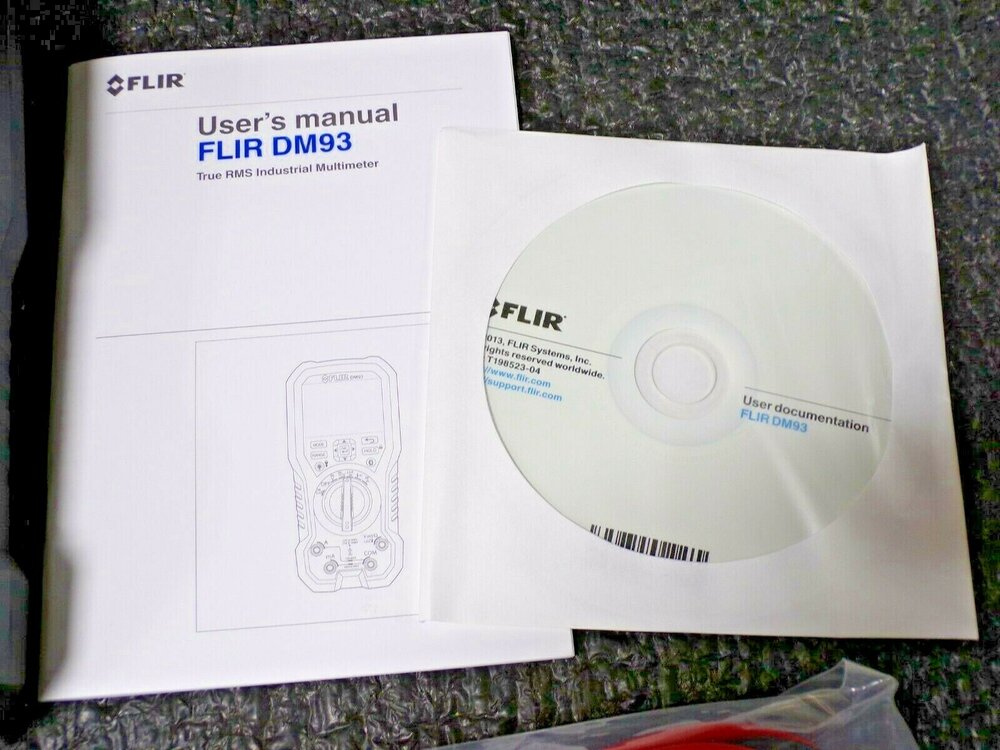

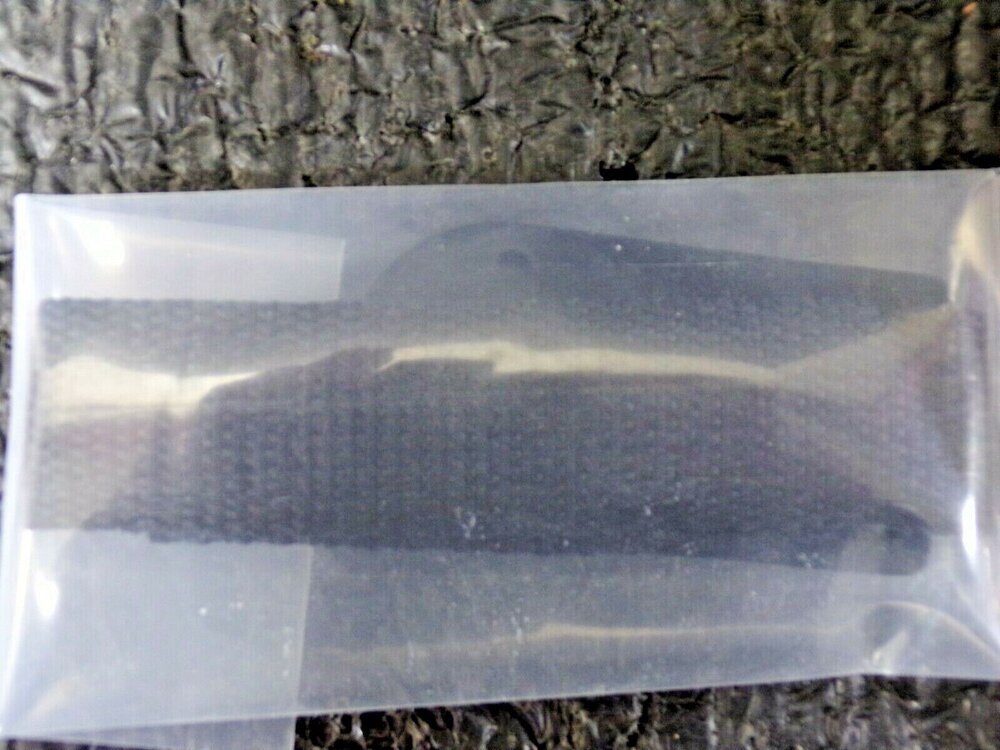

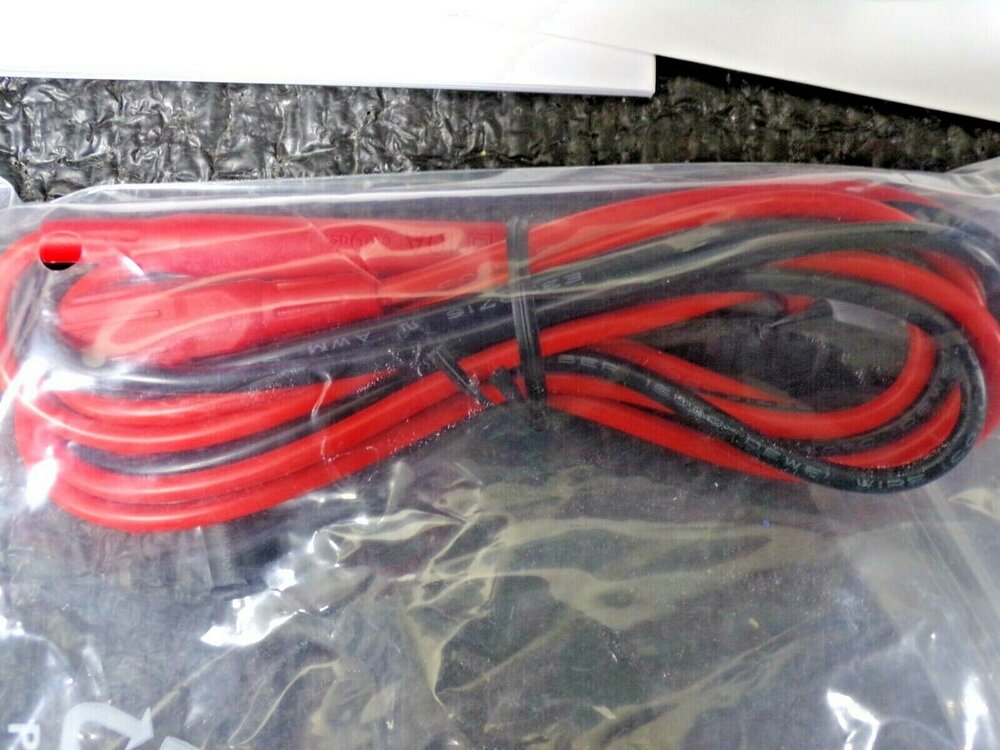

• Includes: Test Leads, Type K Temperature Bead Probe, Instructions
